Managing Virtual Edges and Virtual Edge Nodes

This article covers the tools available in Cloud Control Center for effectively managing Virtual Edges (VEs) and Virtual Edge Nodes (VENs) within the Elisity platform. In this article, we will cover the essentials for monitoring the status and viewing detailed information for your VEs and VENs. Additionally, we will guide you through the processes of creating and configuring VEs and VENs, including setting up site labels and distribution zones, which are crucial for a well-structured network environment. This guide aims to provide clear, step-by-step instructions and insights to streamline your network management tasks.

Virtual Edge Dashboard

Virtual Edges and Virtual Edge Nodes are managed on two pages under Edge Management in the left navigation: Virtual Edges and Virtual Edge Nodes. Each page has a collapsible Summary section above its table.

Virtual Edges Page

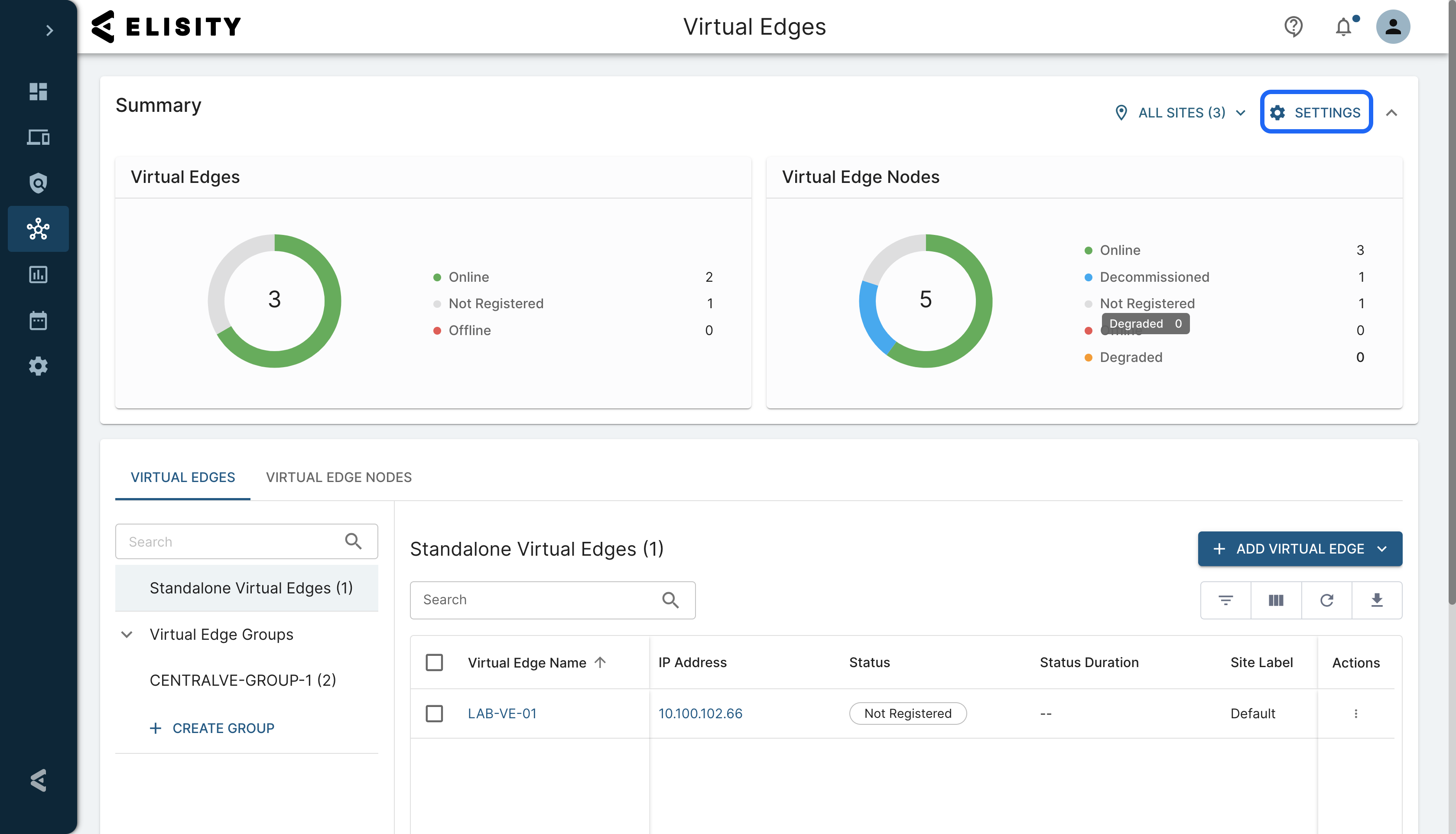

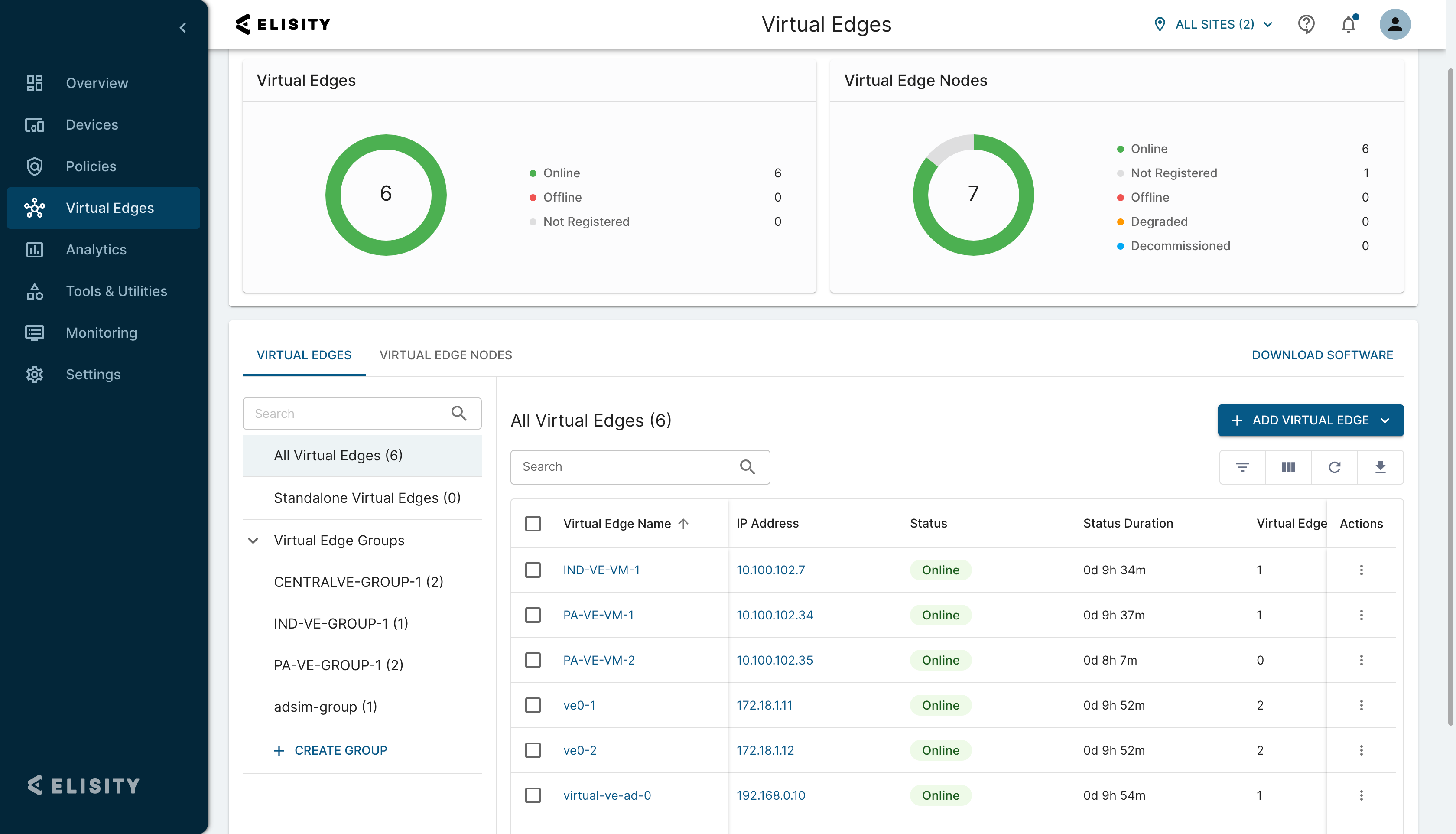

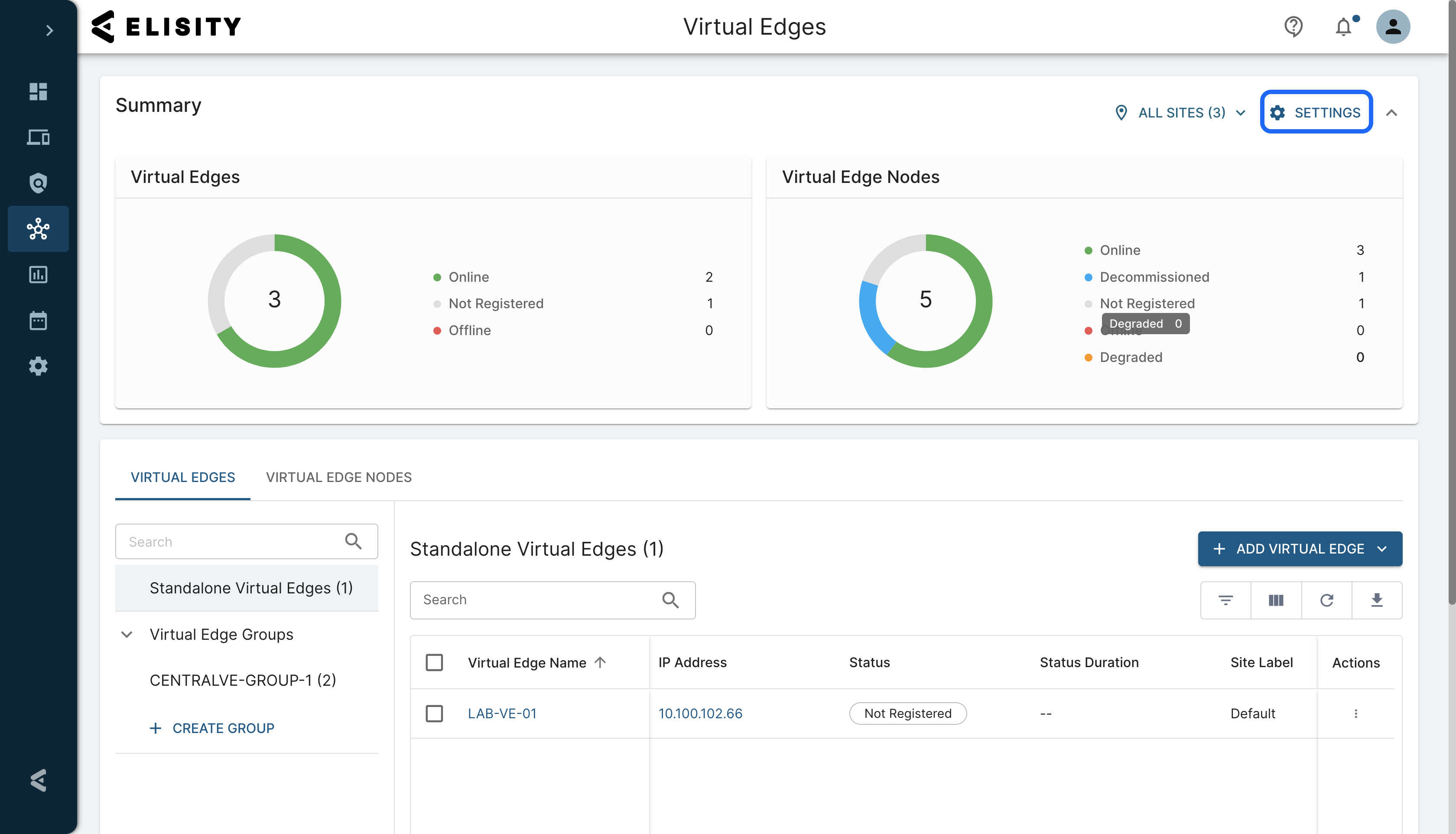

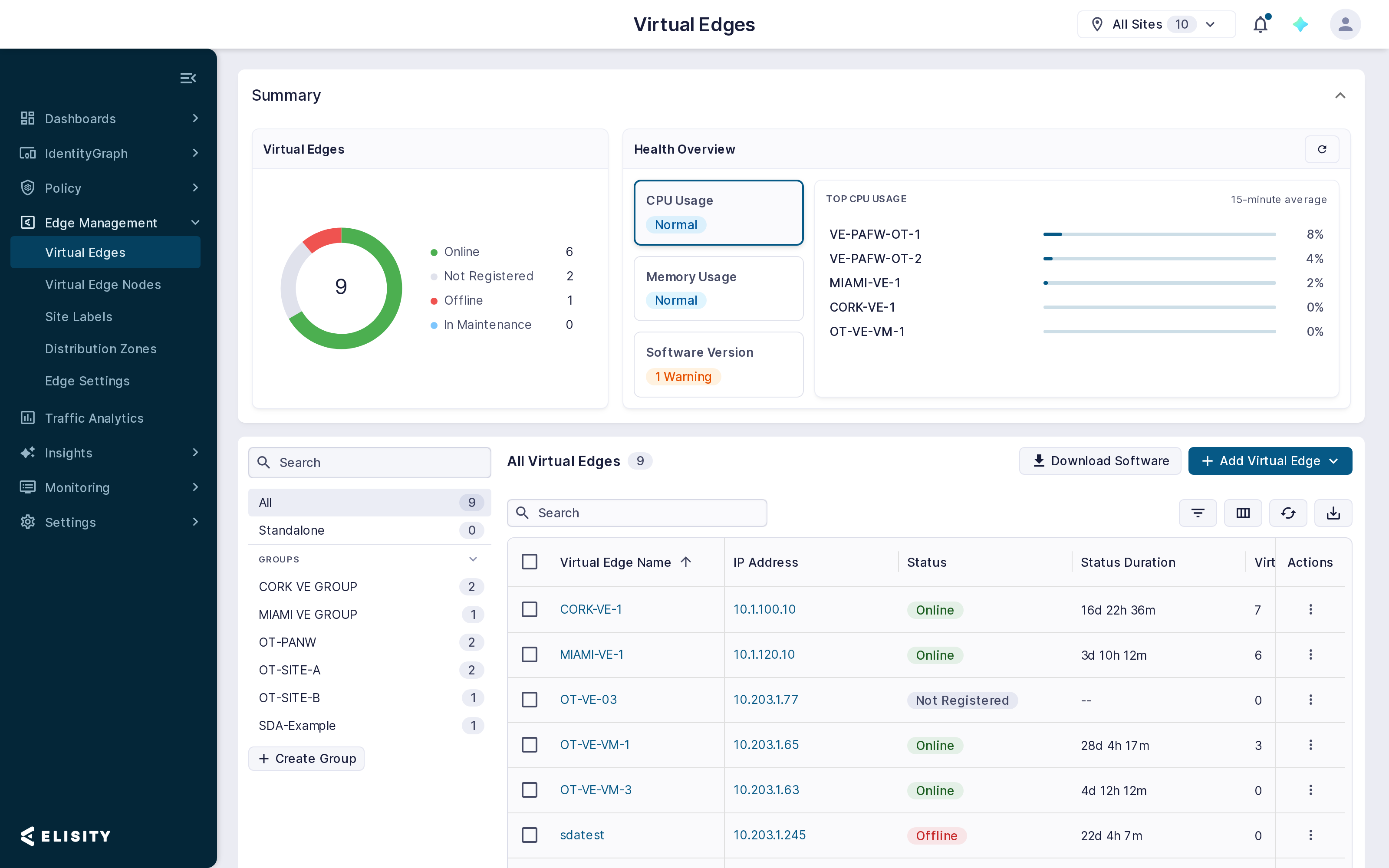

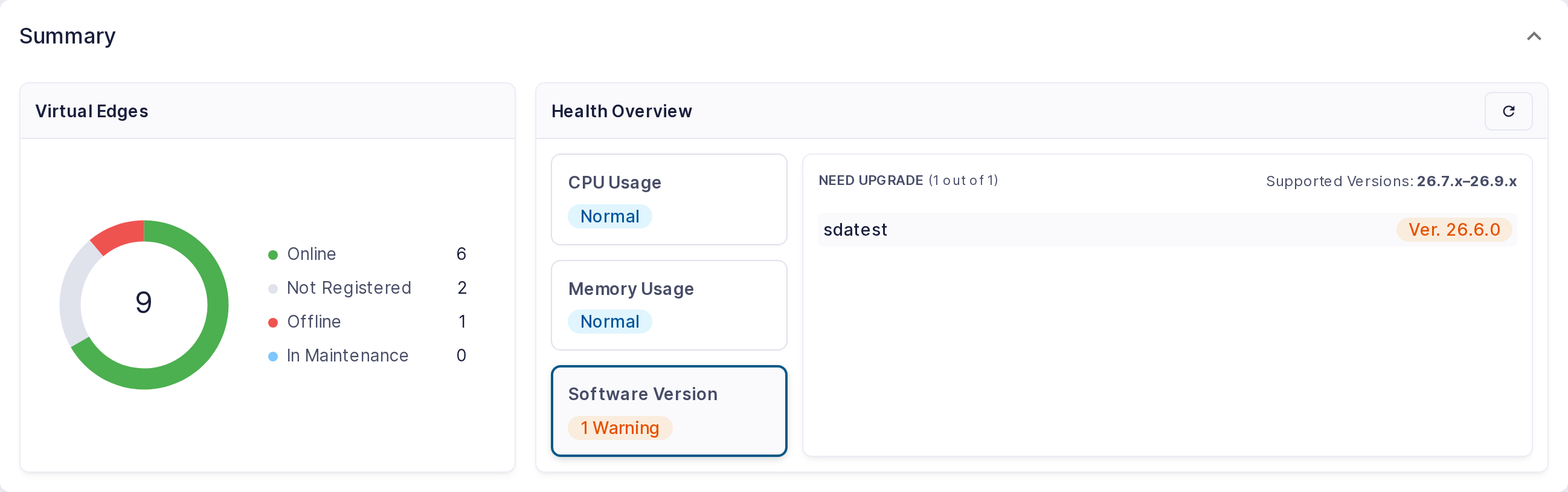

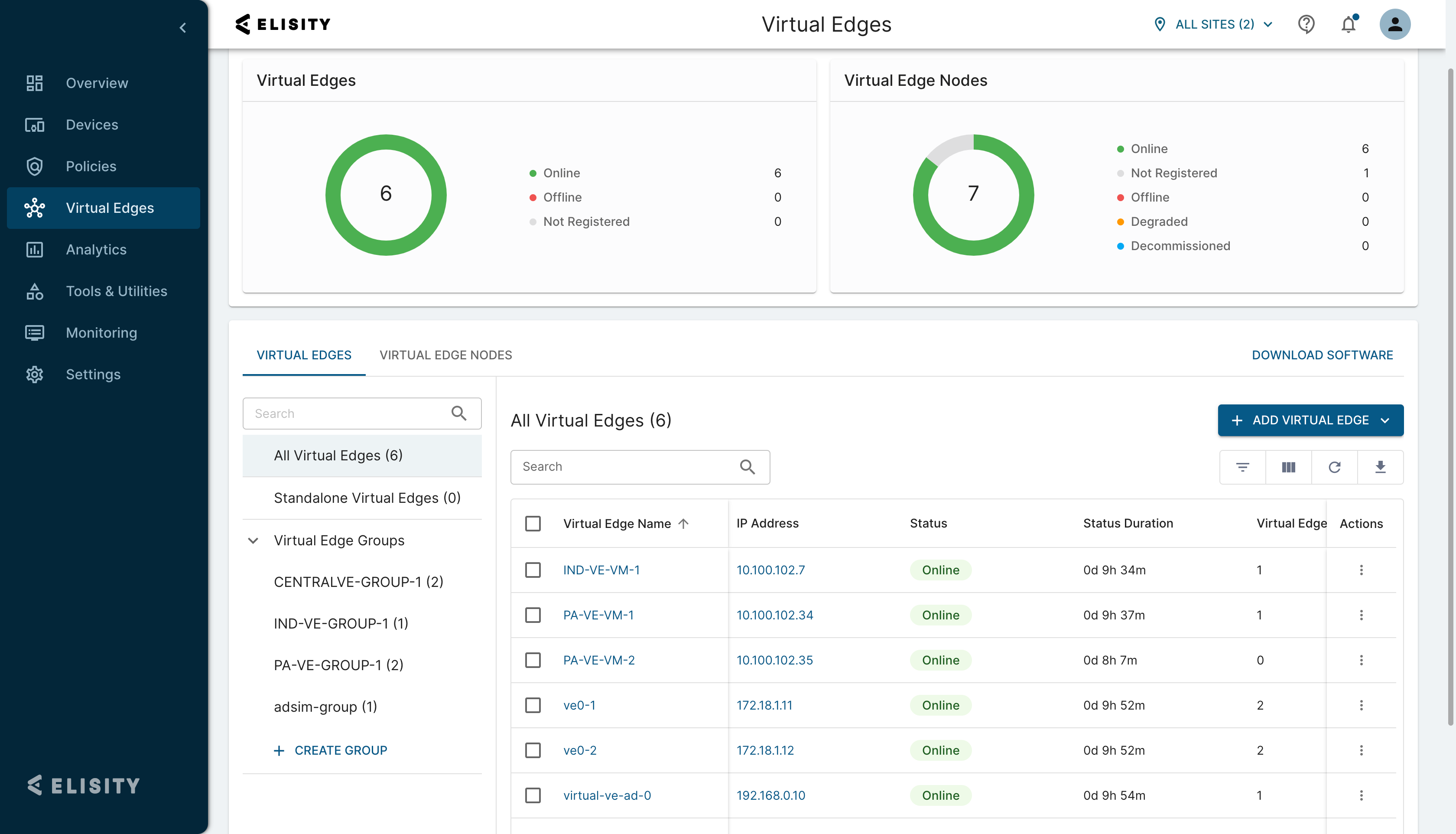

The Summary section of the Virtual Edges page contains a status chart and the Health Overview panel. The status chart displays the total number of Virtual Edges and one slice per status. Clicking a slice filters the table to the Virtual Edges with that status.

Health Overview contains three cards: CPU Usage, Memory Usage, and Software Version. CPU Usage is selected by default. Selecting a card displays its detail panel on the right. Clicking a Virtual Edge name in a detail panel opens the details view for that Virtual Edge.

Card	Description
CPU Usage	Displays a Critical chip and a Warning chip with the number of Virtual Edges at each level, or a Normal chip when no Virtual Edge is above the thresholds. The Top CPU Usage panel lists the five Virtual Edges with the highest 15-minute average CPU utilization.
Memory Usage	Displays the same chips for memory utilization. The Top Memory Usage panel lists the five Virtual Edges with the highest 15-minute average memory utilization.
Software Version	Displays a Warning chip with the number of Virtual Edges that need an upgrade, or a Normal chip. The Need Upgrade panel shows the Supported Versions range and lists up to five Virtual Edges running the oldest versions, or No Issues when every Virtual Edge is in range.

Clicking a chip on the CPU Usage or Memory Usage card filters the table to those Virtual Edges. The filter is applied as a regular column filter. A filter indicator appears in the top-right corner of the card. Hover over the indicator and click X to clear the filter. Clicking the chip on the Software Version card sorts the table by Software Version, oldest first.

CPU and memory severity levels are as follows:

Severity	CPU or Memory Utilization (15-Minute Average)
Critical	90% or higher
Warning	80% to 89%
Normal	Below 80%

Virtual Edges that are Offline or Not Registered, or that have not reported metrics, show -- in the CPU Usage and Memory Usage columns and are not counted in the CPU Usage and Memory Usage cards. The supported software range covers the three most recent Virtual Edge releases relative to the Cloud Control Center version. A Virtual Edge running a version outside this range counts as needing an upgrade, including Offline Virtual Edges.

Selecting the Software Version card displays the Need Upgrade panel.

Health Overview does not refresh automatically. Click the refresh button at the top right of the panel to update it; its tooltip shows the time of the last update. Health Overview reflects the site selector, the selected Virtual Edge Group, the table search, and all column filters.

The table includes the Virtual Edge Name, IP Address, Status, Status Duration, Site Label, Software Version, number of connected Virtual Edge Nodes, Distribution Zone, and available Actions. The CPU Usage and Memory Usage columns display Critical, Warning, or Normal chips. These columns are hidden by default. Add them with the column selector. When a Virtual Edge runs a version outside the supported range, the Software Version column displays a warning icon with a Needs upgrade tooltip. You can add, remove, and rearrange the table columns.

The list on the left side of the page displays All, Standalone, and each Virtual Edge Group with its Virtual Edge count. Selecting an entry scopes the Summary section and the table to it. Hovering over a group replaces its count with a ⋮ menu with options to edit or delete the group. If a group has a description, click its info icon to read it. For more information, see Virtual Edge Groups.

Virtual Edge Nodes Page

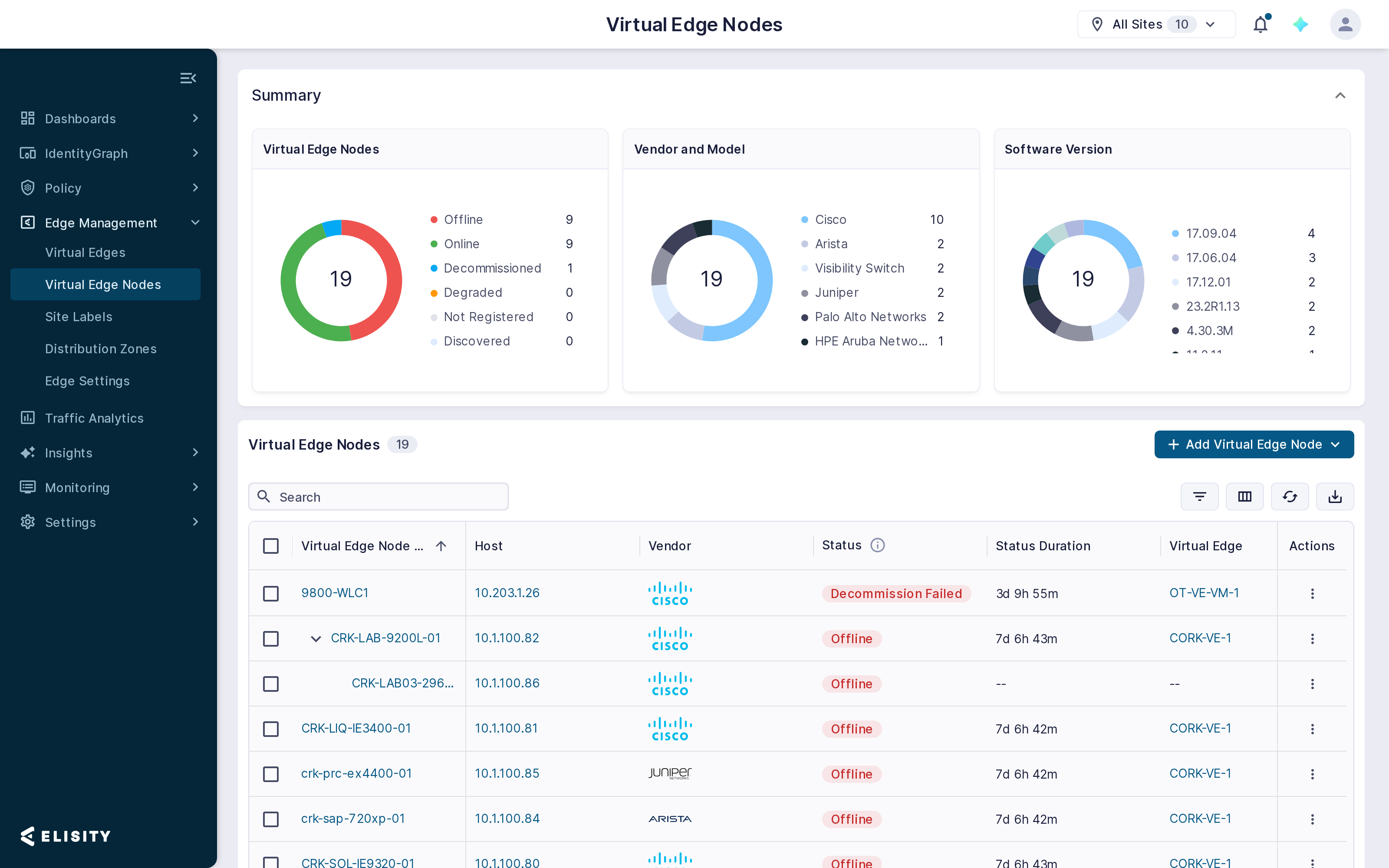

The Summary section of the Virtual Edge Nodes page contains three charts: a status chart titled Virtual Edge Nodes, Vendor and Model, and Software Version.

Chart	Description
Virtual Edge Nodes	Displays the total number of nodes and one slice per status: Online, Offline, Degraded, Not Registered, Decommissioned, and Discovered. Not Registered also includes nodes in the Registration Failed and Recommission In Progress states. Visibility Nodes that are not yet onboarded count as Discovered.
Vendor and Model	Displays nodes by vendor. Clicking a vendor displays that vendor's models, and the chart title changes to include the vendor name, for example Vendor and Model (Cisco). Clicking a model adds a Model filter. The filter indicator on the card clears both filters.
Software Version	Displays nodes by the software version running on the device, not the Elisity software version.

Clicking a slice applies the matching column filter to the table, and all three charts update to reflect the filtered set. Clicking the selected slice again clears the filter. Each chart displays up to 49 values plus an Other slice, which cannot be used as a filter. Visibility Nodes are counted in all three charts. The Vendor and Model and Software Version charts exclude Not Registered nodes and nodes with no value, so their totals can be lower than the status chart total.

The count badge next to the Virtual Edge Nodes table title counts Virtual Edge Nodes and Visibility Nodes, and matches the total in the status chart. Hover over the badge to see the number of Virtual Edge Nodes and Visibility Nodes. The row count at the bottom of the table includes only top-level rows, so it can be lower than the badge.

Rockwell Stratix switches onboarded as Visibility Nodes display the Rockwell Automation logo in the Vendor column and in the node details view, and appear as Rockwell Automation when filtering or grouping by vendor. The node type for these switches is Visibility Switch.

Clickable In-Depth Status Reports

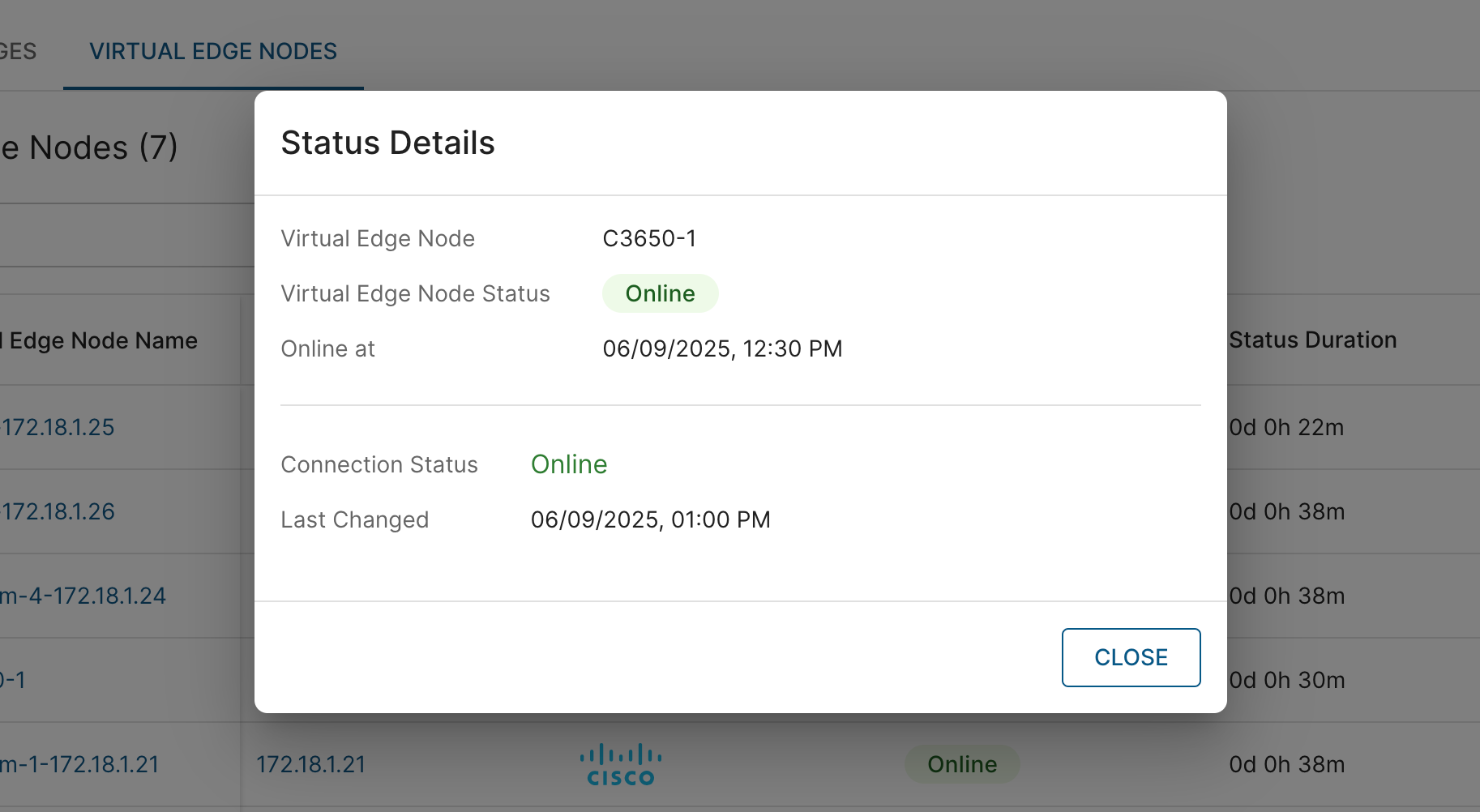

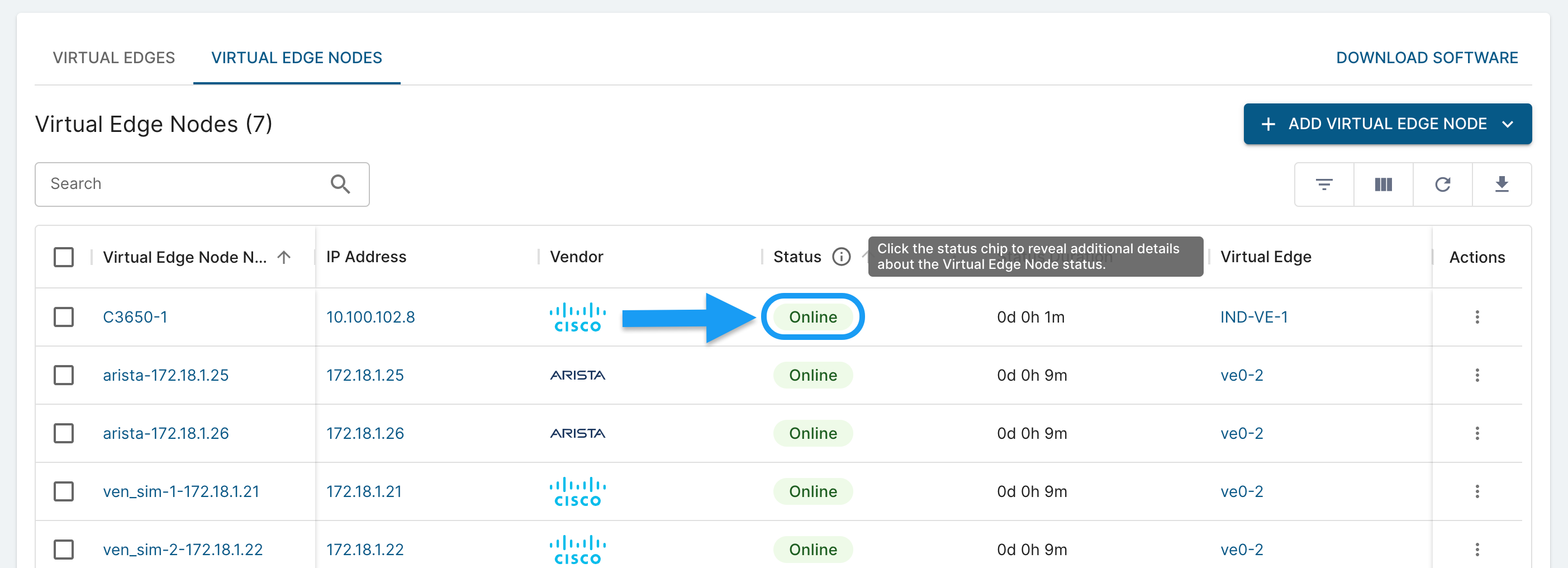

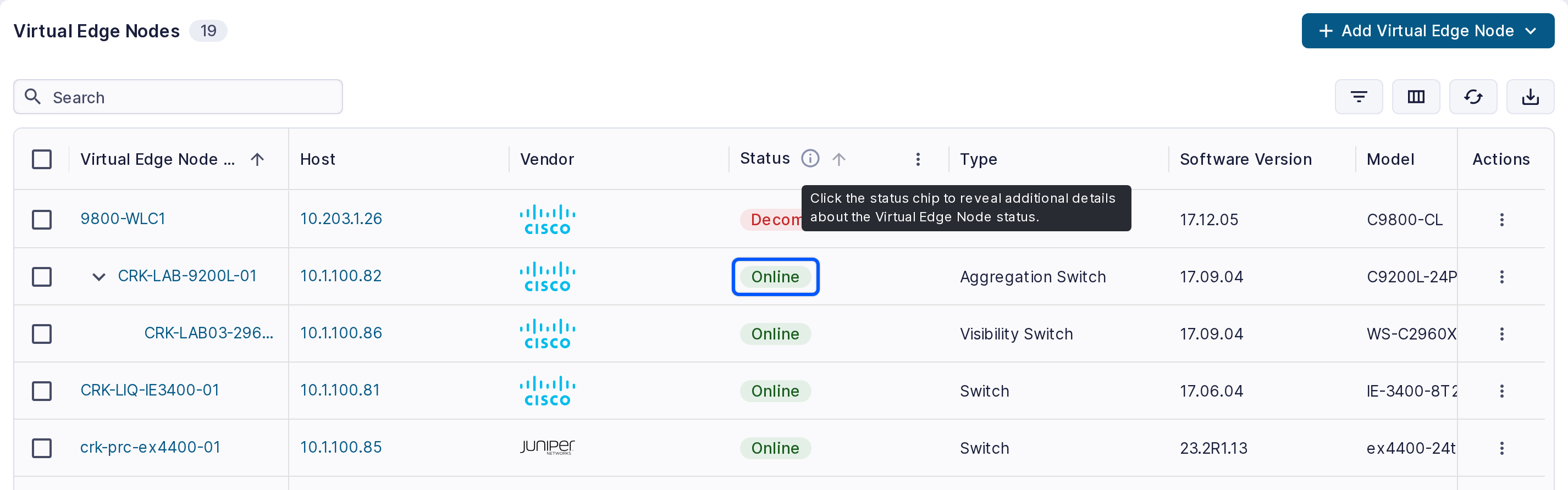

In the Virtual Edge Nodes table (on the Virtual Edge Nodes page and in the Virtual Edge details view) you can click the Status of any Virtual Edge Node to see more details about the connection status.

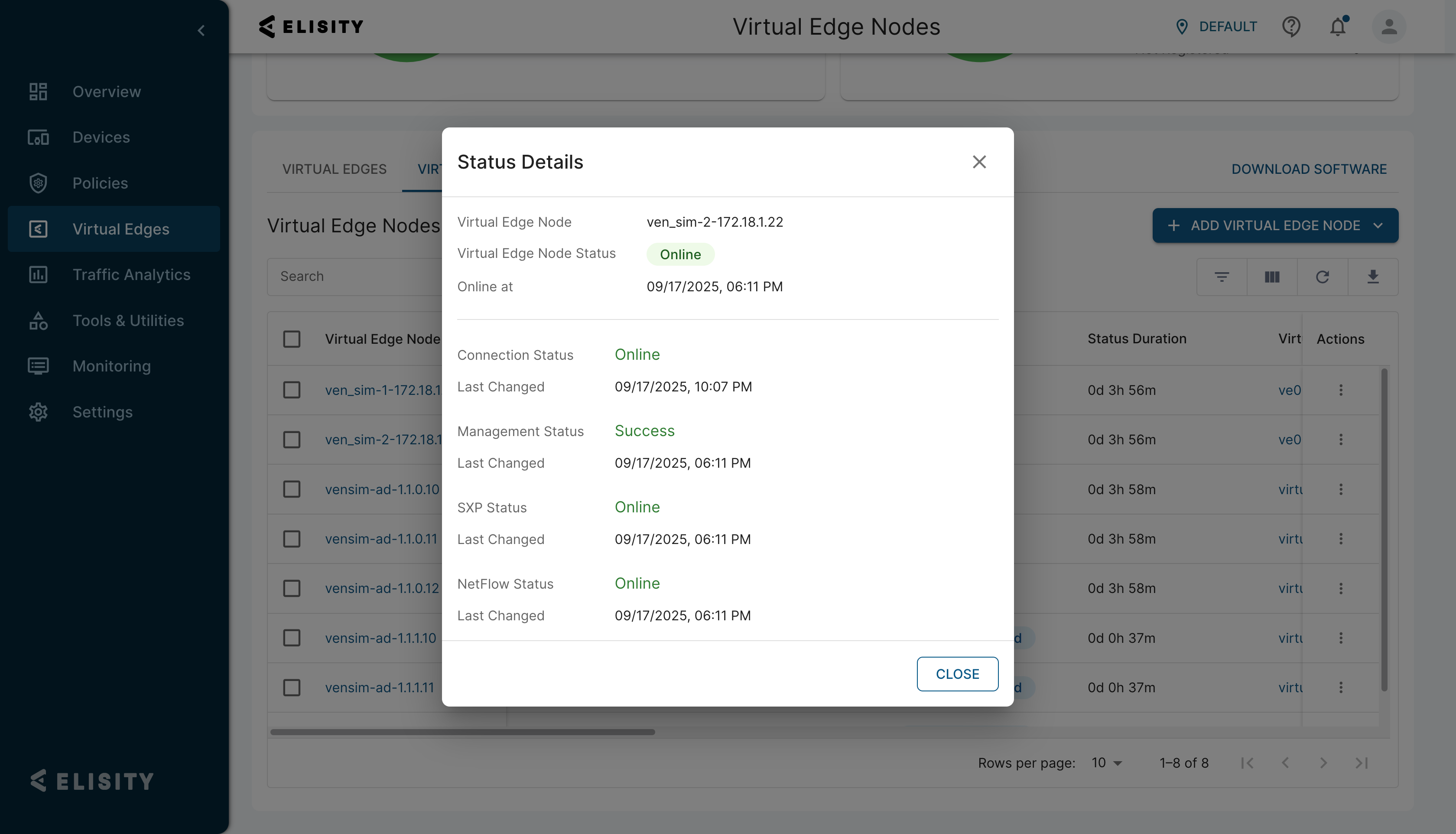

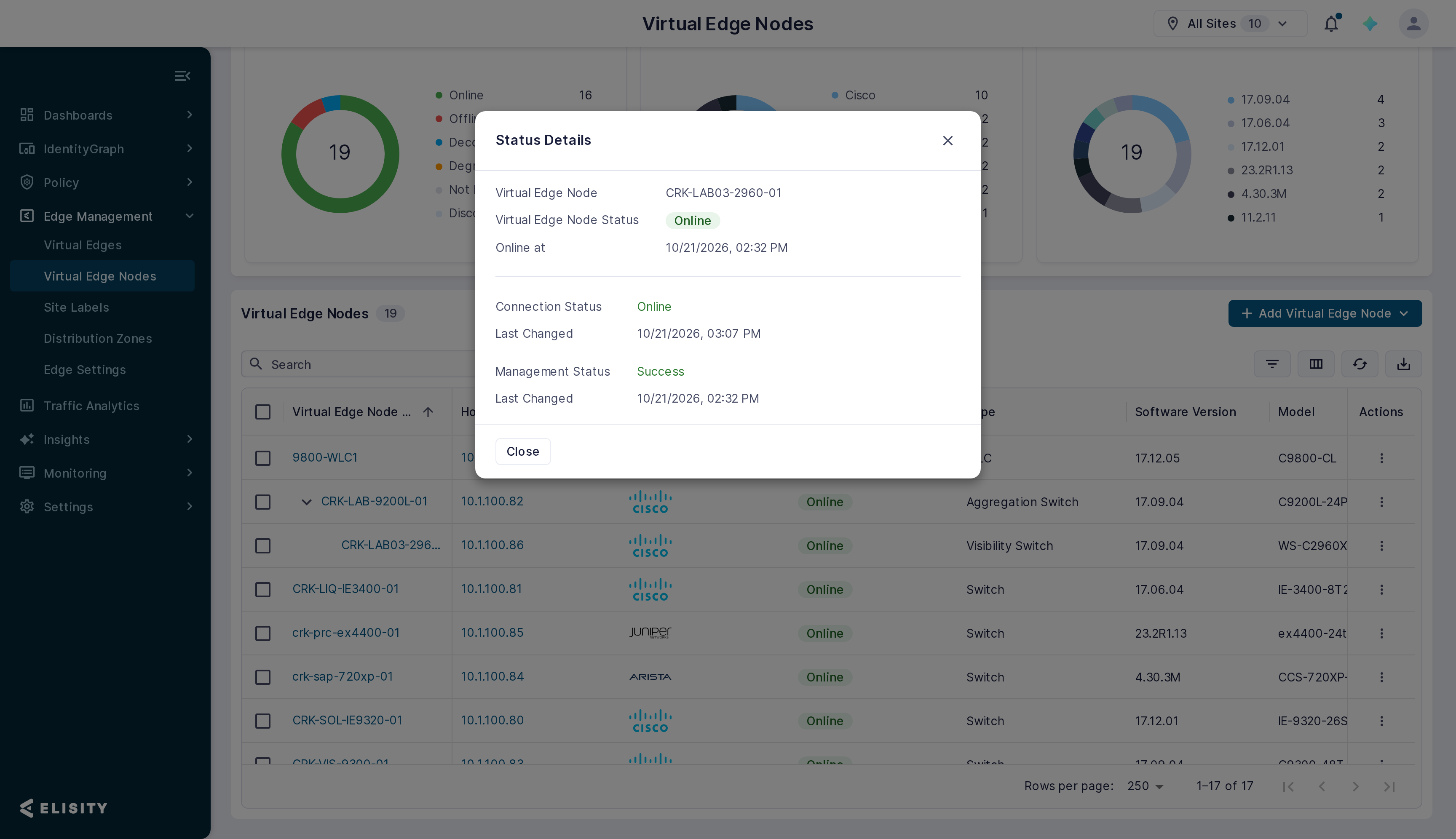

Below is a breakdown of the connection Status Details available on clicking Status. For each of these, a Last Changed timestamp is included in the Status Details view.

The Virtual Edge Node Status will be one of the following:

VEN Status	Description
Online	All applicable statuses are Online - no errors present.
Offline	The Connection Status is Offline - The VEN is not reachable.
Degraded	Management status has a persistent failure for 5 minutes or more, or SXP status is offline. Status Details will show more information.
Decommissioned	The VEN has been successfully decommissioned and the Elisity configuration was successfully removed.
Decommission Started	The decommission process has started and is currently in progress. Status will update with either "Decommissioned" or "Decommission Failed" when the process completes.
Decommission Failed	The VEN could not successfully be decommissioned. Elisity configurations are likely still present and will need manually removed, or the decommission script needs executed. Reach out to your Elisity engineer for assistance if needed.



Status for various connection metrics which impact the Virtual Edge Node status can be seen as well, directly below the Virtual Edge Node Status. Refer to the following table:

Status Type	Status Description
Connection Status	Online: Network connectivity to the VEN is stable. Offline: Network Connectivity to the VEN is lost and the VEN is unreachable. This results in an Offline VEN status.
Management Status	Success: The VE can successfully establish a new SSH session with the Virtual Edge Node VEN using the configured credentials. Failure: The VE is not able to establish SSH connectivity to the VEN. Failure messages will appear with more information.
SXP Status	Online: SXP connectivity to the VEN is stable. Offline: SXP connectivity to the VEN is lost and the VEN is unreachable. This results in a Degraded VEN status.
Netflow Status	Online: Netflow status is up and data is being received from the VEN. Offline: Netflow status is down and Netflow data is not being received. This results in a Degraded VEN status.



Virtual Edge Actions

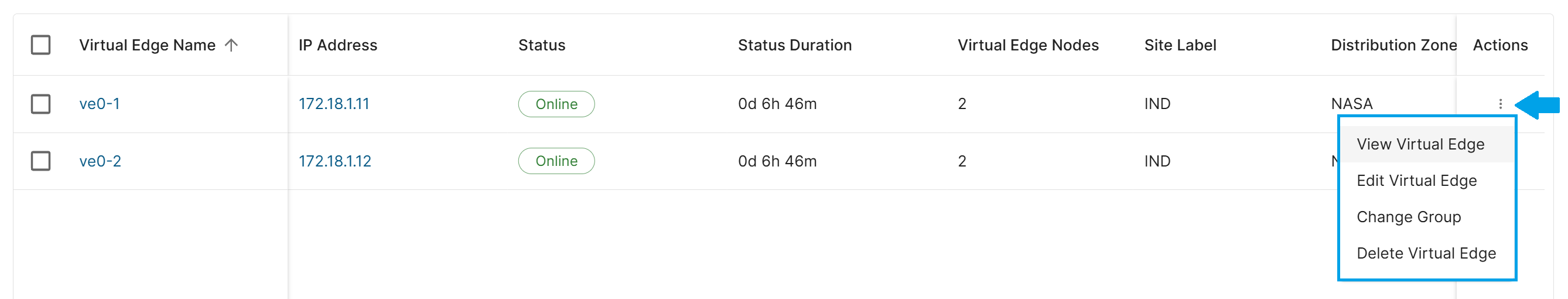

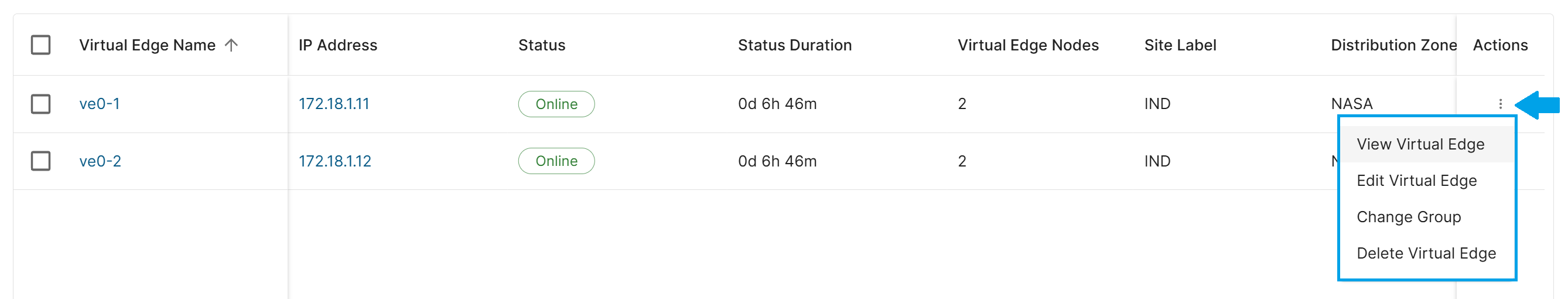

Clicking on the Actions button to the far right of a Virtual Edge within the table reveals available actions for the Virtual Edge. These actions include the following:

View Virtual Edge: Opens the details view for the selected Virtual Edge. This action performs the same function as clicking on the Virtual Edge name or IP Address in the table.

Edit Virtual Edge: Change the Virtual Edge Host Name or Description.

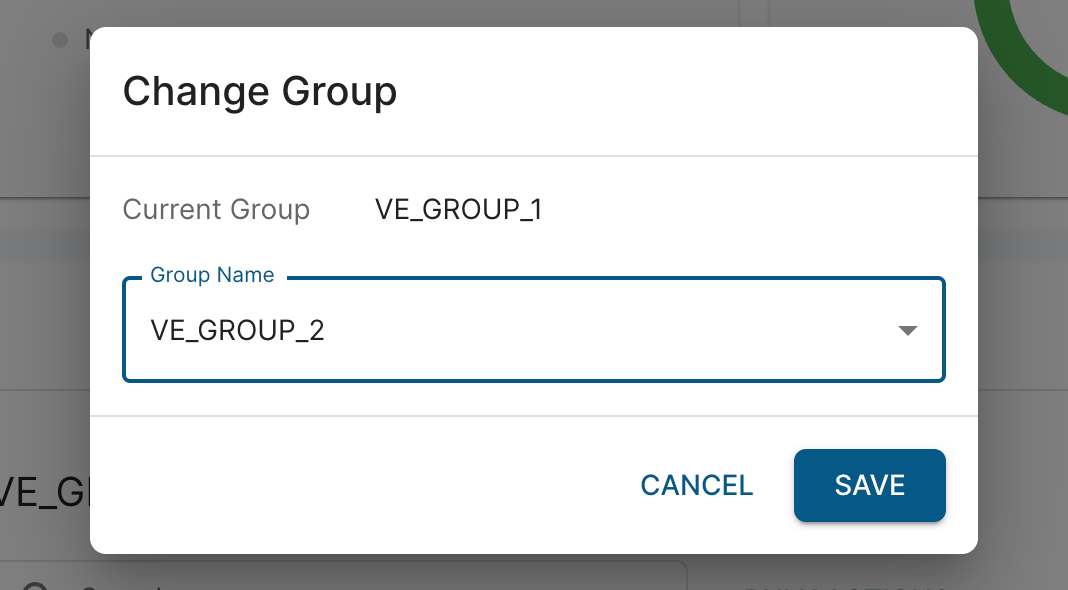

Change Group: Enables moving the Virtual Edge to a different Virtual Edge Group. The Change Group dialog displays the current group assignment and provides a dropdown to select the target group. Because Site Label and Distribution Zone is configured at the Group Level, the VE will inherit the configurations of the new group. Any Virtual Edge Nodes managed by the given VE will be redistributed to other VEs in the original VE Group. If a Virtual Edge is alone in a VE Group, it cannot be moved.

Delete Virtual Edge: Deletes the Virtual Edge if acceptable conditions are met (ie. no dependent VENs).

Virtual Edge Node Actions

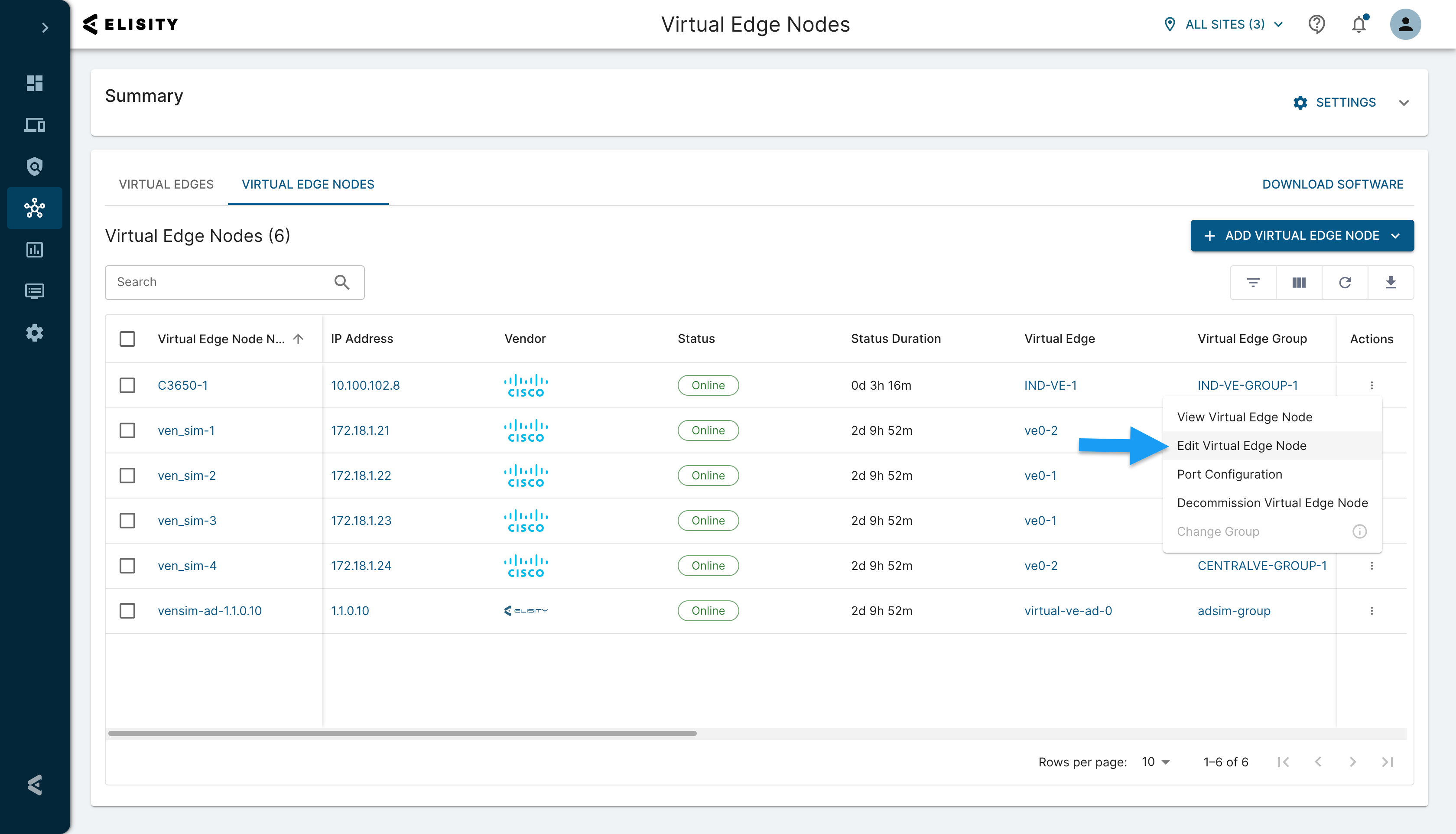

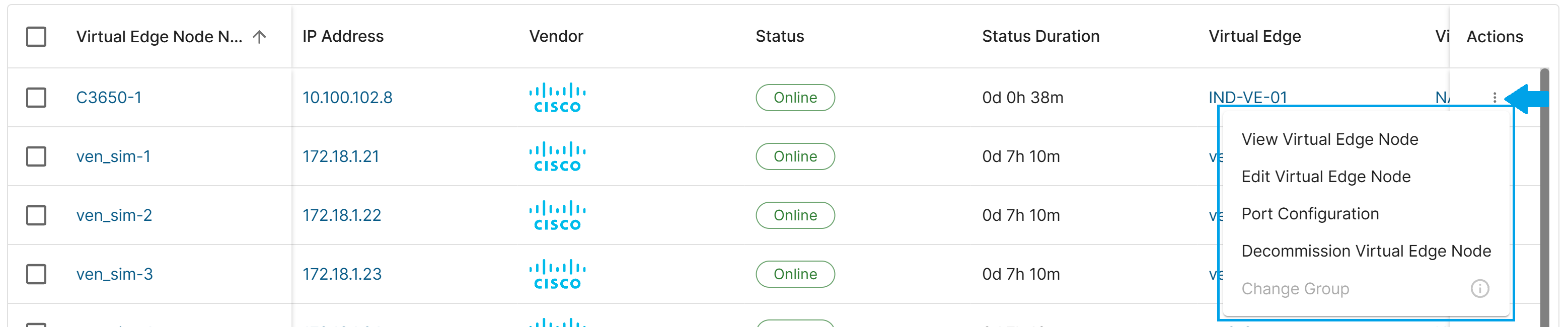

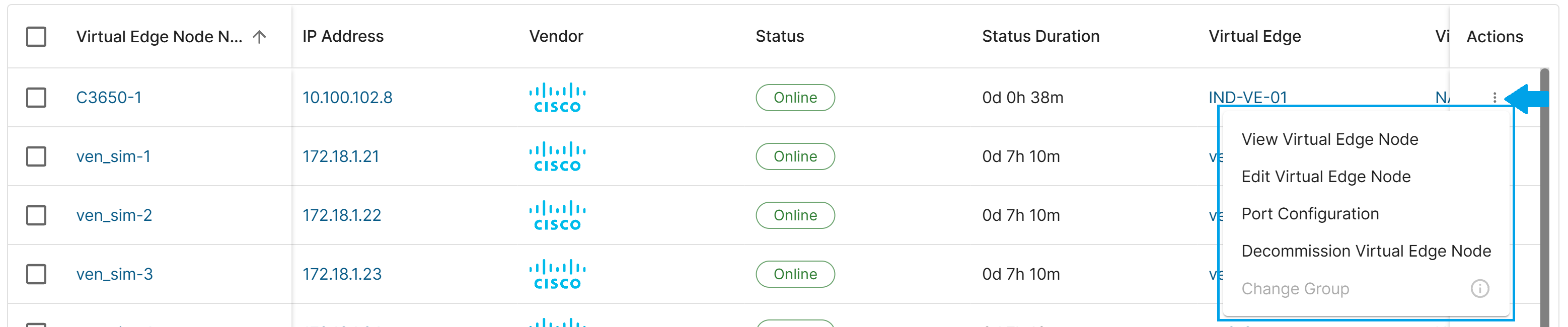

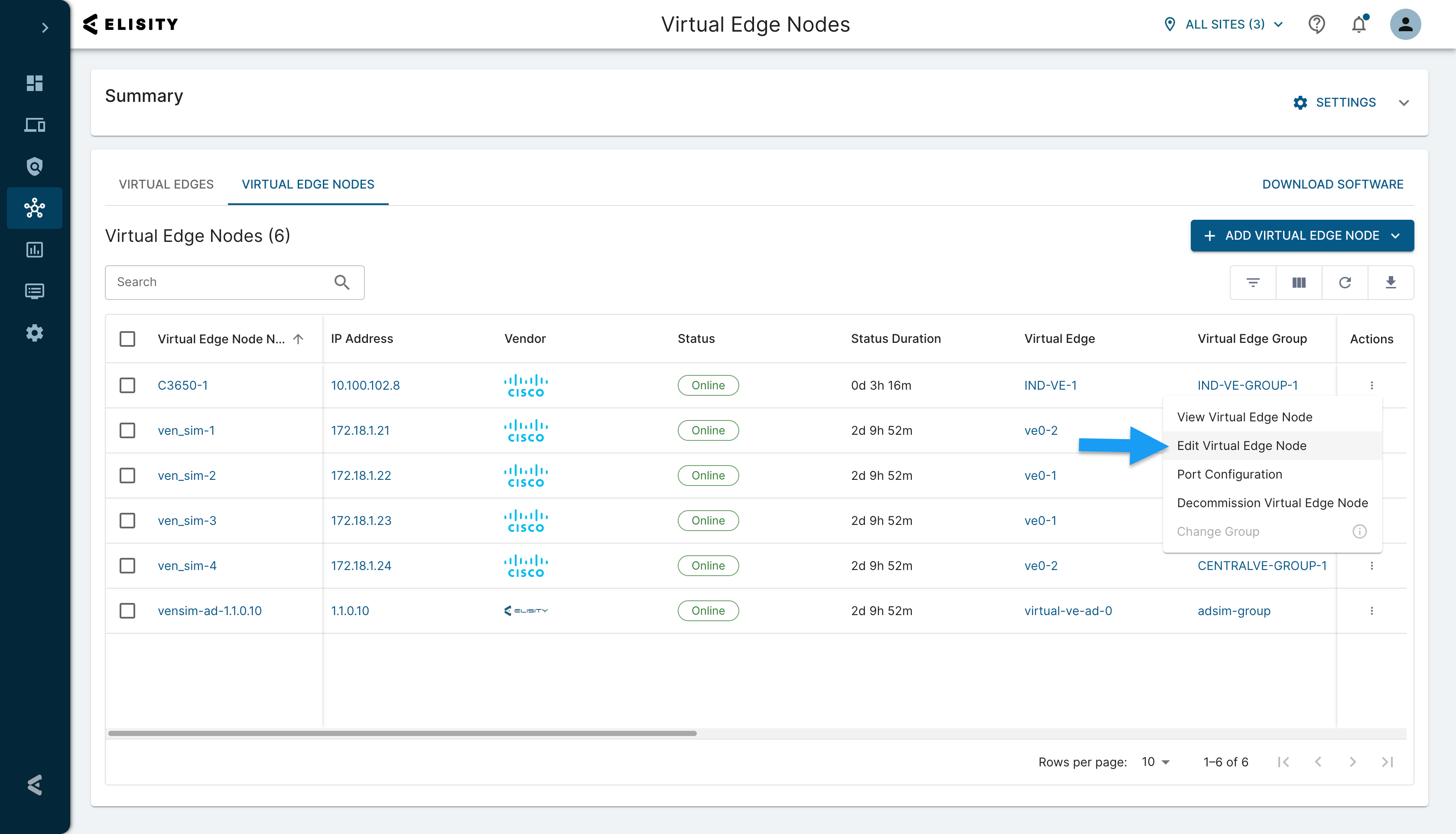

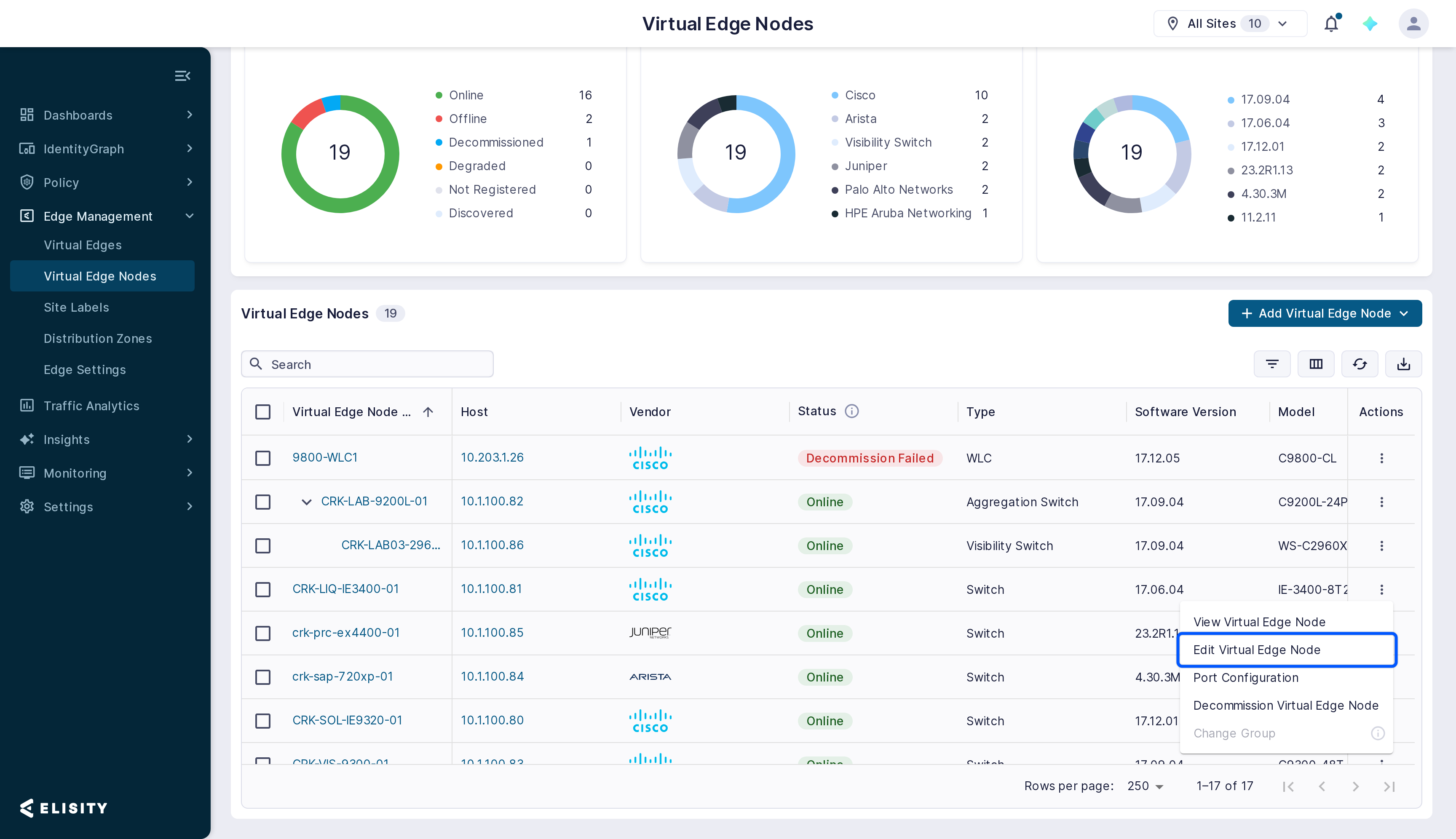

Clicking on the Actions button to the far right of a Virtual Edge Node within the table reveals available actions for the Virtual Edge Node. These actions include the following:

View Virtual Edge Node: Opens the details view for the selected Virtual Edge. This action performs the same function as clicking on the Virtual Edge Node name or IP Address in the table.

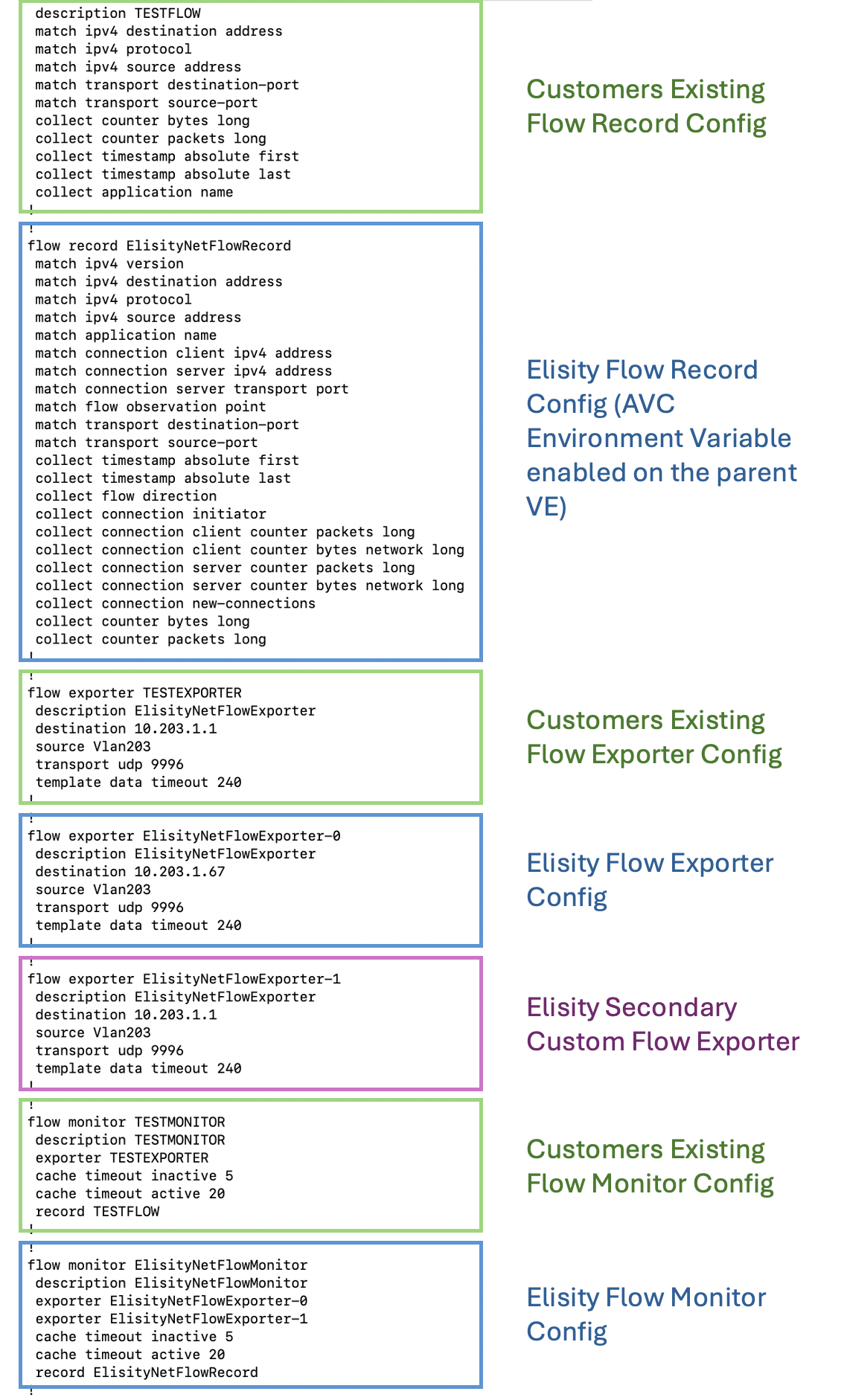

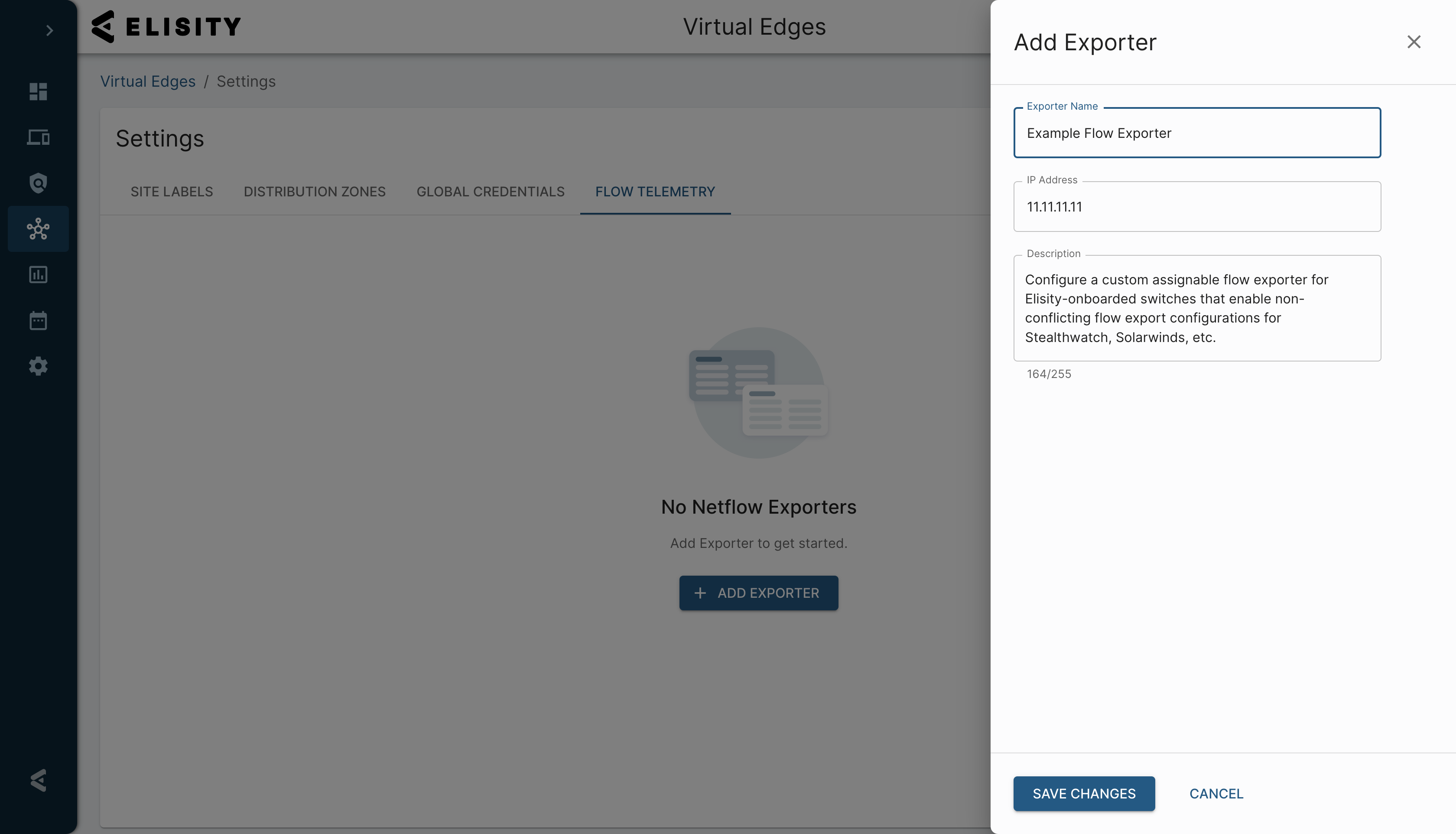

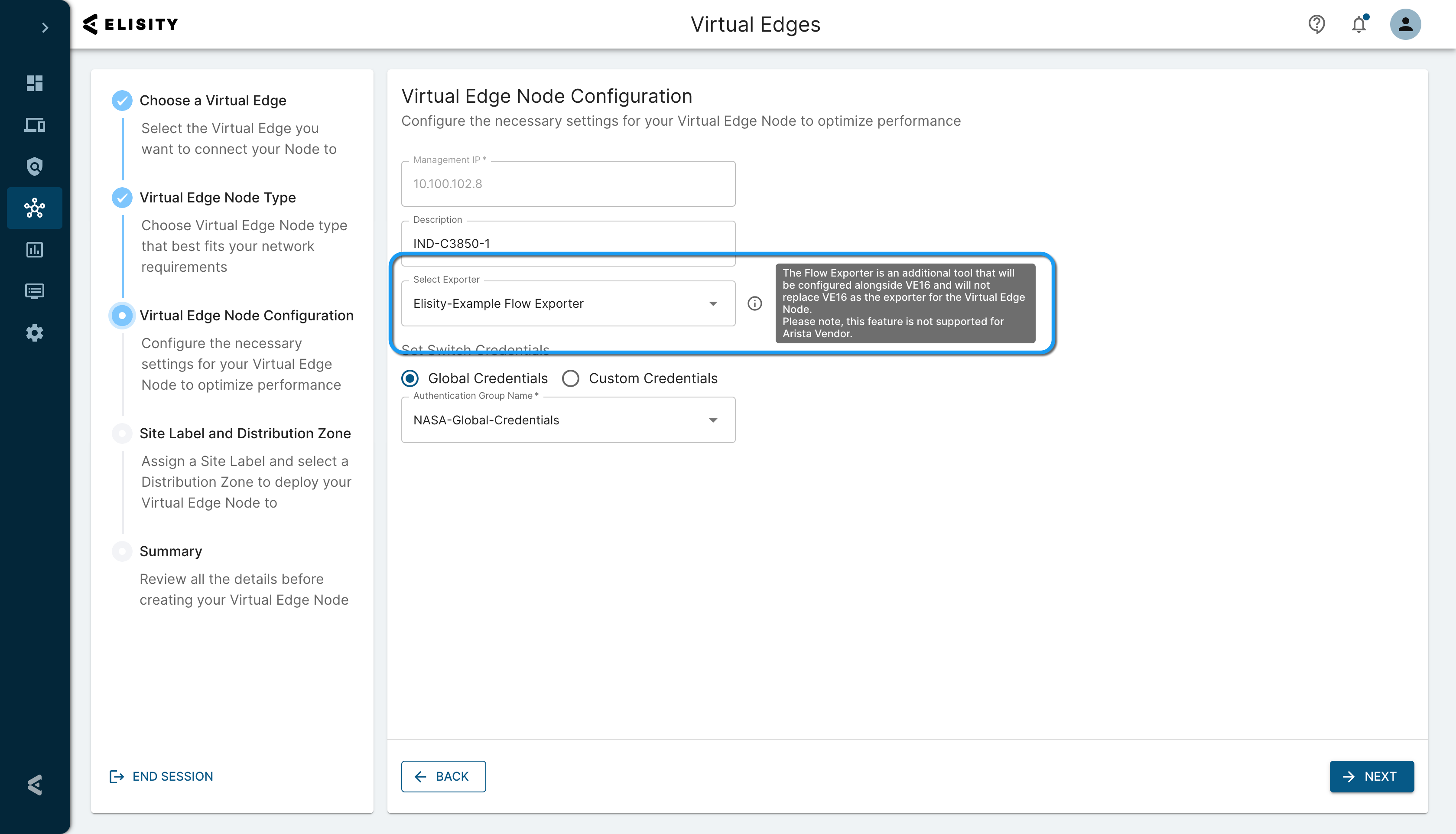

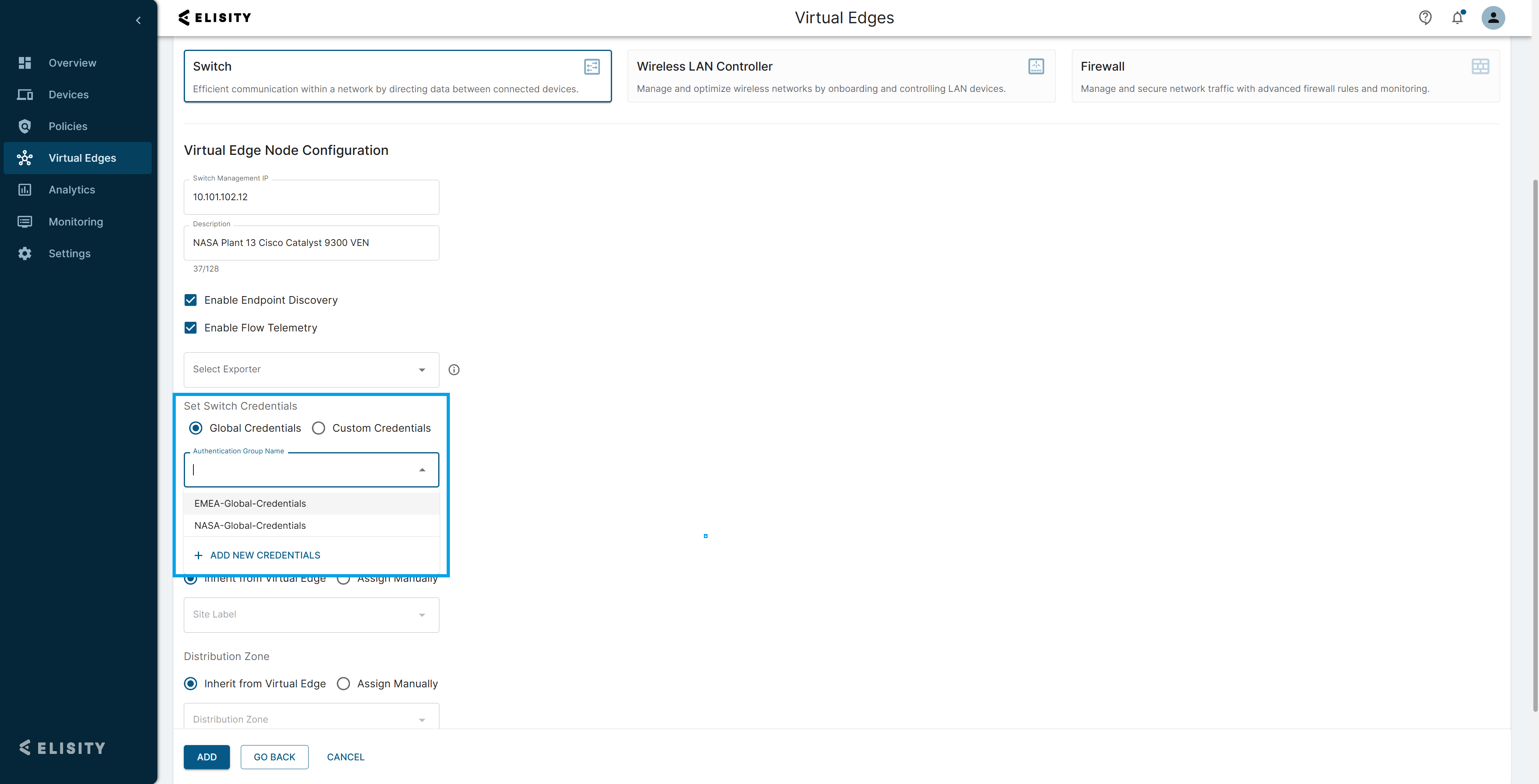

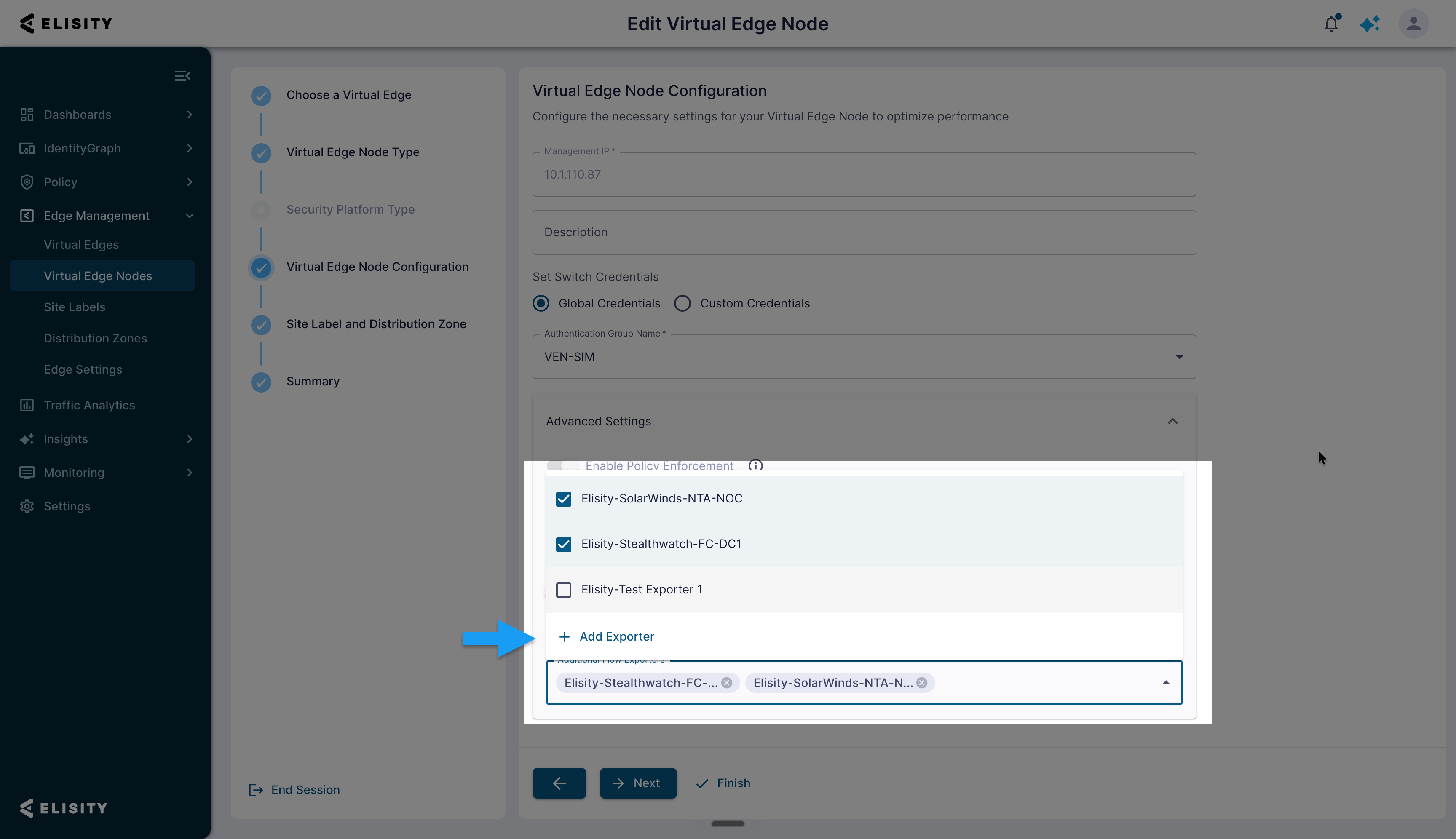

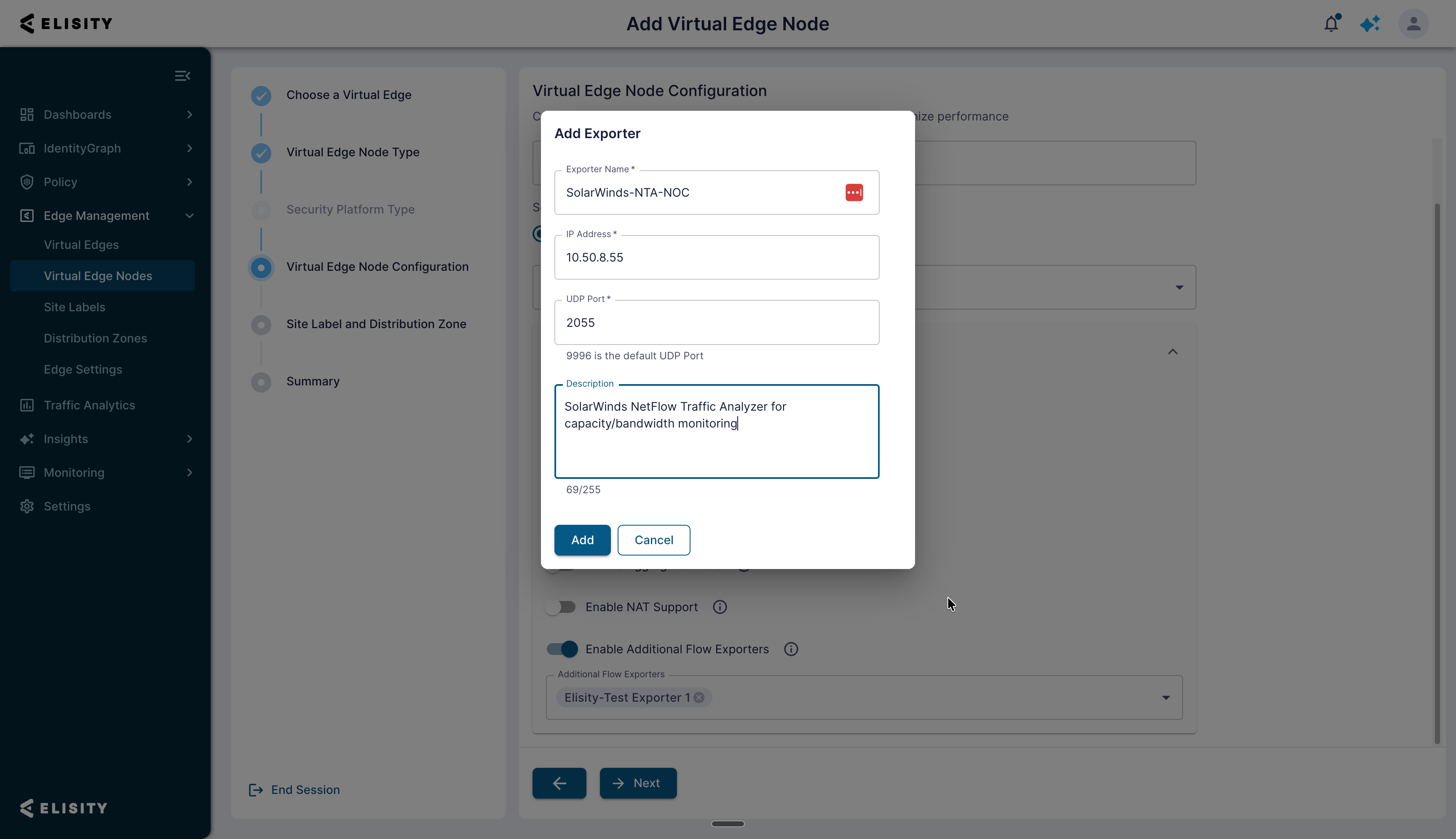

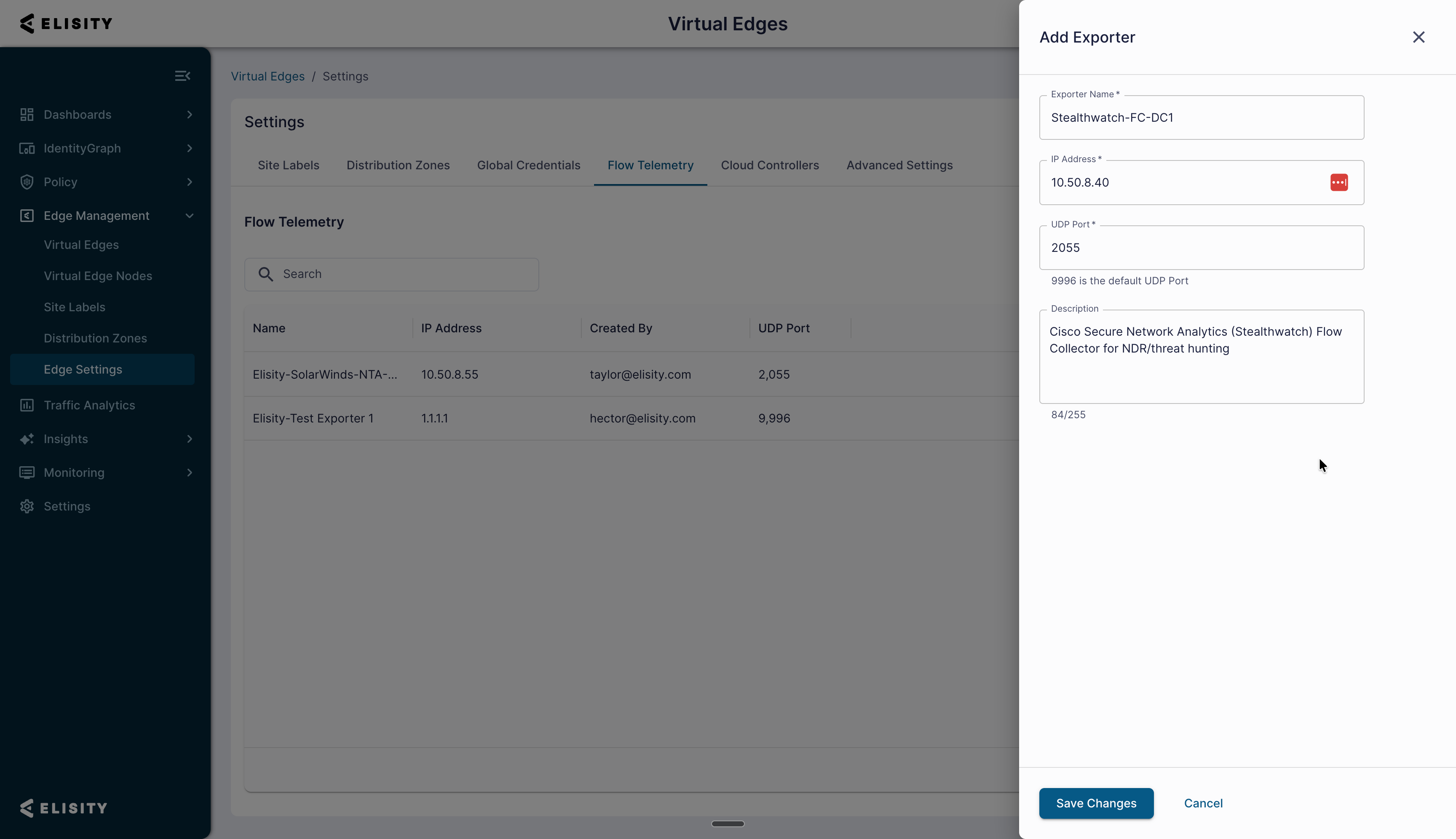

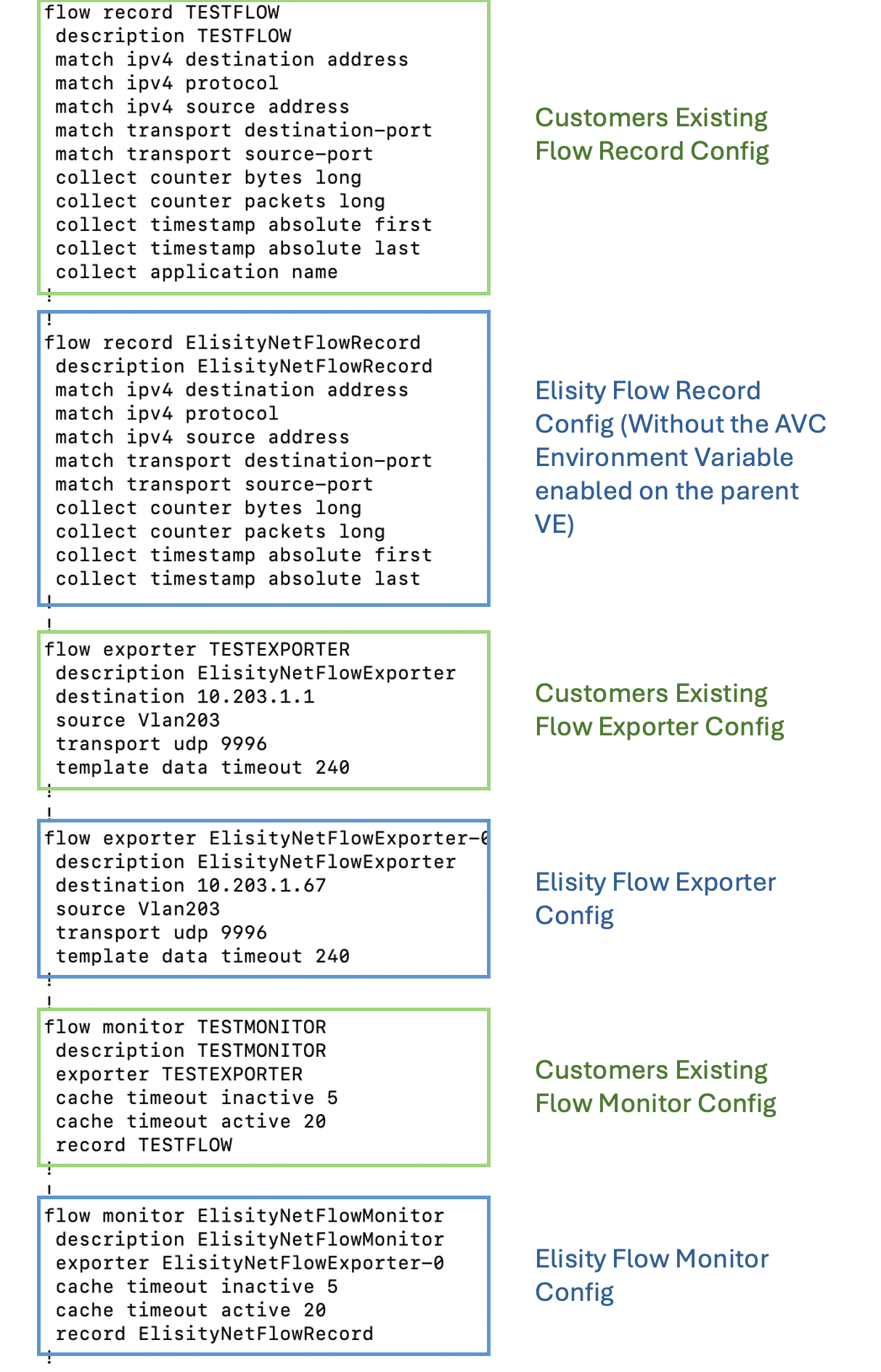

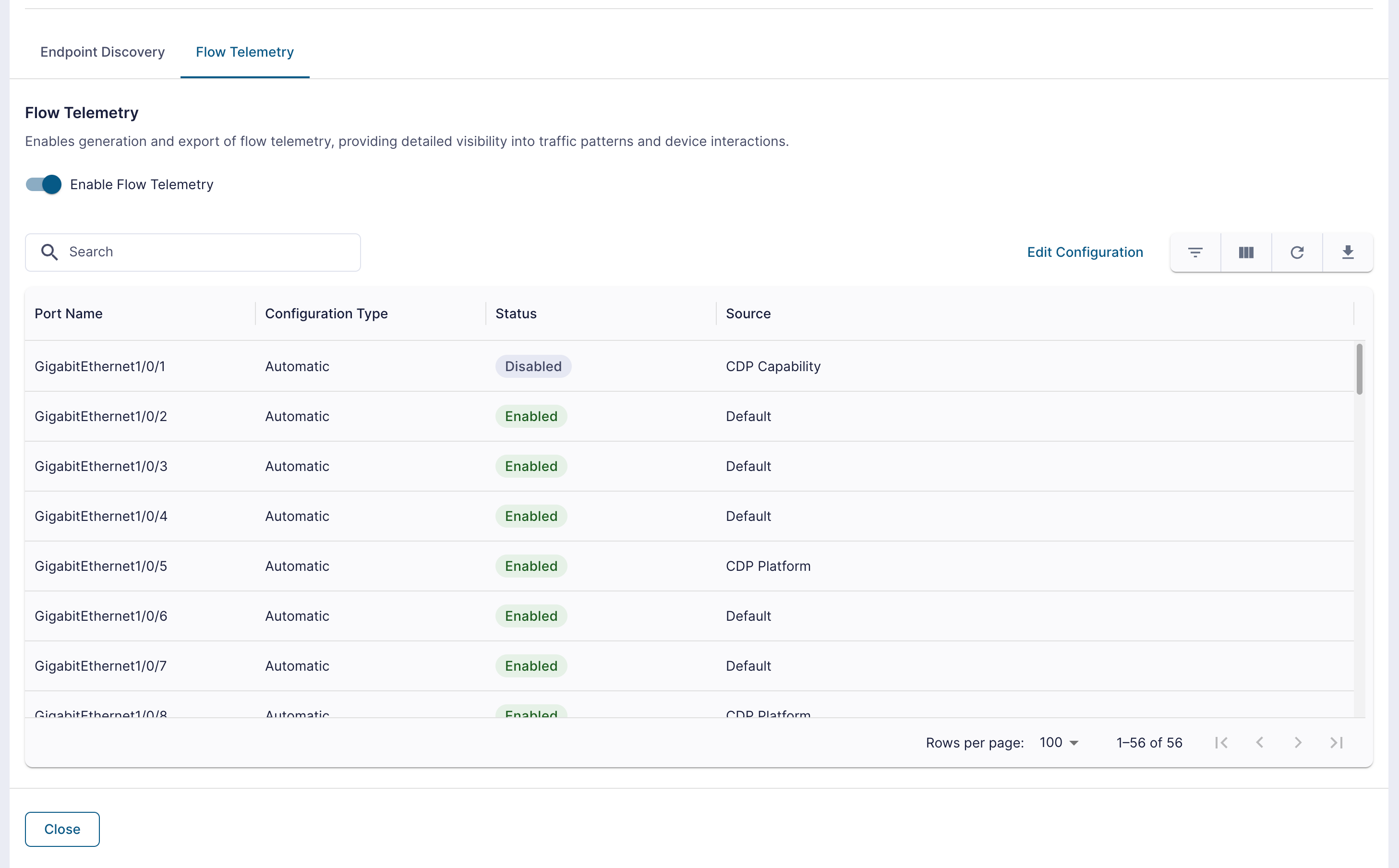

Edit Virtual Edge Node: Change the Virtual Edge Node Description, Flow Exporter, Login Credentials, Site Label or Distribution Zone.

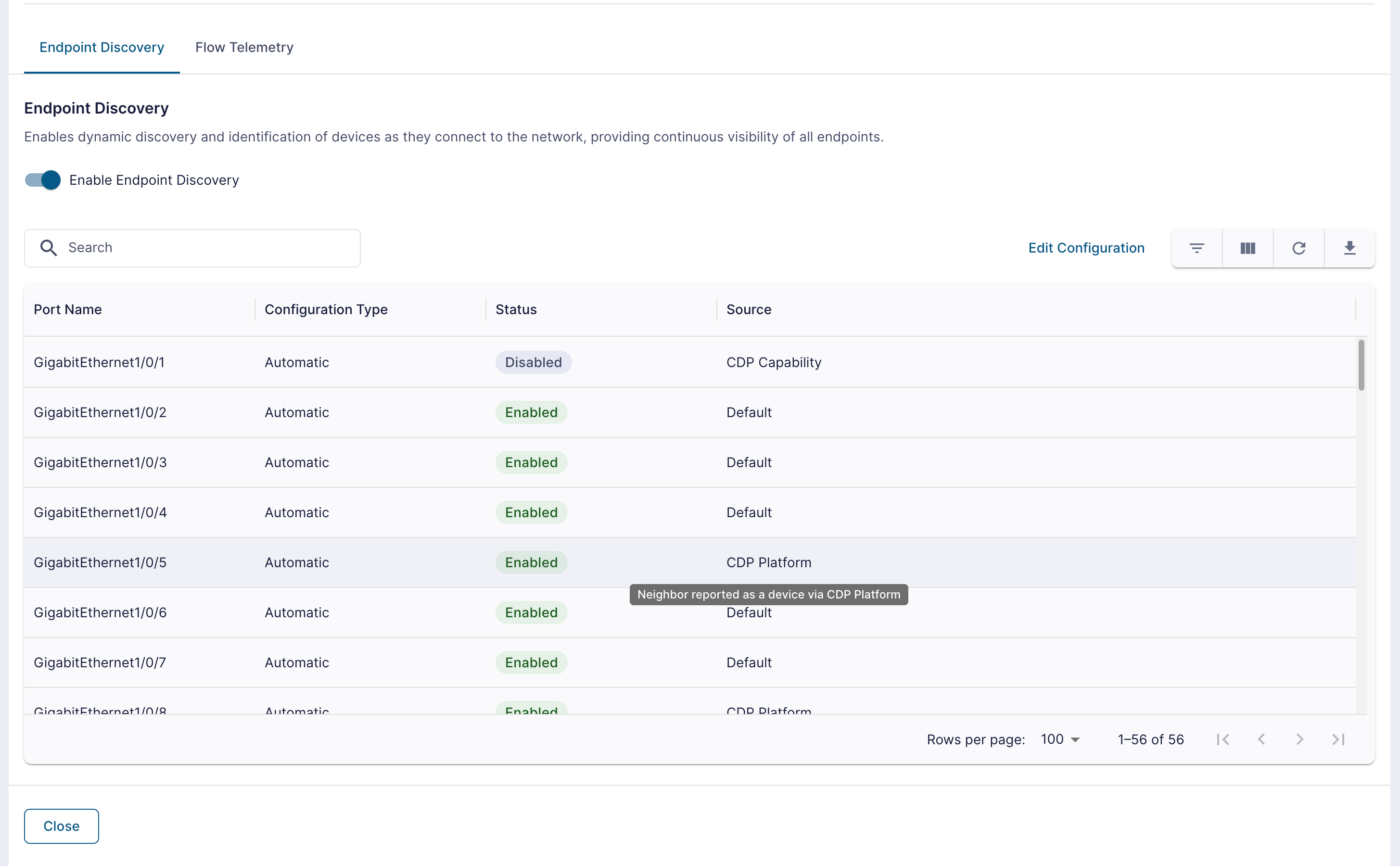

Port Configuration: Opens the Port Configuration view for the selected VEN. Use the Endpoint Discovery and Flow Telemetry tabs to (a) enable or disable the feature globally for the VEN and (b) edit per-port settings. Each port exposes Configuration Type (Automatic | Manual) and Status (Enabled | Disabled). For more information about these port configurations and what they do, read Port Configurations on Virtual Edge Nodes.

Decommission/Delete Virtual Edge Node: Decommissioning VENs temporarily removes them from active duty without deleting their configurations. This is useful for maintenance, troubleshooting, or reallocating resources. Decommissioned nodes can be recommissioned later as needed. The Delete option replaces the Decommission option if the VEN is Decommissioned.

Change Group: Allows you to move VENs to another VE Group. Be sure that the VEs in the new group have connectivity to the VEN when changing VE Groups.

Filtering Virtual Edges and Nodes

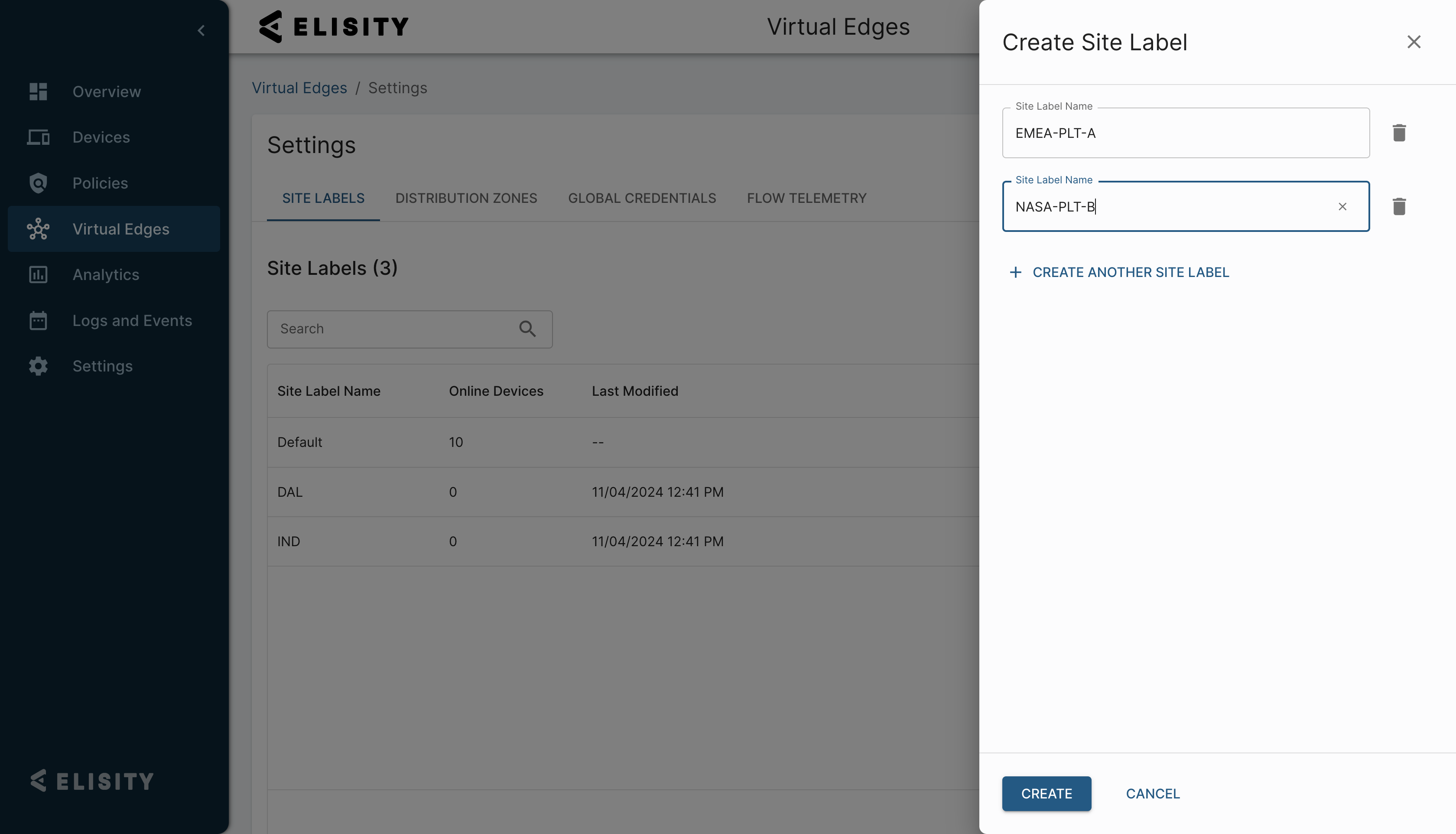

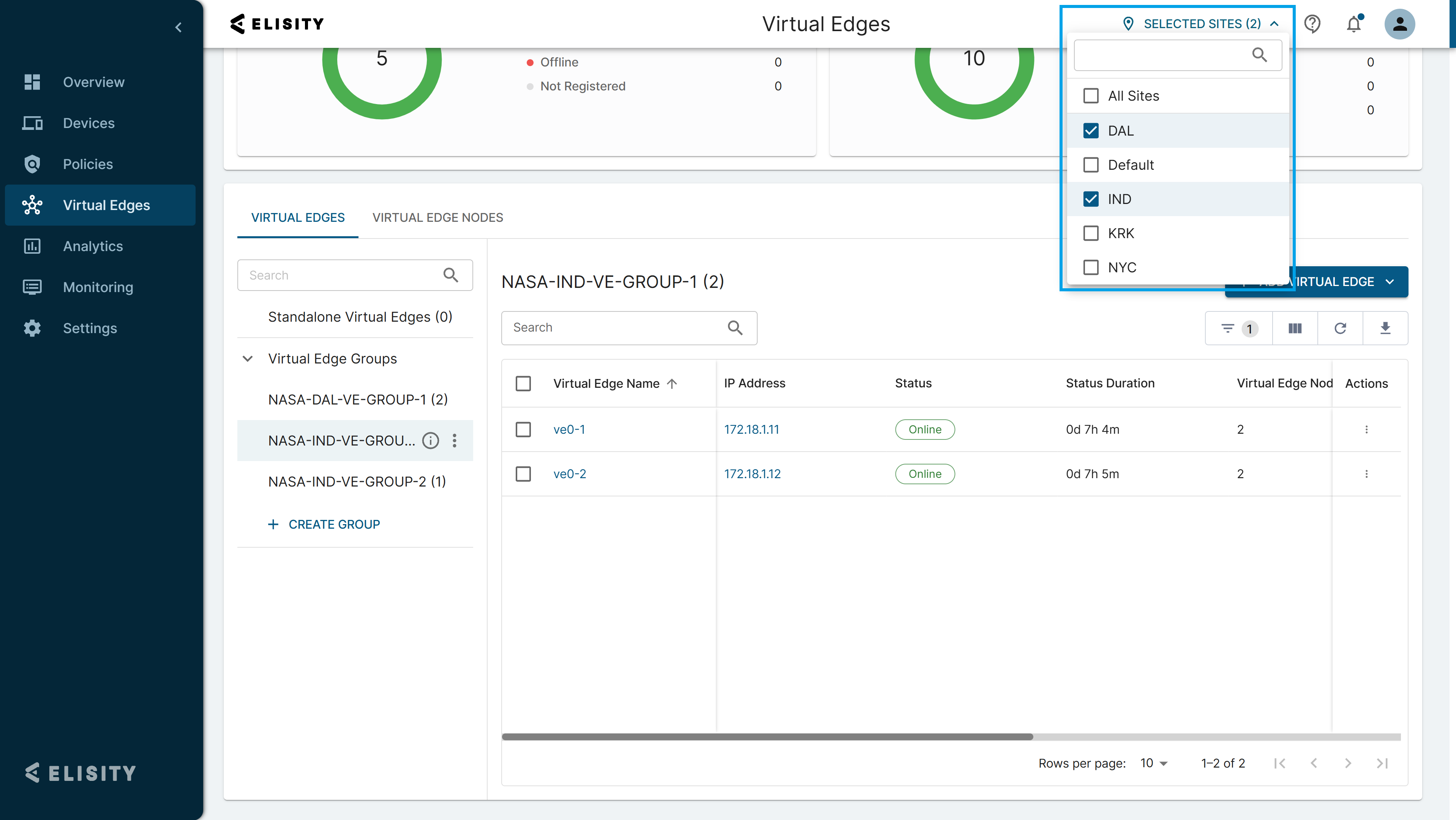

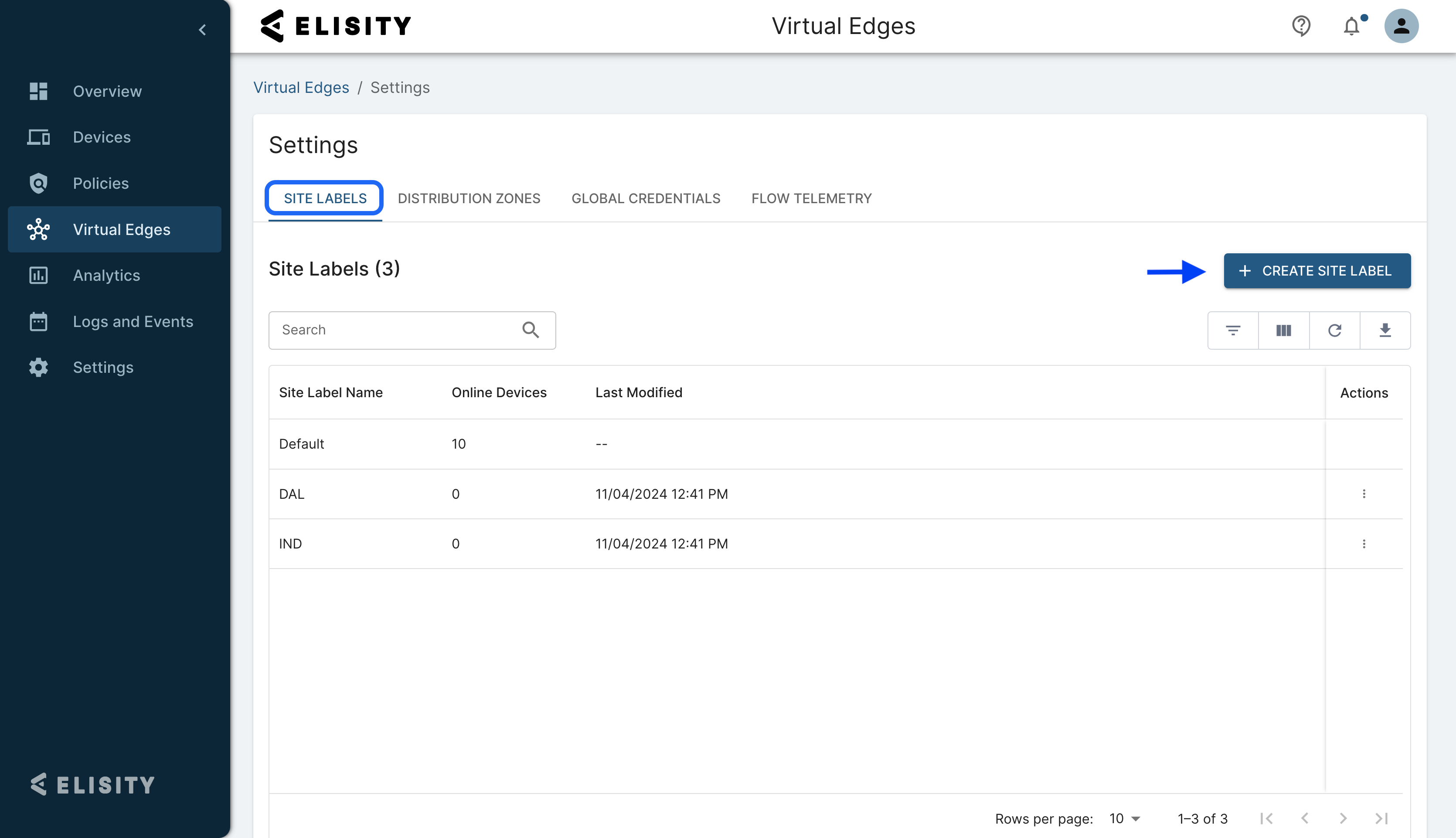

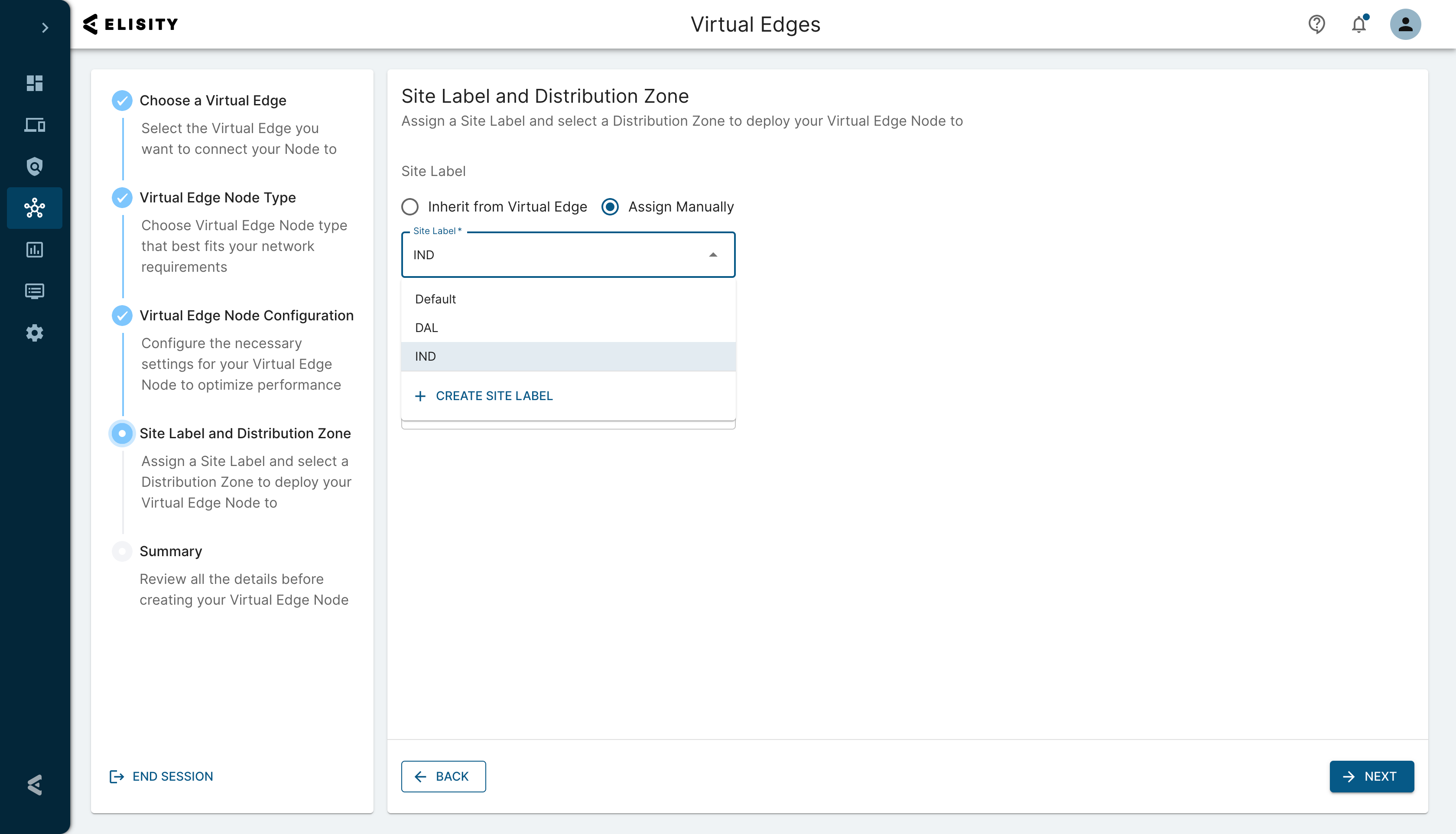

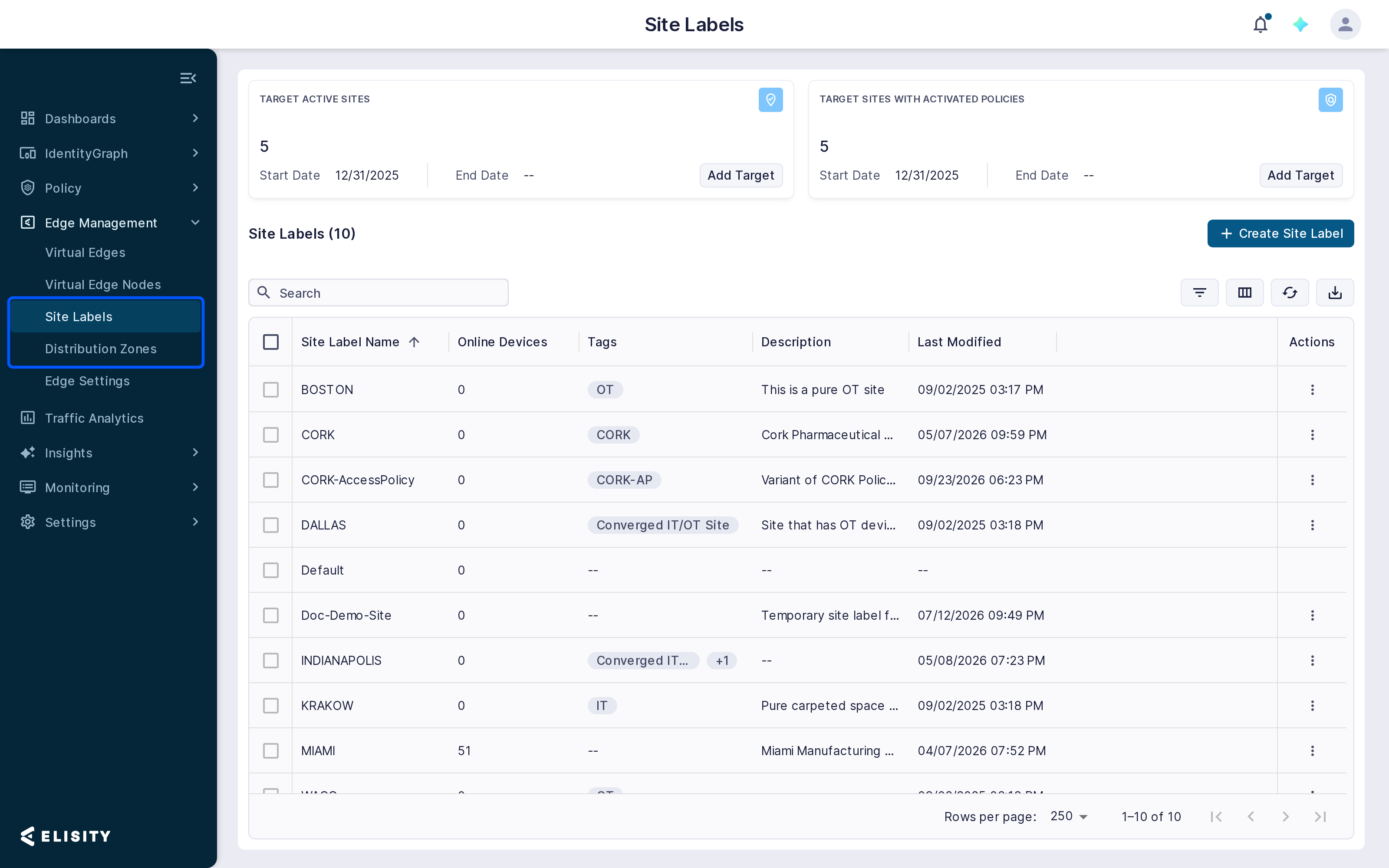

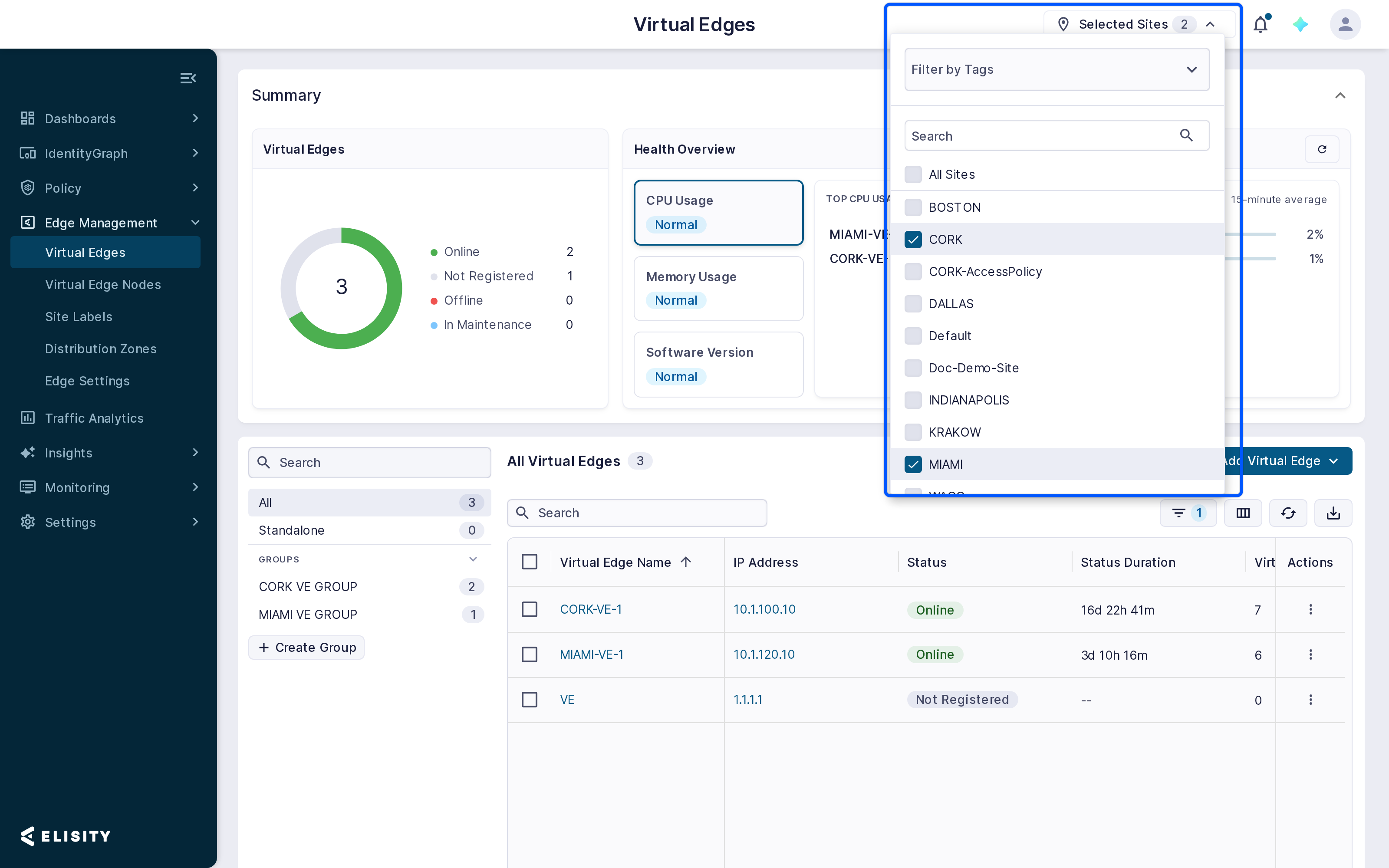

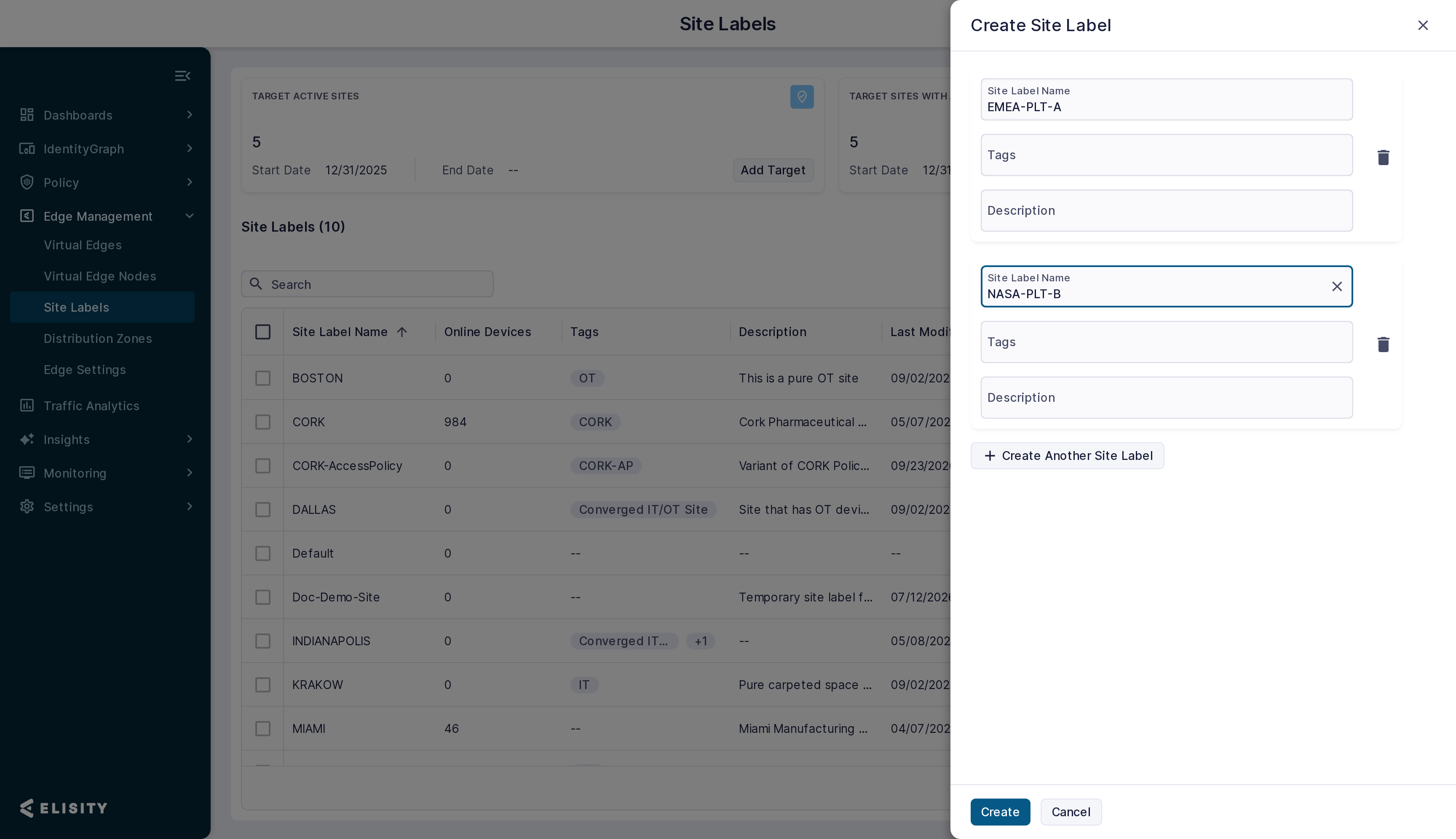

You can filter VEs and VENs based on Site Labels using the Site Label filter at the top right of the page. This feature enhances your ability to manage large-scale deployments by allowing you to view VEs and VENs associated with specific site labels.

Here's how to use this feature effectively:

Multi-Select Dropdown: The site label filter provides a multi-select dropdown, enabling you to choose multiple site labels simultaneously. This flexibility allows for a customized view that matches your specific monitoring or management needs.

Searchable Labels: Begin typing within the dropdown to quickly search and select from the available site labels, making it easier to narrow down to the relevant devices.

Persistent Selections: Your filter selections remain in place even when navigating away from and back to the Virtual Edges page, ensuring continuity in your monitoring activities.

Impact on Page Display: Upon applying one or more site label filters, the Virtual Edges and Virtual Edge Nodes pages update to only display the VEs and VENs associated with the selected labels. The Summary charts, Health Overview, and tables all reflect the selected labels.

Utilizing site label filtering is especially valuable in environments with numerous VEs and VENs, enabling network admins to quickly isolate and manage devices relevant to specific locations or functions.
By integrating these features into your network management routines, you can enhance the efficiency and effectiveness of your monitoring and management activities within the Elisity platform​​.

Exporting Topology Data to CSV

Cloud Control Center provides CSV export functionality across all topology configuration views, enabling administrators to extract data for reporting, auditing, and offline analysis.

Topology Views with CSV Export

The following topology views support CSV export:

• Site Labels

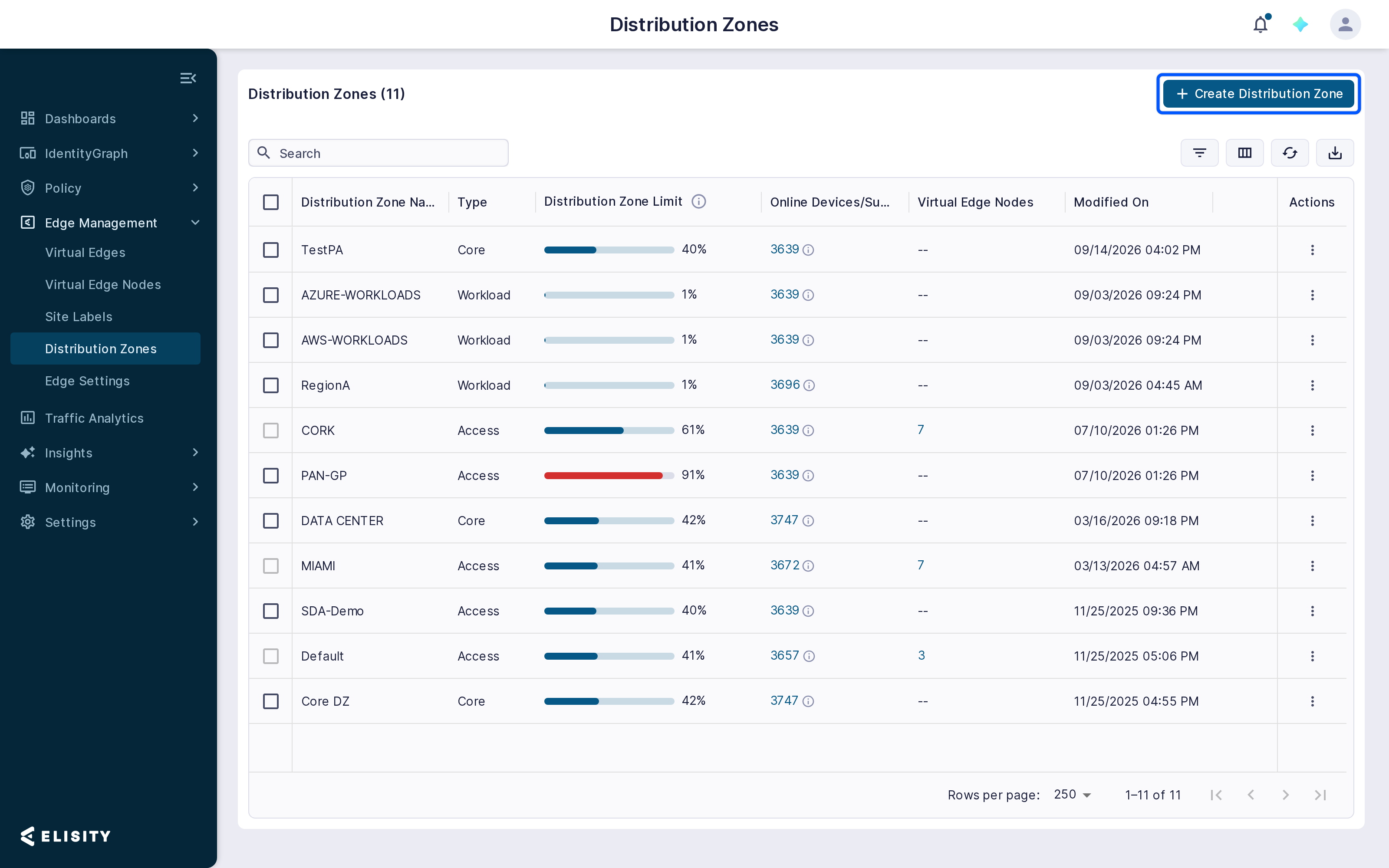

• Distribution Zones
• Virtual Edge Groups
• Virtual Edges (VEs)
• Virtual Edge Nodes (VENs)

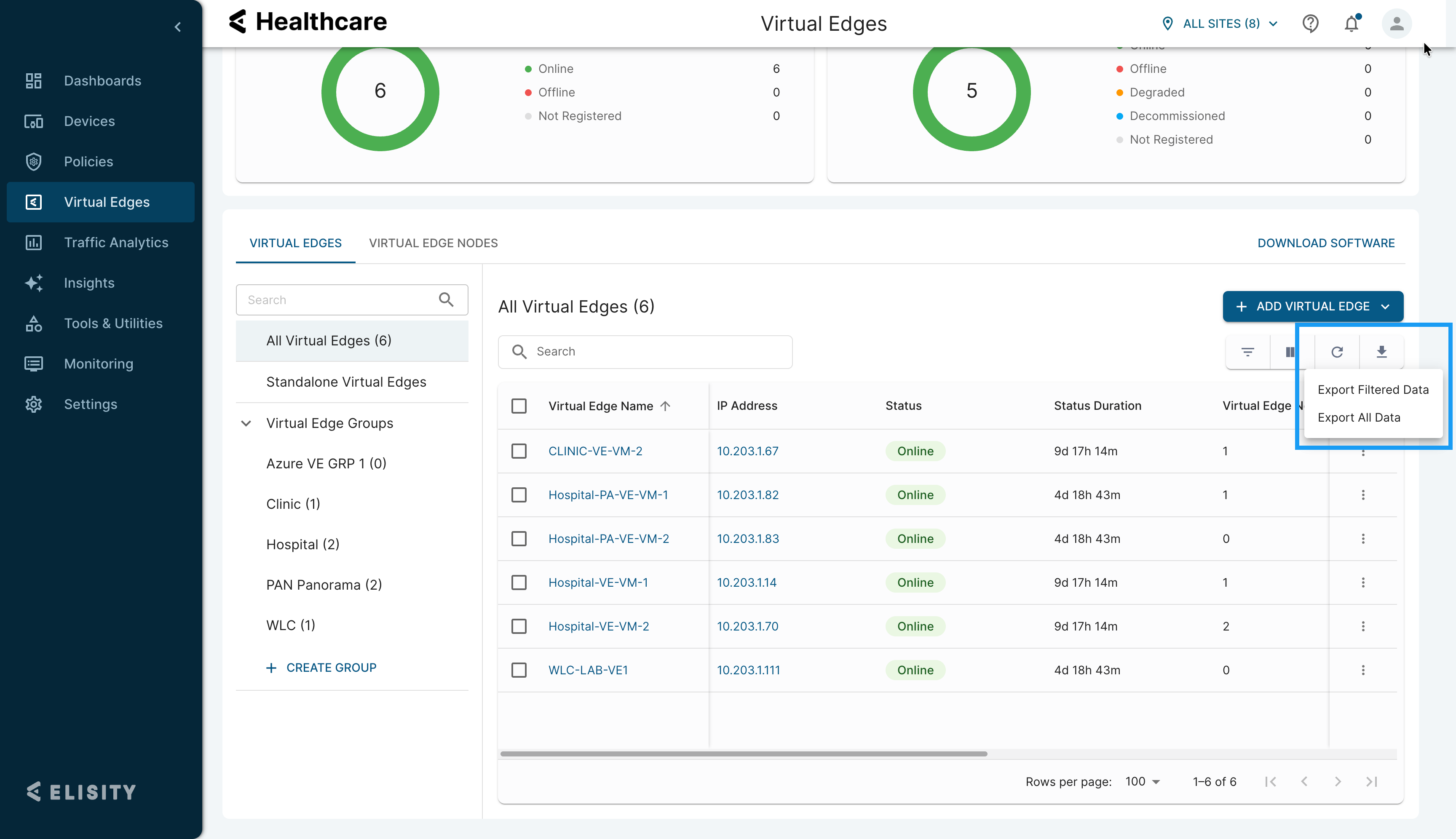

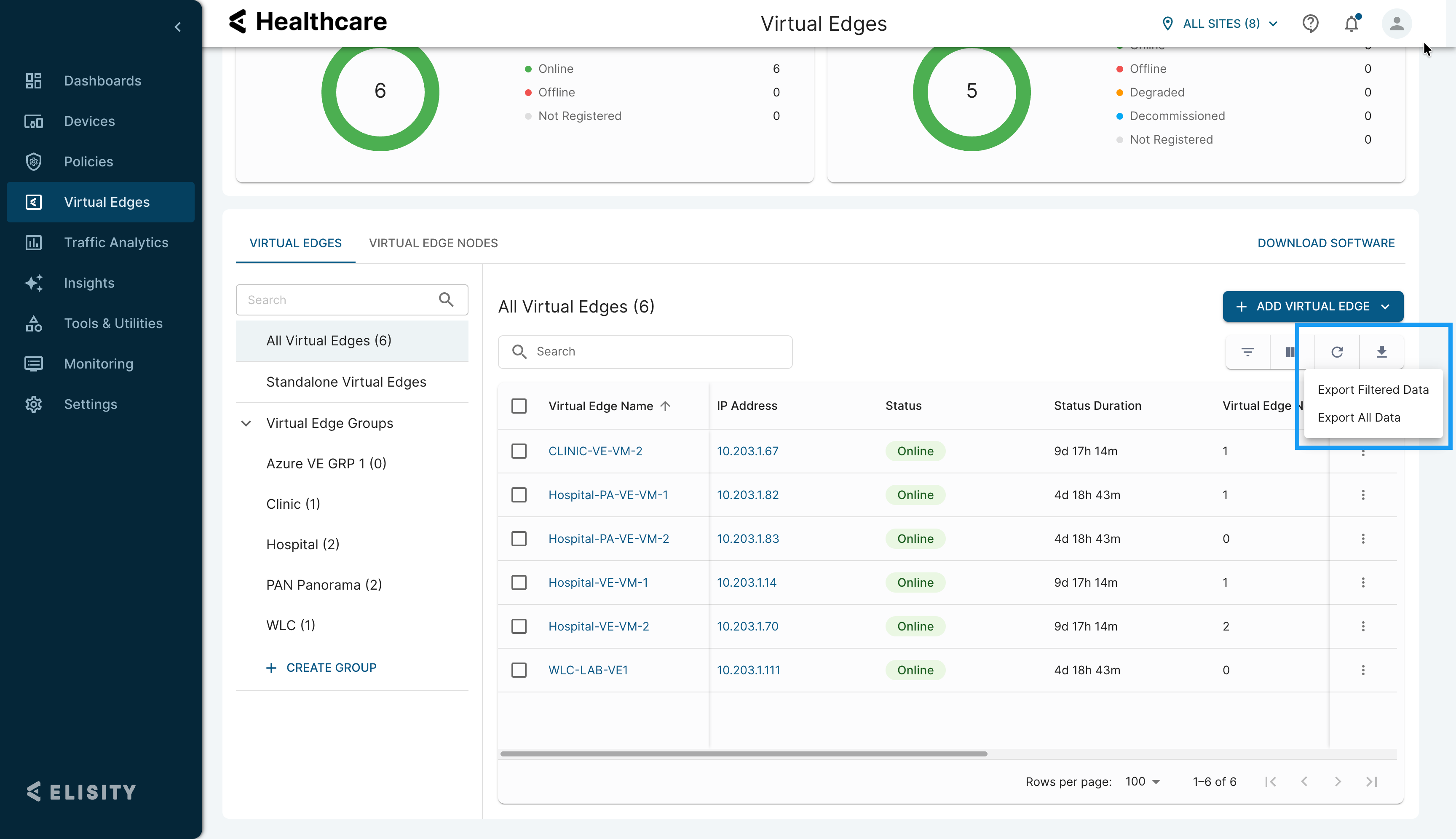

Export Options

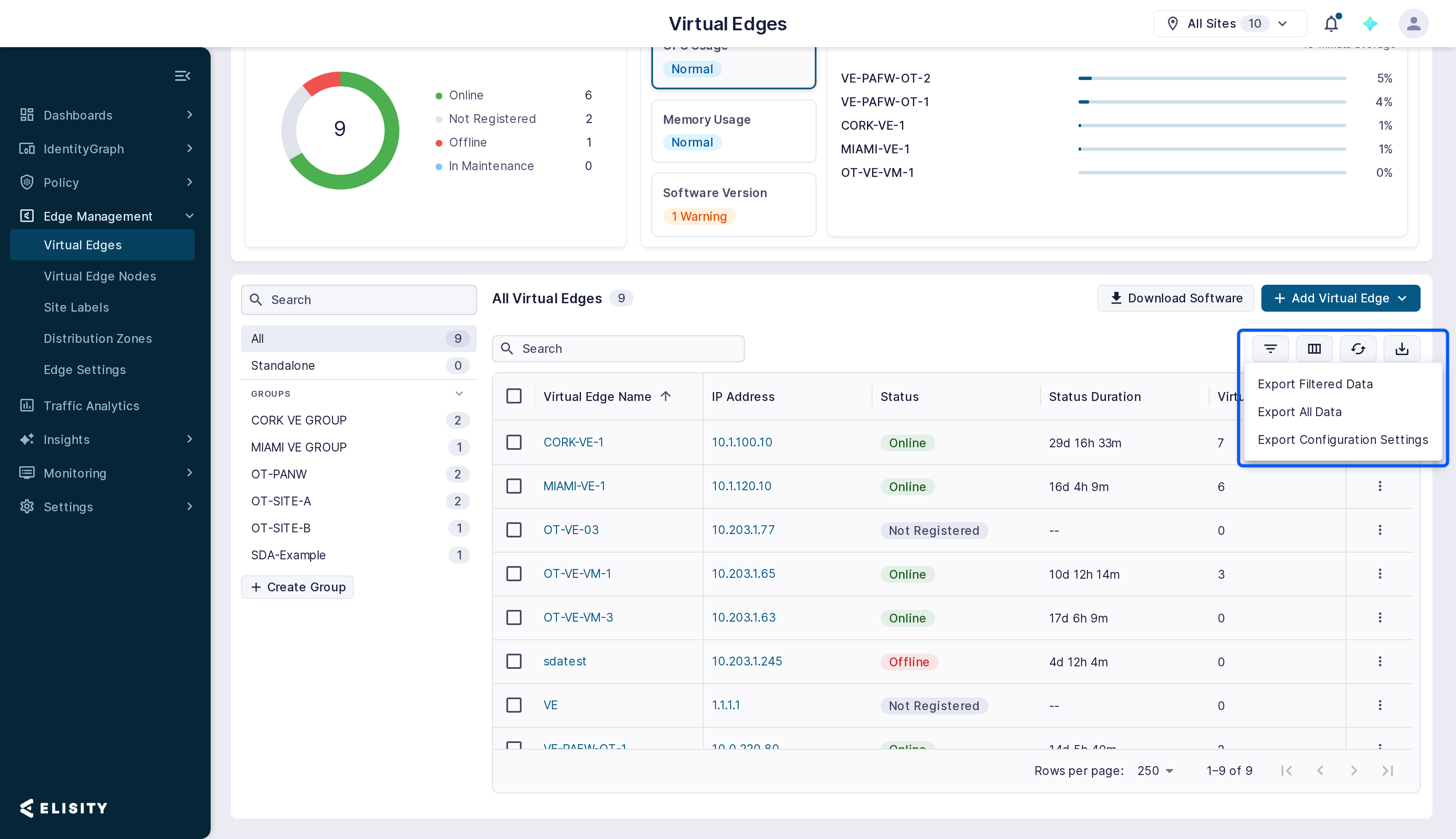

The Export menu offers the following options:

Export Filtered Data: Exports only the devices that match your current filters, search terms, and Site Label selections. Use this option to export a specific subset of topology data based on your active filters.

Export All Data: Exports all topology entities regardless of applied filters. Use this option to generate a complete inventory export.

Export Configuration Settings: Exports the configuration of Virtual Edges or Virtual Edge Nodes as an import-compatible Excel (.xlsx) file. Edit the file and re-import it to apply changes in bulk.

The exported CSV file name includes the view type and timestamp for easy identification (e.g., Virtual-Edges-11132025-1258PM.csv).

Virtual Edge CSV Export Fields

Virtual Edge CSV exports include the following fields:

Field	Description
Virtual Edge Name	Unique identifier for the Virtual Edge
IP Address	Management IP address of the Virtual Edge
Status	Operational state (Online, Offline, Not Registered, Decommissioned)
Status Duration	Timestamp of when the VE entered its current status
Virtual Edge Nodes	Count of VENs currently managed by this VE
Virtual Edge Group	Name of the VE Group managing this VE (blank for Standalone VEs)
Site Label	Site Label assigned to the VE
Distribution Zone	Distribution Zone assigned to the VE
Software Version	Current software version running on the VE
Node ID	Internal identifier for the VE (useful for troubleshooting)
Description	User-defined description for the VE (contextual information)

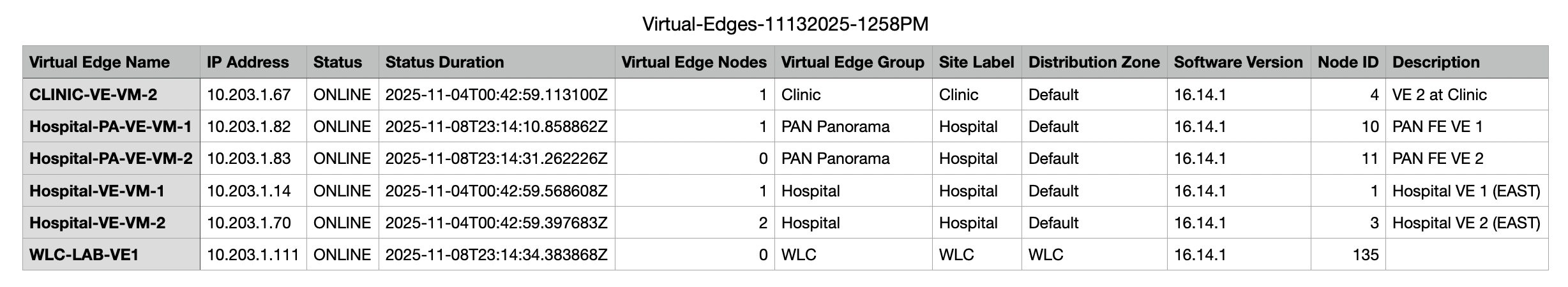

Example Virtual Edge CSV export:

Virtual Edge Node CSV Export Fields

Virtual Edge Node CSV exports include the following fields:

Field	Description
Virtual Edge Node Name	Unique identifier for the VEN
Host	IP address of the VEN device
Vendor	Hardware vendor (Cisco, Arista, Juniper, etc.)
Status	Operational state (Online, Offline, Degraded, Decommissioned, etc.)
Last Status Change	Timestamp of when the VEN entered its current status
Virtual Edge	Name of the Virtual Edge managing this VEN
Virtual Edge Group	Name of the VE Group managing this VEN
Type	VEN type (Switch or WLC)
Site Name	Site Label assigned to the VEN
Distribution Zone	Distribution Zone assigned to the VEN
Software Version	Current software version running on the VEN device
Node ID	Internal identifier for the VEN (useful for troubleshooting)
Model	Hardware model of the VEN device
Credentials	Authentication group name used for VEN management
Flow Telemetry	Flow telemetry status (Enabled, Disabled, NOT_SUPPORTED)
Enhanced Discovery	Enhanced discovery status (Enabled or Disabled)
Devices	Count of devices discovered by this VEN
Policy Set Name	Name of the Policy Set applied to this VEN's Site Label
Policy Set Status	Policy Set activation status (Active or Inactive)
Description	User-defined description for the VEN (contextual information)

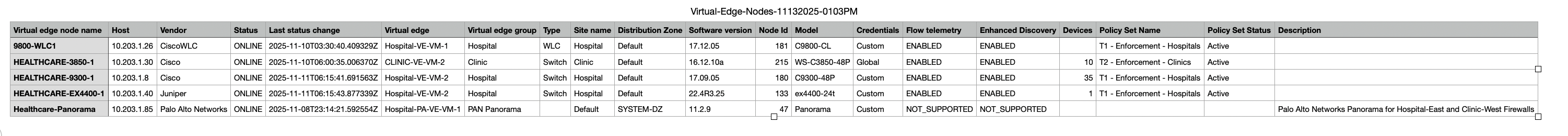

Example Virtual Edge Node CSV export:

Use Cases for CSV Exports

Reporting and Documentation: Generate snapshots of infrastructure configuration for change management documentation or compliance reporting.

Offline Analysis: Analyze VE/VEN deployment patterns, capacity planning, or identify configuration gaps using spreadsheet tools.

Bulk Updates: Export current configurations, modify values offline, and use as reference for bulk configuration changes.

Audit Trail: Maintain historical records of topology configurations by periodically exporting and archiving CSV files.

Cross-team Collaboration: Share infrastructure details with teams who may not have direct Cloud Control Center access.

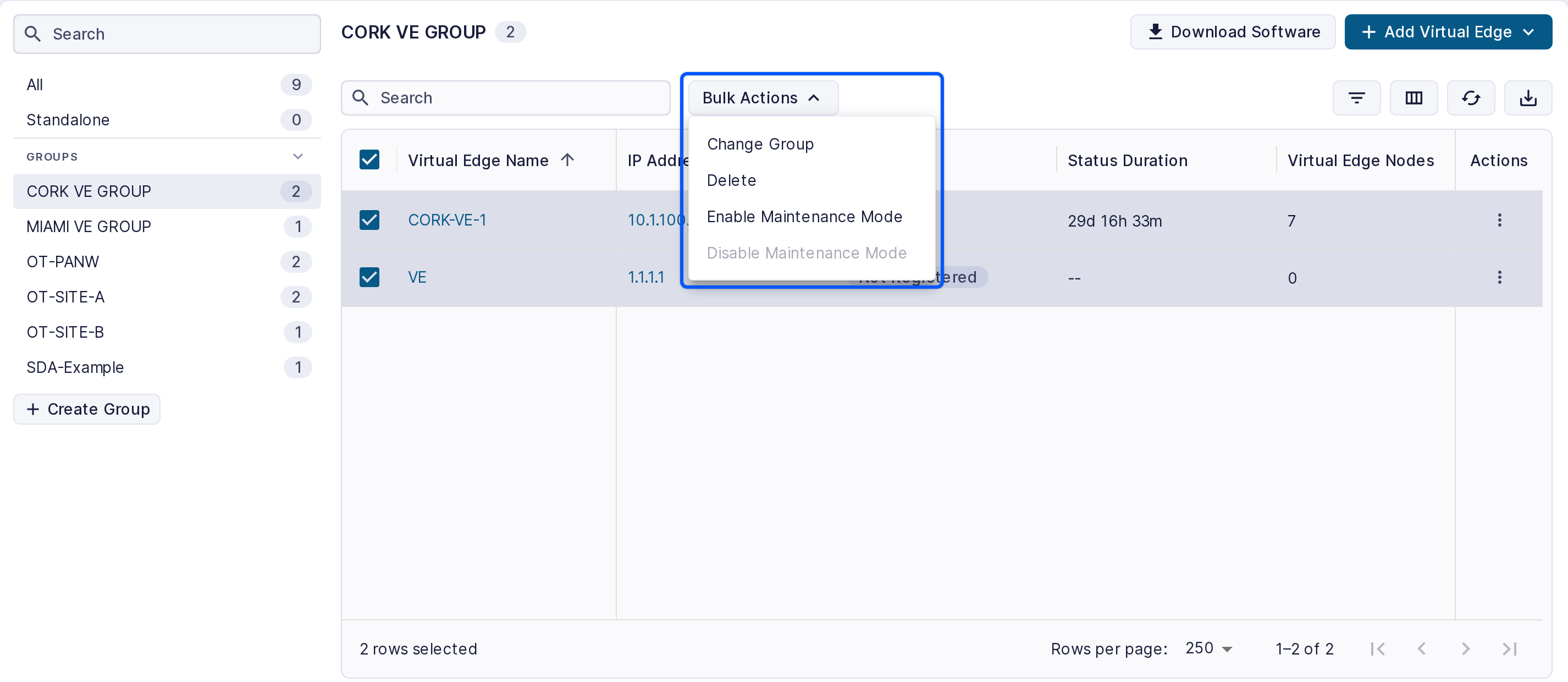

Bulk Actions for Managing VEs and VENs

The Elisity platform provides a range of actions that administrators can perform on Virtual Edges, including editing configurations, downloading configurations, and deleting VEs. Each action is designed to offer control over the deployment and management of VEs within the network. With that, the platform supports bulk actions for VEs and VENs, allowing administrators to perform tasks such as restarting Restconf, redeploying, and decommissioning/deleting VENs in a streamlined manner. These actions are contextual based on the types of VEs/VENs selected and what actions are available for the state of each VE/VEN.

Virtual Edges

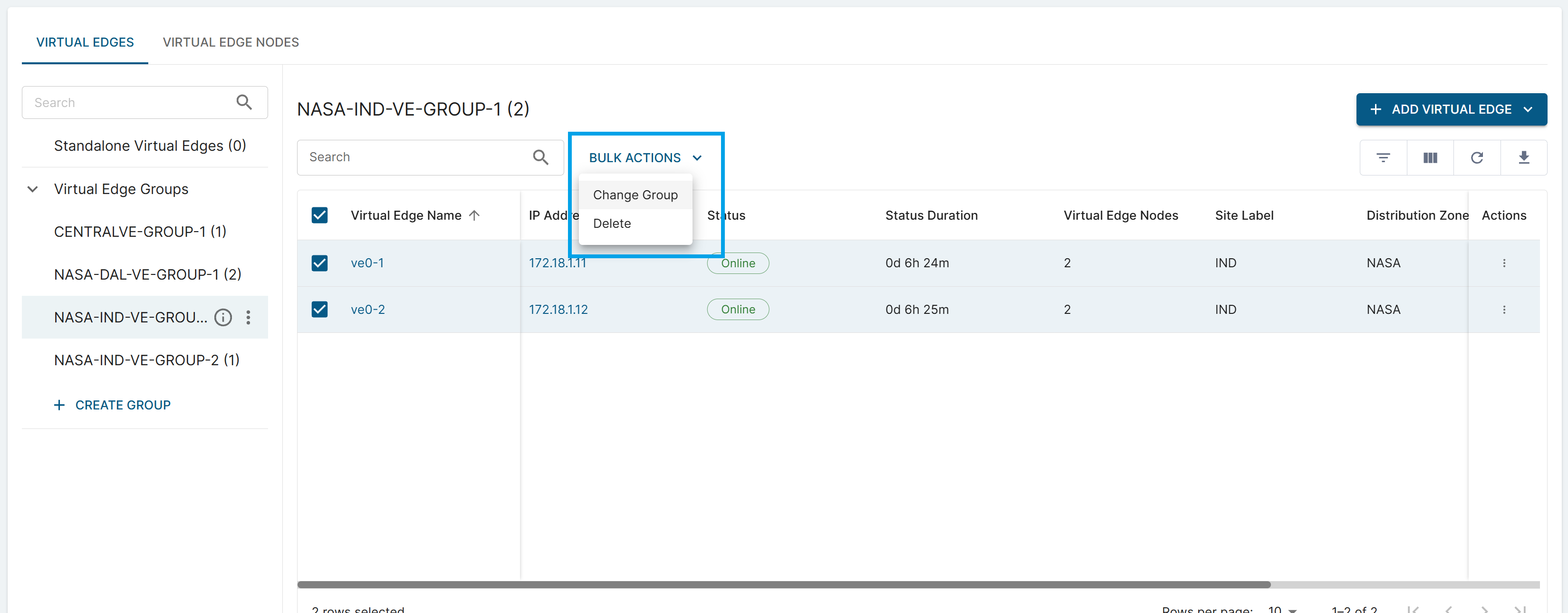

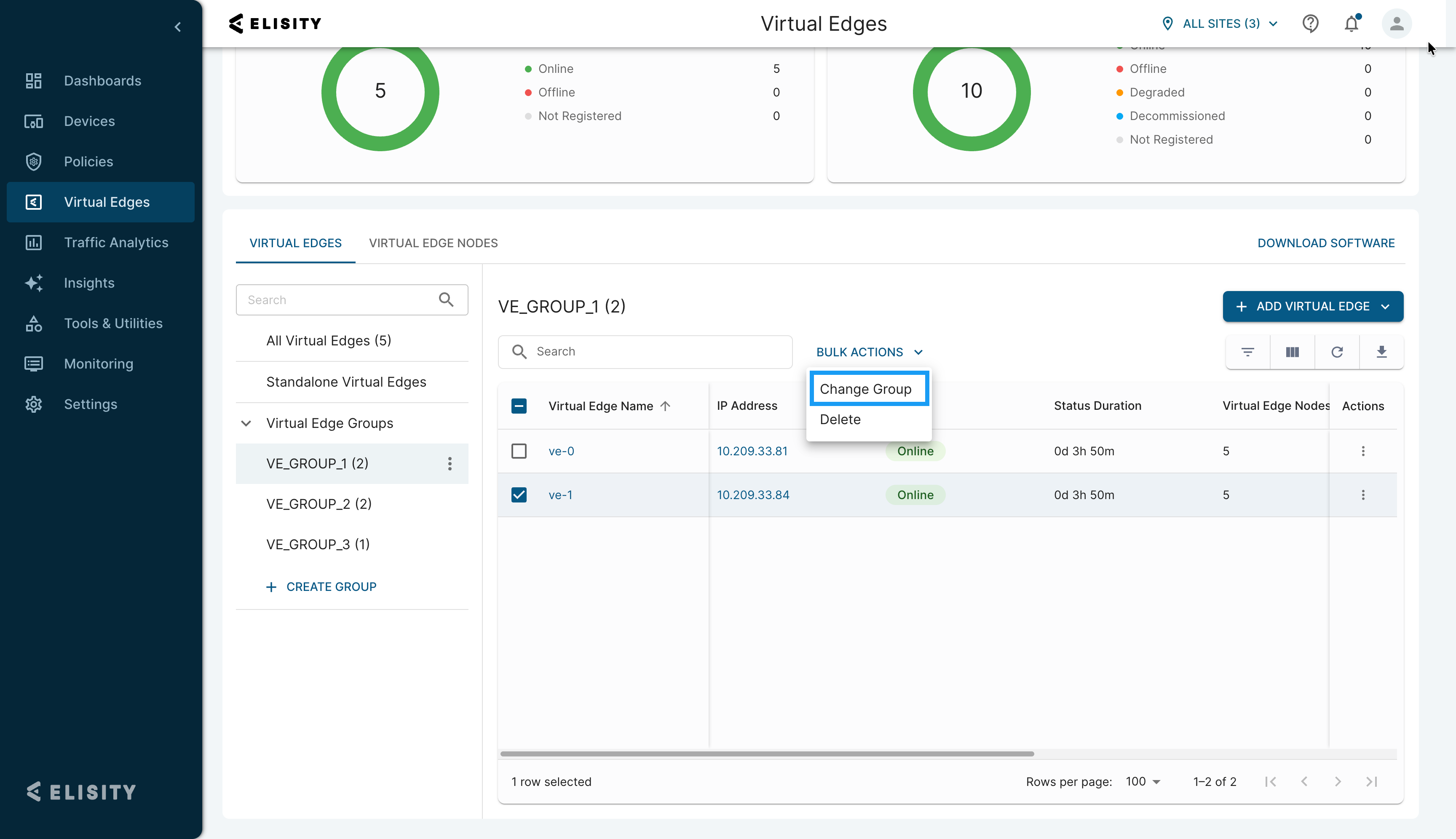

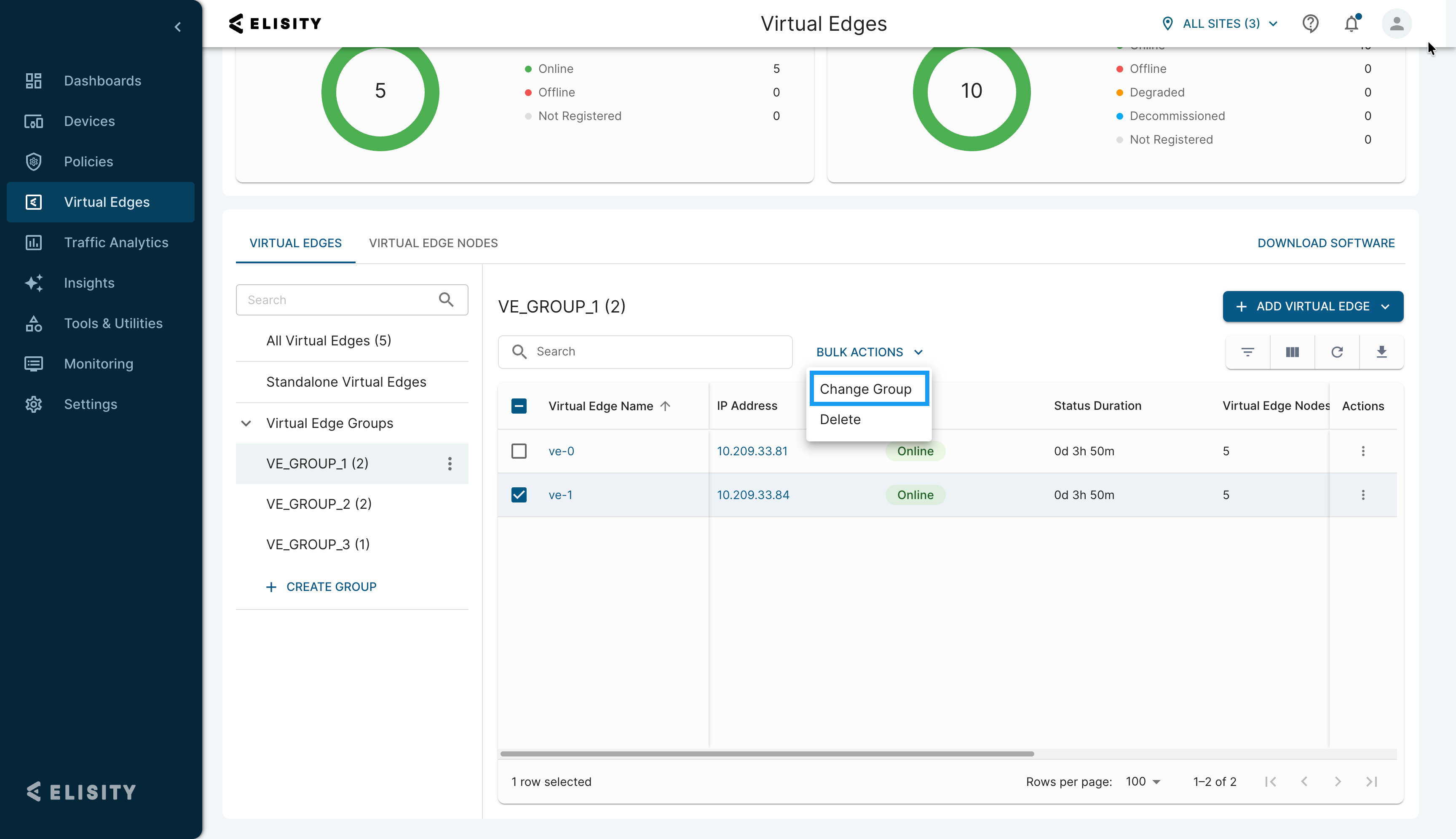

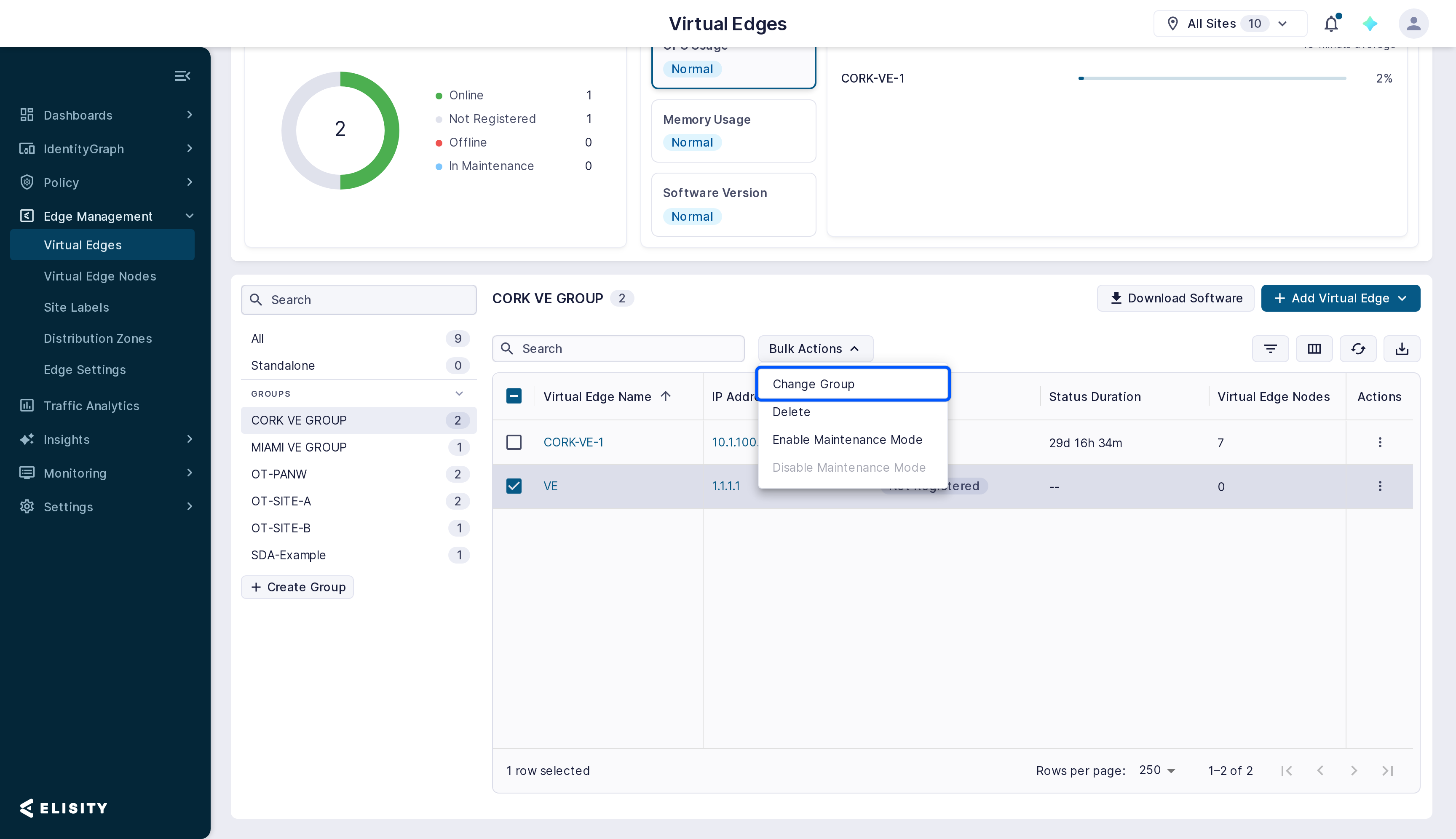

Change Group: The Change Group option enables moving one or more selected Virtual Edges to a different Virtual Edge Group. Select the desired Virtual Edges from the table and click Bulk Actions > Change Group. The Change Group dialog displays the current VE Group assignment and presents a dropdown of available target groups. Because Site Label and Distribution Zone is configured at the group level, the Virtual Edge(s) will inherit the configurations of the new group. Any Virtual Edge Nodes managed by the given VE(s) will be redistributed to other VEs in the original VE Group. If a Virtual Edge is alone in a VE Group, it cannot be moved.

Delete: This bulk action permits the deletion of multiple VEs at once. It is crucial for efficiently managing the lifecycle of VEs, especially when decommissioning or reorganizing network infrastructure. The delete action should be used with caution to avoid unintentionally removing critical network components.

The Delete option is available as a bulk edit option for both Standalone VEs and Group-associated VEs.

Standalone Virtual Edge Options

Download Configuration: This action enables the download of switch-hosted Virtual Edge configuration files. It's specifically designed for switch-hosted VEs, allowing administrators to obtain the configuration file(s) in bulk. These files can be edited offline and then re-uploaded to apply changes to the VEs.

Download Docker File: Similar to the configuration file download for switch-hosted VEs, this action pertains to hypervisor-hosted VEs. It allows the download of Docker files (in .yml format) that contain the configurations for the docker container running the VE. Administrators can download these files, modify them as needed to adjust the configuration, and then re-upload them to update the VE settings.

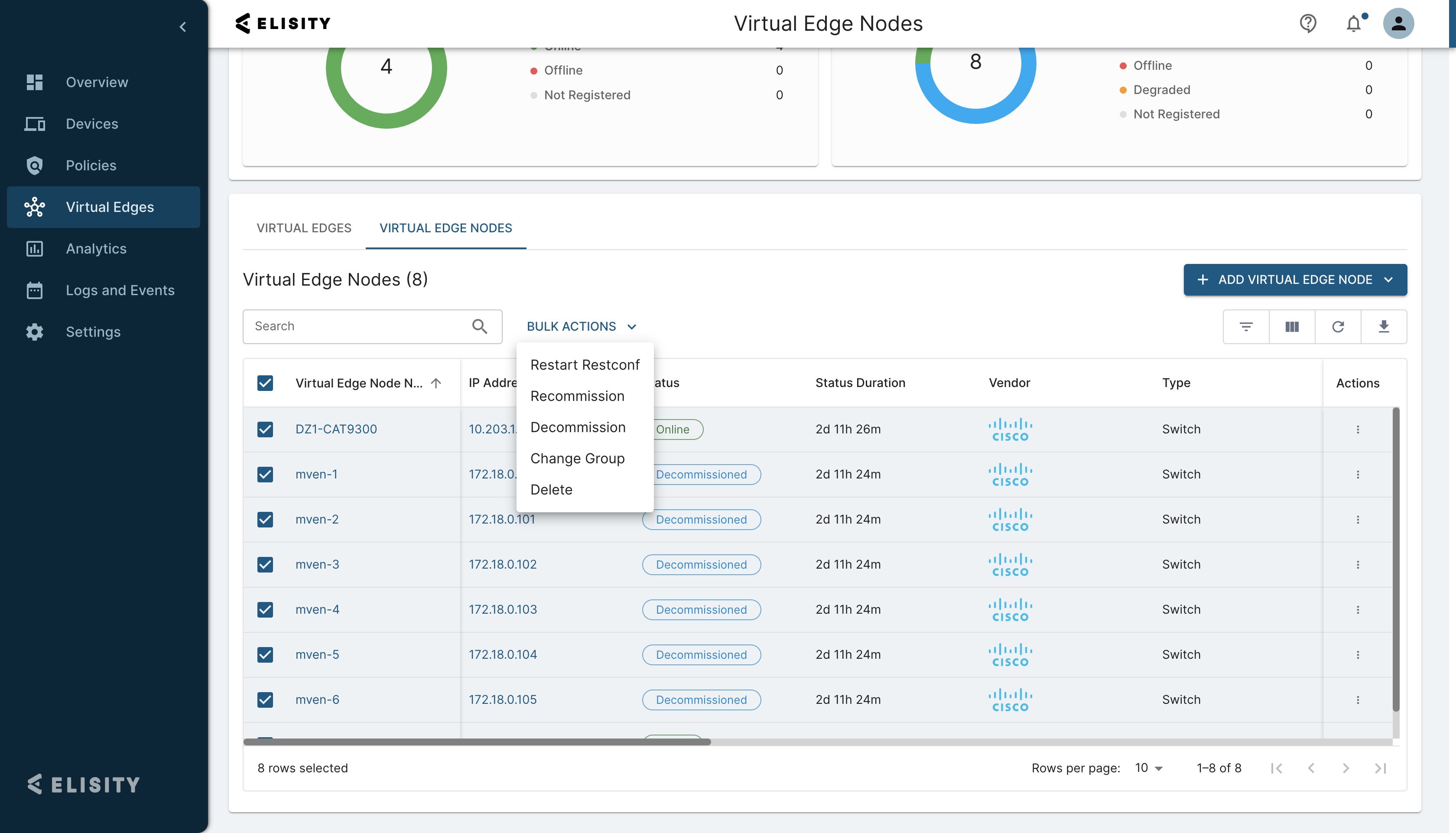

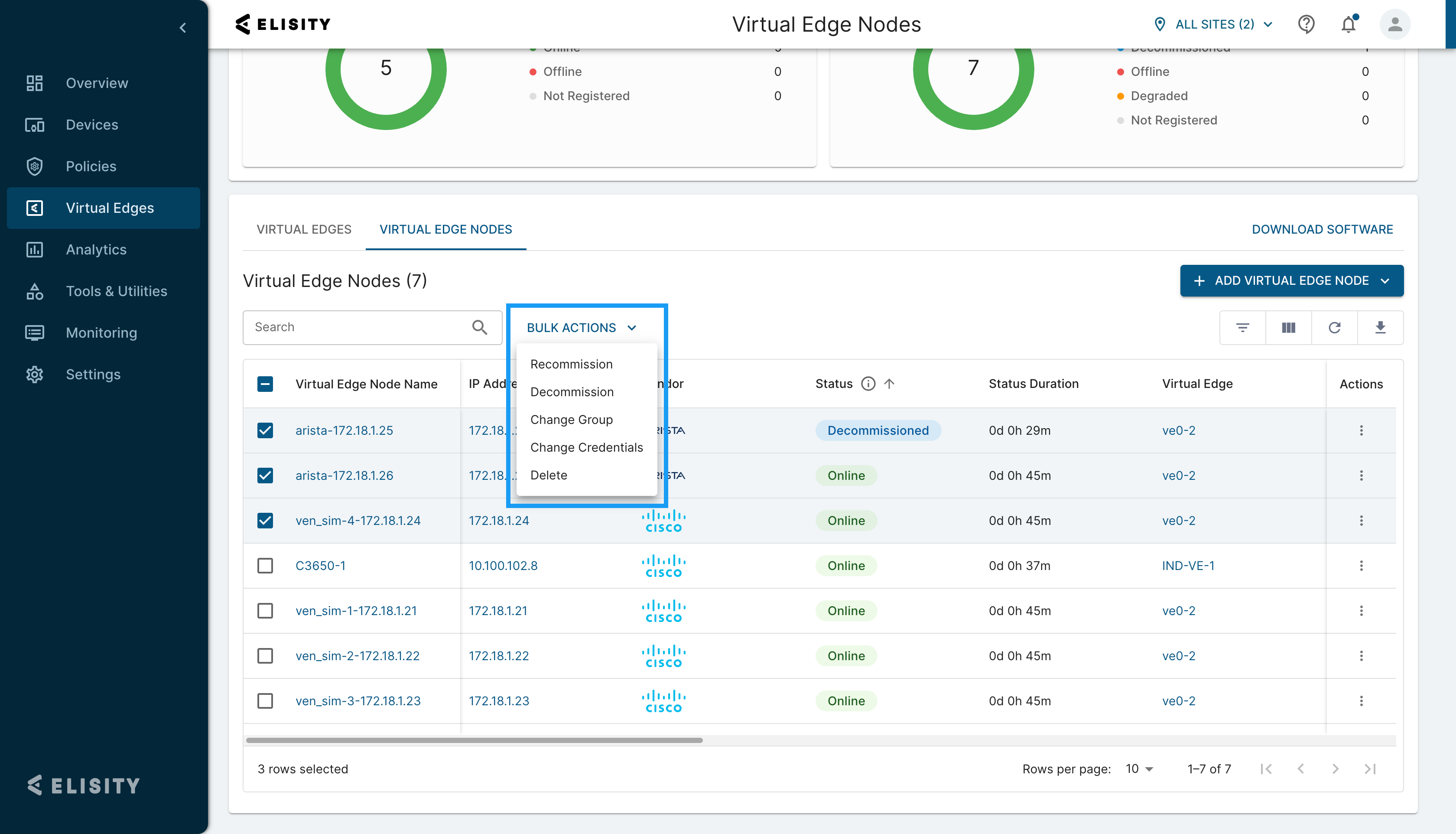

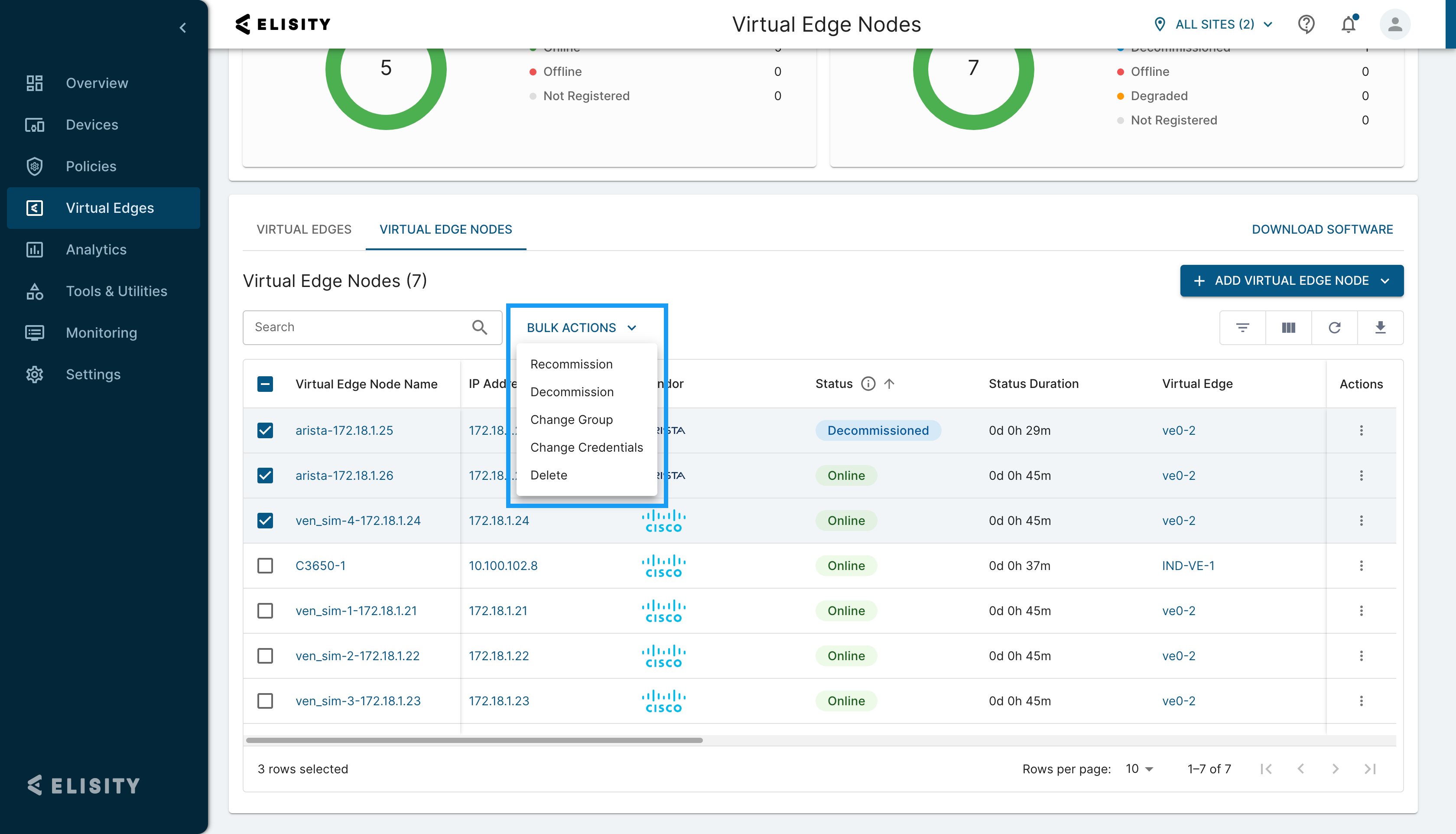

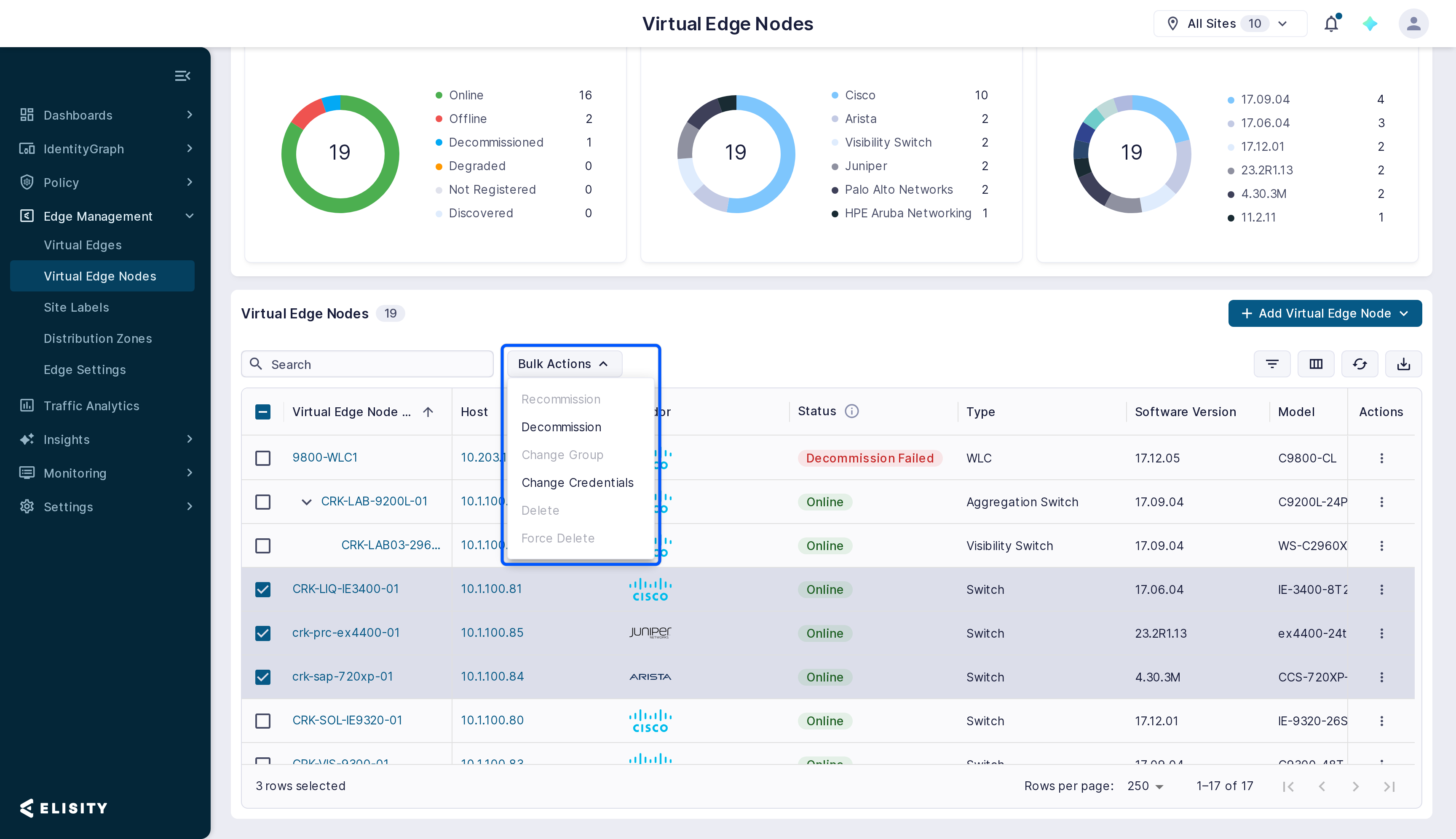

Virtual Edge Nodes

Bulk Action	Description
Recommission	Recommissioning VENs is a critical step in re-integrating previously decommissioned nodes back into the network. This action reactivates VENs, making them active participants in the network's segmentation and policy enforcement mechanisms.

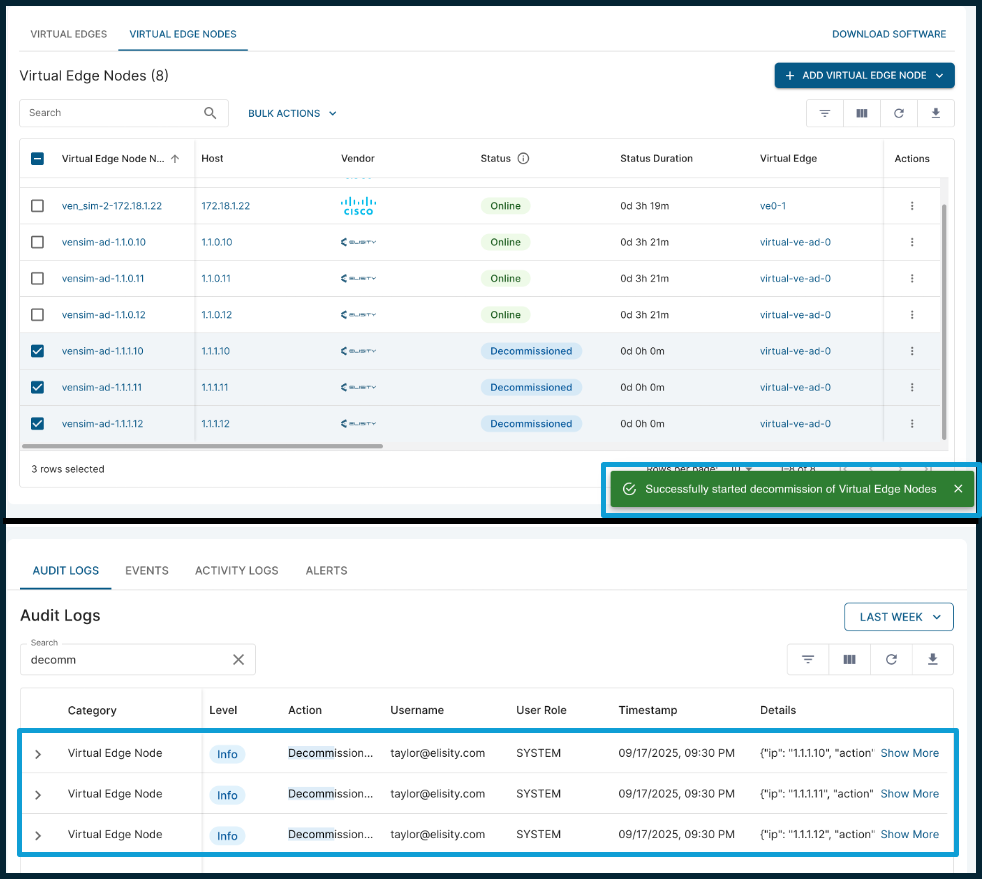

Decommission	Decommissioning VENs temporarily removes them from active duty without deleting their configurations. This is useful for maintenance, troubleshooting, or reallocating resources. Decommissioned nodes can be recommissioned later as needed.

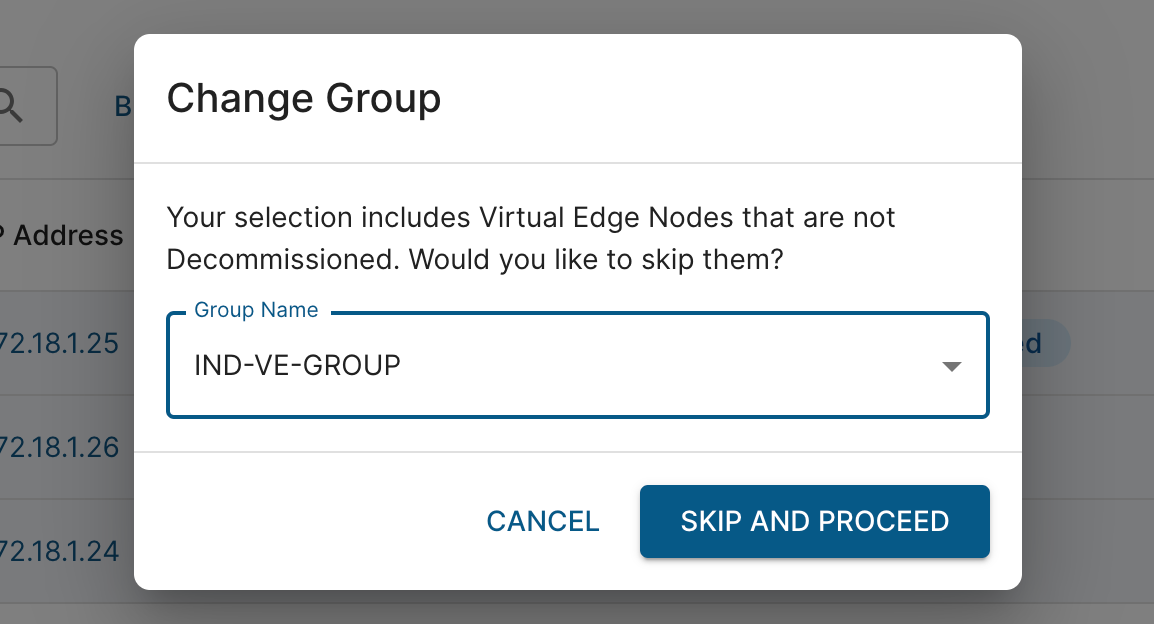

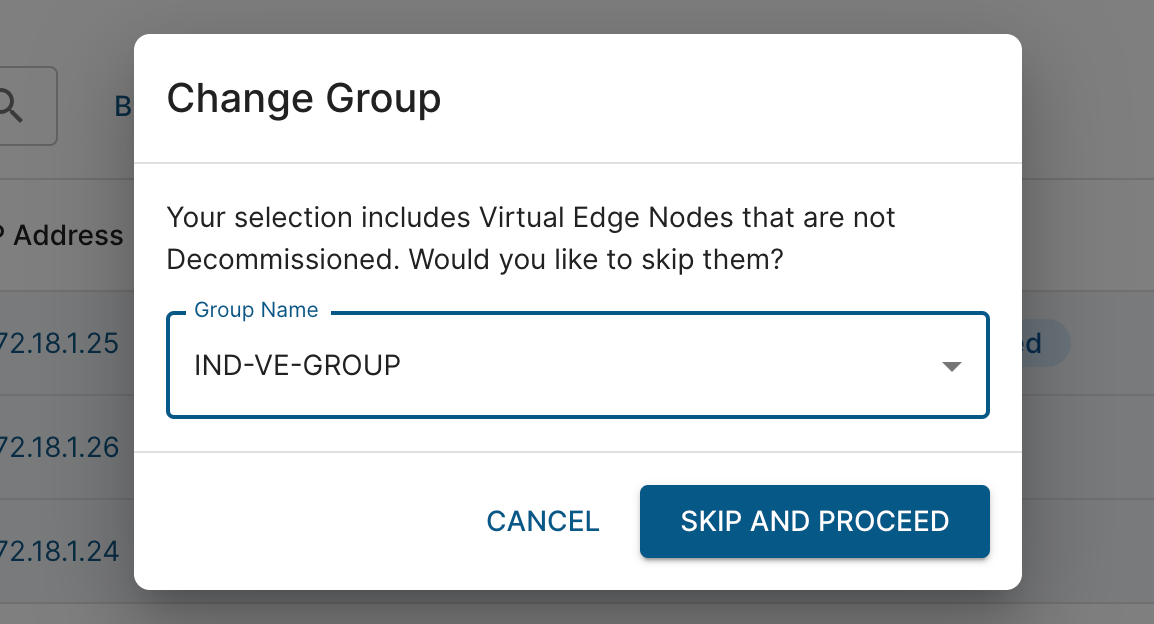

Change Group	Allows you to move VENs to another VE Group. This requires decommissioning your VENs. You can skip selected VENs that have not been decommissioned in the bulk action.

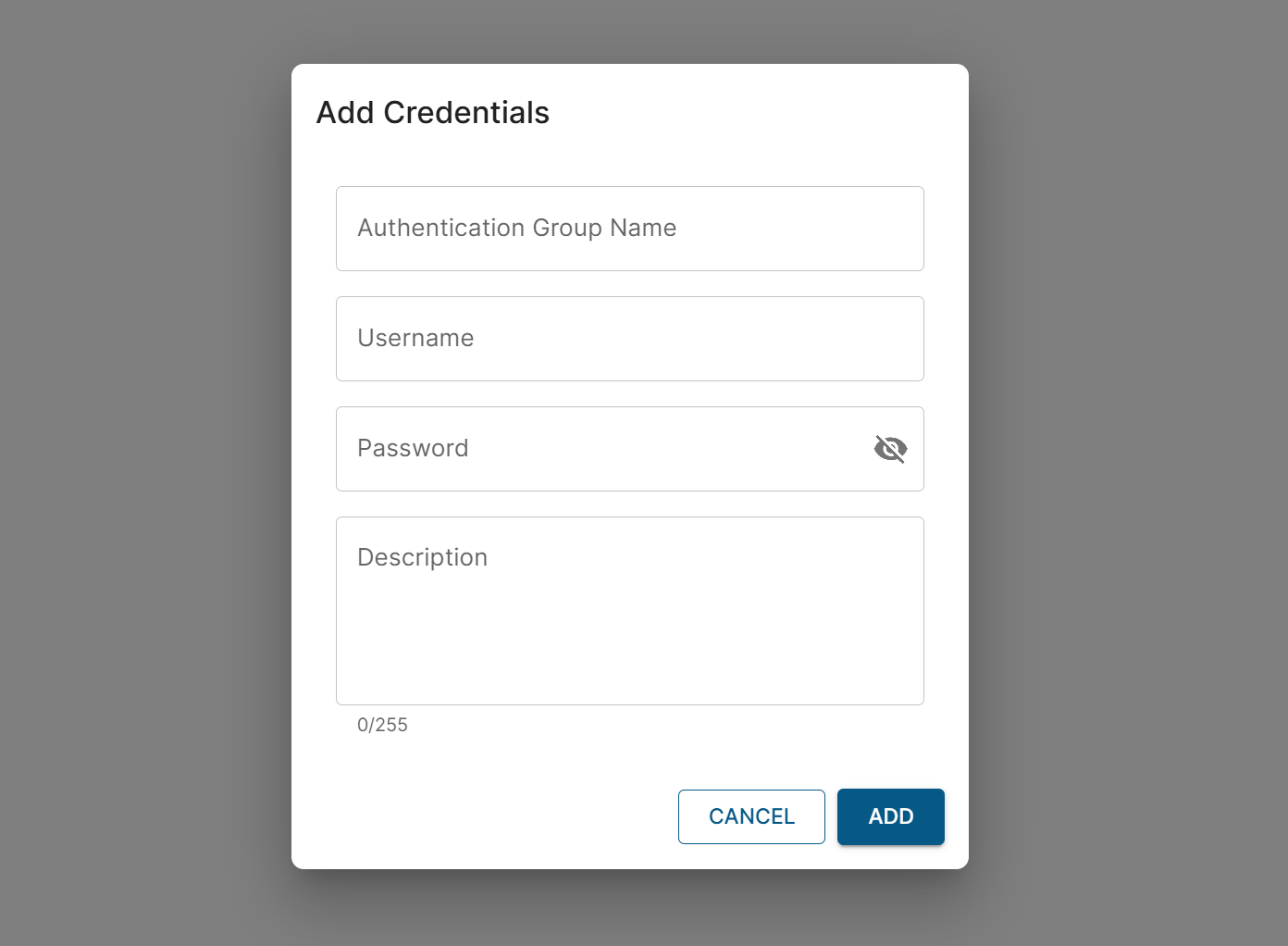

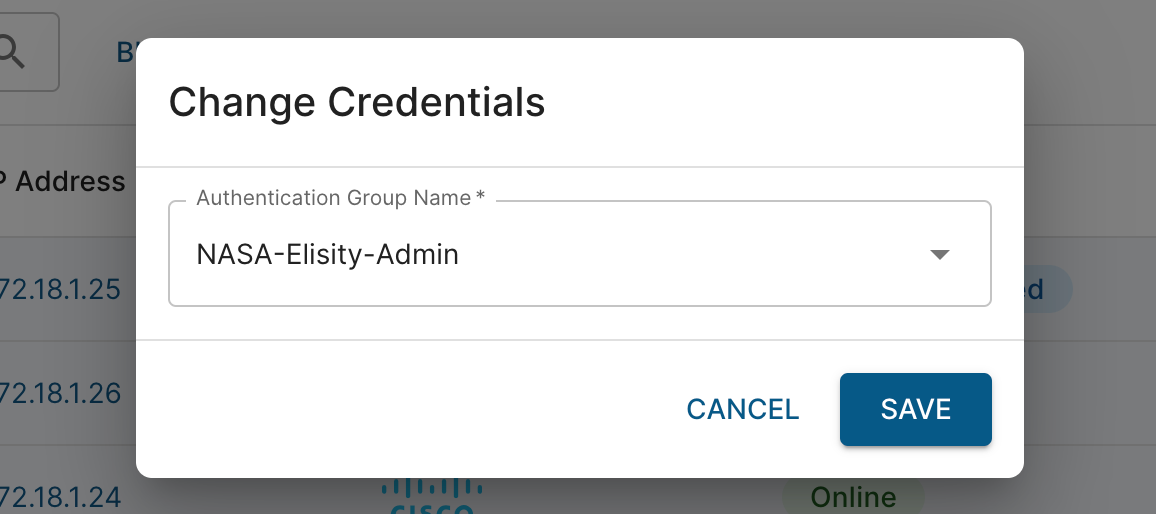

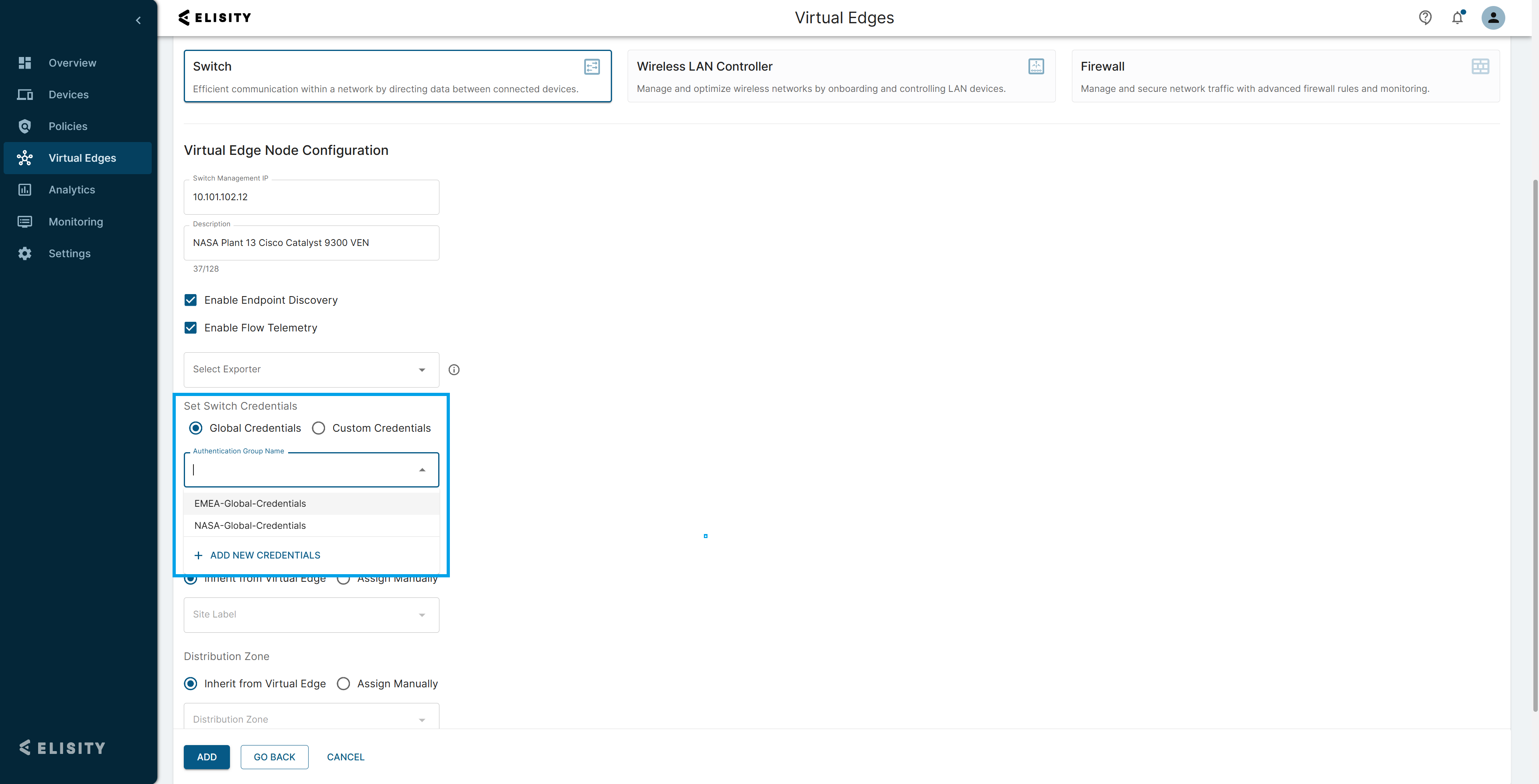

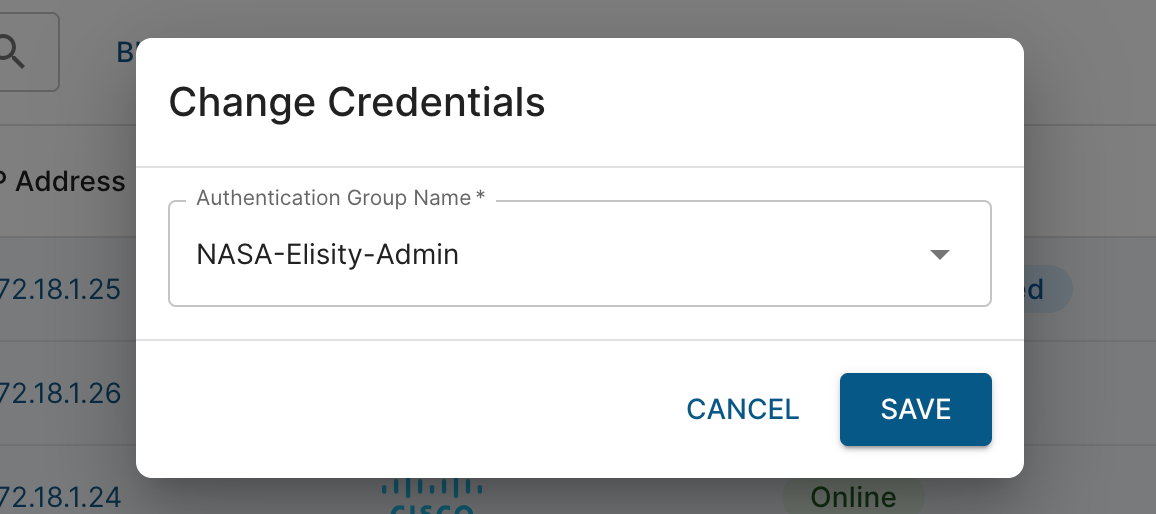

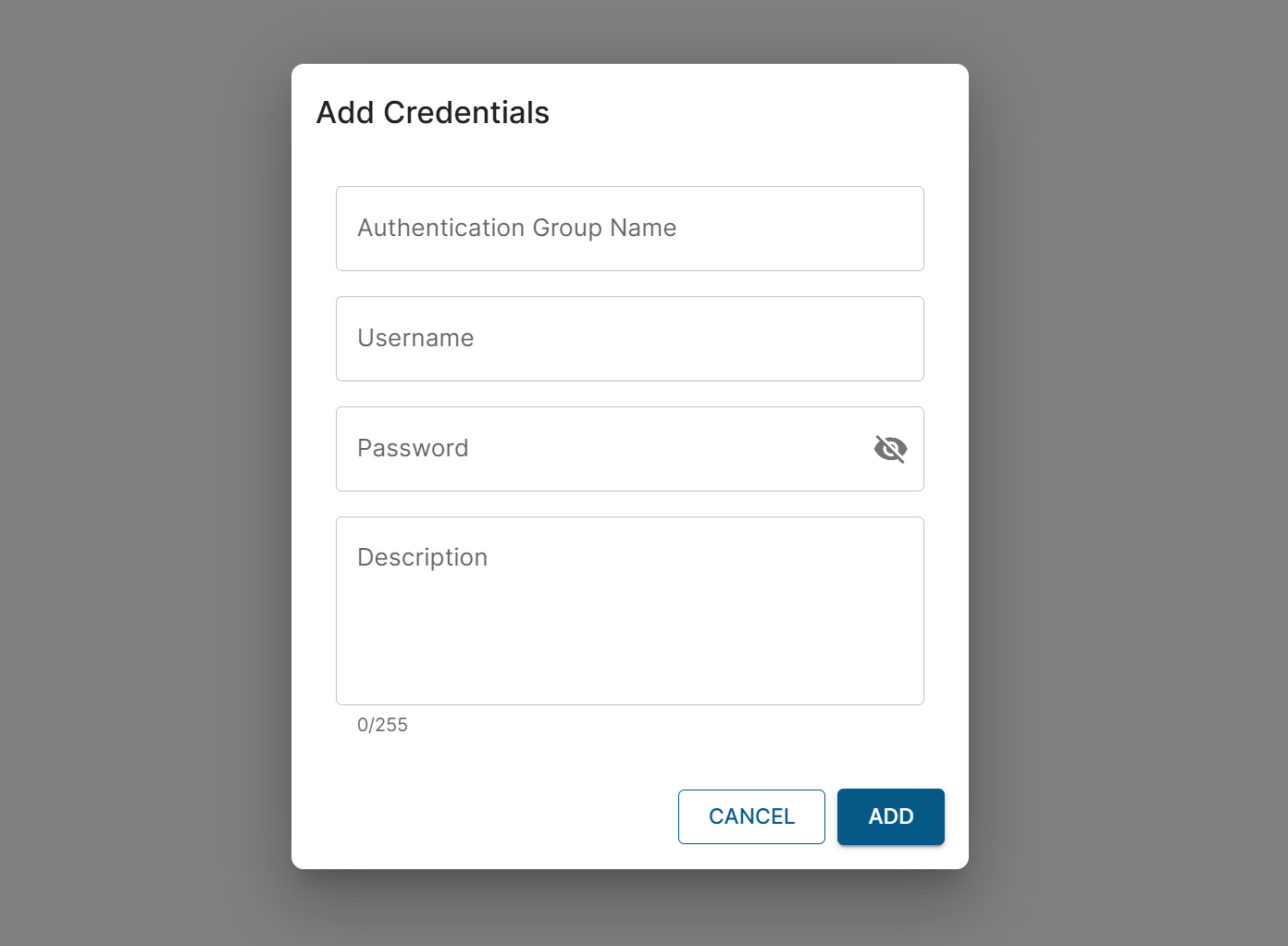

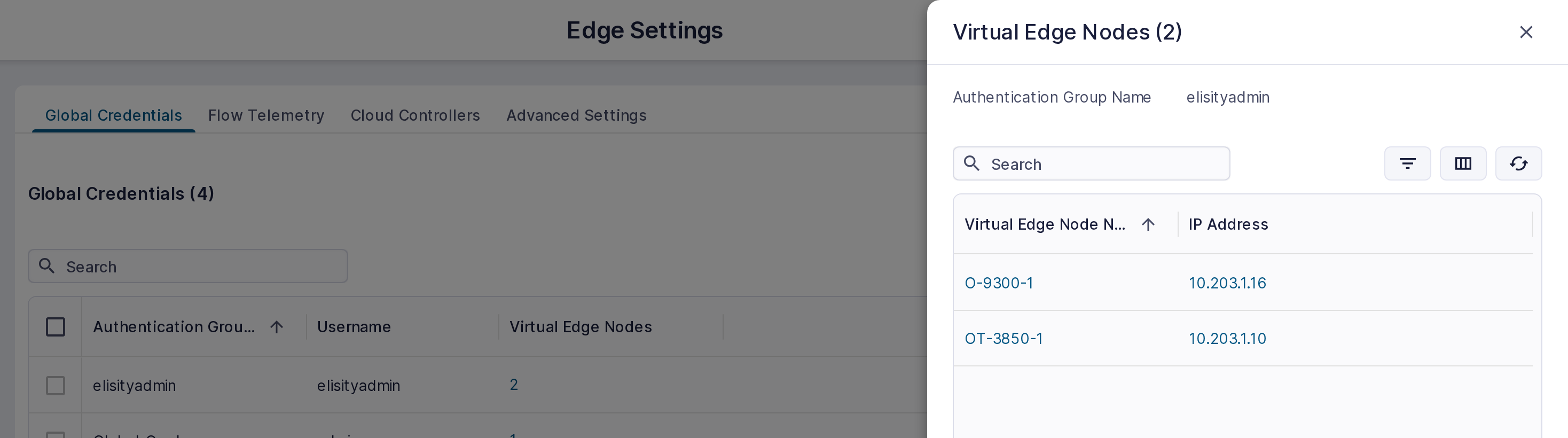

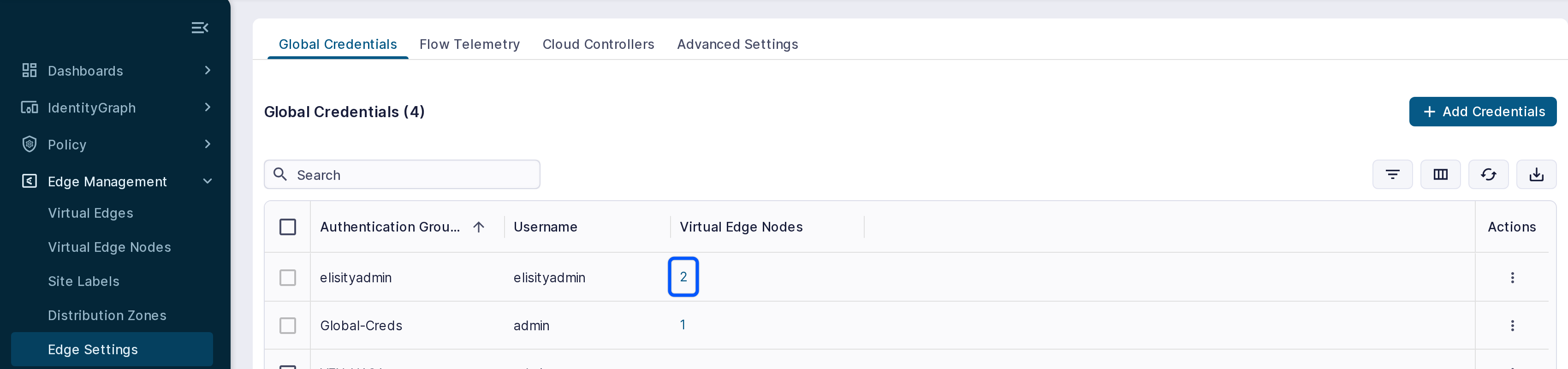

Change Credentials	Allows bulk application of Authentication Group to multiple VENs simultaneously. This effectively changes the authentication credentials that Elisity uses for login and management to access infrastructure.
Delete	This option allows for the removal of selected Virtual Edge Nodes from the network. Deletion is permanent and typically used when a node is no longer required or is being replaced. It's essential to ensure that decommissioning and data backup procedures are followed before deletion to prevent unintended data loss or network disruptions.
Force Delete	Permanently removes selected Virtual Edge Nodes that are in the Decommission Started or Decommission In Progress state, which clears a decommission that has stalled. This option is enabled when at least one selected Virtual Edge Node is in one of these states. A confirmation lists the Virtual Edge Nodes to be removed, and selected Virtual Edge Nodes that are not eligible are skipped. Because Force Delete halts an in-progress decommission, configuration may remain on the switch.

Viewing Virtual Edge Details

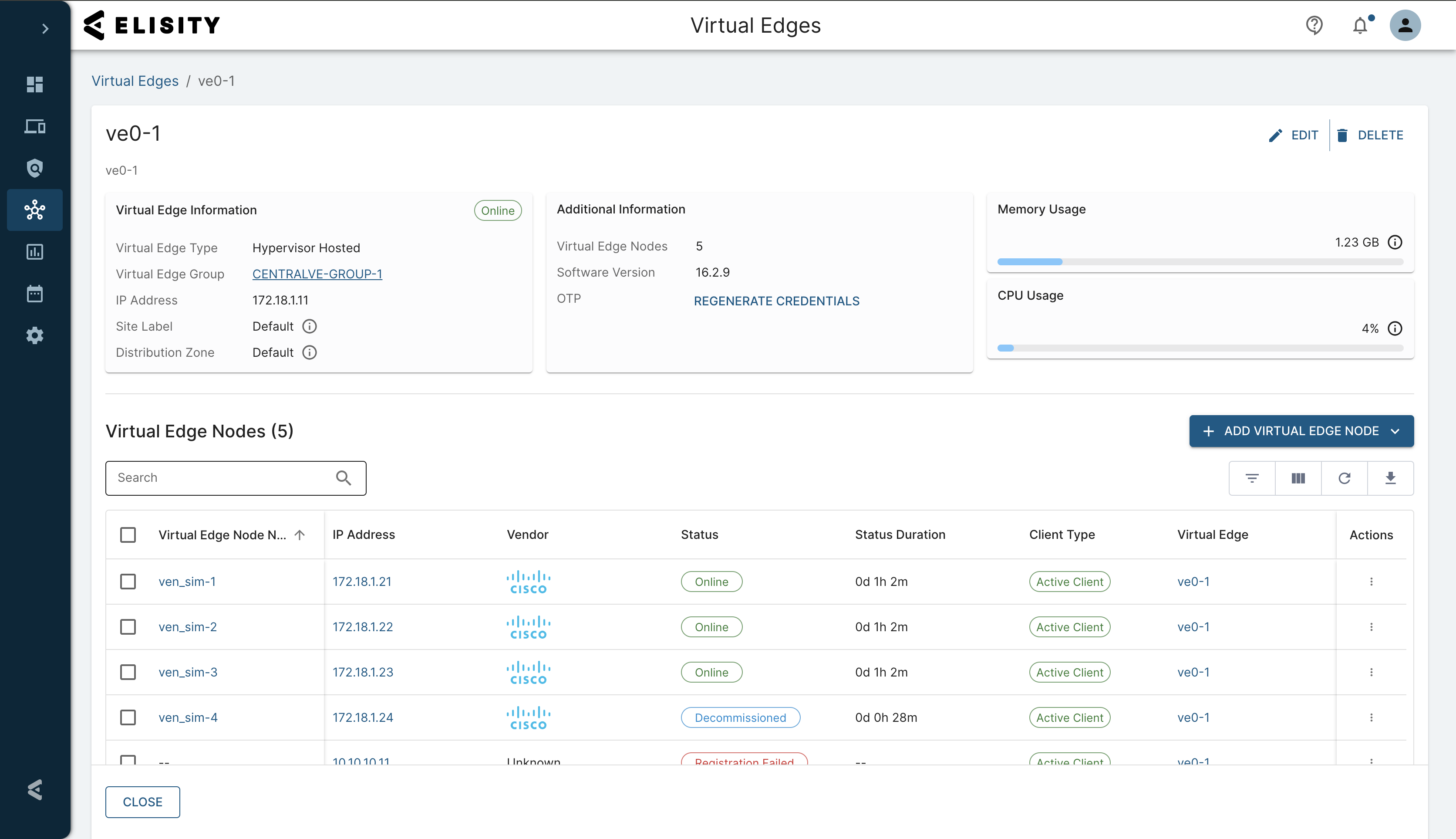

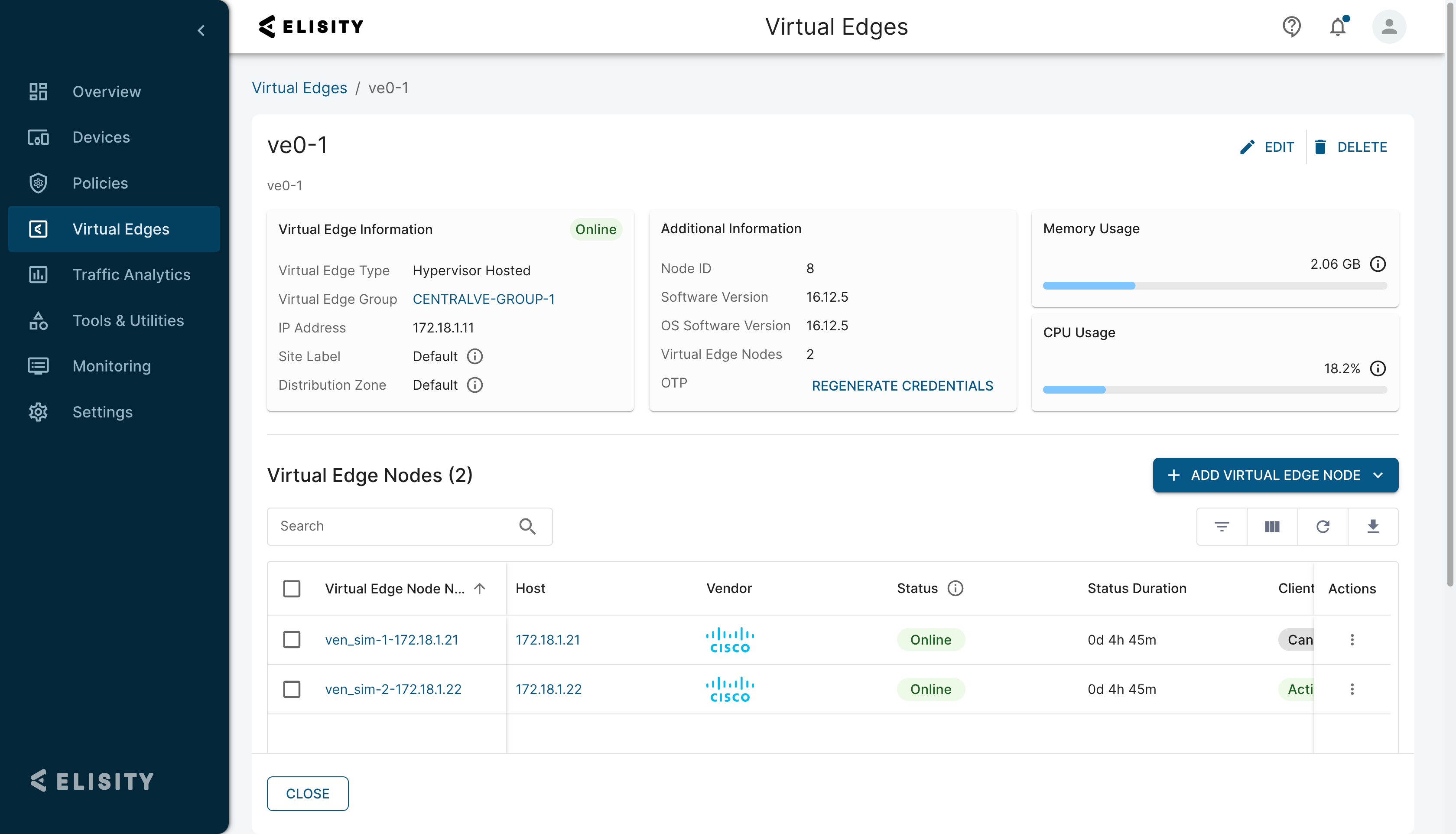

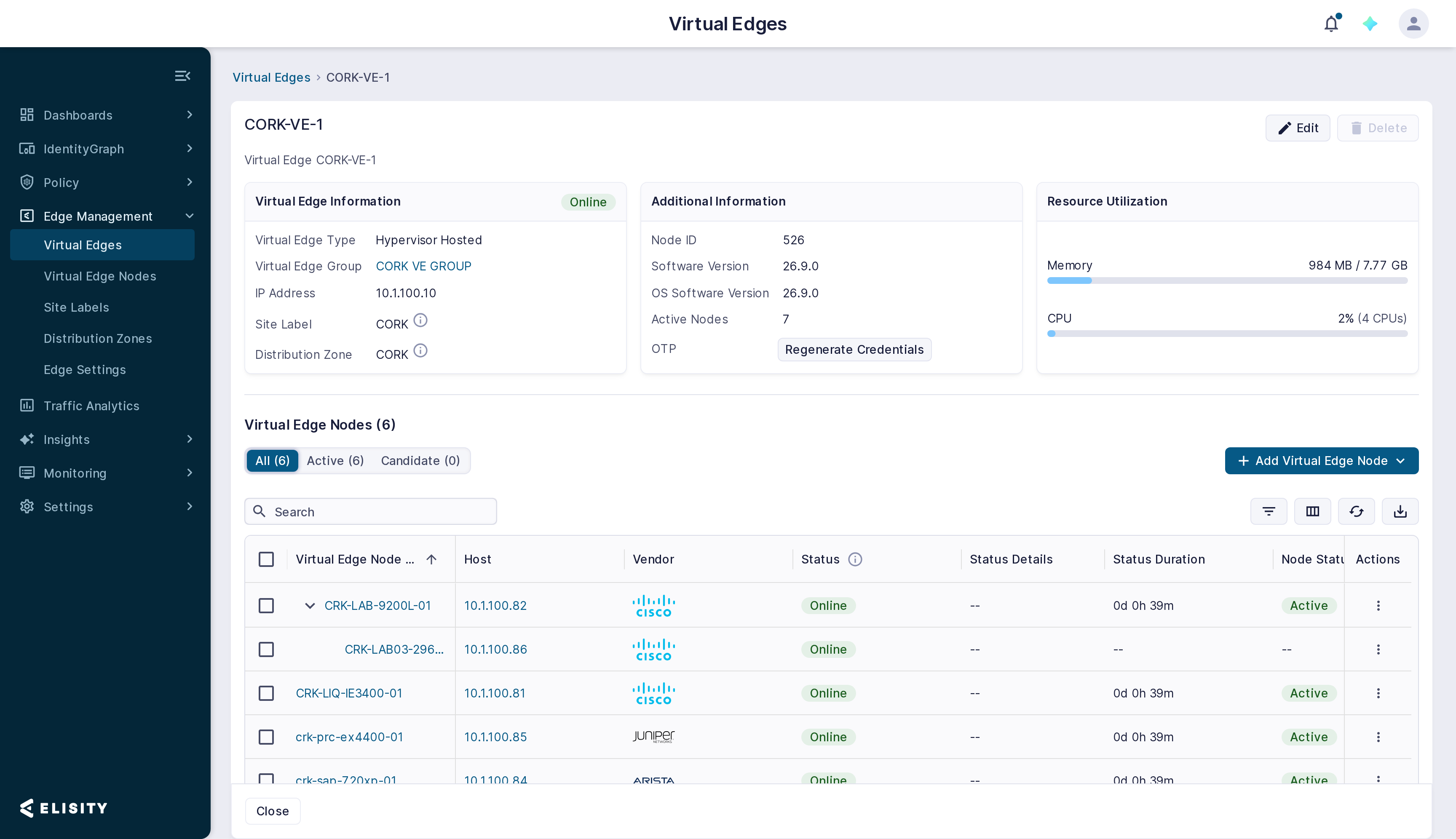

Open the Virtual Edges page and click a Virtual Edge (VE) name to view its details. The page is organized into “Virtual Edge Information,” “Additional Information,” “Resource Utilization,” and a “Virtual Edge Nodes” table. A status badge is shown in the “Virtual Edge Information” panel.



Virtual Edge Information

Field	Description
Virtual Edge Type	Hosting type of the VE (for example, Hypervisor Hosted).
Virtual Edge Group	Name of the Virtual Edge Group that manages this VE.
IP Address	Management IP address of the VE.
Site Label	Site label currently assigned to the VE.
Distribution Zone	Distribution Zone currently assigned to the VE.
Status (icon)	Current operational state shown as a badge in this panel. See VE Status below.



VE Status

Value	Definition
Online	Connectivity between the Virtual Edge and Cloud Control Center is operating normally.
Offline	Connection is not active from the Virtual Edge to Cloud Control Center. (Outbound connectivity on TCP/443)



Additional Information

Field	Description
Node ID	Internal identifier for the VE. Useful for troubleshooting.
Software Version	Version of the Virtual Edge software currently running on the VE.
OS Software Version	Version of the bootstrap OS responsible for upgrading, restarting, etc the VE
Active Nodes	Count of VENs currently managed by this VE.
OTP	Provides a Regenerate Credentials control for OTP credentials. Only regenerate credentials if you need to redeploy the Virtual Edge.



Resource Utilization

Panel	Description
Memory	Current memory consumption for the VE.
CPU	Current CPU utilization for the VE.



Virtual Edge Nodes (table)

Column	Description
Virtual Edge Node Name	Clickable VEN name to open the VEN details view.
Host	Host IP address for the VEN.
Vendor	Vendor associated with the hosting device.
Status	Operational state of each VEN (icon). See clickable in-depth status reports in the previous section.
Status Duration	Elapsed time in the current status.
Node Status	Shows whether the VEN is Active (actively managed by the current VE) or a Candidate (would be managed by the VE if the active VE has an outage). The All, Active, and Candidate tabs above the table filter the list by this value. See Virtual Edge Groups rebalancing for more information.

Controls: Search; filter; view/layout; refresh; download. Add Virtual Edge Node opens the creation workflow.

Top-level actions

Action	Description
Edit	Opens editable settings for the VE.
Delete	Deletes the VE (subject to safeguards in your environment).
Show Credentials	Opens the Virtual Edge Configuration modal, which displays the CCC URL and Client Secret with one-click copy functionality. Use these credentials when re-registering a Virtual Edge or performing bulk onboarding.
Close	Returns to the previous page.

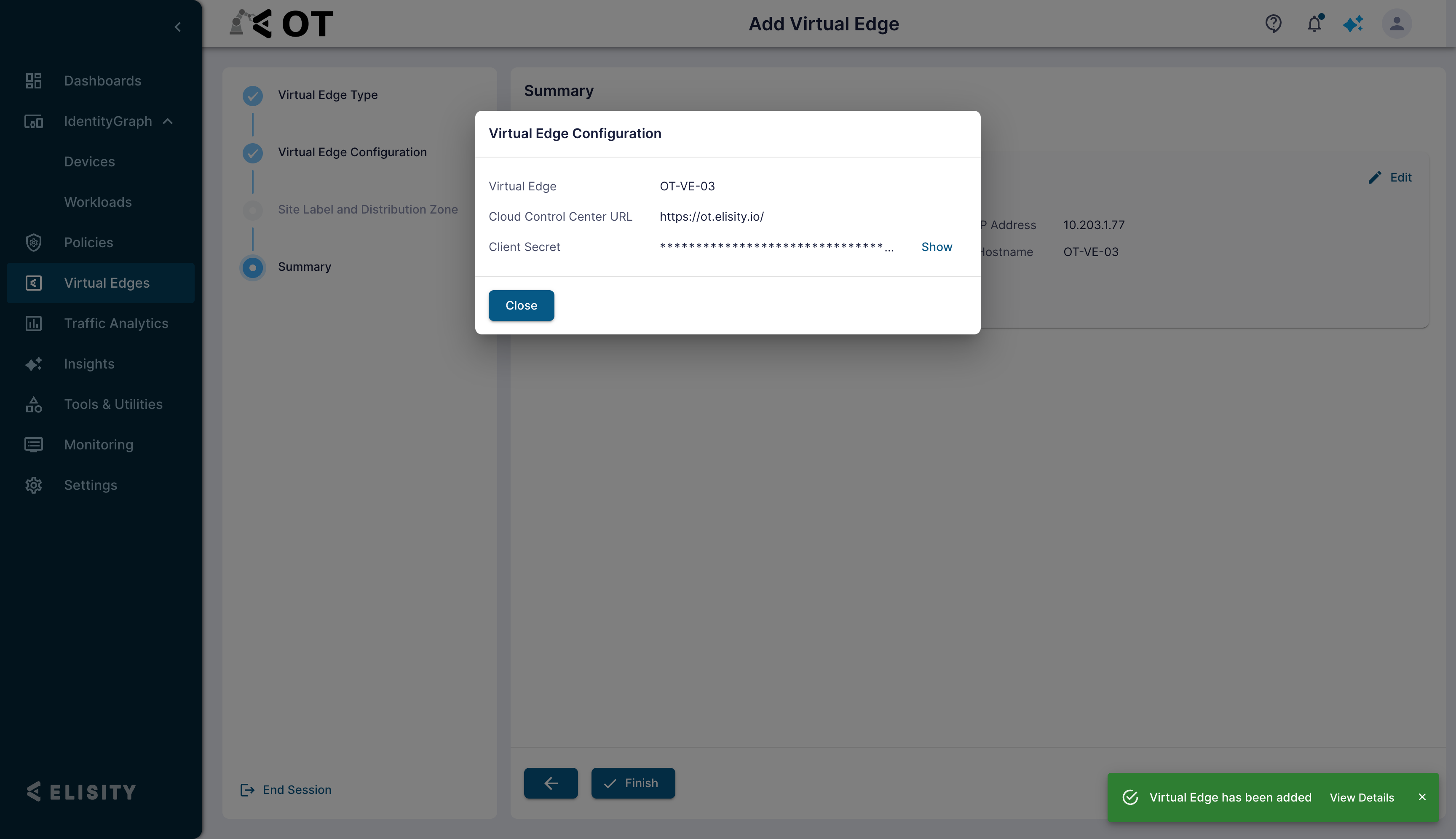

The Show Credentials action opens the Virtual Edge Configuration modal:

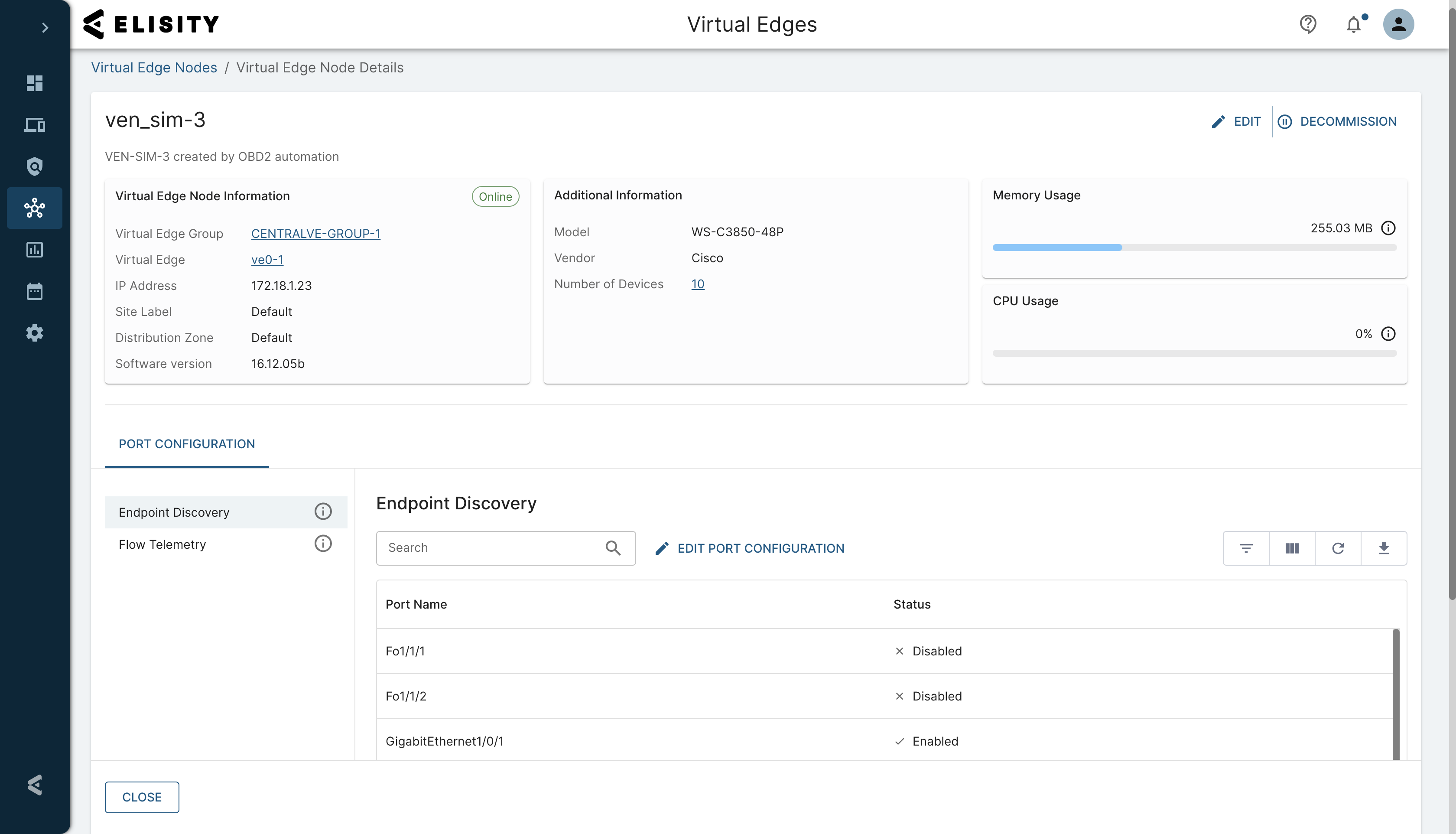

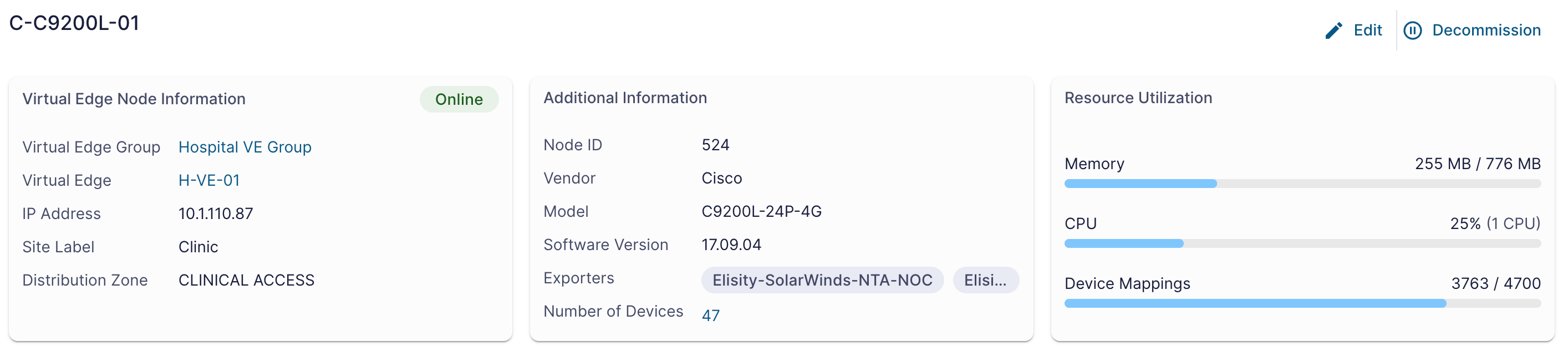

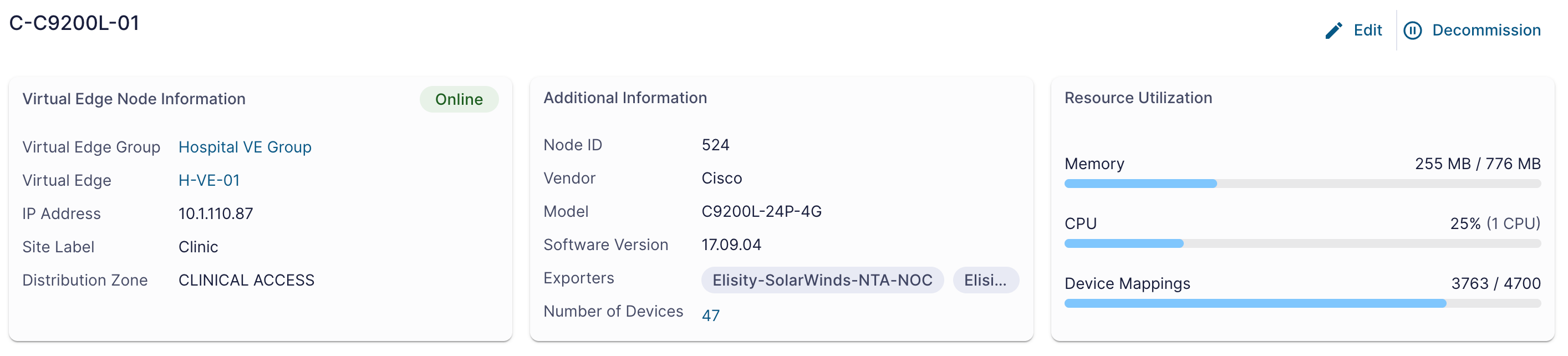

Viewing Virtual Edge Node Details

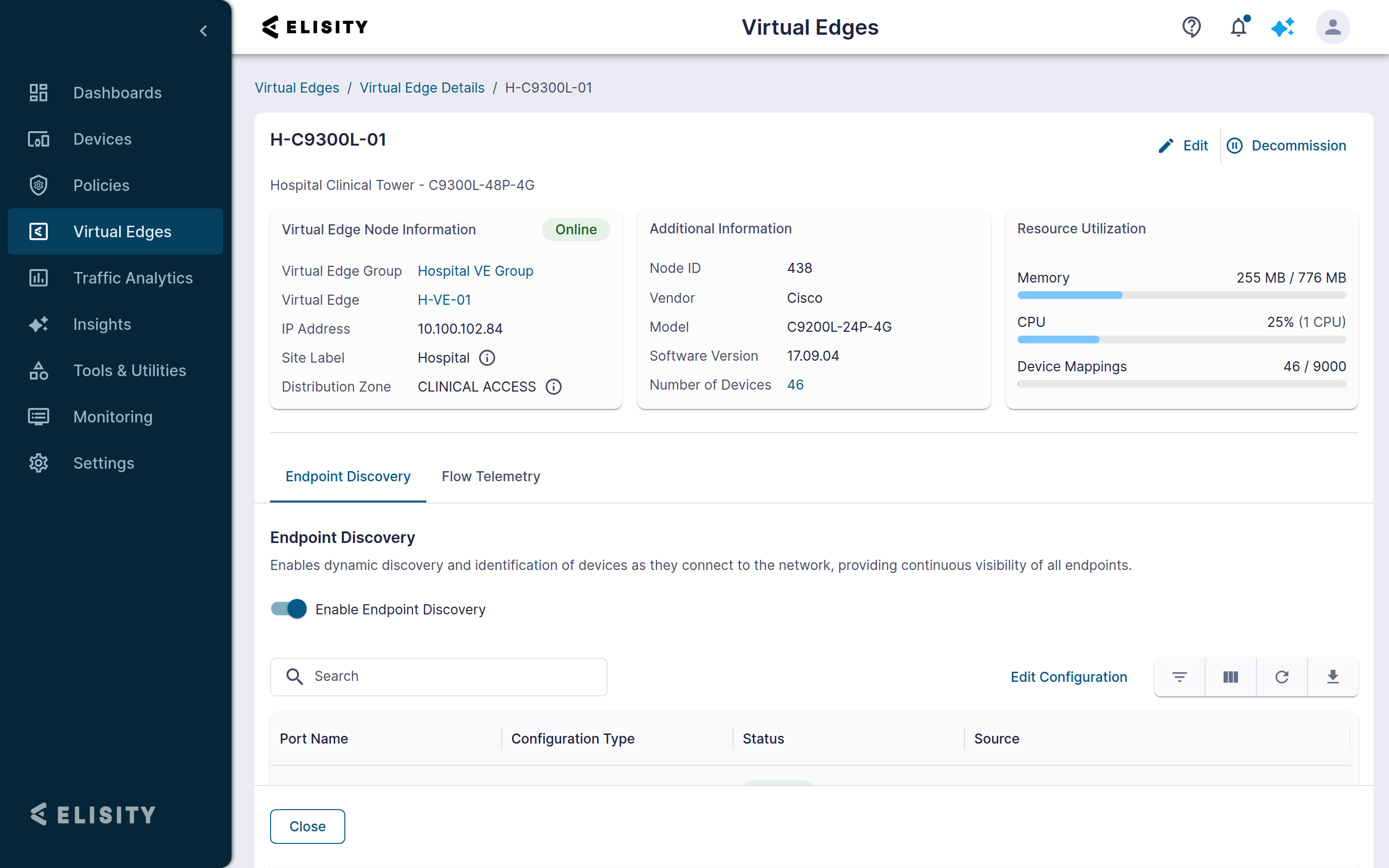

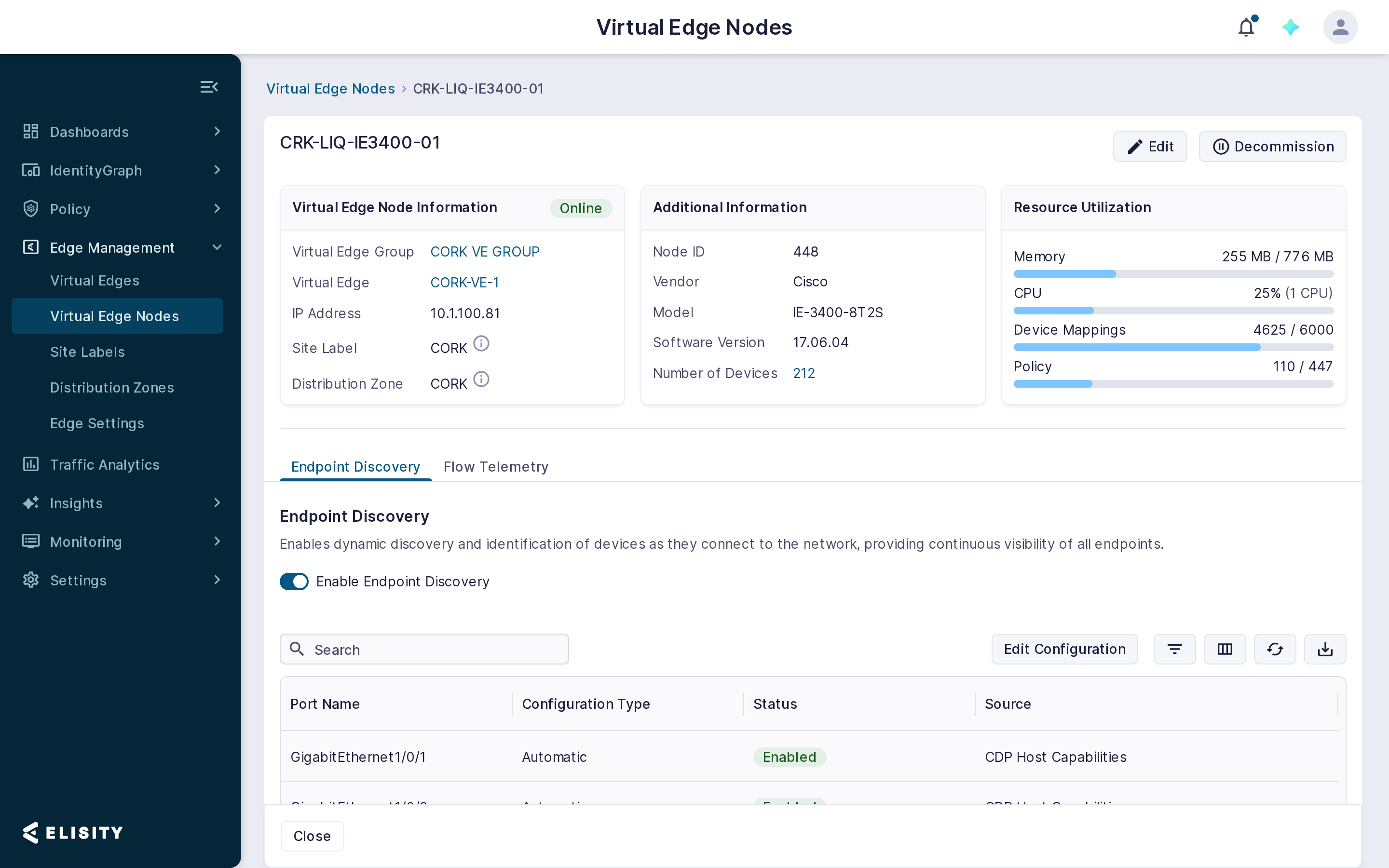

Open the Virtual Edge Nodes page and click a VEN name to view its details. The page is organized into Virtual Edge Node Information, Additional Information, Resource Utilization, and the Endpoint Discovery and Flow Telemetry port configuration tabs. The VEN Status icon is shown in Virtual Edge Node Information. When a node is degraded, click the status chip to view the detailed list of causes.

Click the status chip on the details page to view connection status details:



Virtual Edge Node Information

Field	Description
Virtual Edge Group	Virtual Edge Group which manages the VEN.
Virtual Edge	The specific Virtual Edge in the VE Group which is actively managing the VEN.
IP Address	Management IP address of the node.
Site Label	Site Label currently assigned to the node.
Distribution Zone	Distribution Zone currently assigned to the node.
Status	Current operational state (Online, Offline, or Degraded). See “VEN status” below for details.



VEN status

Value	Definition	Where to view details
Online	VEN is reachable and operating normally.	Status badge on the details page.
Offline	VEN is not reachable by the controller.	Status badge on the details page.
Degraded	VEN is reachable but one or more health checks/resources are not normal.	Click the status chip in the list view or on the details page to see the specific cause(s).



Additional Information

Field	Description
Node ID	Internal identifier for the node. Useful in troubleshooting.
Vendor	Hardware vendor of the hosting device.
Model	Hardware model of the hosting device.
Software Version	Vendor software version currently running on the device.
Number of Devices	Count of devices currently associated with or learned by this node. Click on the number to see the list of devices.



Resource Utilization

Panel	Description
Memory	Current memory consumption for the node.
CPU	Current CPU utilization for the node. (number of CPUs)
Device Mappings	Device mappings in use on the node, shown as used / total.
Policy	Policy usage on the node, shown as used / total.



Port Configurations

Details about the port configurations can be viewed and managed from this menu, providing administrators with the ability to tailor network connectivity and traffic flow according to specific requirements. For more information about these port configurations and what they do, read Port Configurations on Virtual Edge Nodes.

Area / Control	Description
Tabs	Endpoint Discovery; Flow Telemetry.
Endpoint Discovery (table)	Searchable list of ports showing their classification Source, Status, and configuration details.
Source	Read-only column indicating how each port was classified as UNI (User-to-Network Interface) or NNI (Network-to-Network Interface). Values include Interface Description, LLDP Host Capabilities, CDP Host Capabilities, Port Channel, and Default, among others. See the Source Value Reference table below for the full list.
Status	Displays the current state of the port as a colored chip: green indicates Enabled, gray indicates Disabled.
Edit Port Configuration	Opens per-port configuration to enable/disable or adjust discovery settings.
Table controls	Filter, view/layout, refresh, and download actions for the table.



Source Value Reference

Hovering over a Source value displays additional detail about how the classification was determined:

The following table describes each possible value in the Source column of the Endpoint Discovery port list. Ports without classification source data display a dash (—).

Source Value	Description
Interface Description	Classified based on the interface description.
LLDP Host Capabilities	Neighbor reported as a device via LLDP.
CDP Host Capabilities	Neighbor reported as a device via CDP.
LLDP Platform	Neighbor reported as a device via LLDP Platform.
CDP Platform	Neighbor reported as a device via CDP Platform.
LLDP Capability	Neighbor reported as a network device via LLDP.
CDP Capability	Neighbor reported as a network device via CDP.
Port Channel	Port is a member of a port-channel or LAG.
Interface Type	Classified based on interface properties.
Shutdown	Interface is administratively shut down.
Default	No specific classification matched; default UNI assignment applied.



Available Actions

Edit: Allows for the modification of the VEN's configuration settings, including configured flow exporters, descriptions, and associated labels.
Decommission: This option facilitates the safe removal of the VEN from active service, a necessary step before deletion or when the node needs to be temporarily taken offline for maintenance or troubleshooting.



Distribution Zones and Site Labels

Elisity’s microsegmentation solution leverages Distribution Zones and Site Labels to streamline the process of managing network segments and applying policies based on the geographical or logical grouping of resources. This approach enables precise control over how policies are distributed and enforced across the network. Both of these constructs are managed under Edge Management, but before we get into how to create and assign them to VEs, let's quickly review the concepts.

The interplay between Distribution Zones and Site Labels provides a layered approach to policy management, where Distribution Zones handle the distribution scope of device identity tags while Site Labels facilitate the granular application of policies based on site-specific requirements.



Distribution Zones are conceptual areas within the network that facilitate the efficient distribution of identity tags and policies. They are pivotal in large-scale environments, helping to overcome the limitations posed by hardware diversity and scale. Each Distribution Zone can support a varying number of devices, depending on the specific hardware used within the zone, and is linked to Virtual Edges, ensuring all nodes of a Virtual Edge belong to the same Distribution Zone. The dynamic nature of Distribution Zones allows for their reassignment to different Virtual Edges as needed, enhancing flexibility in network management.

Site Labels offer a method to both organize and classify VEs/VENs and any devices attached to these Policy Enforcement Points based on their physical or logical location. This allows policies to be applied more contextually, and enhances the visibility and analytics data by utilizing site labels as both a filtering mechanism and a policy enforcement mechanism.

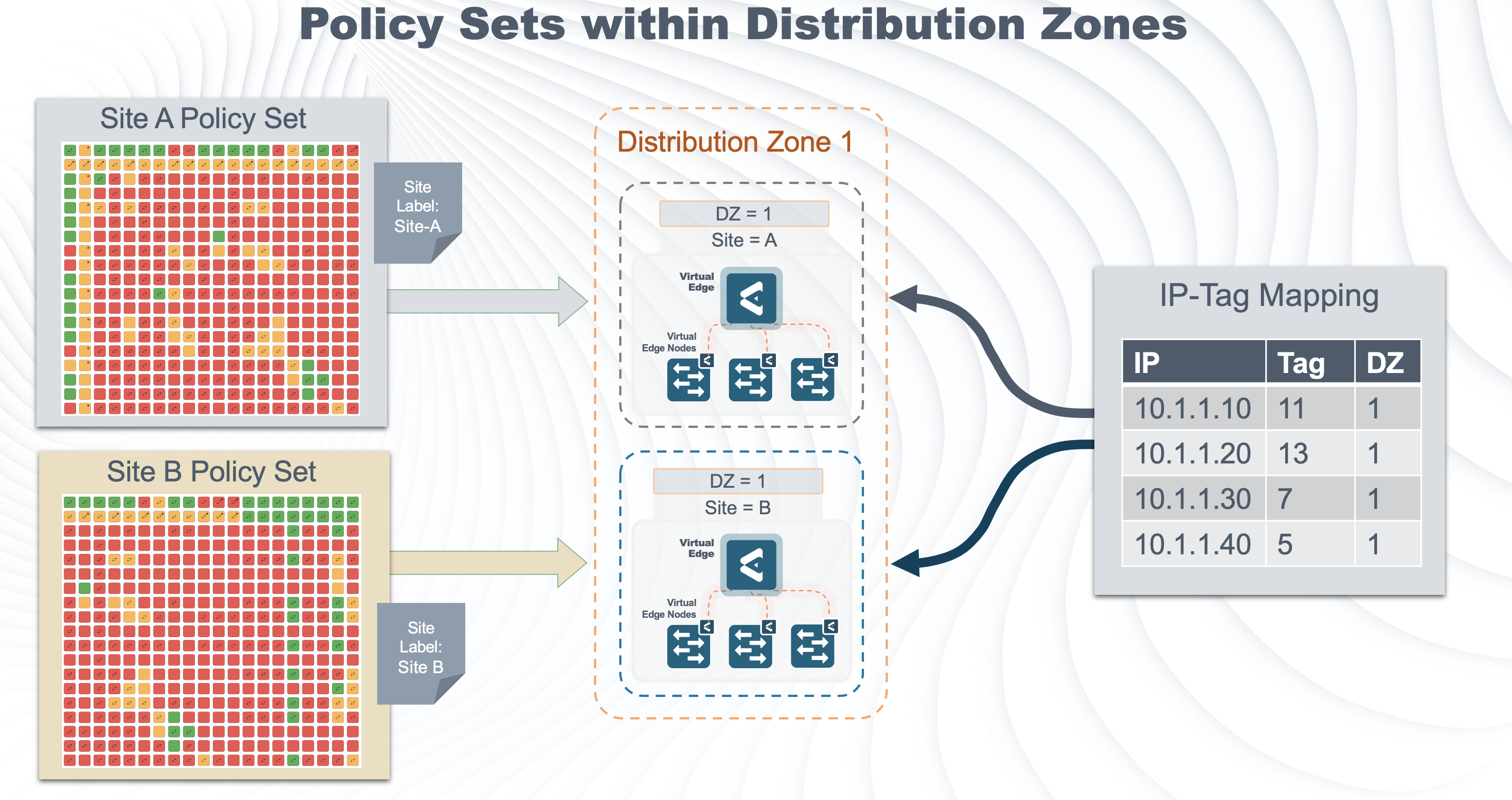

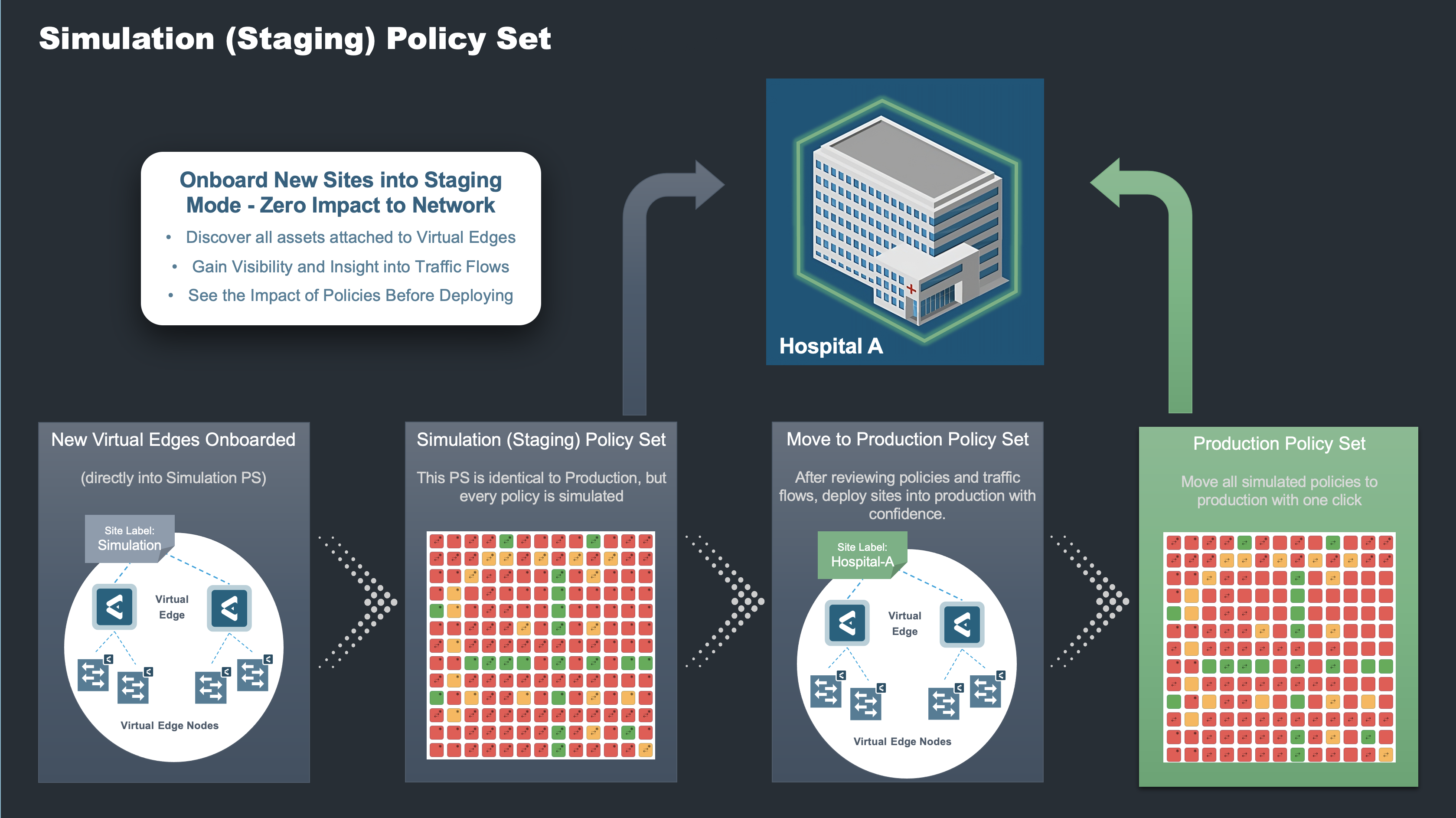

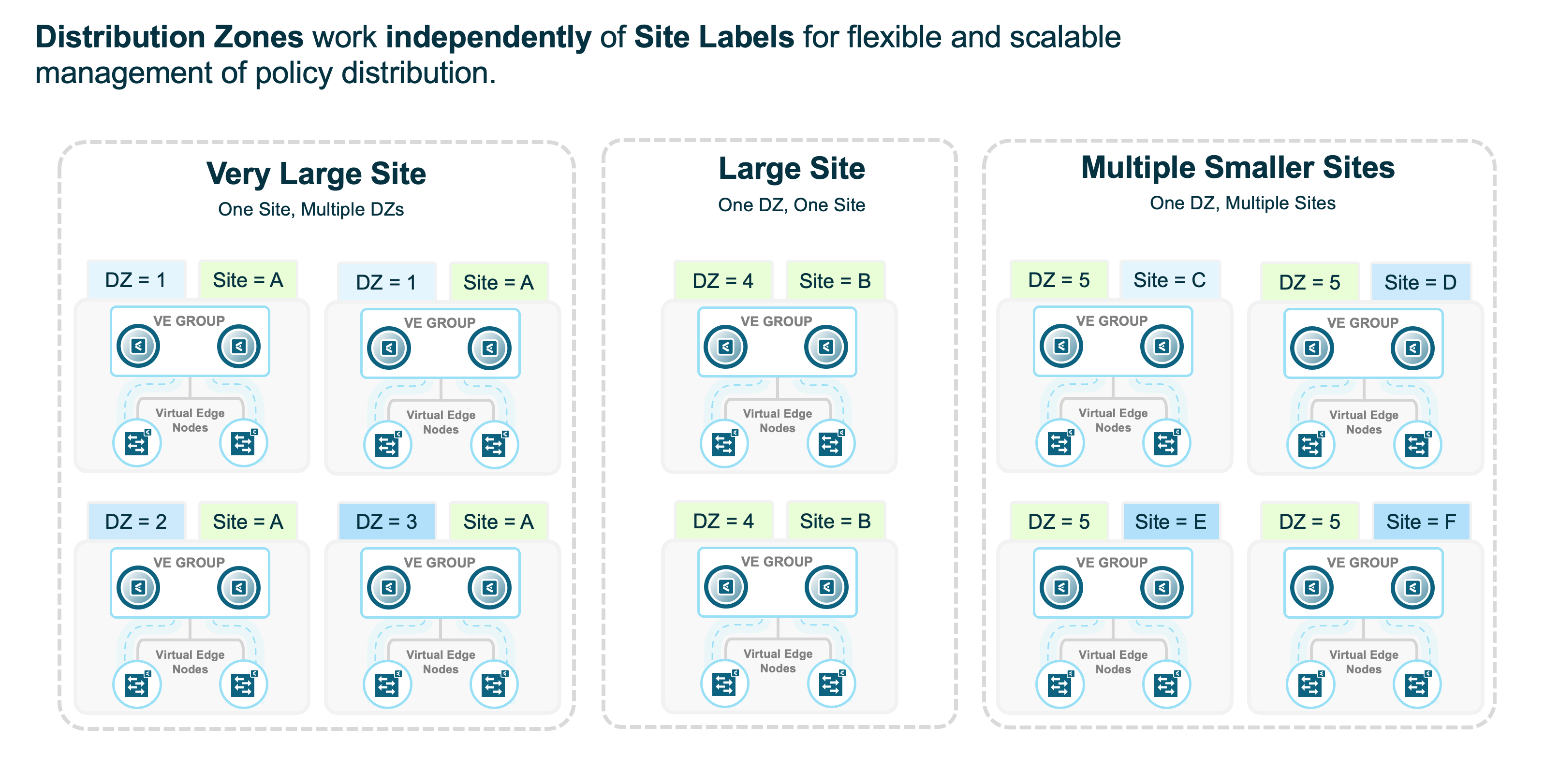

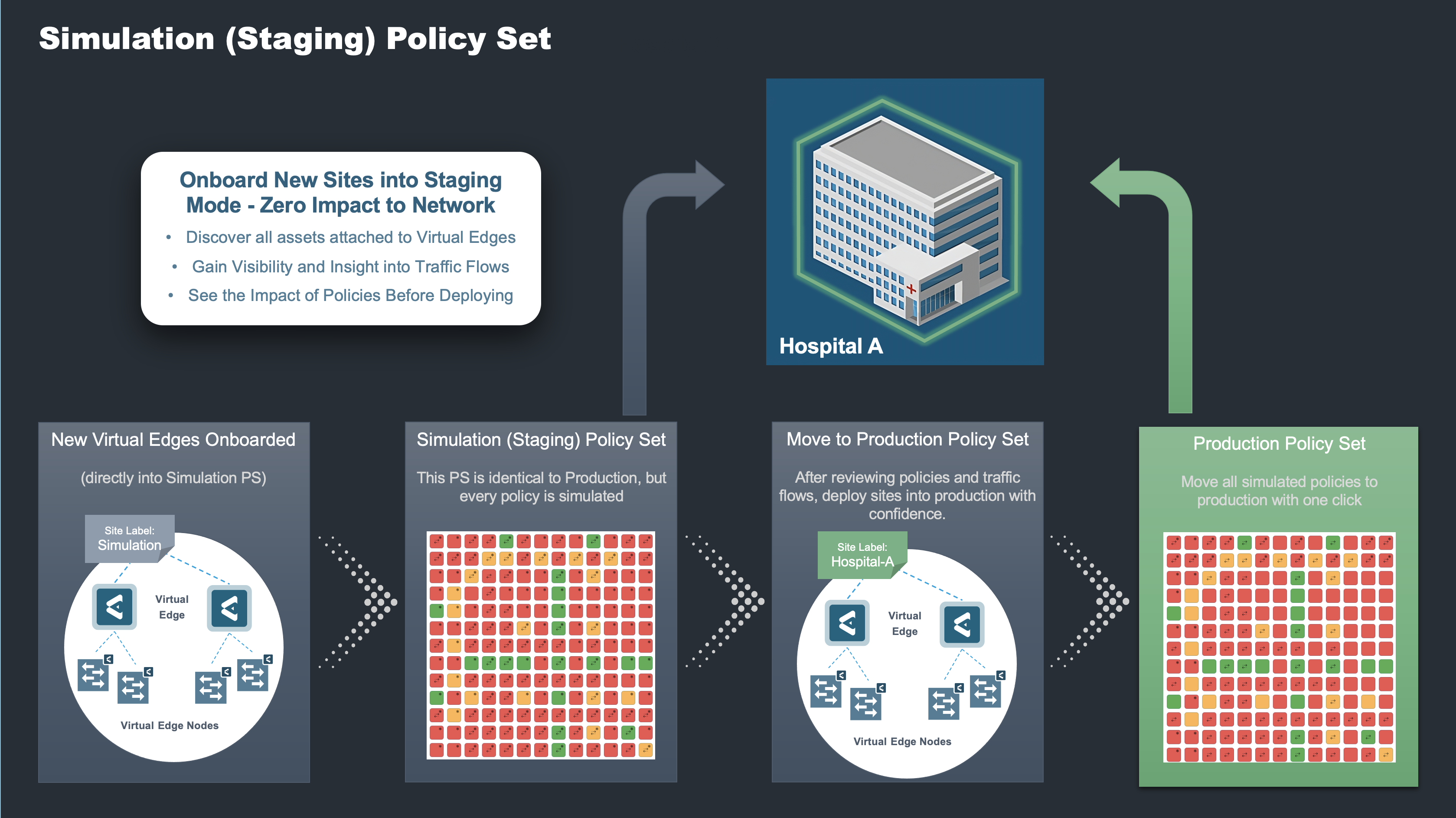

Below is an example of how Site Labels are used to assign groups of Virtual Edges and Virtual Edge Nodes to different Policy Sets. In this example, we onboarded our VEs into a Simulation (staging) Policy Set with all simulated policies to ensure a safe, non-disruptive deployment where we can analyze the behavior of our simulated policies and how they would impact our production environment. Then, with one simple action, we can move our Virtual Edges to a new Policy Set by either (1) Assigning a new Site Label to our VEs or (2) moving our original site label to a new Policy Set.

Inheritance of Site Labels and the "Default" Site Label

Site Labels can be assigned to both VEs and VENs, as previously mentioned. In the case that a VEN does not have a Site Label explicitly assigned, the VEN inherits the Site Label of the parent VE, if it exists. If no Site Label has been explicitly assigned to a VE, the VE and its VENs are automatically assigned the Default Site Label. If you have Policy Sets enabled, this Default Site Label is assigned to the "Core" Policy Set by default. The Default Site Label is reassignable to other Policy Sets just like any other Site Label, allowing flexibility into how you manage VEs that have not explicitly been assigned a Site Label.

Creating and Assigning Site Labels and Distribution Zones

Creating Site Labels

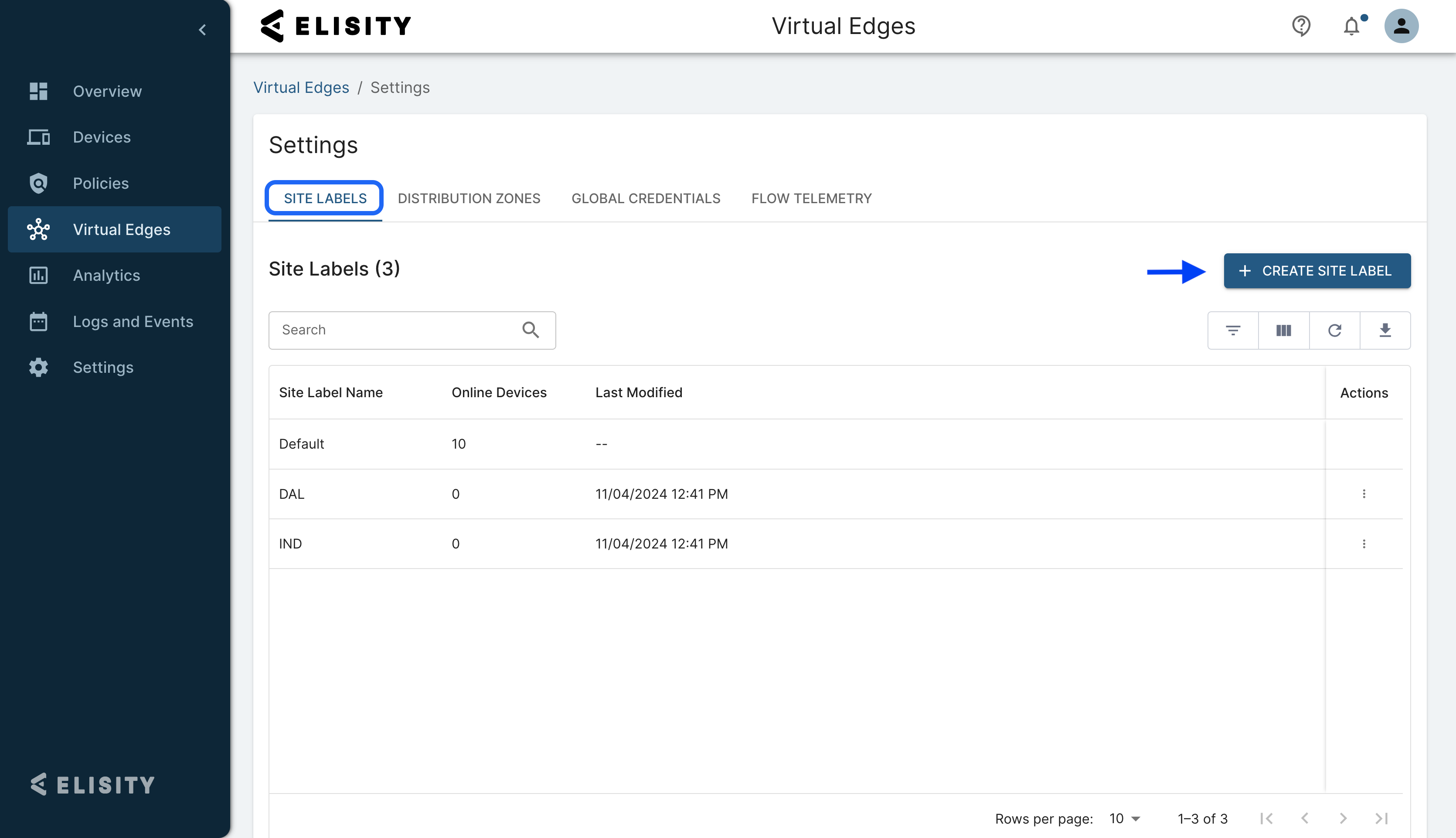

To create Site Labels and Assign them to your Virtual Edges and Virtual Edge Nodes, select Edge Management > Site Labels in the left navigation.

Next, click + Create Site Label.

Give your Site Labels a unique name, optionally add Tags and a Description, and create as many as you need by clicking + Create Another Site Label. Once you have added your Site Labels, click Create.

Afterwards, your Site Labels will appear in the Site Labels list, where you can filter and manage Site Labels, performing actions such as editing and deleting. Note that you can also create new Site Labels on the fly while assigning them to VEs, which will be covered in the next section.

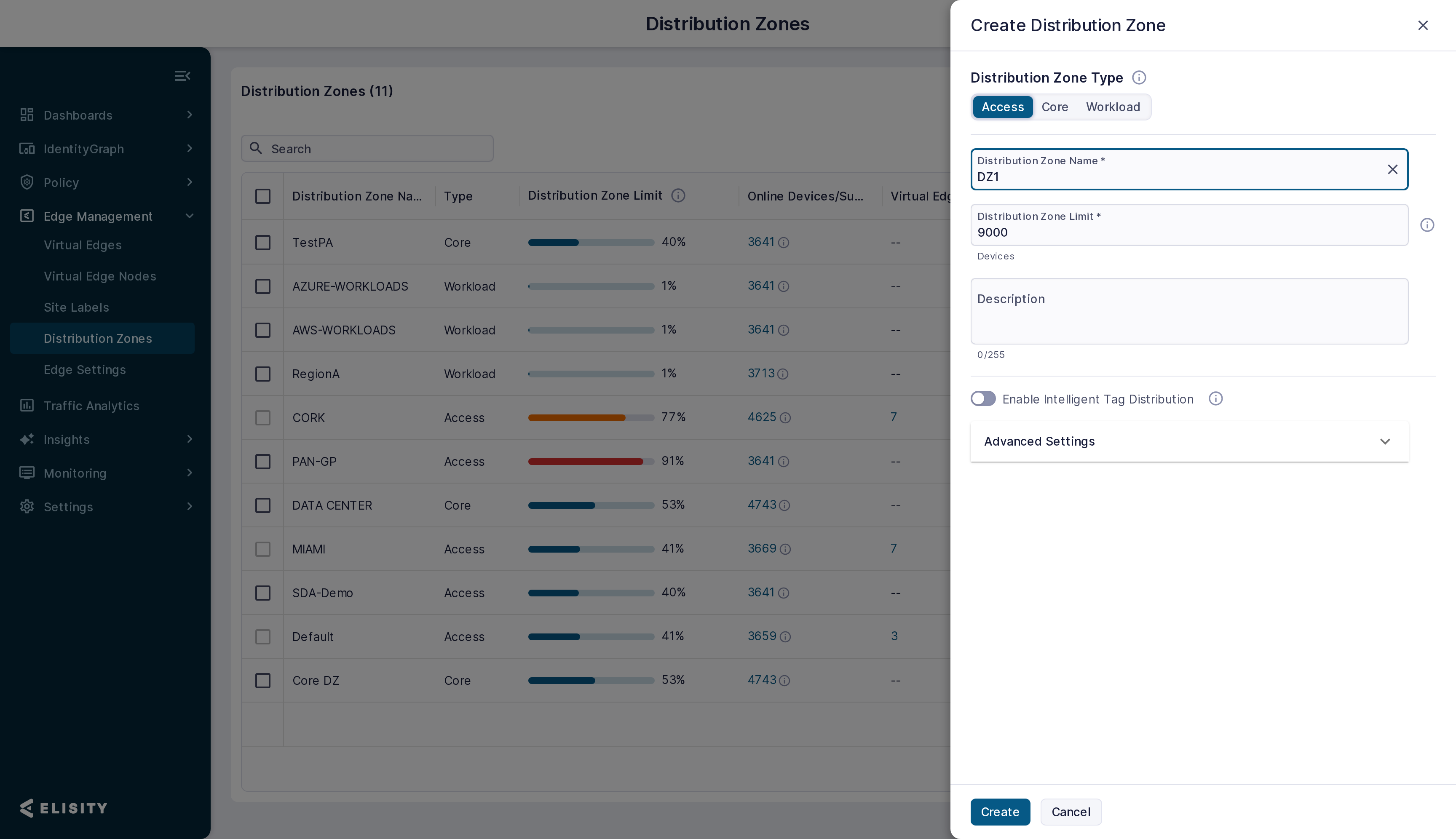

Creating Distribution Zones

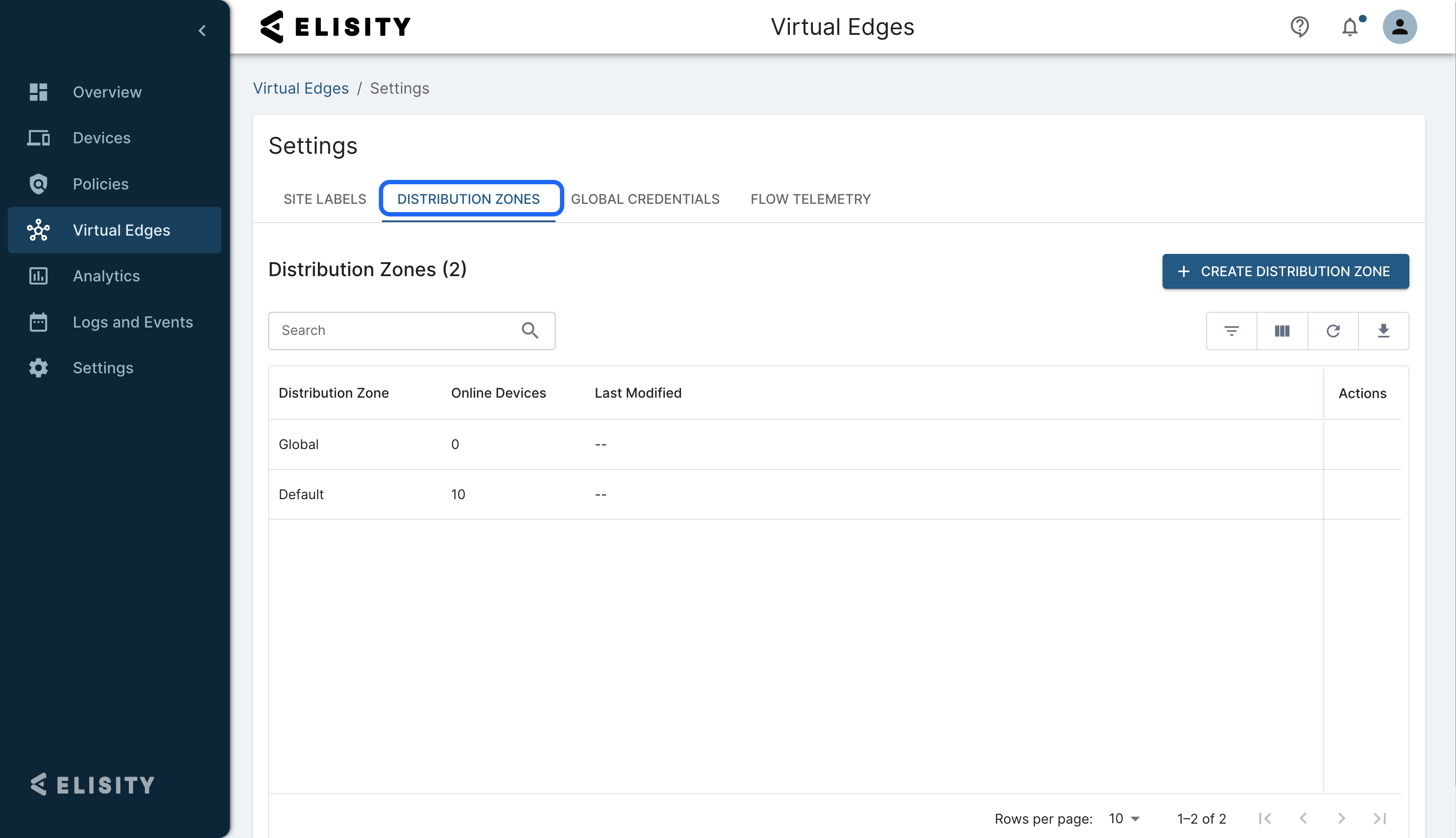

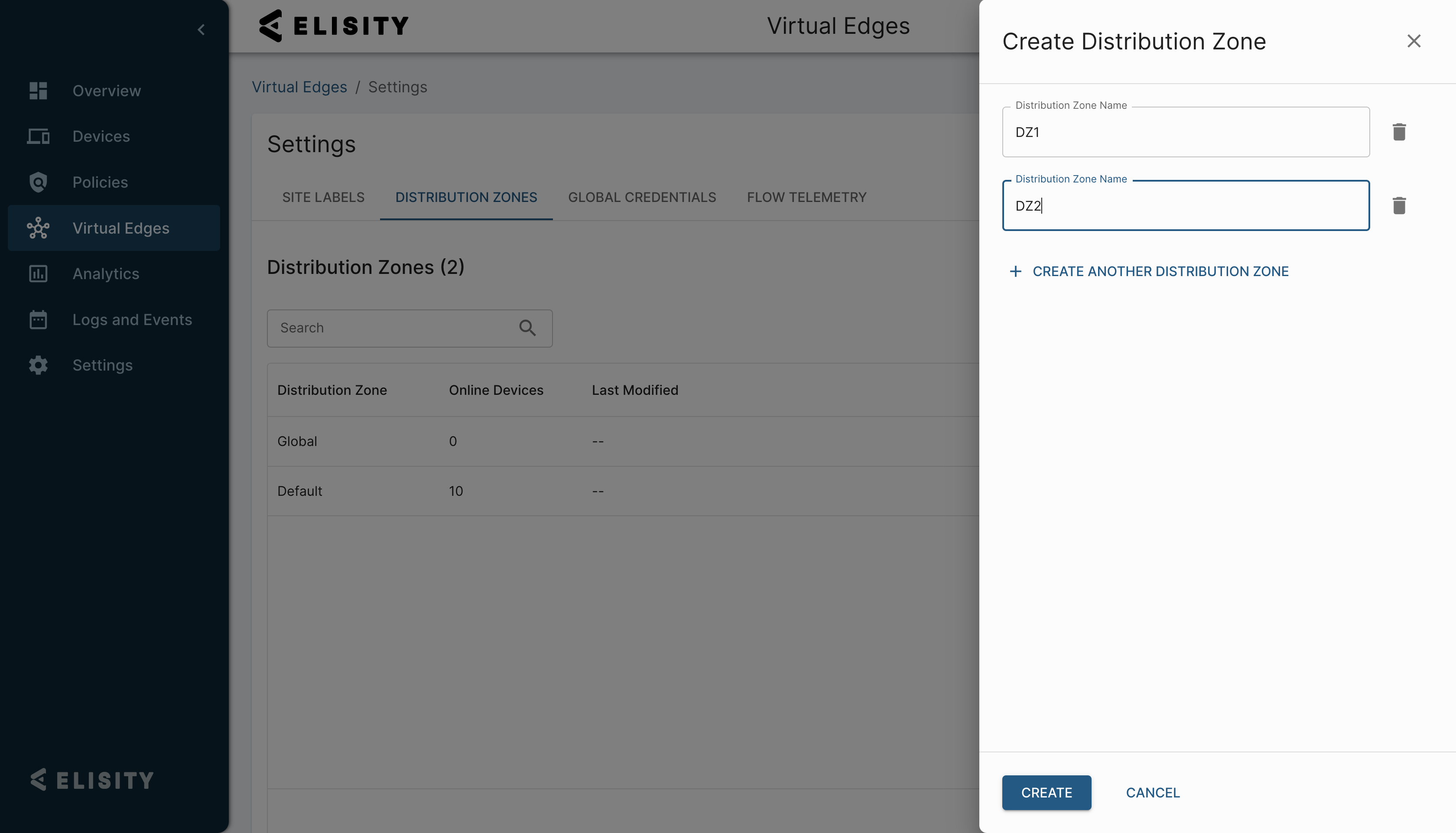

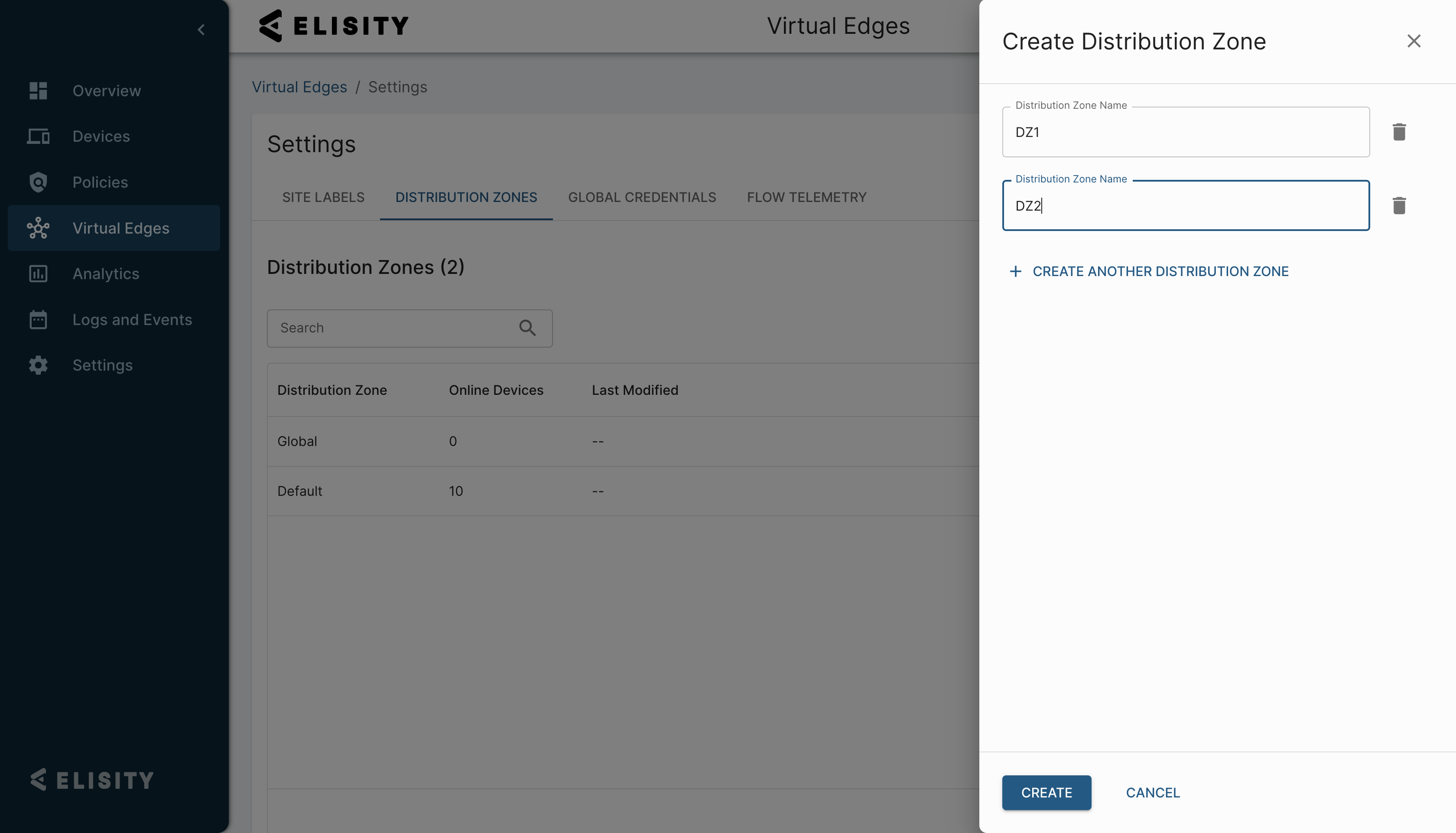

The process for creating Distribution Zones is nearly identical to creating Site Labels. Select Edge Management > Distribution Zones in the left navigation.

Next, click + Create Distribution Zone.

Select a Distribution Zone Type (Access, Core, or Workload), then give your DZs a unique name and a Distribution Zone Limit. Create as many as you need by clicking + Create Another Distribution Zone. Once you have added your Distribution Zones, click Create.

Afterwards, your Distribution Zones will appear in the list of DZs, where you can filter and manage them, performing actions such as editing and deleting. Note that you can also create new Distribution Zones on the fly while assigning them to VEs, which will be covered in the next section.

Assigning Site Labels and Distribution Zones

Site Labels and Distribution Zones can be assigned at the Virtual Edge Group level or to individual Virtual Edges, ensuring policy consistency and streamlined management.

To assign these labels within a VE Group:

1. Select Edge Management > Virtual Edges and locate the VE Group in the group list.
2. Hover over the VE Group you want to modify and open its ⋮ menu.

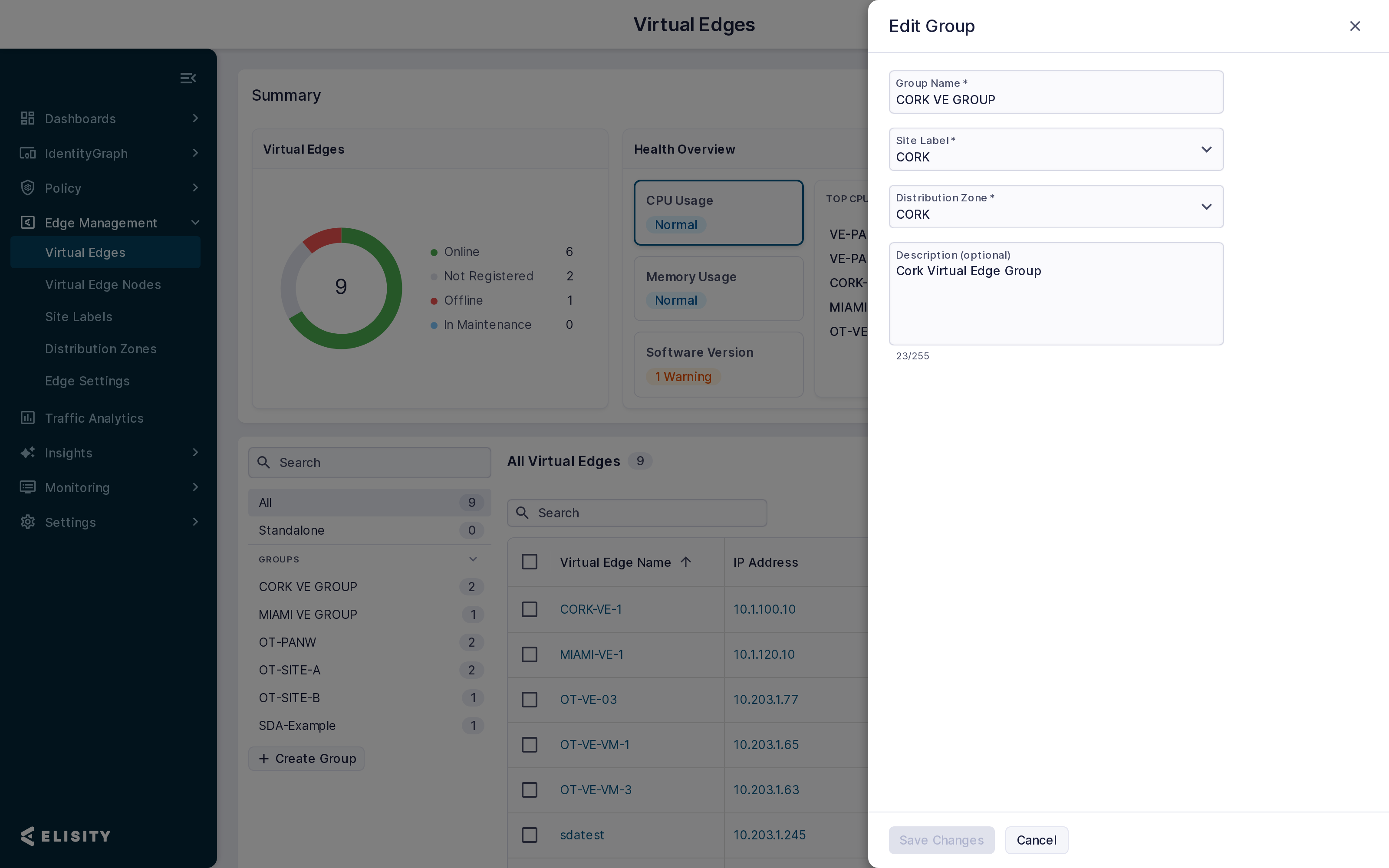

3. Select Edit Group and locate the fields for Site Labels and Distribution Zones.

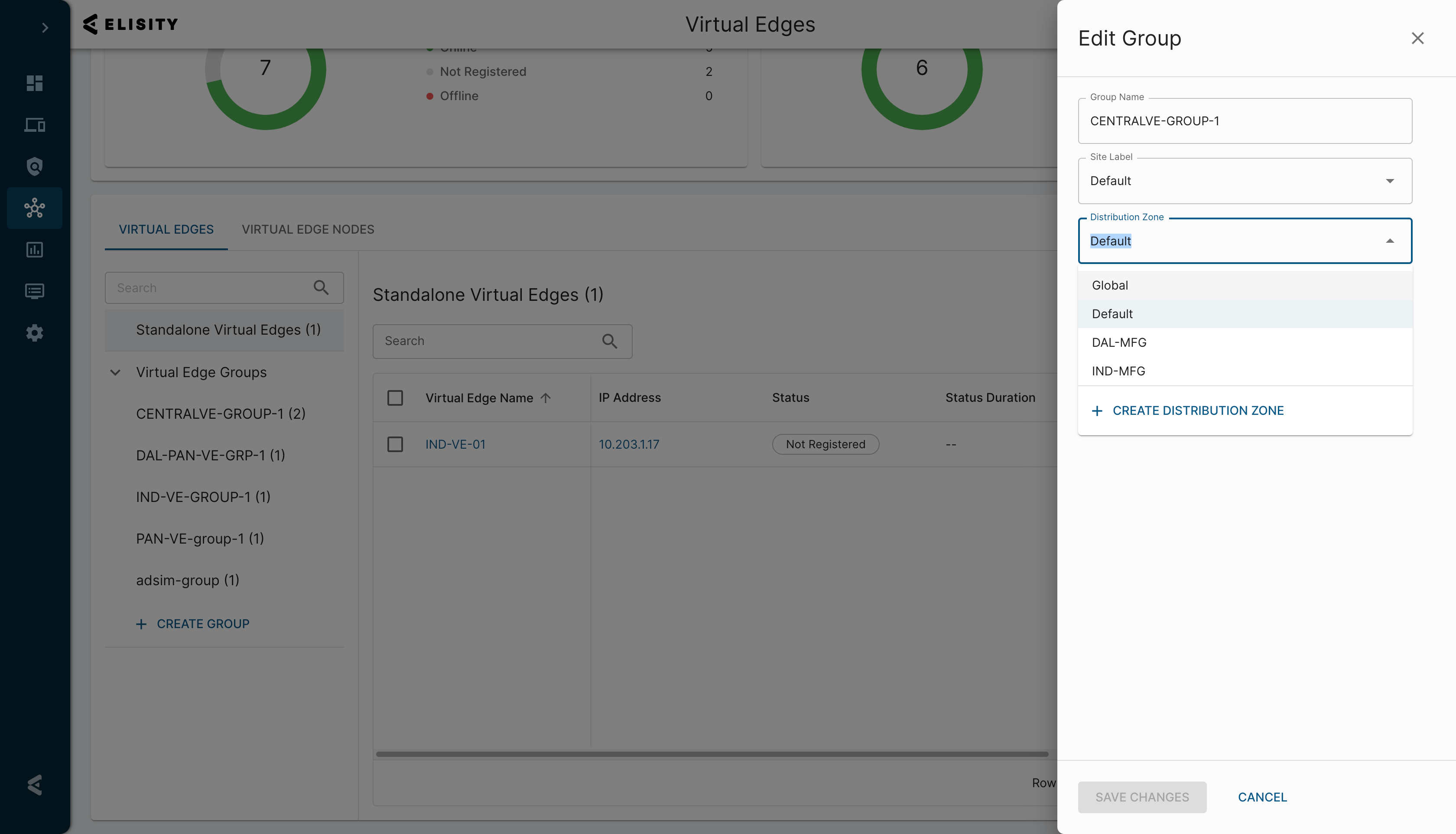

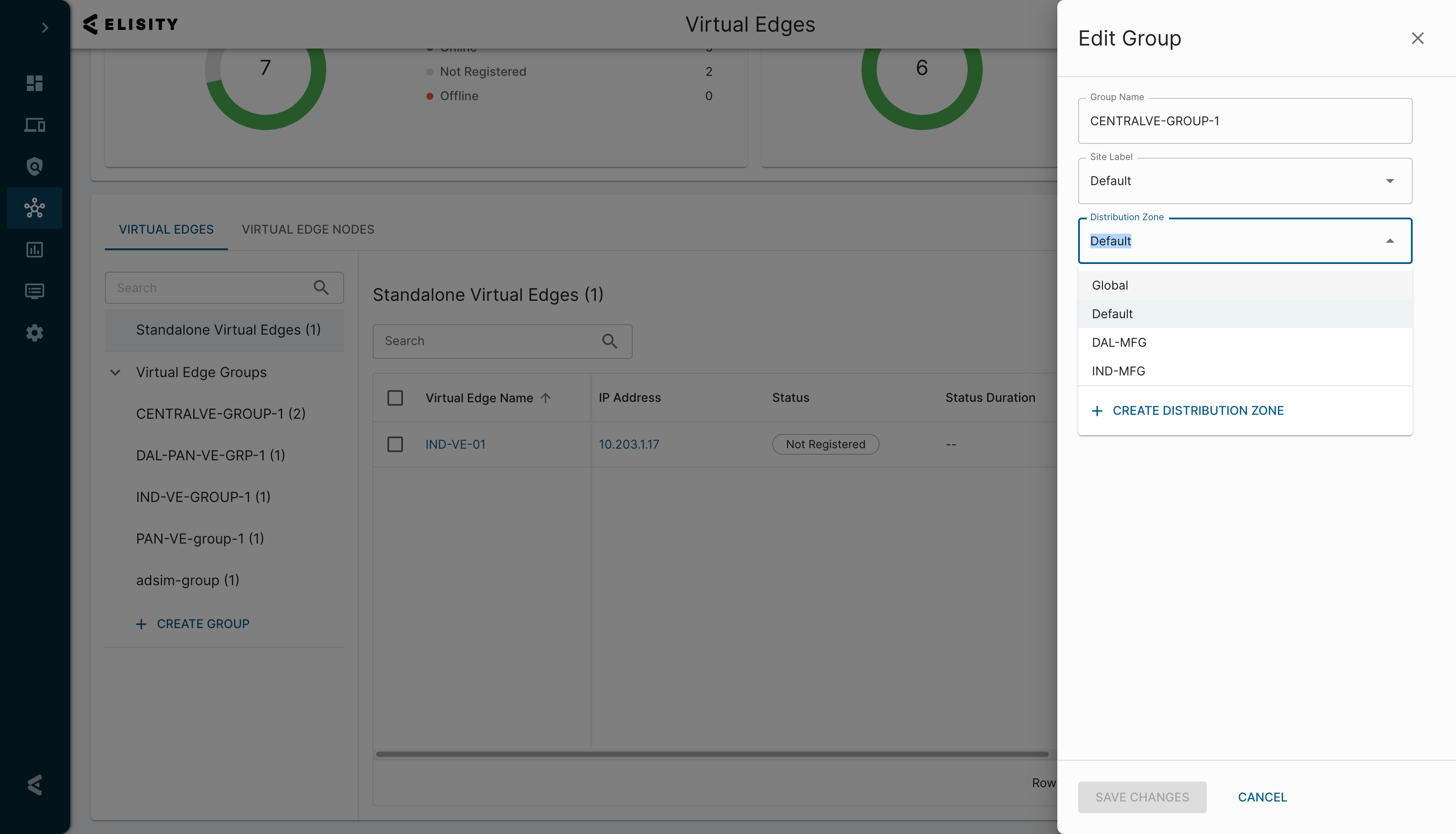

4. Assign the desired Site Label(s) or Distribution Zone(s). If a required label does not exist, you can create a new one during this process.
5. Click Save Changes to apply the updates.

For individual Virtual Edges, these labels are assigned by:

1. Selecting the specific Virtual Edge from the Virtual Edges page.
2. Clicking Edit and assigning Site Labels and Distribution Zones in the corresponding fields.
3. Saving the changes to apply the updates.

Policy Considerations When Assigning Labels

When assigning Site Labels and Distribution Zones, ensure alignment with Policy Sets, as these labels define the policies applied to all endpoints behind the assigned VE Group or Virtual Edge.

To maintain policy accuracy:

• Review the associated Policy Sets before modifying Site Labels or Distribution Zones.
• Monitor endpoint connectivity after making changes to confirm the expected policy application.
• Utilize VE Groups to streamline policy enforcement across multiple Virtual Edges when applicable.

Managing Site Labels and Distribution Zones effectively ensures proper policy distribution and prevents unintended connectivity impacts.

Assigning Site Labels to Virtual Edge Nodes

Site Labels can also be applied to each individual Virtual Edge Node, effectively overwriting the Site Label of the parent Virtual Edge, or adding a Site Label if one does not exist at the VE level. This offers a flexible approach to policy management by giving control of Policy Distribution down to each individual Policy Enforcement Point at the edge of your network.

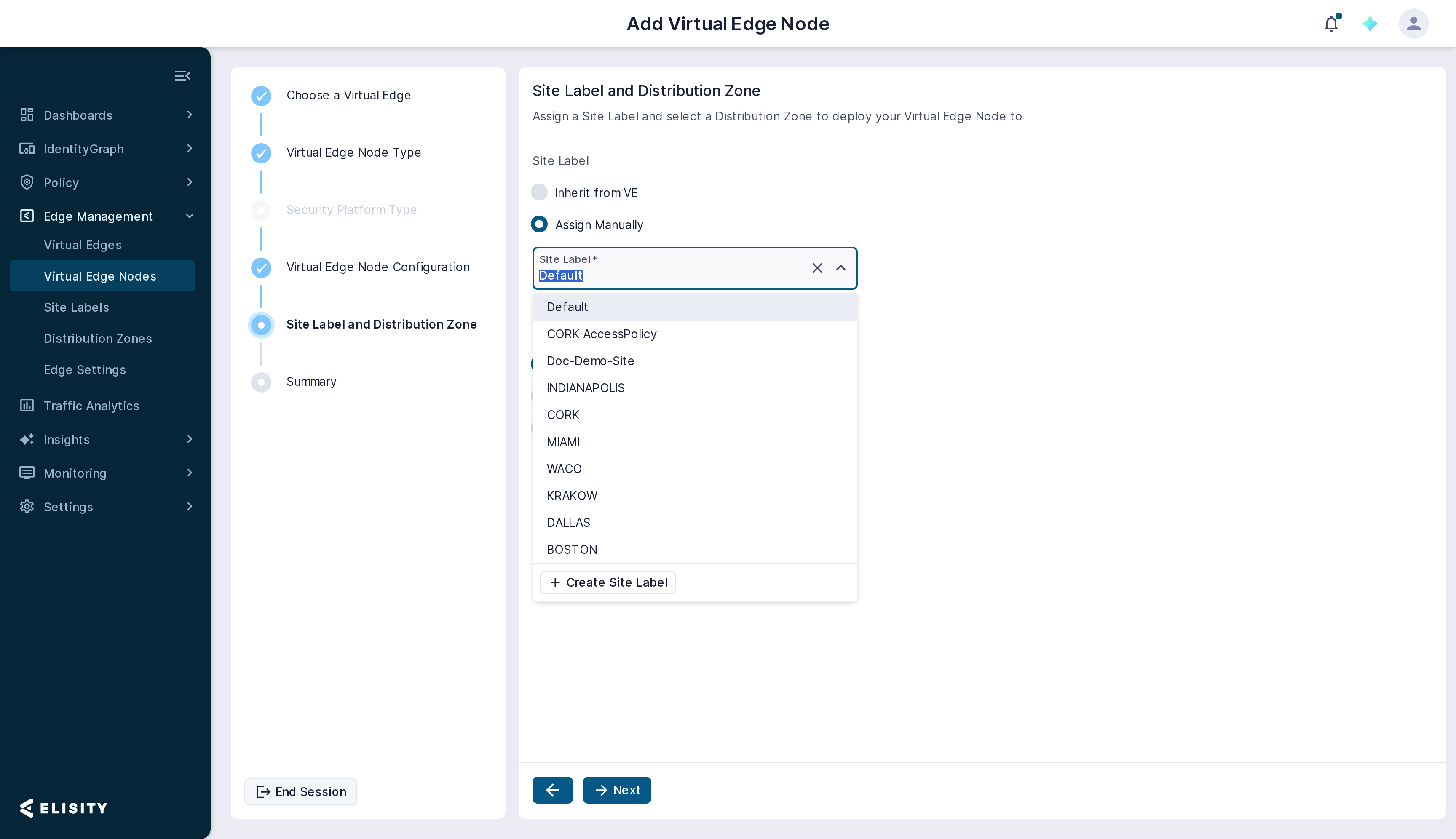

To assign a specific Site Label to a Virtual Edge Node, find the VEN on the Virtual Edge Nodes page, open its Actions menu, and click Edit Virtual Edge Node.

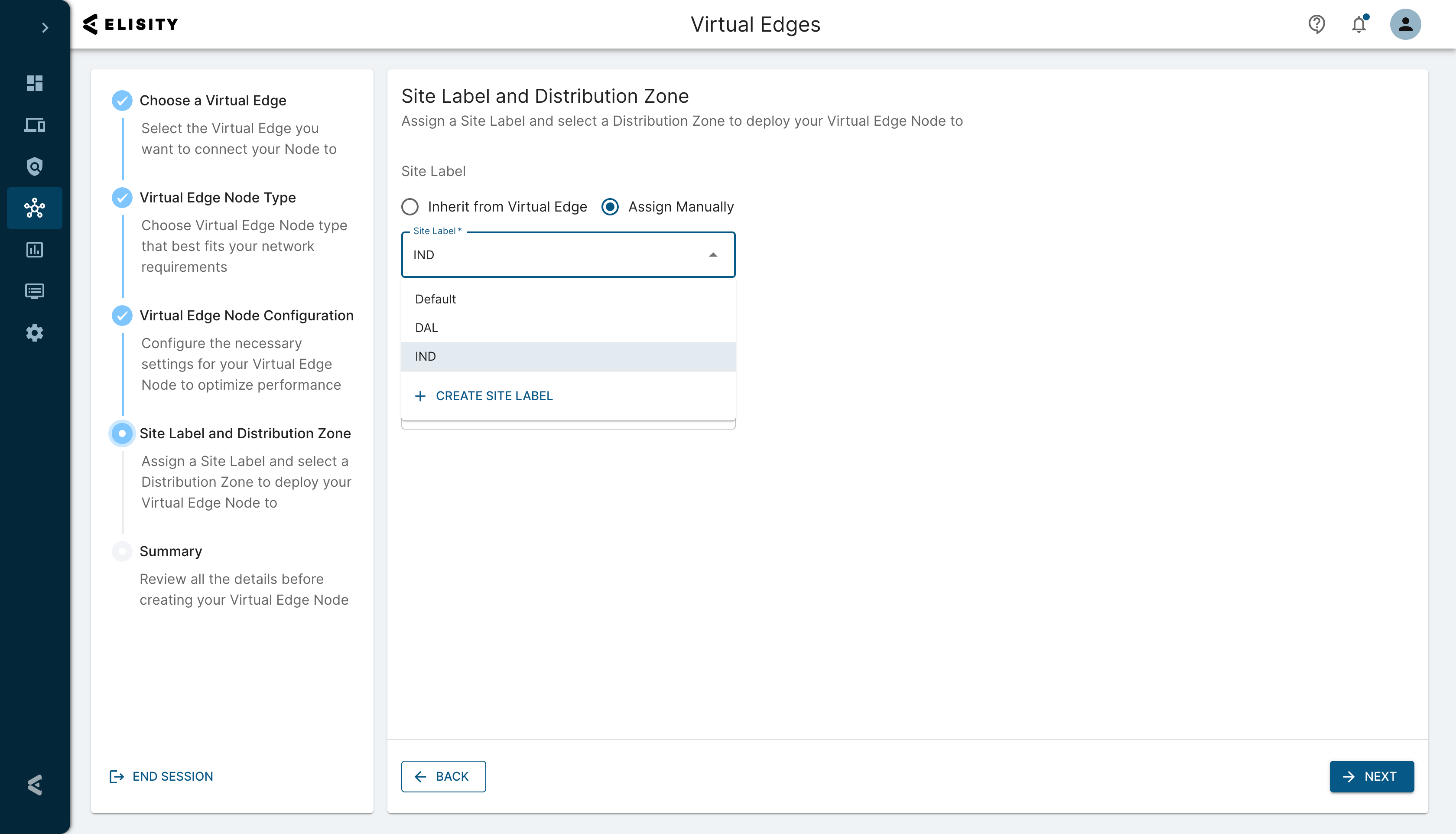

In the Site Label and Distribution Zone step, select Inherit from VE to use the Site Label of the parent Virtual Edge, or select Assign Manually. With Assign Manually, open the Site Label list and select any available Site Label, or click + Create Site Label to create a new one. The same step appears when adding a new Virtual Edge Node. Remember, any time you create a new Site Label, it will be associated with the Core Policy Set, if Policy Sets are enabled. When you are done, click Save Changes.

The same caution applies here. Be sure that you are aware of the implications for assigning new Site Labels and Distribution Zones. You should be aware of what Policy Sets are associated with your Site Labels, as this defines what policies will be applied to all the endpoints attached to the current VE. An error here can result in unintended policies being distributed to this network segment, which could cause unintended connectivity issues between devices, causing disruption.

Configuring and Using Global Credentials for Deployments

The Global Credentials feature streamlines the process of onboarding switches and Wireless LAN Controllers (WLCs) as Virtual Edge Nodes (VENs). This capability allows administrators to define and manage multiple sets of credentials, each specific to a site or region, ensuring smooth and secure deployment across diverse infrastructure.

Benefits of Global Credentials

• Flexibility Across Sites or Regions: Enterprises with varying privilege 15 accounts across sites or regions can use distinct credentials
• Simplified Deployment: By storing reusable credentials, administrators save time during VEN deployment and configuration, eliminating the need to manually re-enter credentials for each deployment.
• Centralized Management: All credentials are managed from a single interface, ensuring consistency and security.

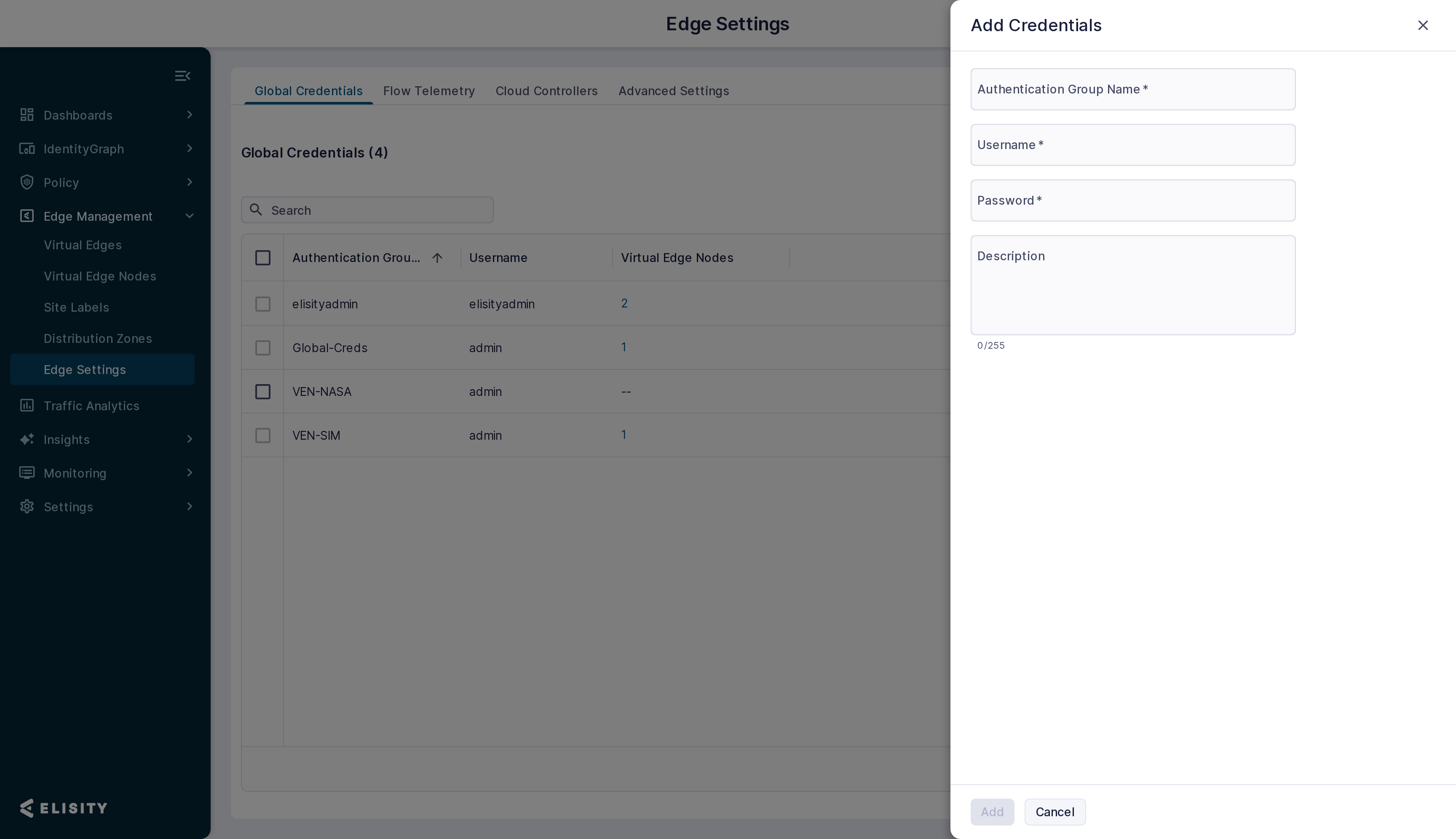

Configuring Global Credentials

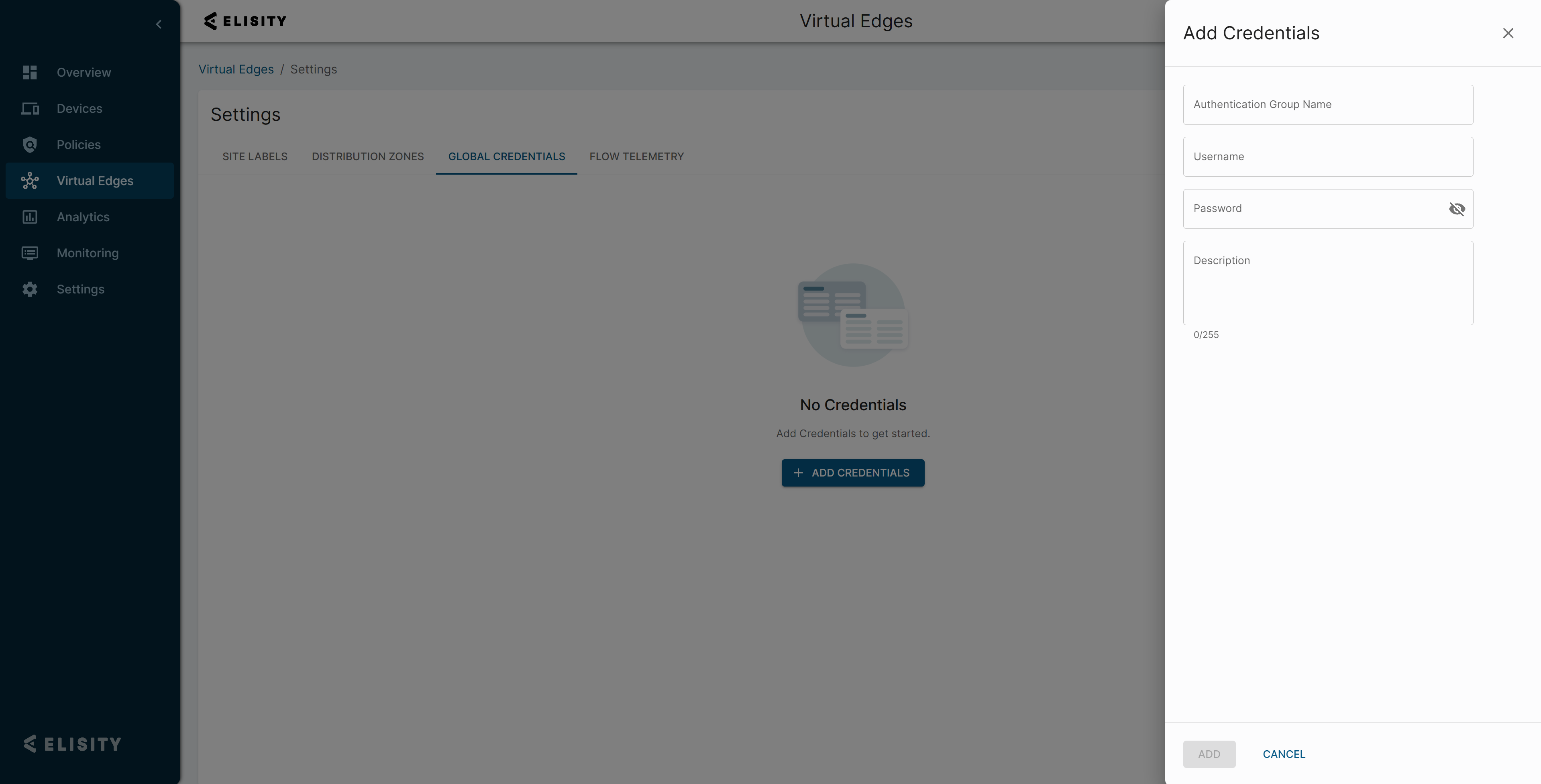

To configure Global Credentials:

1. Navigate to Edge Management > Edge Settings in the Elisity CCC.
2. Select the Global Credentials tab.

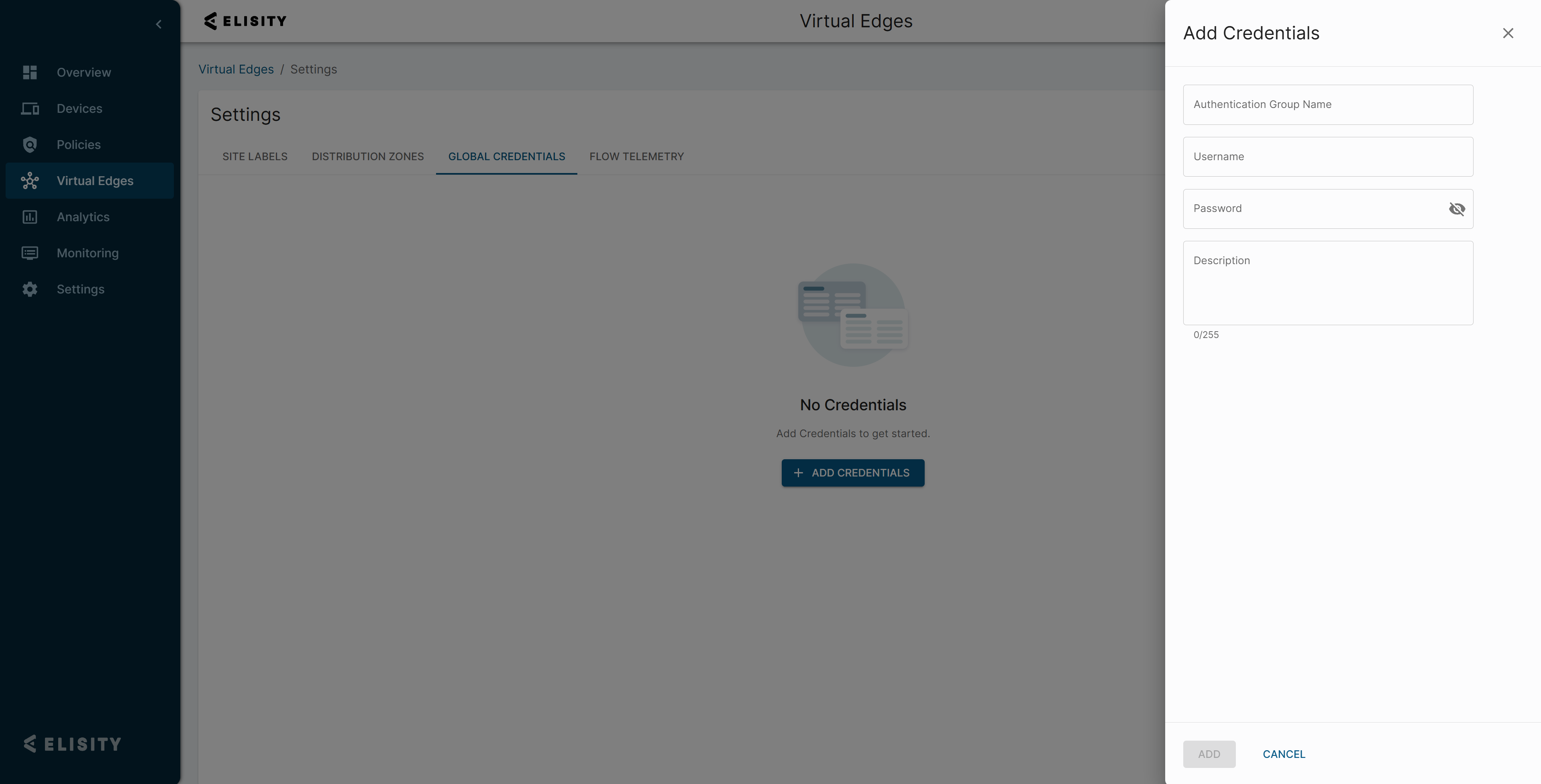

3. Click + Add Credentials to open the configuration pane.
4. Enter the required details:
   • Authentication Group Name: A descriptive name for the credential set.
   • Username: The administrative username for the switches or WLCs to be onboarded.
   • Password: The associated password.
   • Description (optional): Additional notes about the credentials.
5. Click Add to save the credentials.

Using Global Credentials

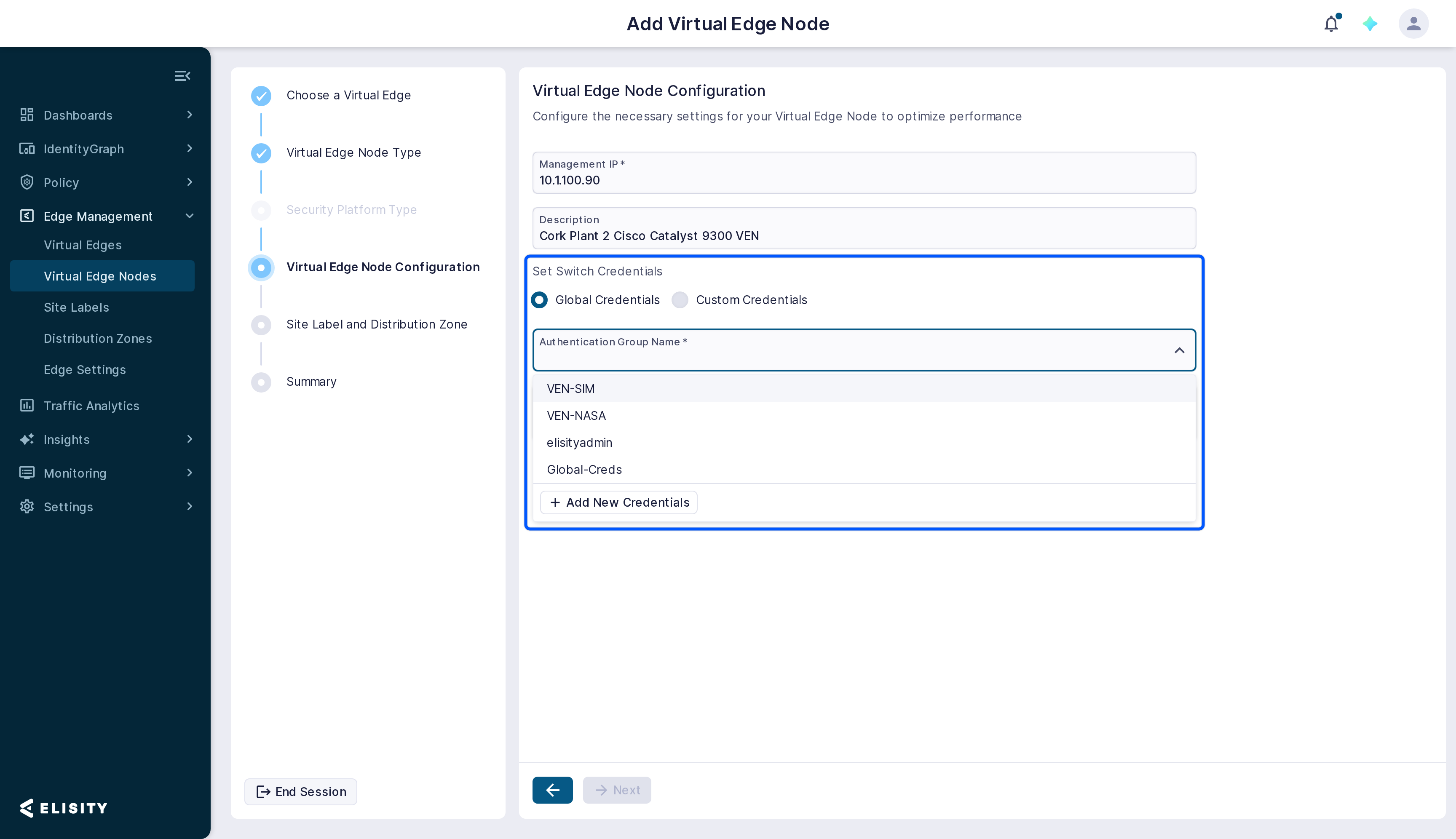

Once configured, Global Credentials can be applied during the onboarding process for switches or WLCs. The system ensures that the appropriate credential set is used for the device based on the site or regional settings, reducing errors and simplifying the process. In the Virtual Edge Node Configuration step of the Add Virtual Edge Node workflow, select Global Credentials under Set Switch Credentials, then choose the credential set from the Authentication Group Name list.

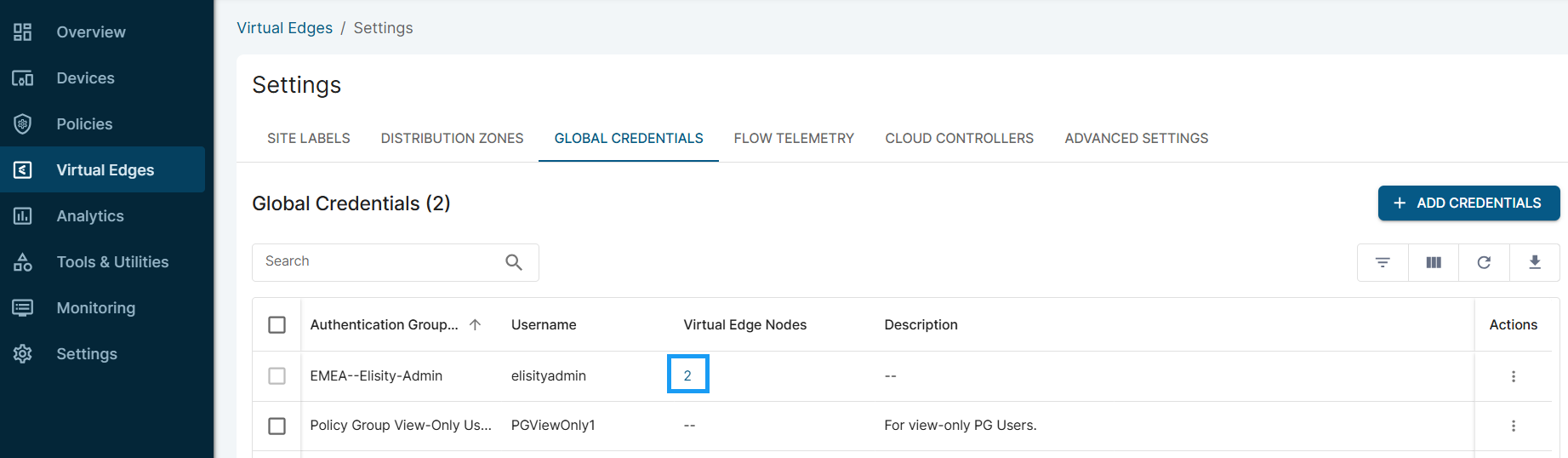

You can view the number of VENs associated with a set of Global Credentials in the Virtual Edge Nodes column from Edge Management > Edge Settings > Global Credentials.

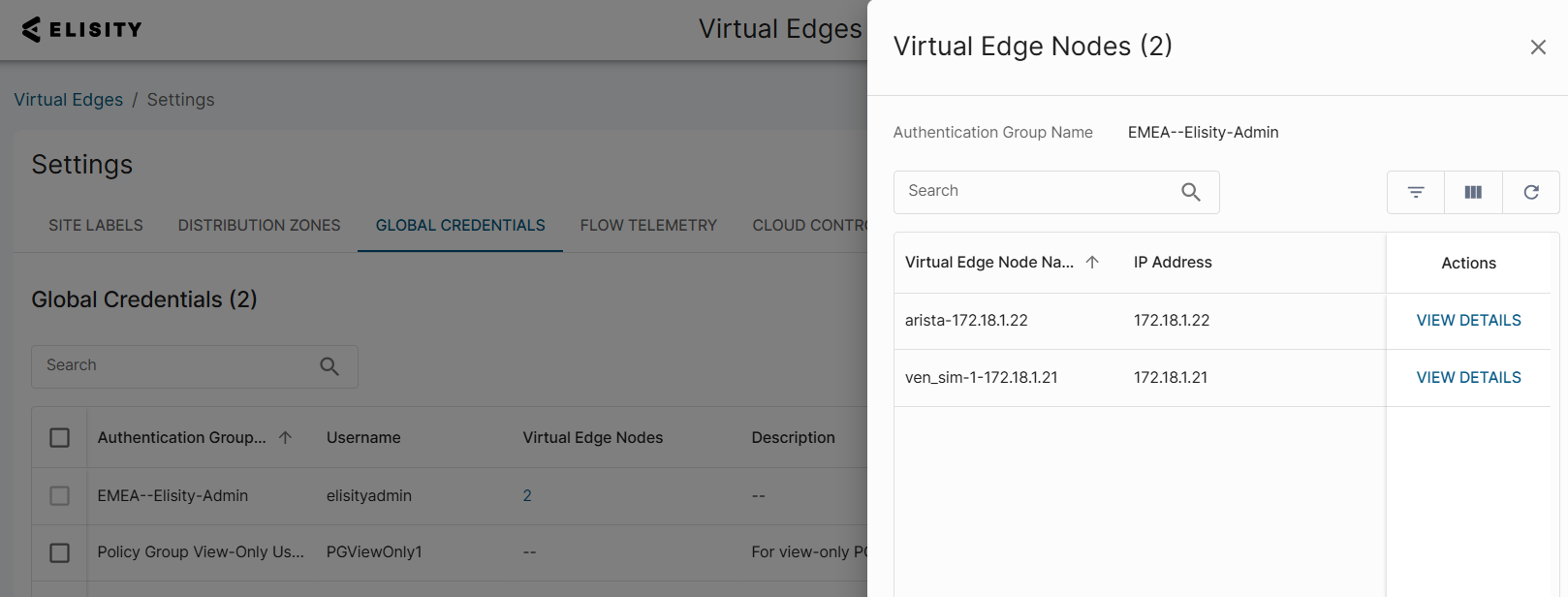

Clicking the number in the Virtual Edge Nodes column opens the Virtual Edge Nodes panel, which lists the name and IP address of each VEN that uses the credential set. Click a VEN name to view its details.

Best Practices

• Regularly review and update credentials to maintain security compliance.
• Use descriptive group names to quickly identify credentials associated with specific regions or sites.
• Limit access to credential management to authorized personnel.

This feature enhances operational efficiency, particularly for organizations with geographically distributed networks, making VEN onboarding seamless and scalable.

Configuring and Assigning Custom Flow Exporters

Custom flow exporters allow organizations to integrate Elisity's Flow Telemetry with existing network monitoring solutions. For customers who already rely on third-party tools for network analytics and traffic visibility, this feature provides a way to direct flow data from Virtual Edge Nodes (VENs) to an external monitoring system. This setup enables seamless continuation of existing monitoring workflows, consolidating network insights in a single tool and enhancing visibility across both Elisity-managed and legacy infrastructure.

Administrators can configure custom NetFlow exporters within the Flow Telemetry settings under Edge Management > Edge Settings in Cloud Control Center. This feature supports integration with external network monitoring tools, allowing traffic data to be directed to the IP address of an additional flow collector.

Configuring a Custom Netflow Exporter in CCC

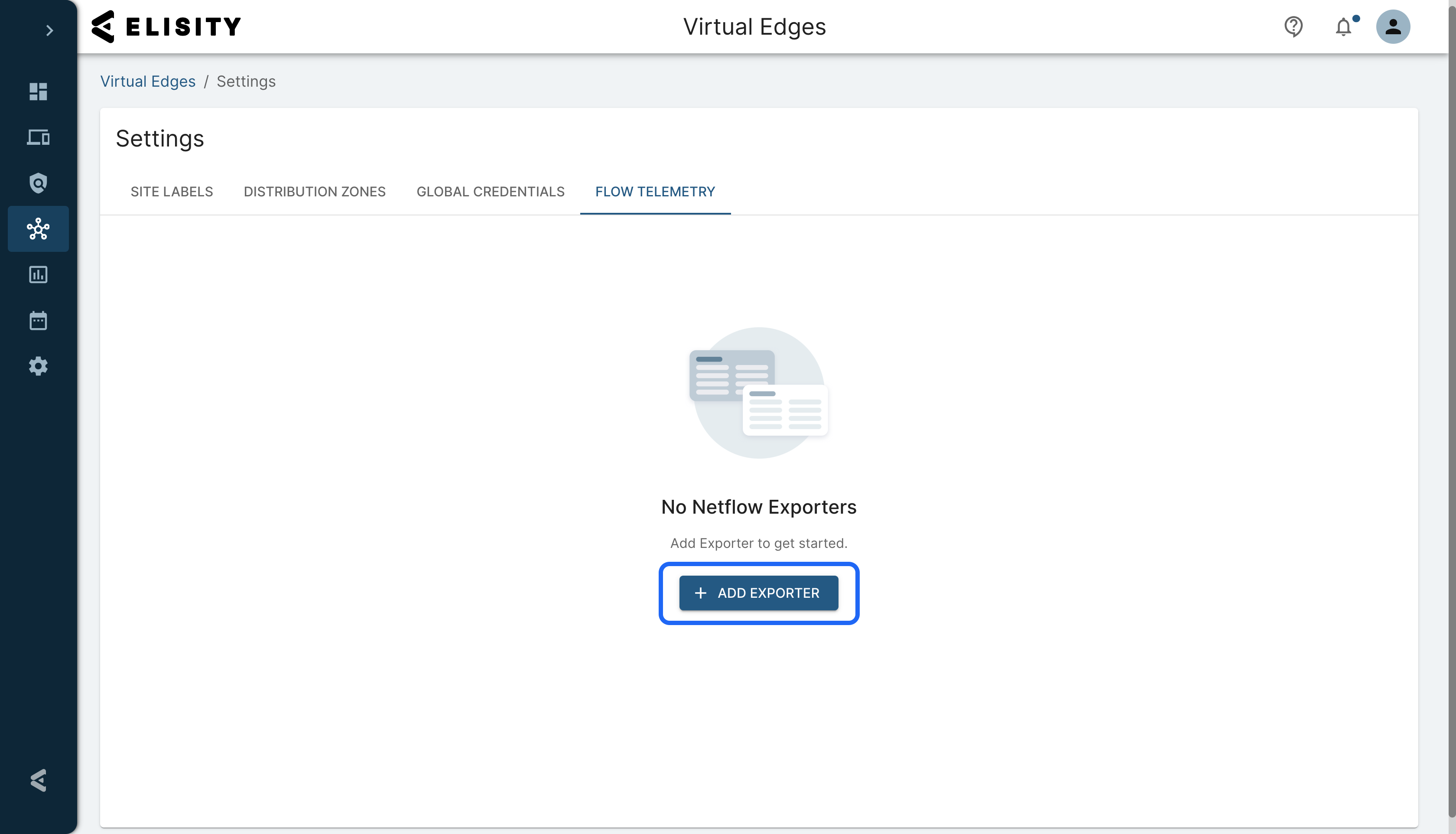

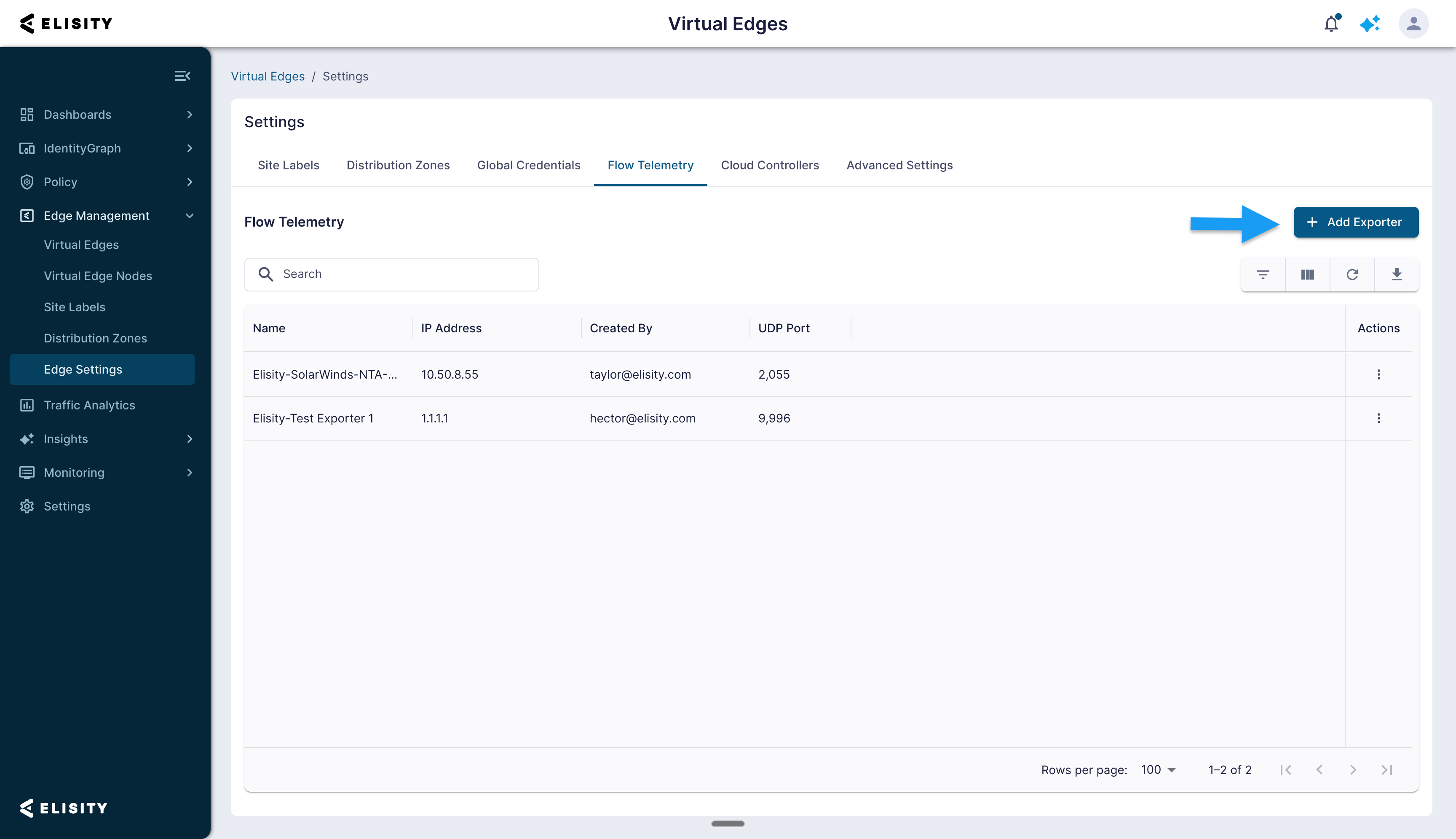

1. Location: Go to Edge Management > Edge Settings > Flow Telemetry.
2. Exporter Configuration: Click Add Exporter and complete the following fields:
   • Exporter Name: A unique identifier for the exporter.
   • IP Address: The IP address of the additional flow collector to which flow data will be sent.
   • UDP Port: The destination UDP port for exported flow records. This field is required and defaults to 9996. Set a custom value when your collector or UDP director listens on a non-standard port.
   • Description: (Optional) Context or notes for the exporter's usage.

The UDP Port column also appears in the Flow Telemetry grid, where it can be searched, sorted, filtered, and included in CSV exports alongside the Name, IP Address, and Created By columns.

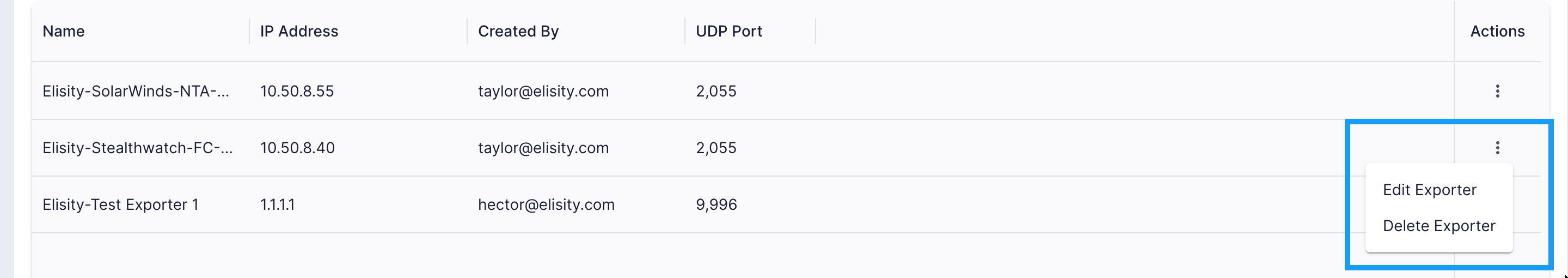

To manage an existing exporter, open the Actions (⋮) menu at the end of its row in the Flow Telemetry grid and choose Edit Exporter to change its details or Delete Exporter to remove it.

Once configured, these exporters can be selected within each Virtual Edge Node's (VEN) settings to direct the node's traffic data to the specified destination.

Assigning Custom NetFlow Exporters to a VEN

Exporters are assigned to a Virtual Edge Node in the Advanced Settings section of the Add or Edit Virtual Edge Node workflow. A Cisco VEN can now be assigned multiple custom flow exporters, so a single node can stream its flow telemetry to several collectors at once.

1. When adding or editing a Virtual Edge Node, expand the Advanced Settings section of the Virtual Edge Node Configuration step.
2. Turn on the Enable Additional Flow Exporters toggle. This toggle is disabled by default. Its tooltip reads: "Sends flow telemetry to additional destinations alongside the Virtual Edge. Only supported on Cisco Virtual Edge Nodes."
3. In the Additional Flow Exporters field that appears, select one or more exporters from the multi-select dropdown. Selected exporters are shown as removable chips; clear the X on a chip to unassign that exporter. Turning the toggle off again hides the field and removes the additional exporter assignments.

If you need an exporter that has not been created yet, choose + Add Exporter at the bottom of the dropdown to define a new one inline — including its required UDP Port — without leaving the VEN workflow. The new exporter becomes available for selection immediately.

Configuration Details and Considerations

• Multiple Exporters: A Cisco or Cisco_WLC VEN can be assigned more than one custom NetFlow exporter. Additional exporters are off by default; enable the Enable Additional Flow Exporters toggle in the VEN's Advanced Settings to assign them.
• UDP Port: Each exporter sends flow records to a configurable UDP port. The port is required and defaults to 9996; set a custom value per exporter to direct NetFlow traffic to a non-standard port.
• Validation: IP address inputs are validated to reduce configuration errors.
• Arista Compatibility: For VENs using Arista switches, only a single VE IP is supported as an exporter. When an Arista VEN is detected, the exporter selection is disabled on the Virtual Edge Node Configuration page.



When a Cisco VEN has multiple exporters assigned, all of them are listed in the Exporters field of the Additional Information panel on the VEN Details page.

Example Flow Exporter Configurations

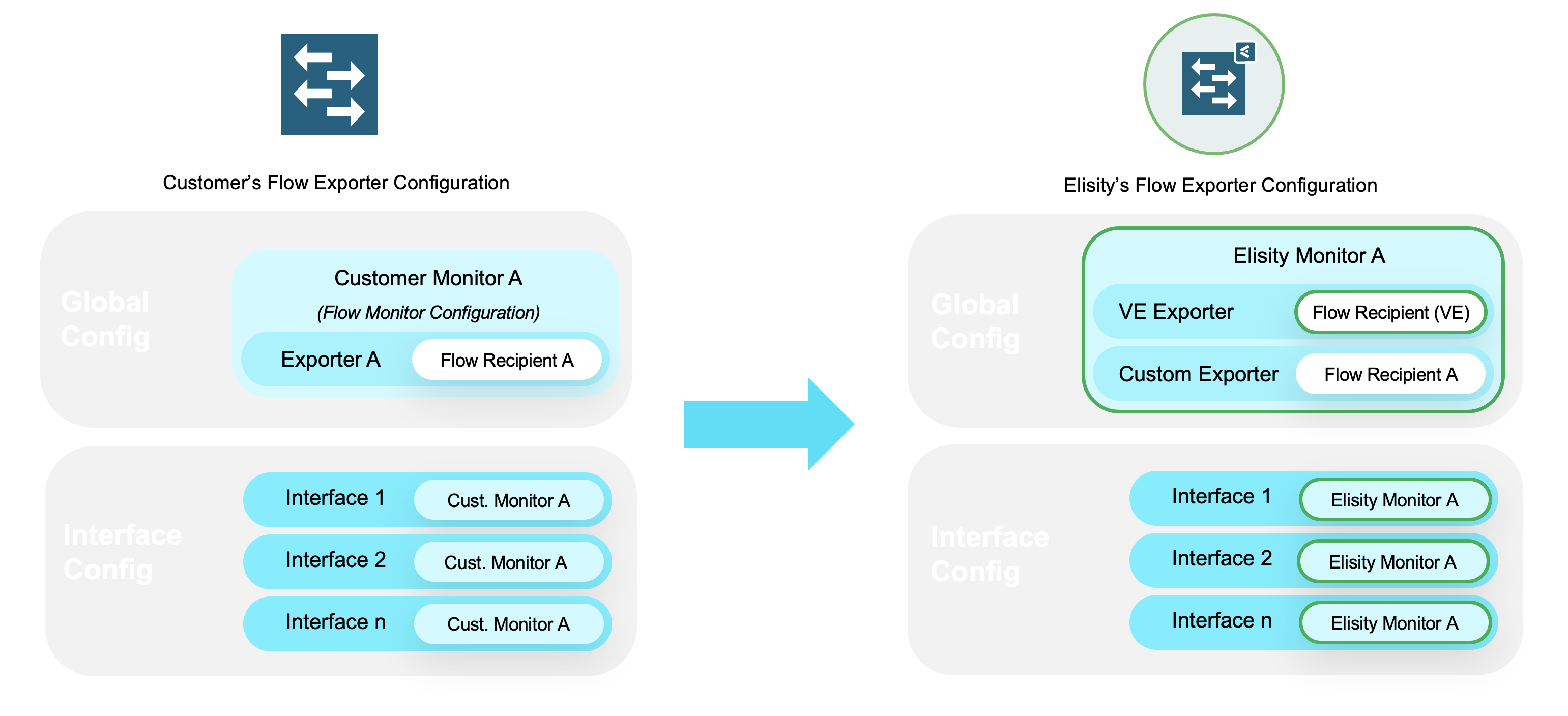

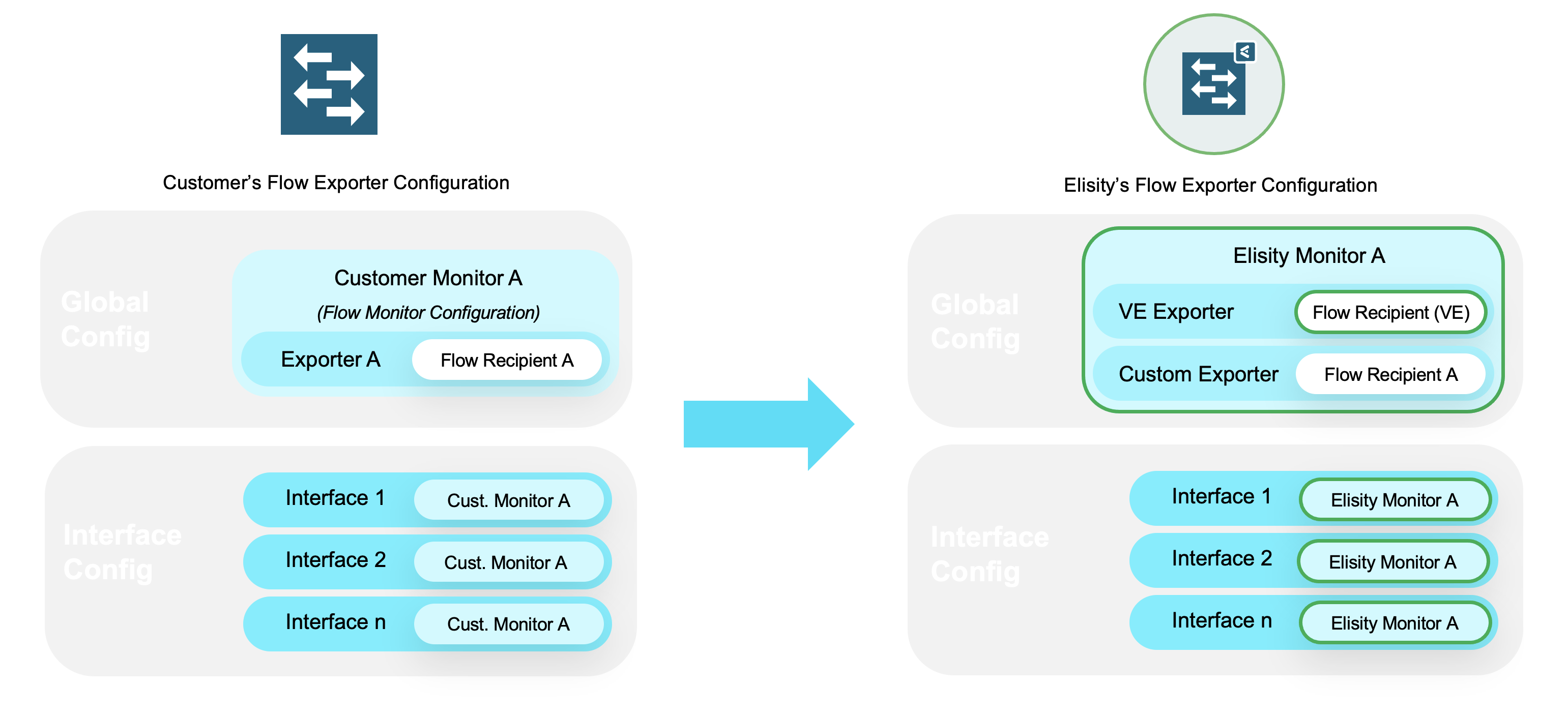

The following example shows the process of enabling a custom flow exporter, particularly if netflow configurations already exist on the switch.

Customer Flow Exporter Configuration Examples

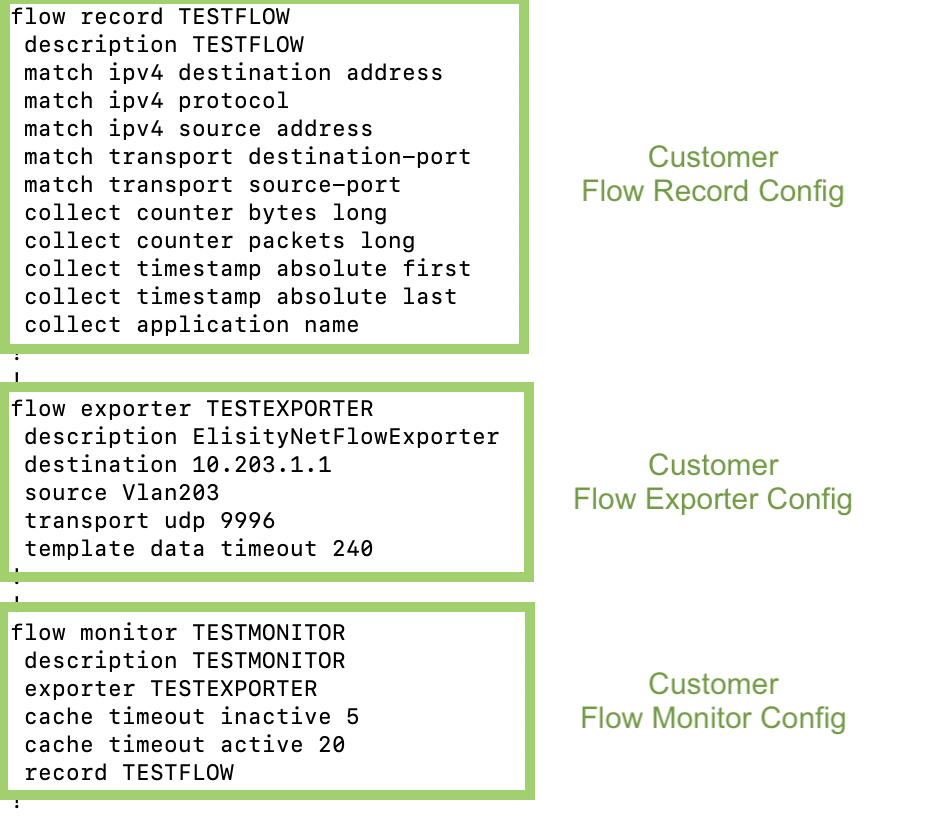

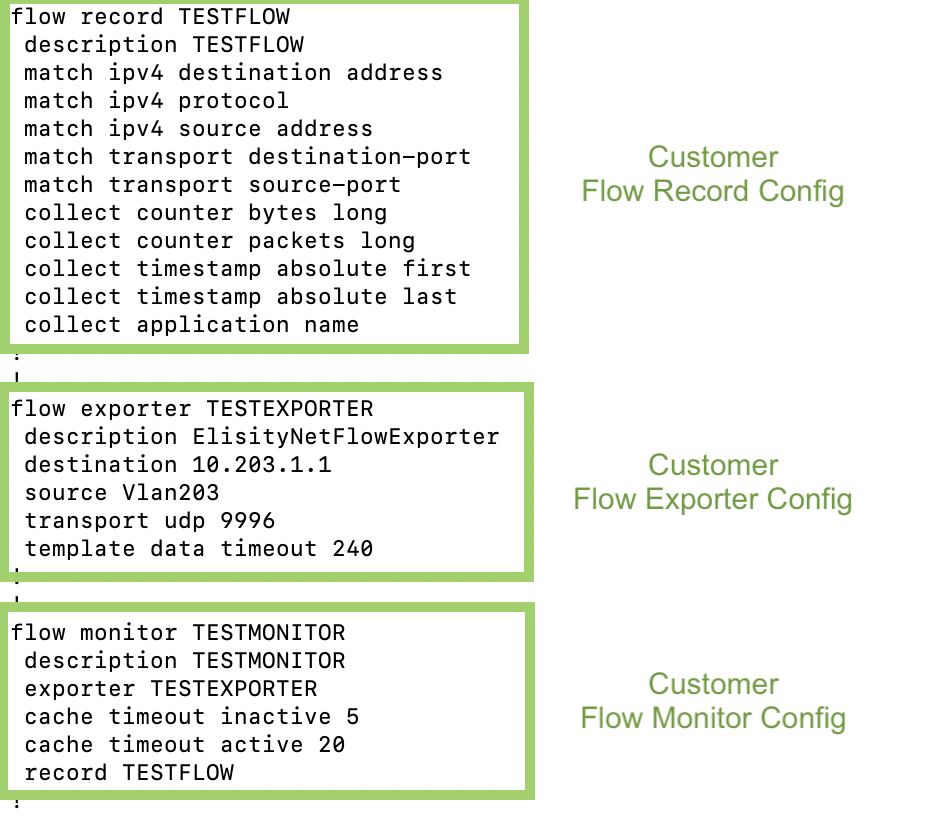

Here is an example of a customers Flow Monitor configurations before enabling Flow Telemetry for a Virtual Edge Node, if they exist. These NetFlow configs will be replaced by Elisity Flow Telemetry configurations by leveraging the secondary custom flow exporter discussed above.

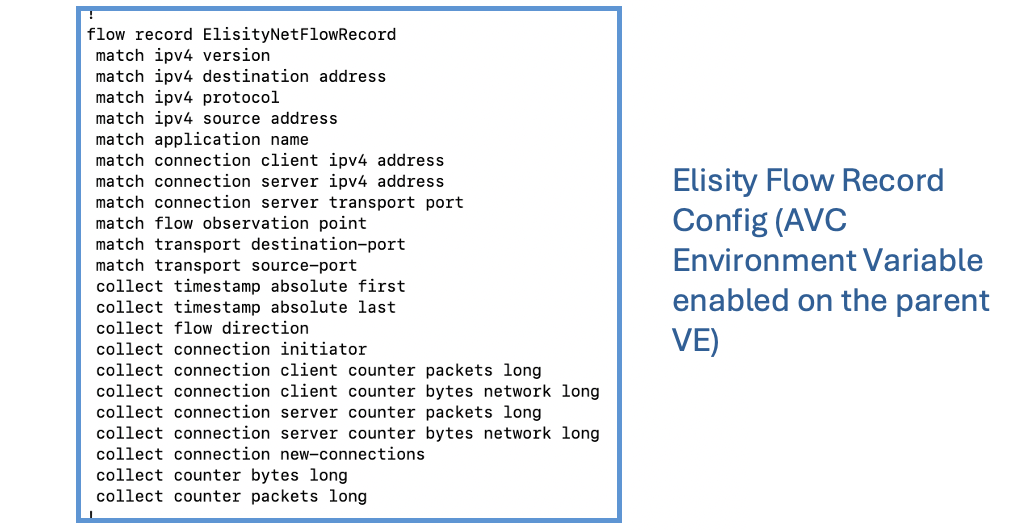

With Flow Telemetry enabled for the VEN, Elisity's flow exporter is added to the switch configuration. The customer's existing netflow configuration (flow record, flow exporter, and flow monitor configuration) is retained, but is no longer referenced on any switchports and takes no effect, as these are overwritten by the Elisity Port Configurations.

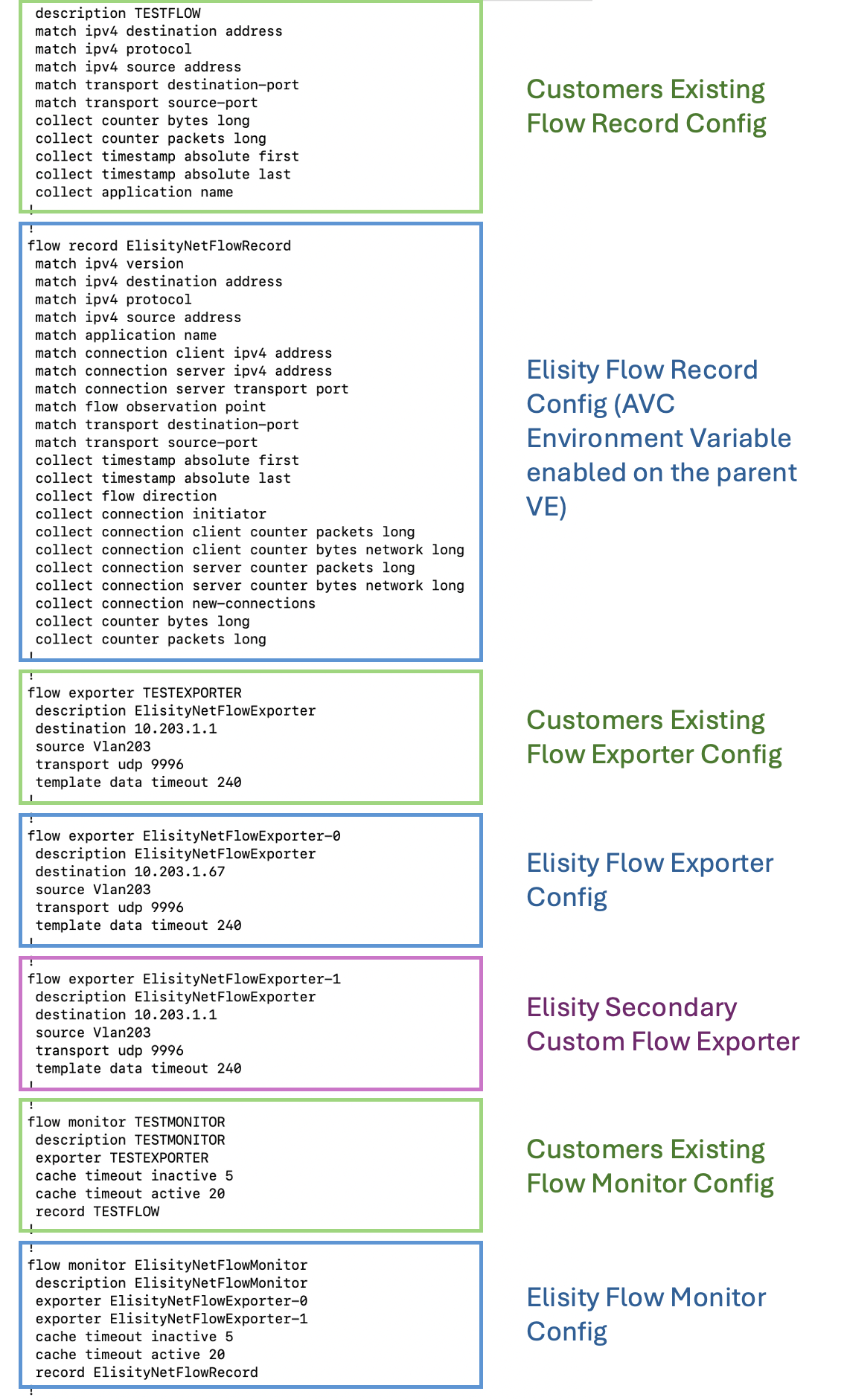

Elisity Netflow Configuration with Retained Customer Netflow Config

This setup enables telemetry data from VENs to be exported to external systems as configured, supporting detailed traffic analysis and monitoring across third-party tools.

Cisco Catalyst Center Coexistence

In environments where Cisco Catalyst Center (formerly DNA Center) manages NetFlow or IPFIX configuration on switches, the Virtual Edge maintains its global flow telemetry configuration regardless of whether individual interfaces have flow collection enabled. This allows Catalyst Center and the Virtual Edge to coexist as flow exporters on the same switch without configuration conflicts.

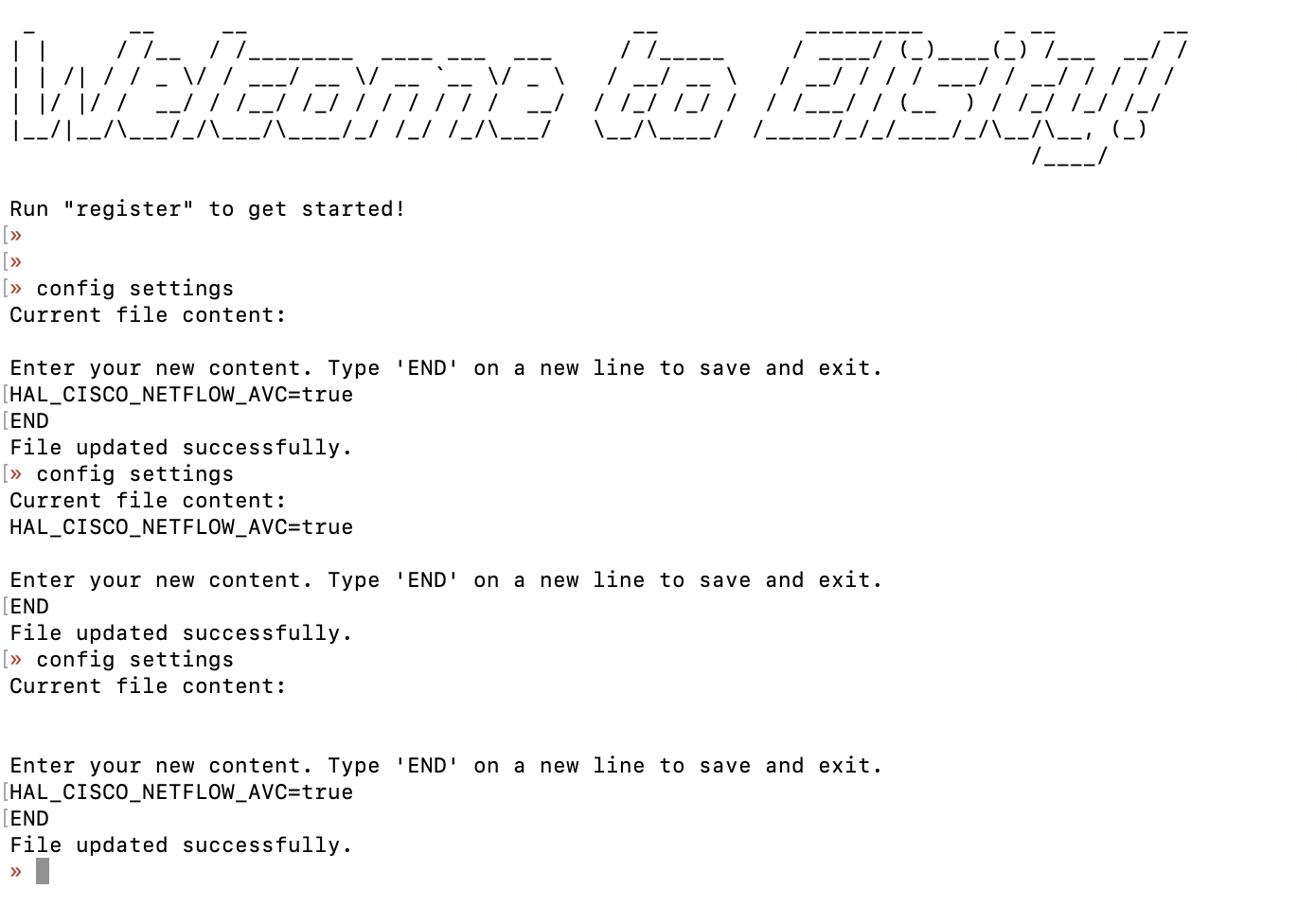

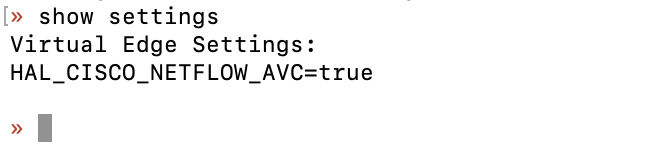

The Virtual Edge automatically detects and decodes Cisco proprietary NetFlow and IPFIX field identifiers used by Catalyst Center. No additional configuration is required; flow records from Catalyst Center–managed switches are parsed and processed alongside standard flow telemetry data. Both NetFlow v9 and IPFIX formats are supported.
