Elisity Custom Connector

Elisity's Custom Connector enables the configuration of multiple data sources within Cloud Control Center in the form of spreadsheet or API imports, enabling custom attributes to be ingested into IdentityGraph and leveraged in Policy Group match criteria. Any third-party system without a native Elisity connector — an XDR or NDR platform, a network access control system, or a configuration management database, for example — is integrated into IdentityGraph through the Custom Connector.

Custom Connector behaves much like every other IdentityGraph Connector. Devices are discovered on Elisity-onboarded infrastructure, and each connector is scheduled for enrichment from all connected identity sources - including all configured data sources within Custom Connector. Each configured data source in Custom Connector will appear as a separate tile in the IdentityGraph view within Device Details.

Up to 6 data sources can be configured in Custom Connector for enrichment, each acting as an independent connector in IdentityGraph. Each data source supports up to 300,000 entries.

Configure Custom Connector

Login to Elisity Cloud Control Center and navigate to IdentityGraph > Connectors and select + Add Connector.

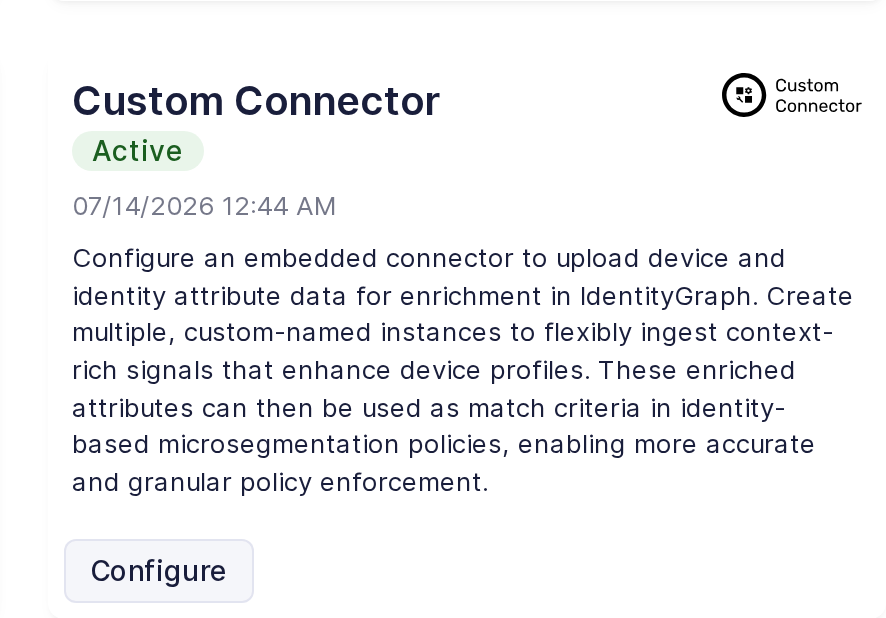

Select Configure on the Custom Connector tile in the list.

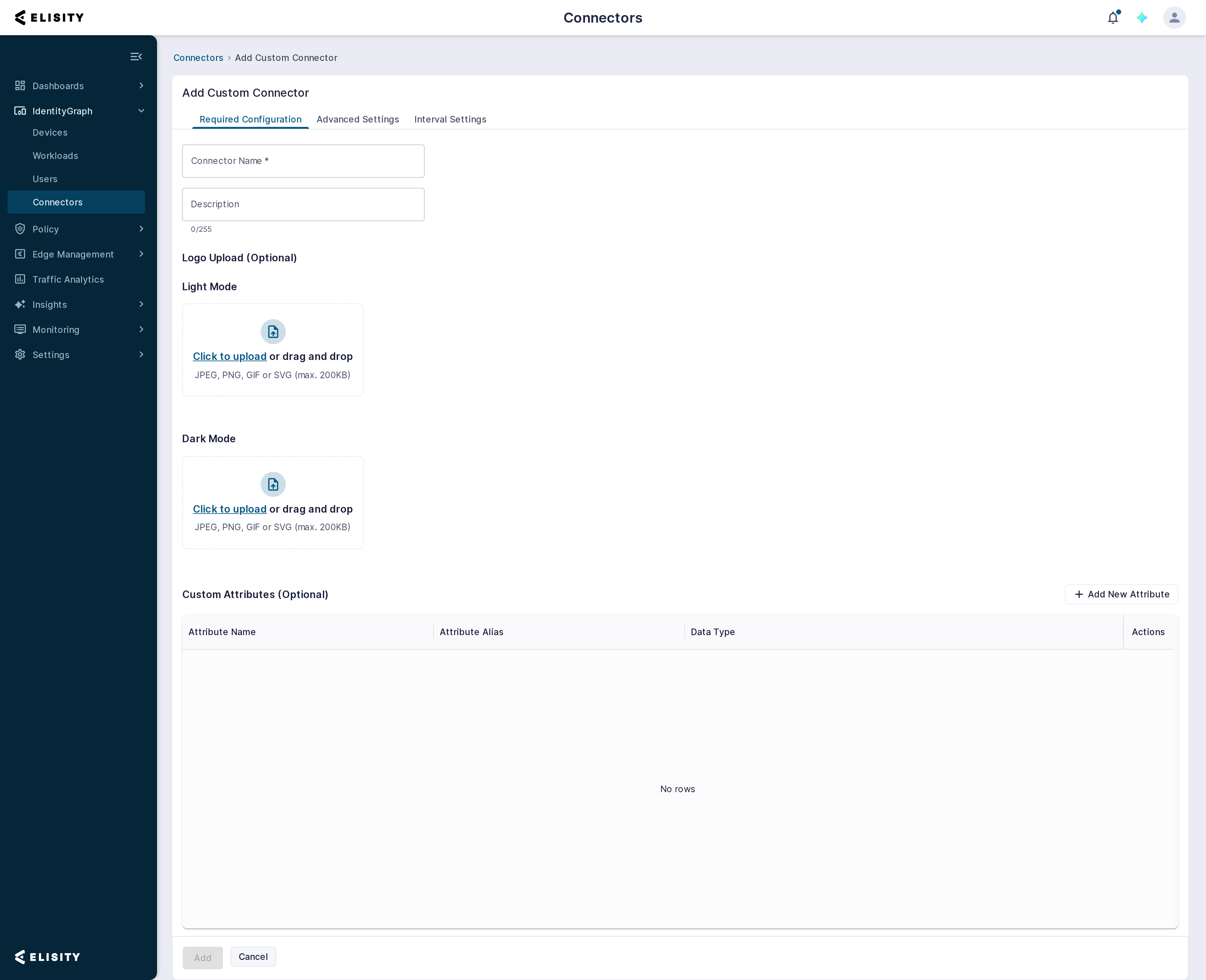

On the Required Configuration tab, enter a Connector Name and enter a Description (optional). This is the name which will appear in the IdentityGraph enrichment source as "Custom Connector | <Connector Name>"

On this tab, you can also configure Custom Attributes by selecting + Add New Attribute. See the section on Adding Custom Attributes for details.

Customizing Connector Icons

Custom Connector icons improve visual recognition within Cloud Control Center by allowing administrators to upload custom branding or source-specific icons. These icons appear in the Connectors list and in IdentityGraph enrichment tiles, making it easier to identify and distinguish different data sources at a glance.

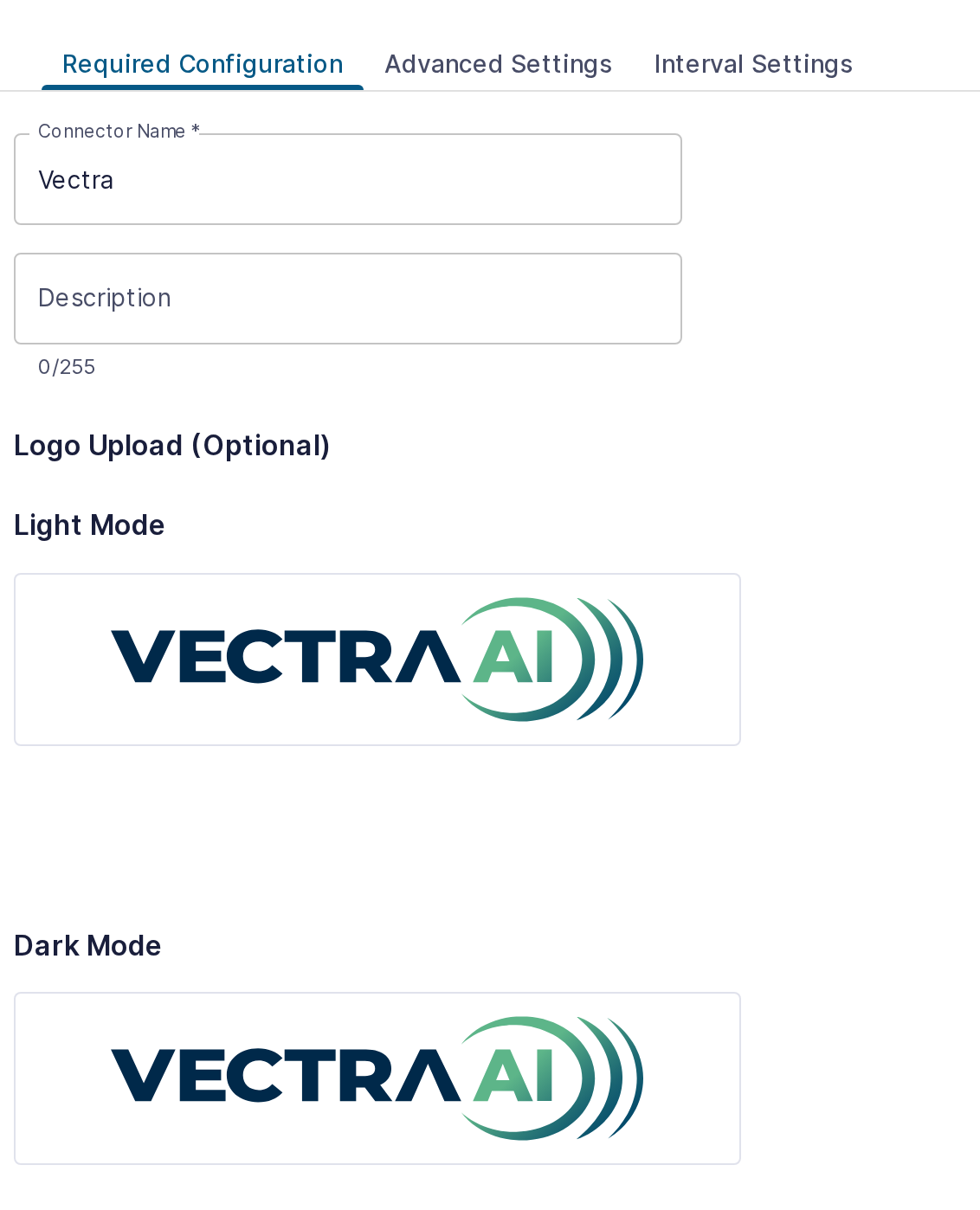

Uploading a Custom Icon

Step 1. Navigate to IdentityGraph > Connectors and select your Custom Connector from the list, or create a new connector by selecting + Add Connector.

Step 2. On the connector configuration page, locate the Logo Upload (Optional) section on the Required Configuration tab.

Step 3. The Logo Upload section displays preview modes for both light and dark themes. Select Click to upload or drag and drop your icon file into the upload area. Both file types (JPEG, PNG, GIF, SVG) and drag-and-drop are supported (max. 200KB per file).

Step 4. After uploading, verify the icon displays correctly in both light and dark mode previews. Once satisfied, complete the connector configuration by clicking Add or Save.

Icon Display Locations

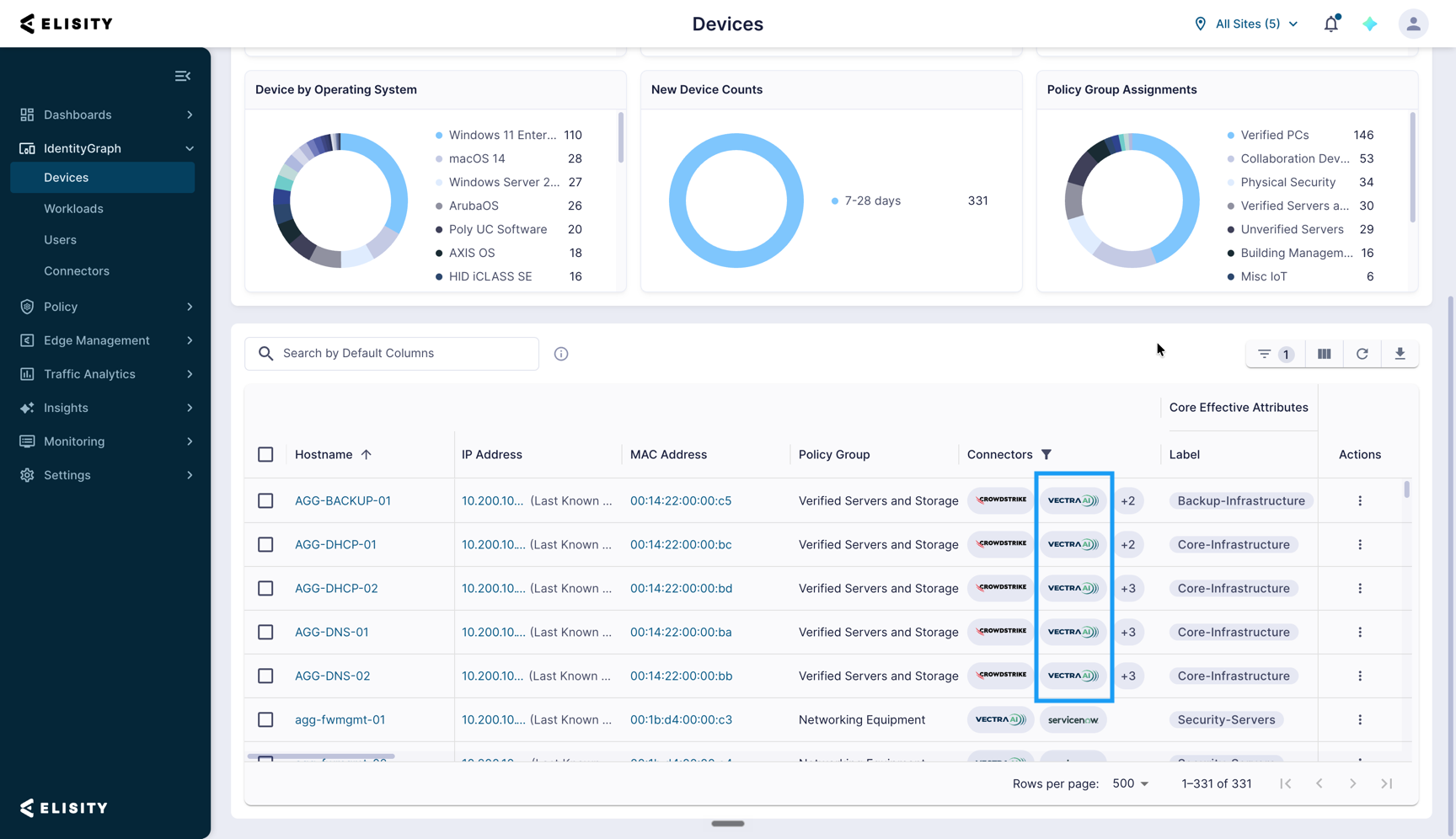

Once uploaded, custom icons appear in the following locations within Cloud Control Center:

• Connectors list under IdentityGraph (in the Connector column)
• IdentityGraph enrichment tiles showing data from the custom connector

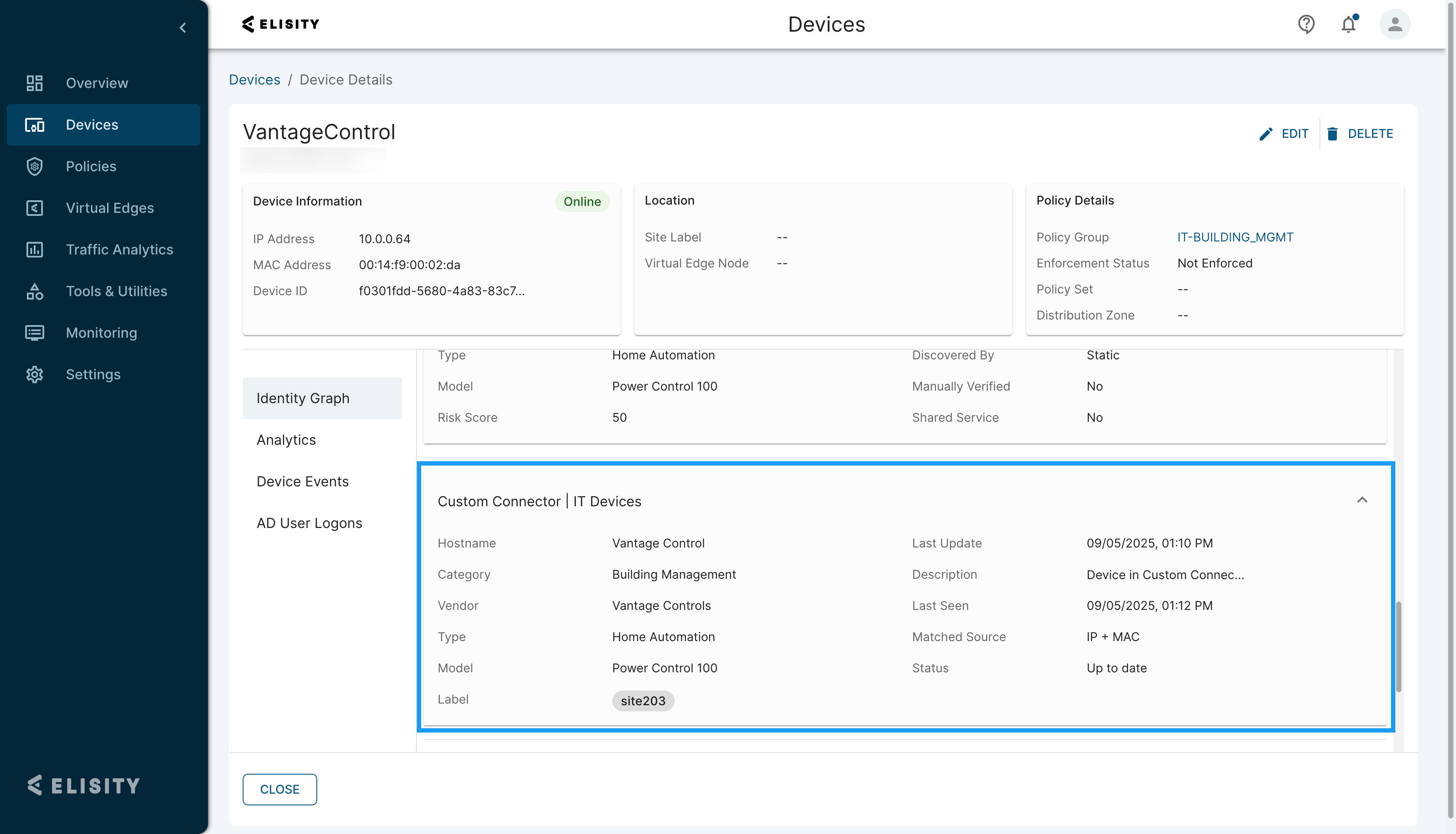

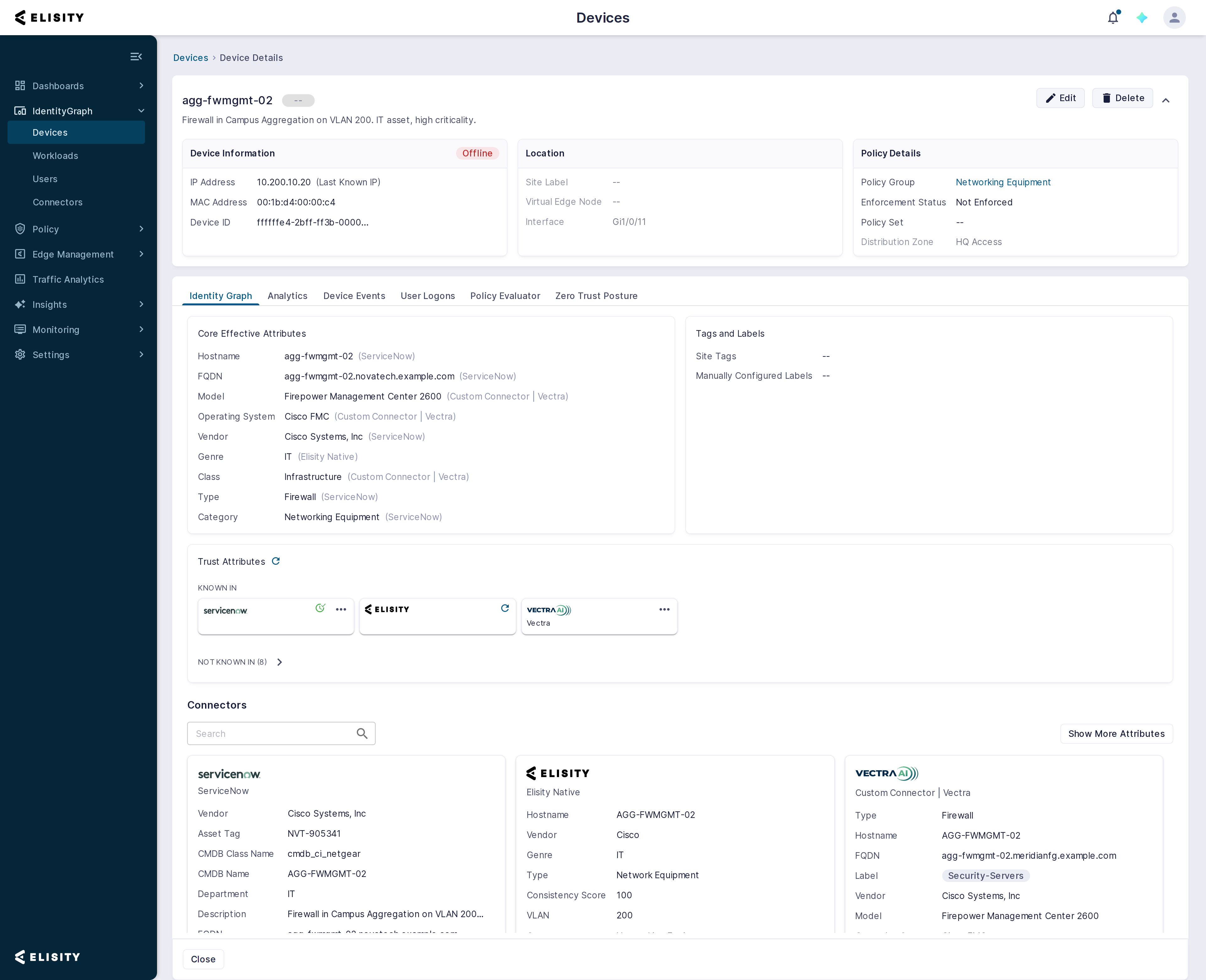

• Device Details view when custom connector data is enriched

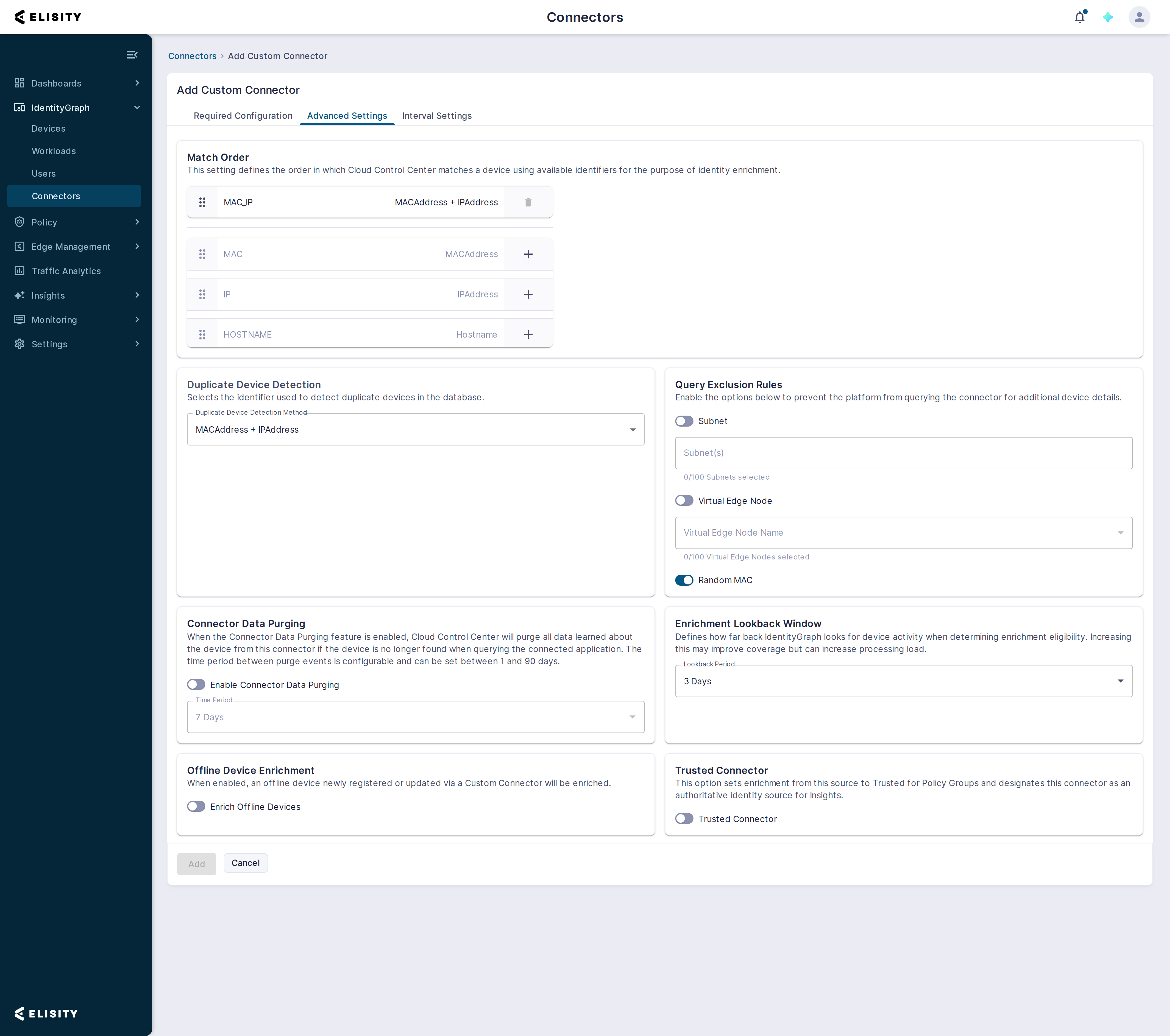

Configure Custom Connector Advanced Settings from the Advanced Settings tab. These settings explained in detail below.

Advanced Settings

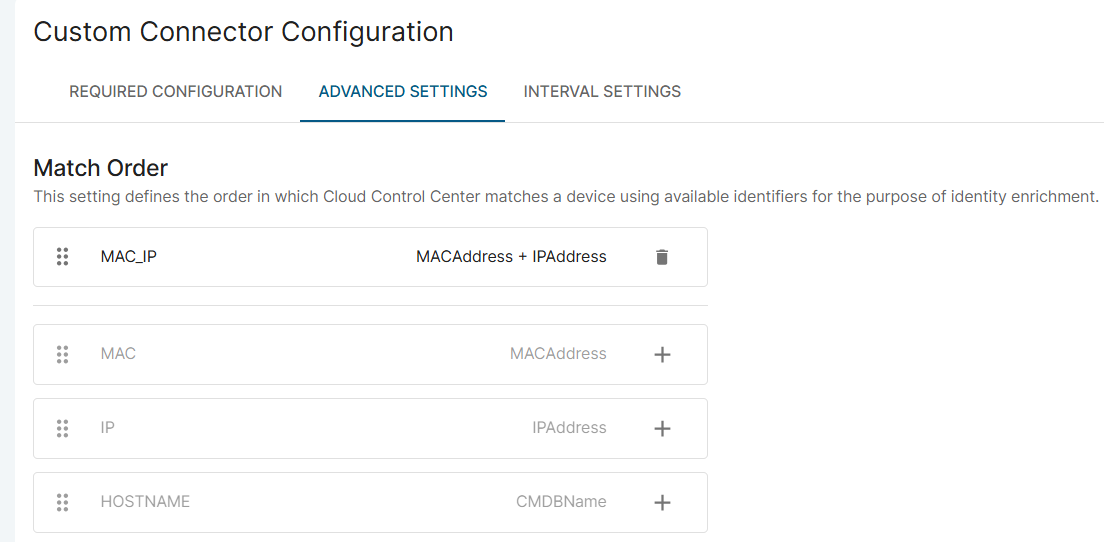

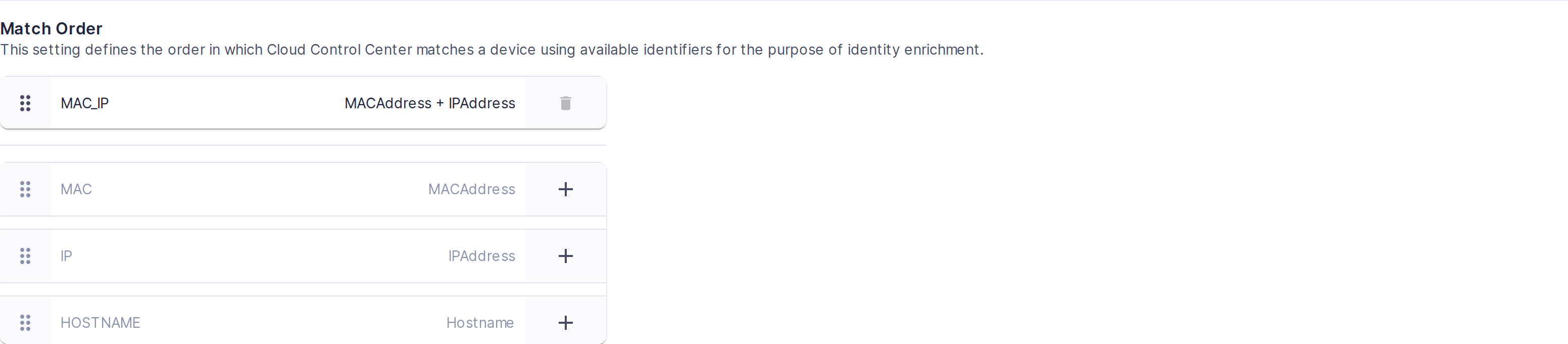

Match Order

The Match Order setting in Custom Connector defines how Cloud Control Center matches discovered devices to records in the uploaded dataset. These records represent customer-defined device inventory — effectively serving as a lightweight, built-in CMDB within Elisity.

Each time a device is discovered, Cloud Control Center evaluates the record set using the selected match methods, in the defined order. Once a match is found, identity and metadata from the record are applied to the device.

Available Match Methods

• MAC + IP Address: Matches when both the discovered MAC and IP address align with a row in the uploaded data.

• MAC Address Only: Matches when the MAC address of the discovered device aligns with a record. Ideal for environments where MACs are globally unique.

• IP Address Only: Matches when the IP address aligns with a record. Use with caution if IP reuse or DHCP churn is common.

• Host Name: Matches when the discovered hostname aligns with the name field in a record. Useful when asset names are standardized and unique across the environment.

Behavior and Configuration

• Reorder match methods to define precedence using drag-and-drop.

• Enable/Disable methods using the + and trash icons.

• Matching stops at the first successful match (top-down evaluation).

This flexibility allows administrators to tailor the match logic based on the quality and consistency of attributes in their uploaded dataset.

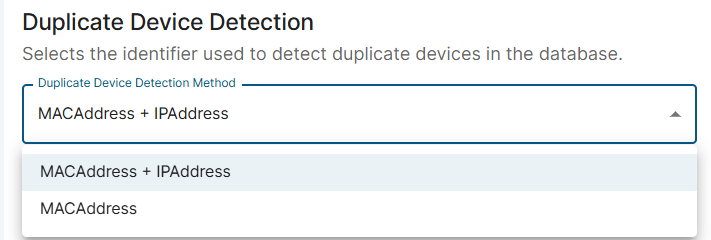

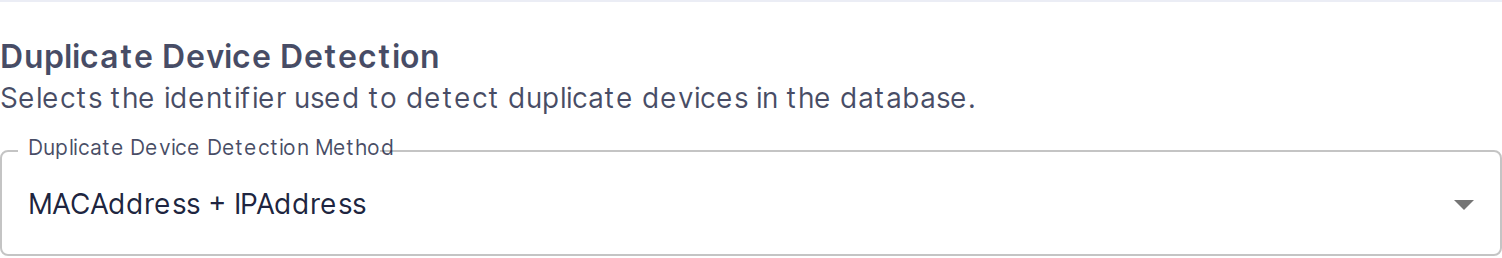

Duplicate Device Detection

The Duplicate Device Detection setting determines how Cloud Control Center identifies duplicate records within the Custom Connector dataset. This setting is critical for managing how uploaded or merged data is handled when conflicts occur.

You can configure the duplicate check to use one of the following methods:

• MAC Address + IP Address: A record is considered a duplicate only if both the MAC address and IP address match an existing entry.

• MAC Address Only: A record is considered a duplicate if the MAC address matches, regardless of IP.

Behavior

• During Spreadsheet Upload: If duplicate rows are present in the uploaded file (based on the selected method), only the first occurrence is kept. Subsequent duplicate rows in the same upload are skipped.

• During Merge Operations: When merging new data into the existing dataset, any row identified as a duplicate (based on the selected method) will be skipped entirely. The existing record will be left unchanged — no data is overwritten or merged.

This logic ensures that duplicate records do not unintentionally overwrite existing entries, but it also means that administrators must ensure data consistency and accuracy before uploading or merging large datasets.

MAC Address Handling
Cloud Control Center standardizes MAC address formats in uploaded datasets to ensure consistent matching and enrichment across all sources.

Accepted Input Formats:

• 00:0a:95:9d:67:16 (colon-delimited)

• 00.0a.95.9d.67.16 (dot-delimited)

• 00-0a-95-9d-67-16 (dash-delimited)

• 000a959d6716 (no delimiter)

All accepted formats are automatically converted to a standardized colon-delimited format (00:0a:95:9d:67:16) during import.
Letter case is ignored during processing, and MAC addresses are normalized for accurate identity correlation and policy evaluation.

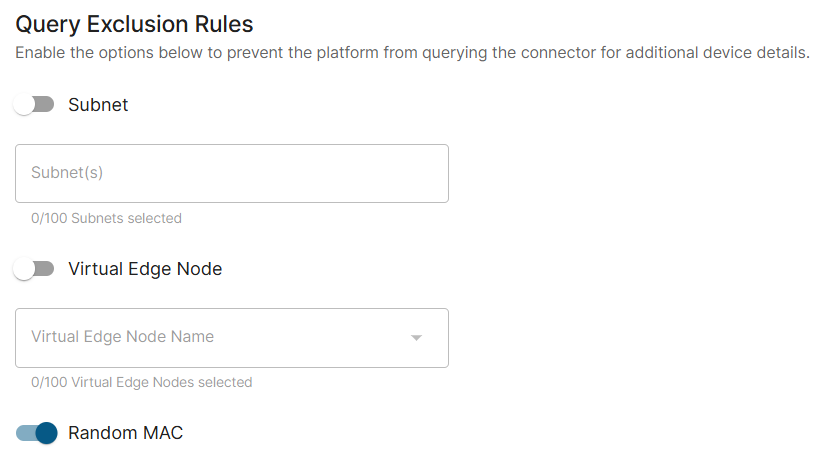

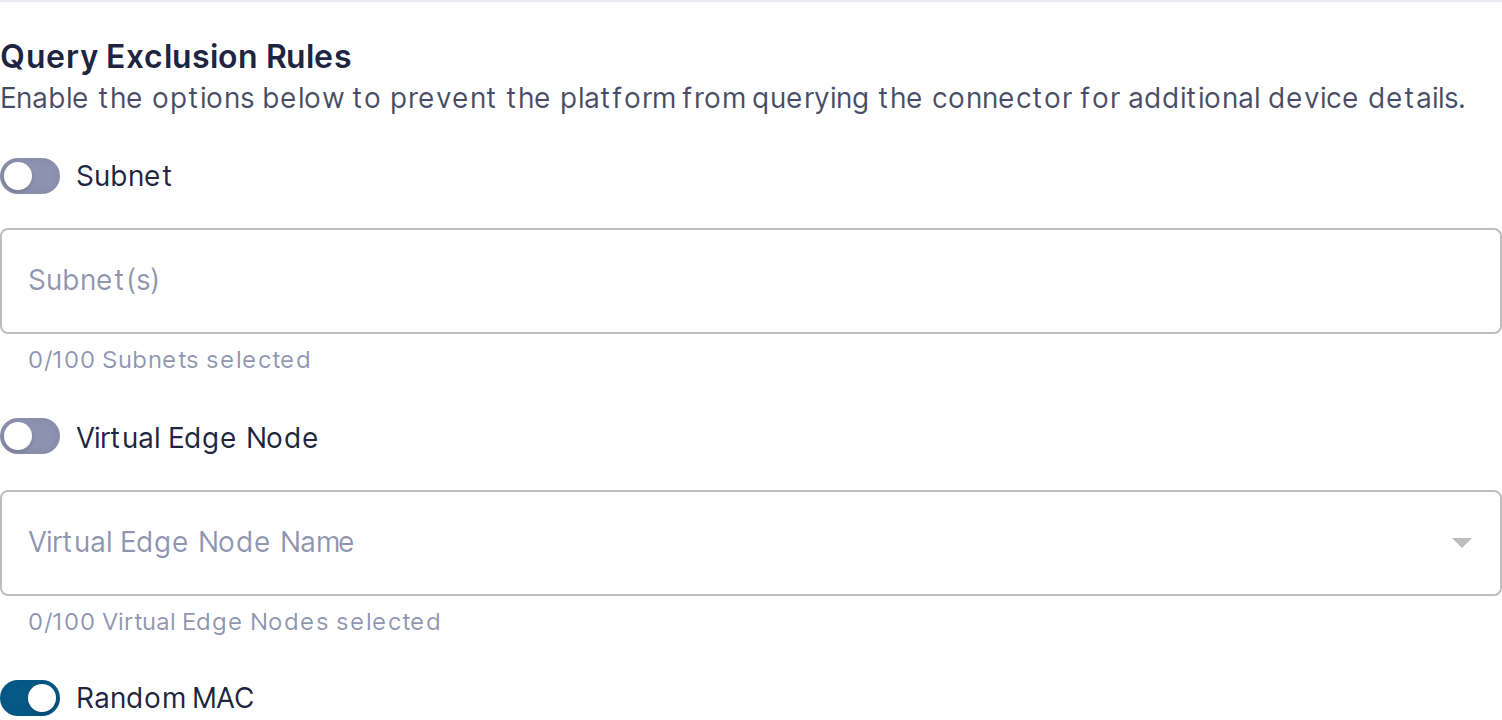

Query Exclusion Rules

Query Exclusion Rules allow you to restrict which discovered devices are evaluated against your uploaded dataset. This gives administrators control over when and where enrichment is performed, helping to eliminate noise from unreliable sources (like randomized MACs) or untrusted environments (like guest subnets).

You can exclude devices from being queried based on:

▸ Subnet

Enable this option to exclude devices that are attached from specific subnets. Devices in the selected subnets will not be queried against the connector dataset for enrichment or identity matching.

• Supports up to 100 subnets

• Useful for excluding infrastructure networks, guest VLANs, or temporary staging segments

▸ Virtual Edge Node

Exclude devices connected through specific Virtual Edge Nodes. This option is helpful when certain sites or switches are not part of your enrichment strategy.

• Supports up to 100 Virtual Edge Nodes

• Often used to suppress queries from lab sites or onboarding areas

▸ Random MAC

Enable this to automatically exclude devices using randomized MAC addresses (commonly seen on mobile devices, IoT, and BYOD endpoints). Since these MACs are ephemeral and often non-deterministic, they can cause data mismatches or unnecessary connector queries.

Note: Devices that meet any of the exclusion criteria above will be ignored during enrichment. These settings apply only to the querying process for enrichment — they do not affect how devices are discovered or visualized elsewhere in Cloud Control Center.

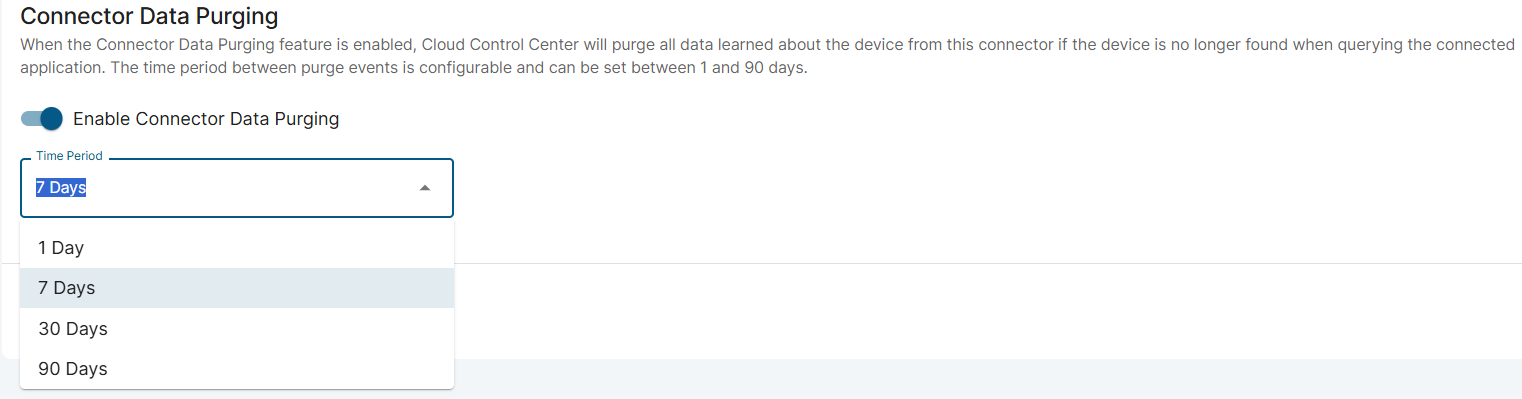

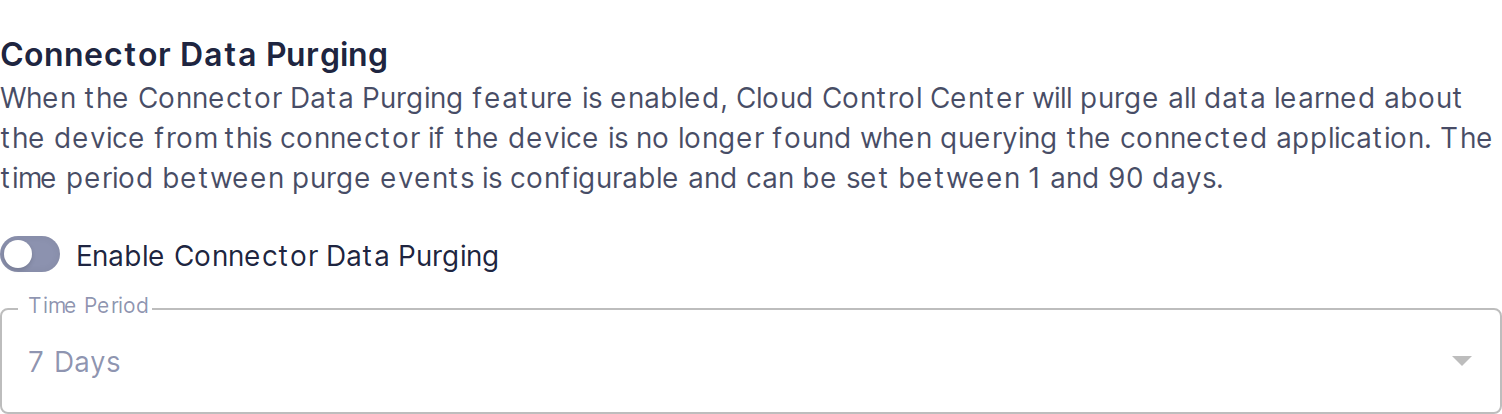

Connector Data Purging
When the Connector Data Purging feature is enabled, Cloud Control Center will purge all data learned about the device from this connector if the device is no longer found when querying the connected application. The time period between purge events is configurable and can be set between 1 and 90 days. The connector status will change from Up to Date to Stale if the device is no longer known by the connector but prior to the purge event.

Enrichment Lookback Window

The Enrichment Lookback Window defines how far back IdentityGraph looks for device activity when determining whether a discovered device is eligible for enrichment from this connector. Devices with no activity inside the selected Lookback Period are not considered for enrichment from this source. The default is 3 Days. Widening the window improves coverage of intermittently active devices, but increases the number of devices evaluated on each query and the associated processing load.

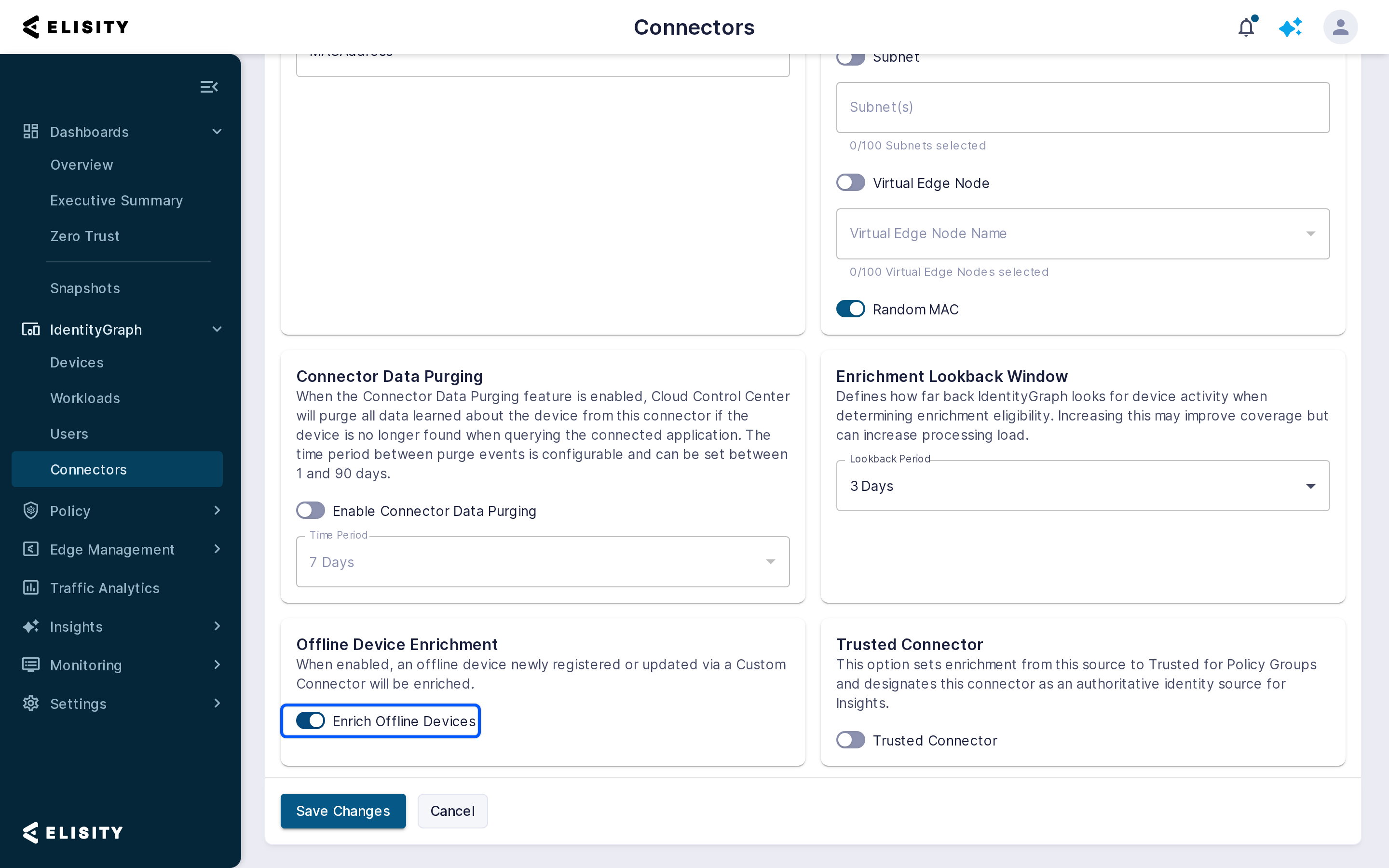

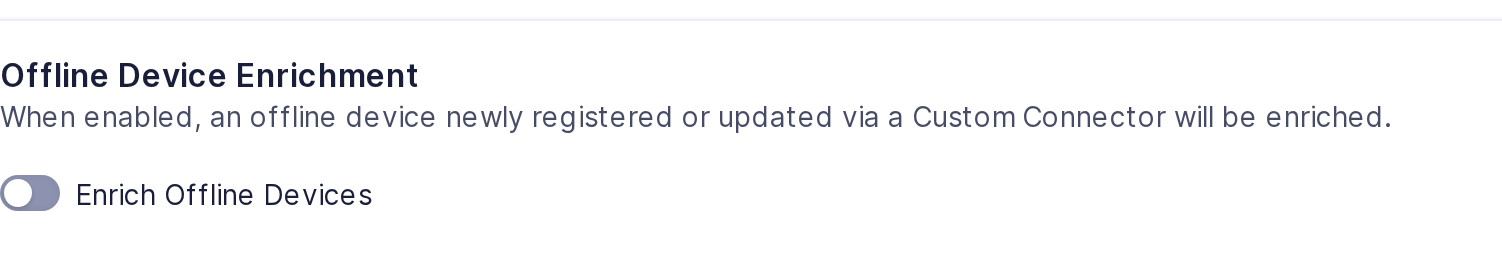

Offline Device Enrichment

The Offline Device Enrichment setting controls whether Cloud Control Center enriches a device that is currently offline. When the Enrich Offline Devices toggle is enabled, Cloud Control Center enriches the device immediately as soon as a matching entry is added to or changed in this connector’s dataset, even while the device is offline. This allows administrators to confirm that a device has been registered and enriched through the Custom Connector before it comes back online. This setting is disabled by default.

For an offline device, matching is performed on MAC address only, because an IP address is not available while the device is offline. Datasets intended for offline enrichment should therefore provide accurate MAC addresses. Offline enrichment continues to respect the connector’s Query Exclusion Rules, and provides visibility only — policy is not enforced on a device while it is offline.

Trusted Connector

The Trusted Connector setting designates this connector as an authoritative identity source. When the Trusted Connector toggle is enabled, enrichment supplied by this connector is set to Trusted for Policy Groups, and the connector is treated as an authoritative identity source for Insights. Enable this setting only for curated sources whose records are known to be accurate, because Policy Group membership and the identity Cloud Control Center reports for a device both rely on that data. This setting is disabled by default.

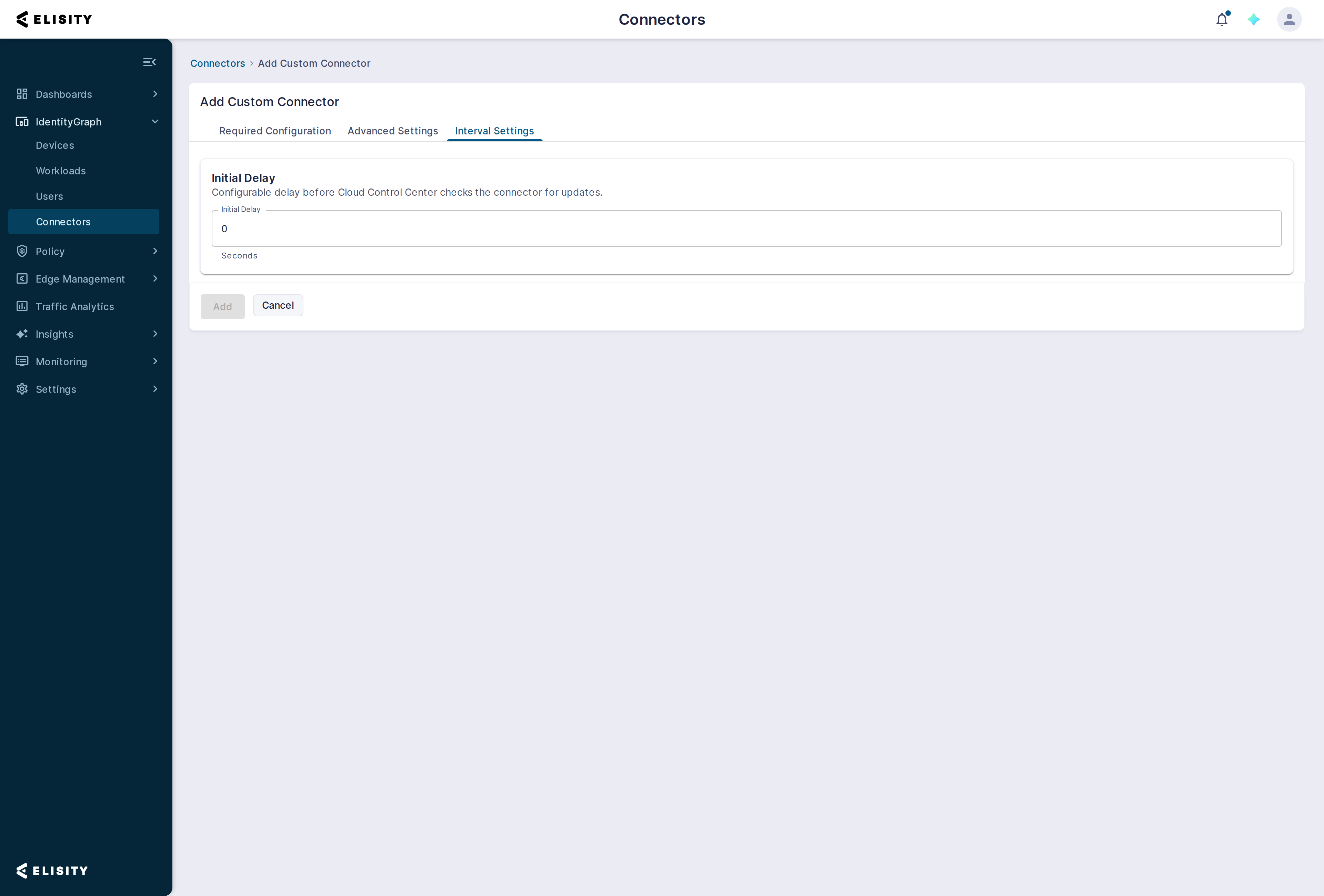

Interval Settings

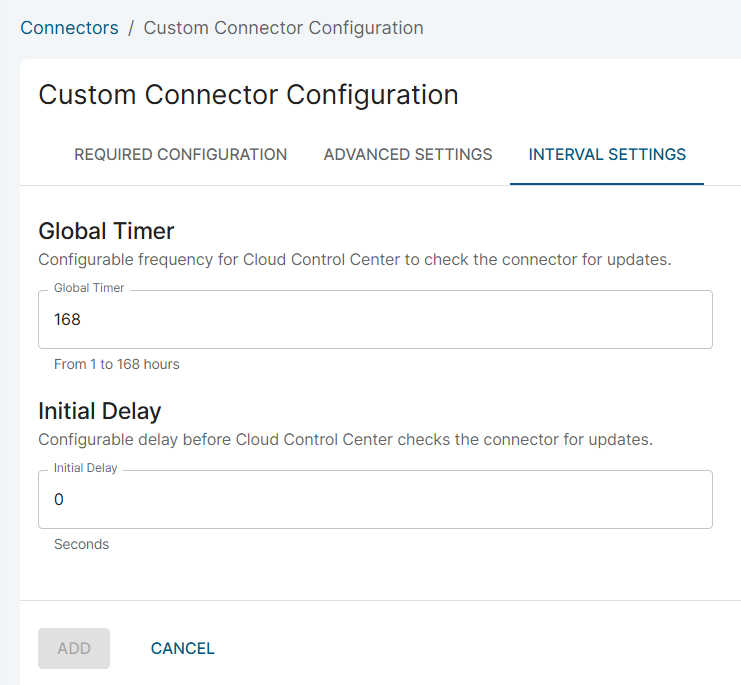

Configure the initial query delay from the Interval Settings tab.

Initial Delay: The delay, in seconds, before Cloud Control Center checks the connector for updates. The default is 0 seconds. It is recommended to leave this setting as the default value.

Once the required and advanced settings are configured, select Add to create the Custom Connector.

Adding Custom Attributes

Administrators can add Custom Attributes to capture additional device or system properties that are not included in the standard connector schema. These optional attributes can be added during connector creation or later by editing an existing connector. Up to 40 Custom Attributes can be configured per Custom Connector instance, enabling flexible representation of customer-specific data. Once defined, Custom Attributes become available in IdentityGraph, Policy Group Match Criteria, and import/export workflows for that connector instance.

Each Custom Connector instance can define:

• 30 String Value Attributes

• 10 Integer Value Attributes

These attributes can also be assigned Aliases, which determine how the attributes are displayed throughout the Elisity UI, including IdentityGraph, Policy Group configurations, and import/export templates.

Adding a Custom Attribute

To add a new Custom Attribute:

1. In Cloud Control Center, navigate to IdentityGraph > Connectors > Custom Connector Configuration.

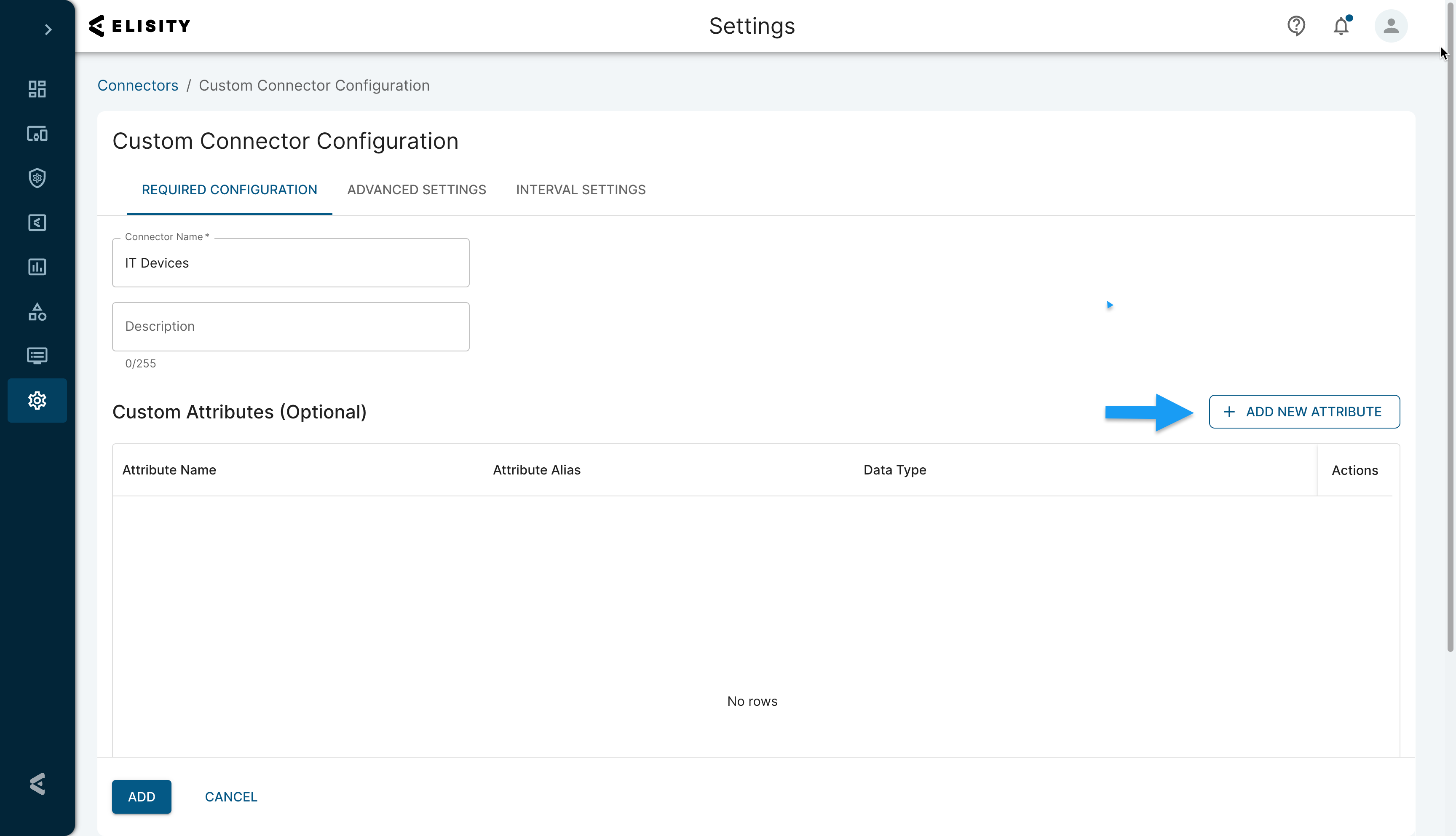

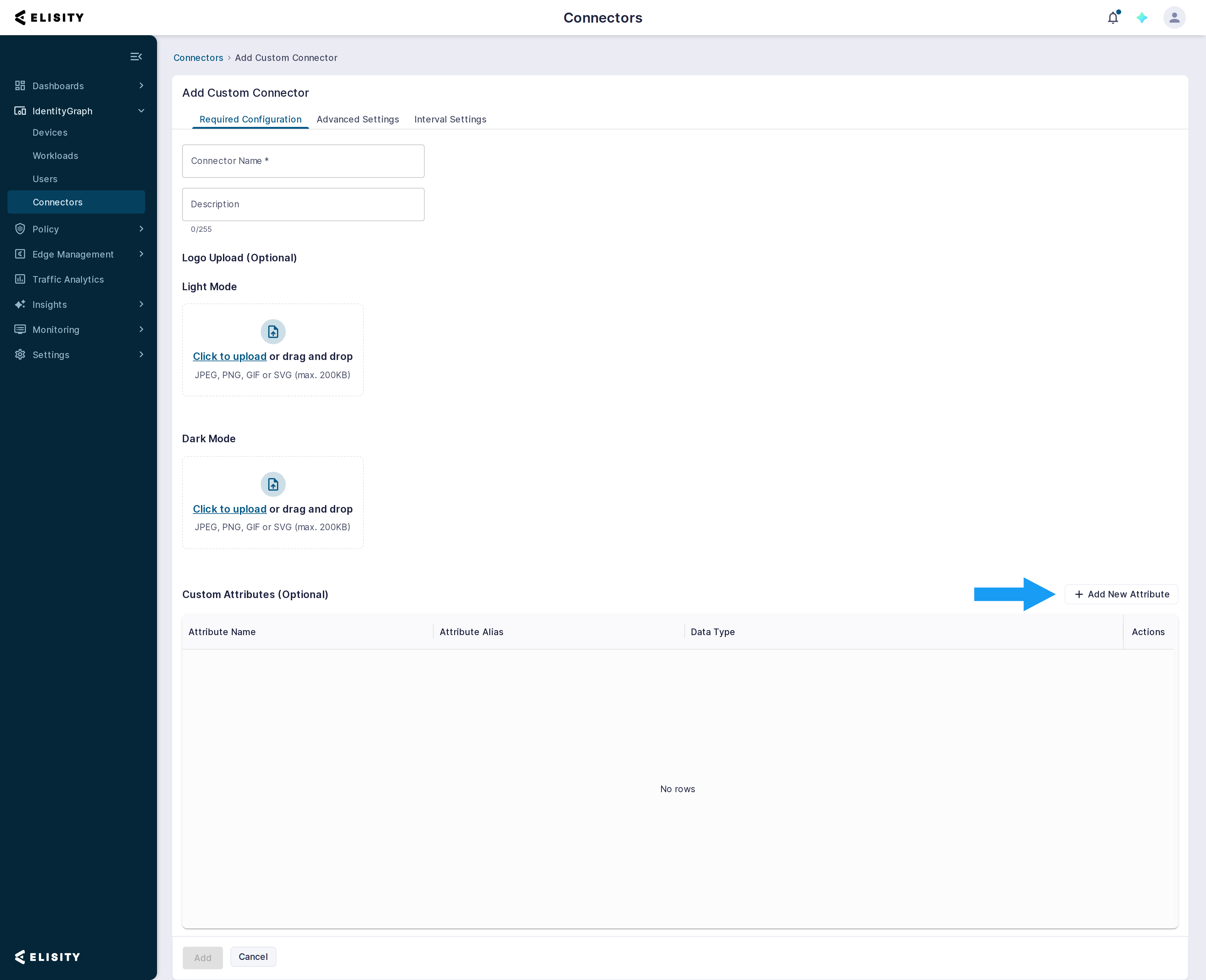

2. In the Required Configuration tab, select + Add New Attribute.

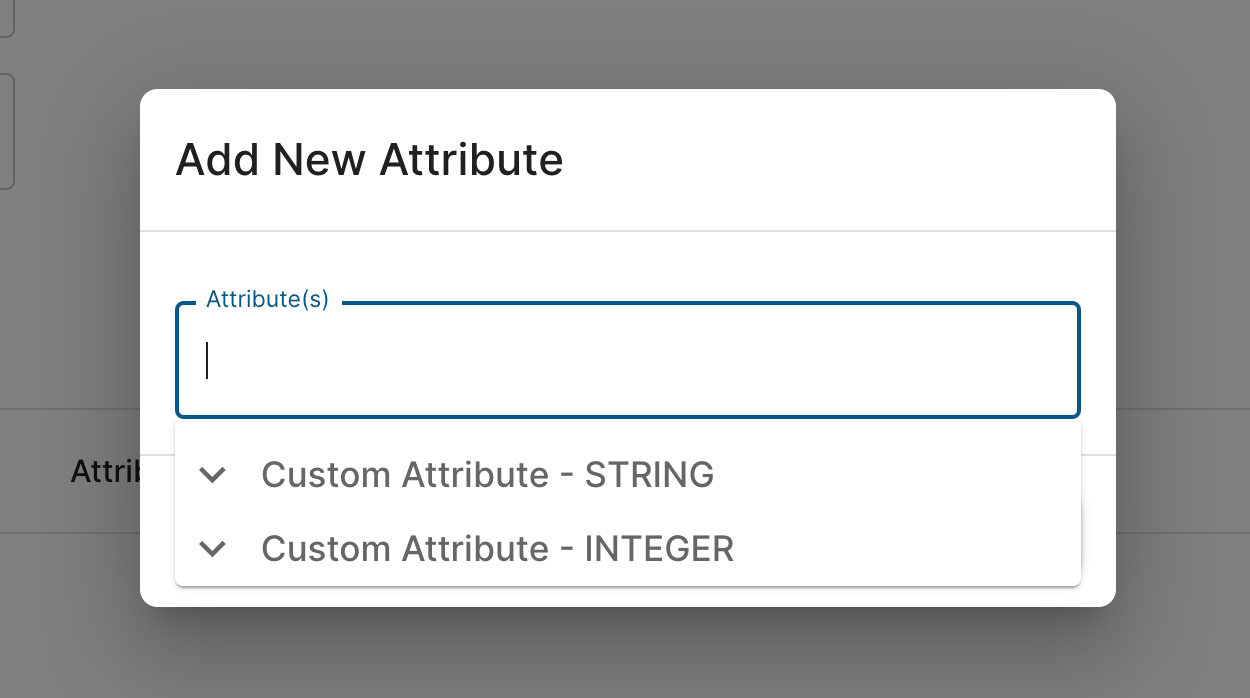

3. In the Add New Attribute window, select one or more attributes from the available list.

• Attributes listed under Custom Attribute - STRING in the Add New Attribute window are created with a Data Type of STRING. Allows string values (e.g. "Region = North America") with appropriate conditional operators in Policy Group match criteria (e.g. contains, equals, does not equal, etc.)

• Attributes listed under Custom Attribute - INTEGER in the Add New Attribute window are created with a Data Type of INTEGER. Allows integer values (e.g. "Risk Score = 55") with appropriate conditional operators in Policy Group match criteria (e.g. '=' '<' '>').

4. Click Add to confirm the selection.

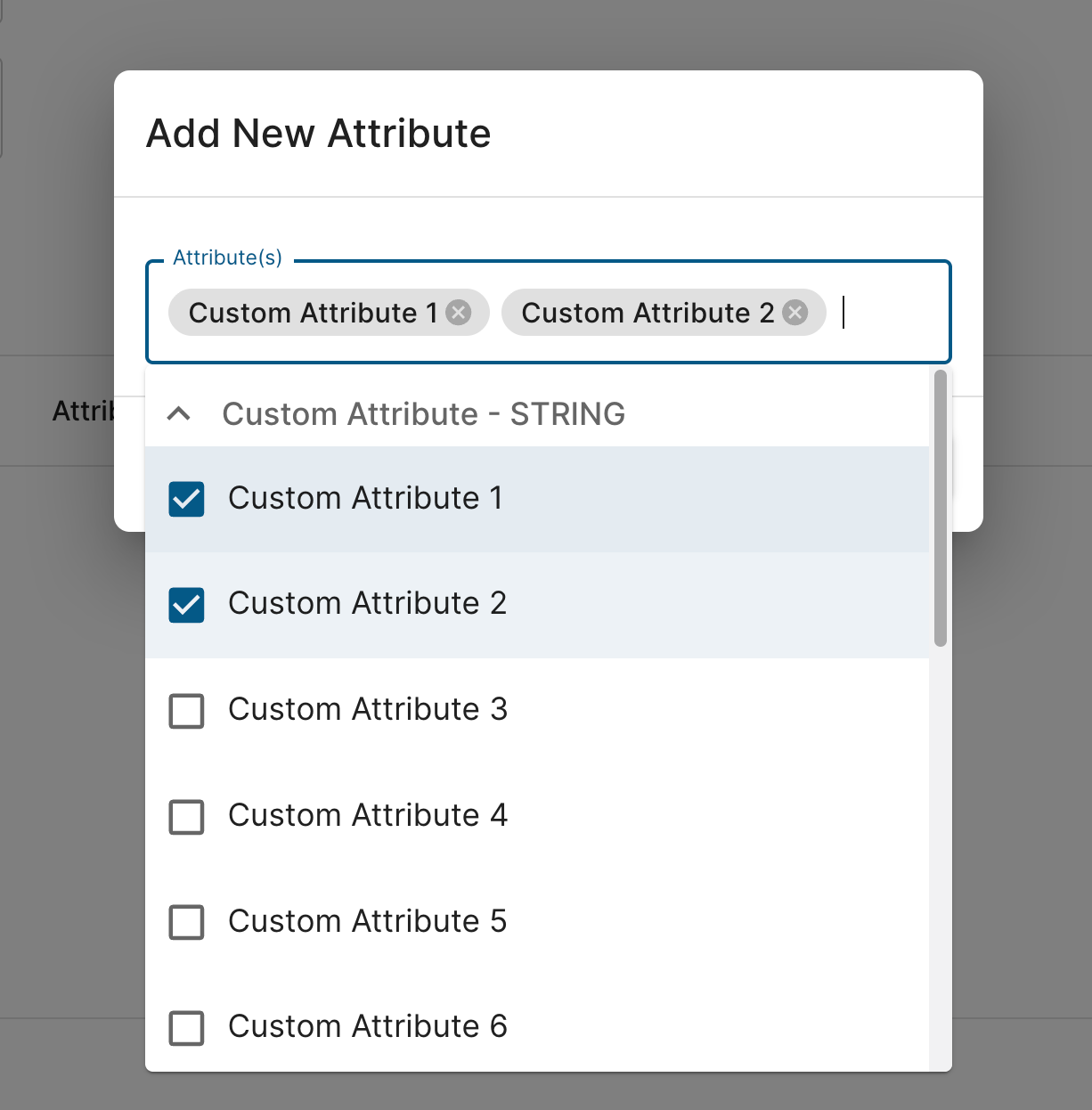

You can select multiple attributes simultaneously by checking the boxes next to the desired attributes.

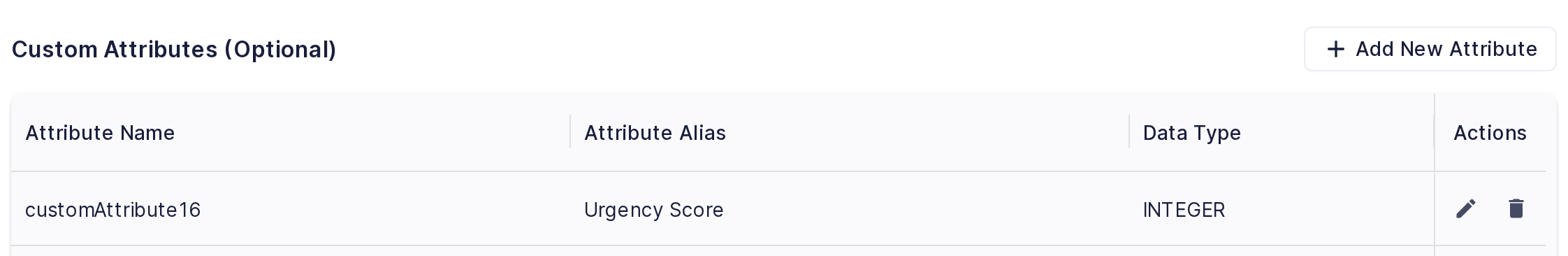

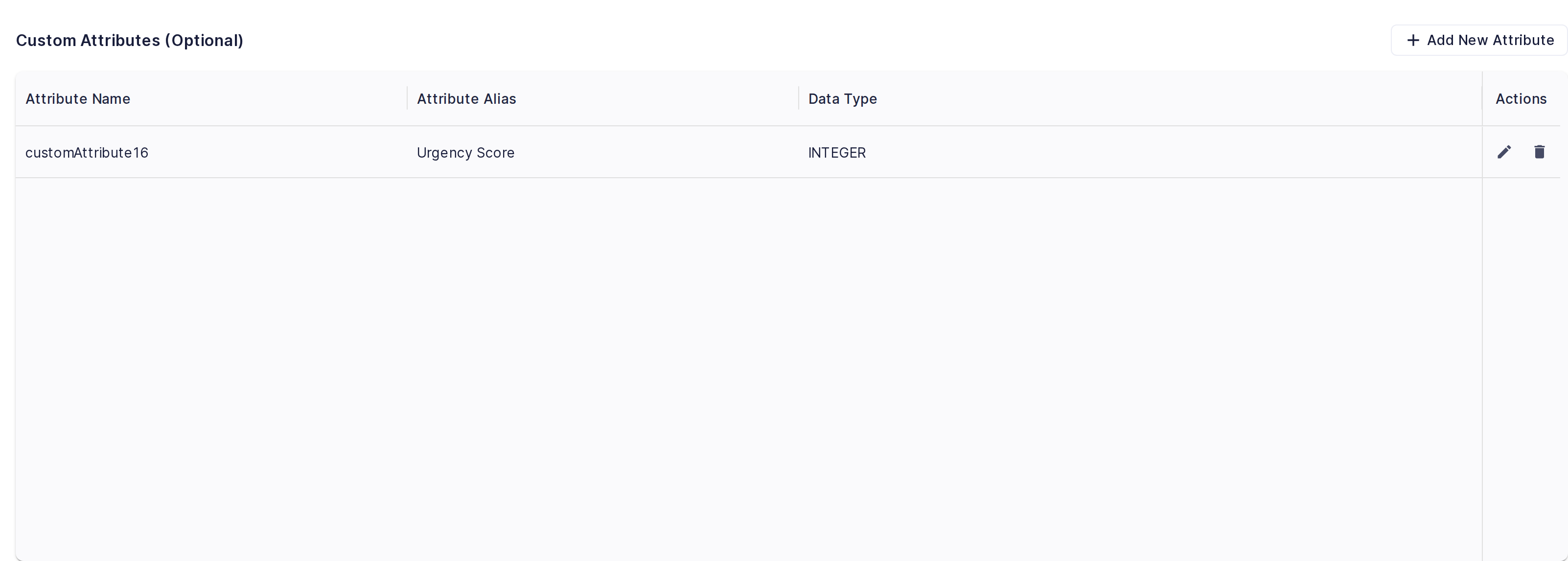

After adding attributes, the configuration table displays the following columns:

• Attribute Name: The raw system name (e.g., customAttribute1)

• Attribute Alias: The name displayed in IdentityGraph and Policy UI. If not modified by the user, will apply default values (Custom Attribute 1, Custom Attribute 2, etc.) - see the following step.

• Data Type: Specifies whether the field is of type STRING or INTEGER

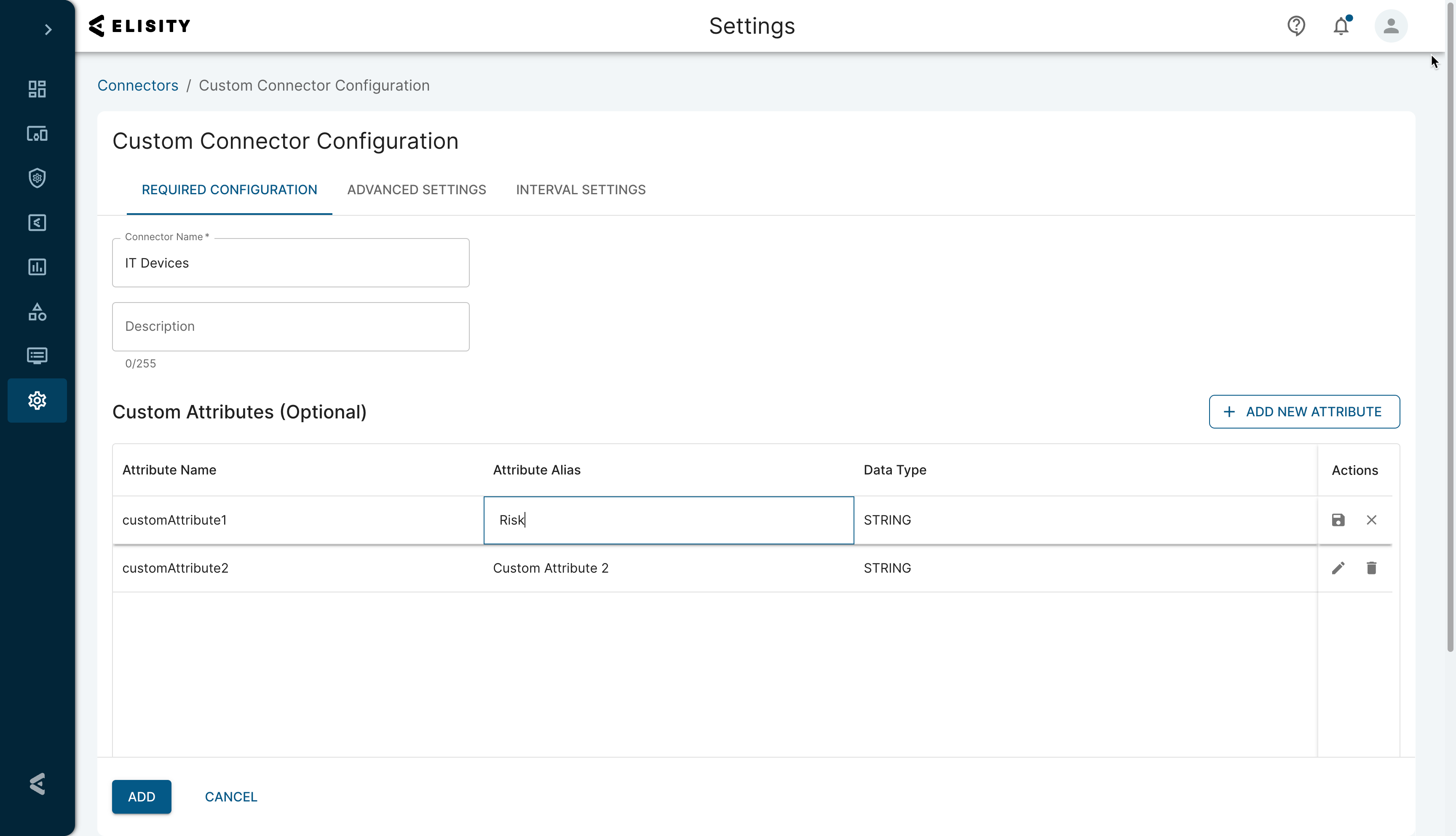

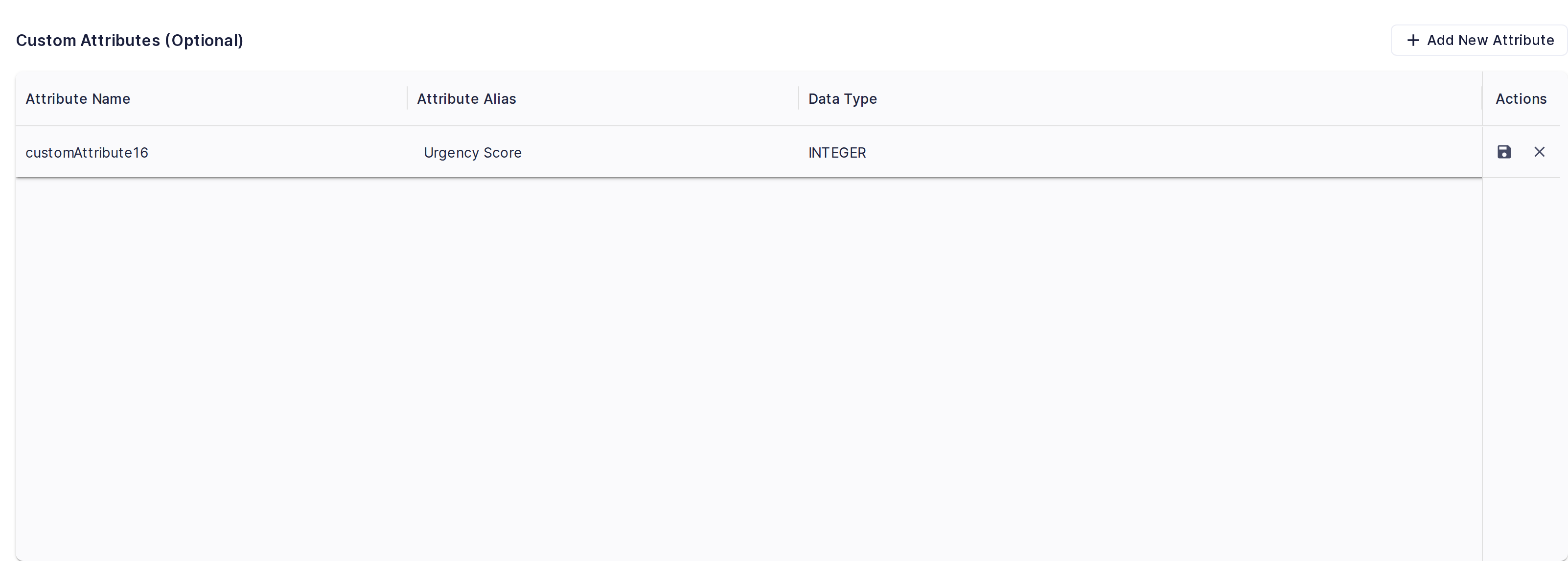

Editing Attribute Aliases

The Attribute Alias field defines how the attribute appears in Cloud Control Center and all front-end workflows, replacing the raw system name wherever possible.

To modify an alias:

1. Click the Edit icon next to the desired attribute.

2. Update the Alias field with the preferred display name.

3. Click the Save icon to confirm the change.

Changes to an alias are immediately reflected in the IdentityGraph view, Policy Group Match Criteria, and future imports/exports for the connector.

Implementation Behavior and Considerations

• Custom Attributes are defined per connector instance and are not global. Each Custom Connector can maintain its own alias configuration.

• By default, no attributes are pre-defined. Attributes only become active once they are added and configured within a connector.

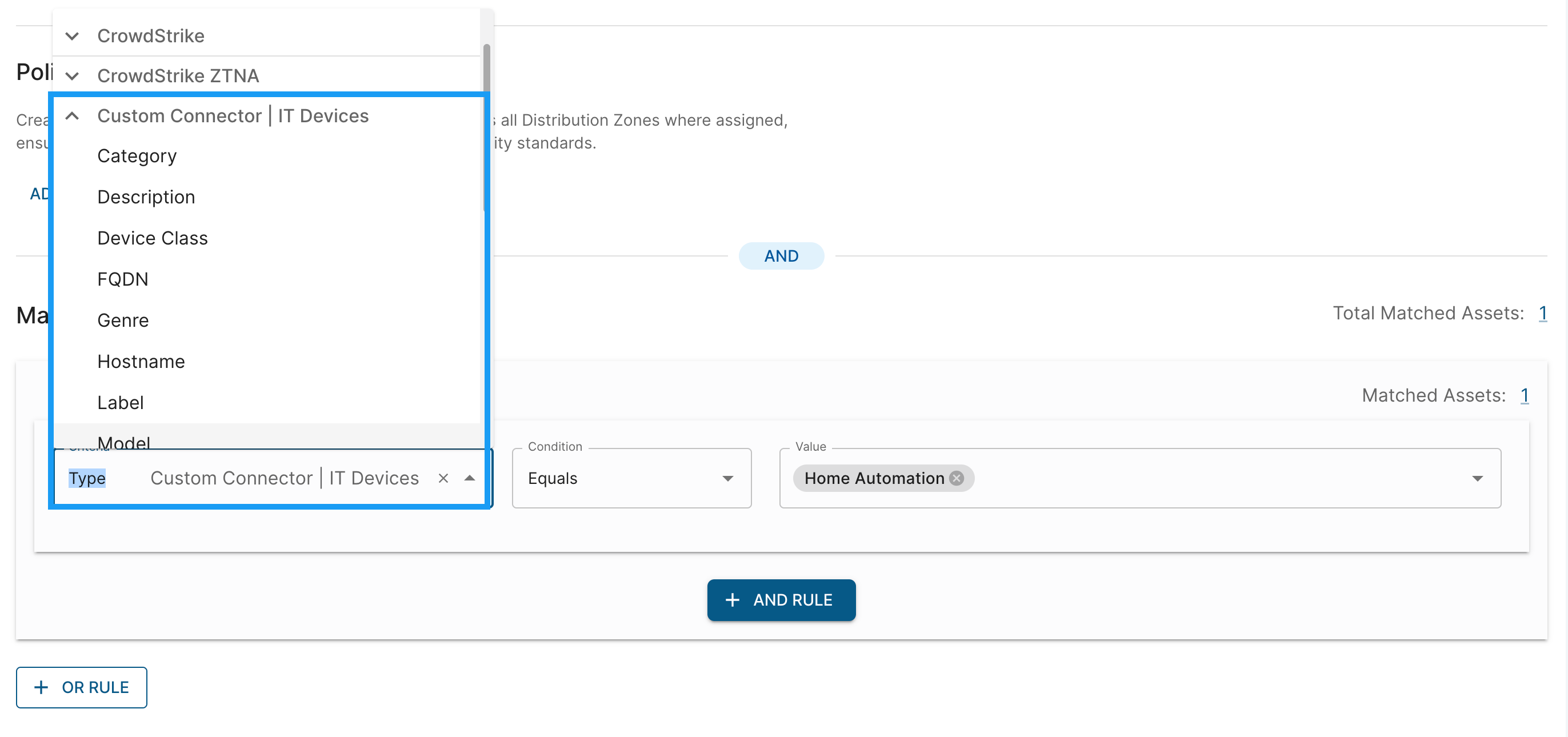

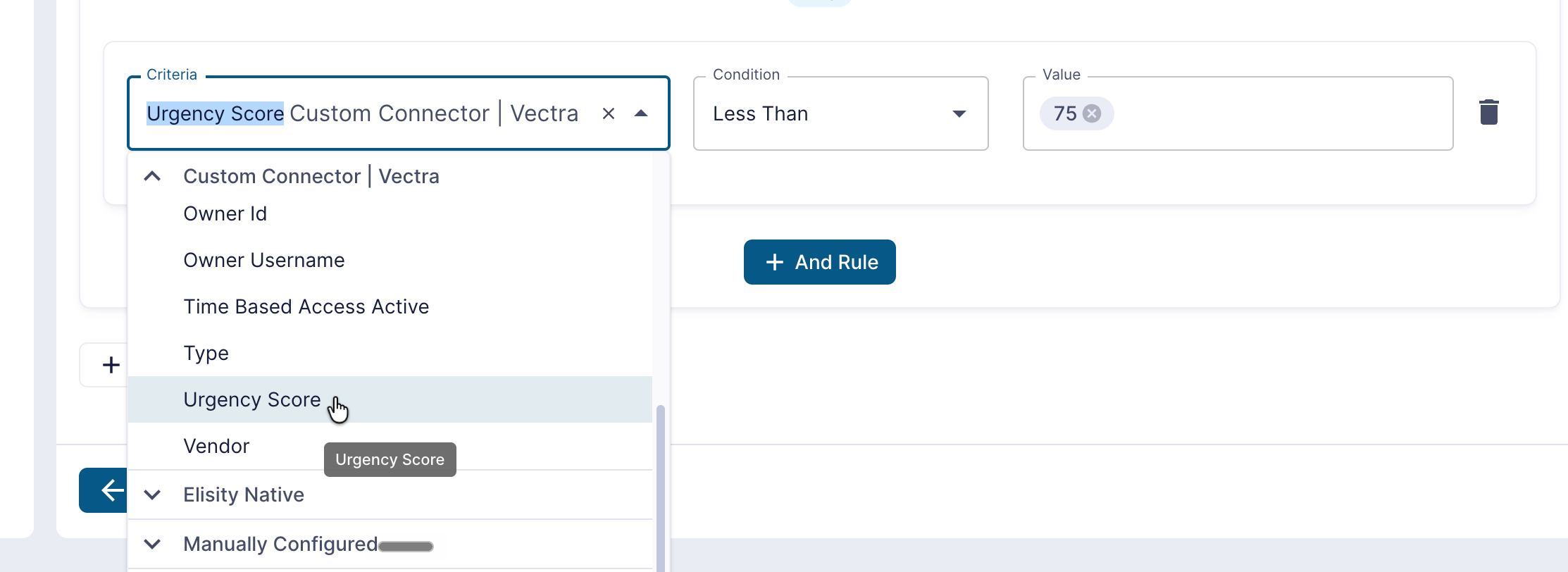

• IdentityGraph and Policy Modules display the Alias instead of the raw attribute name wherever possible.

• Import and export operations reference the Alias value. If no alias is defined, the default attribute name (e.g., customAttribute1) will be used.

• If an alias is deleted or changed, associated Policy Groups and imports will automatically revert to using the raw attribute name until a new alias is defined.

• The XLS import template for each Custom Connector instance dynamically updates based on defined Custom Attributes and their aliases. This ensures that data uploaded aligns with the latest schema.

Best Practices

• Define and finalize Custom Attributes before uploading data to the connector. Creating a Custom Attribute will generate a new template with additional columns to accomodate the new attributes. This ensures import templates and field mappings remain consistent.

• Use clear, descriptive aliases that reflect the source data attribute (e.g., “Device Risk Level” instead of the default “Custom Attribute 1”).

• Avoid renaming aliases after data import or policy creation, as it can lead to temporary mismatches during synchronization.

By following these steps, administrators can extend Custom Connector functionality to accommodate unique data models across multiple sources, ensuring alignment between imported datasets and identity-based policy operations within Elisity Cloud Control Center.

Uploading and Managing Data in a Custom Connector

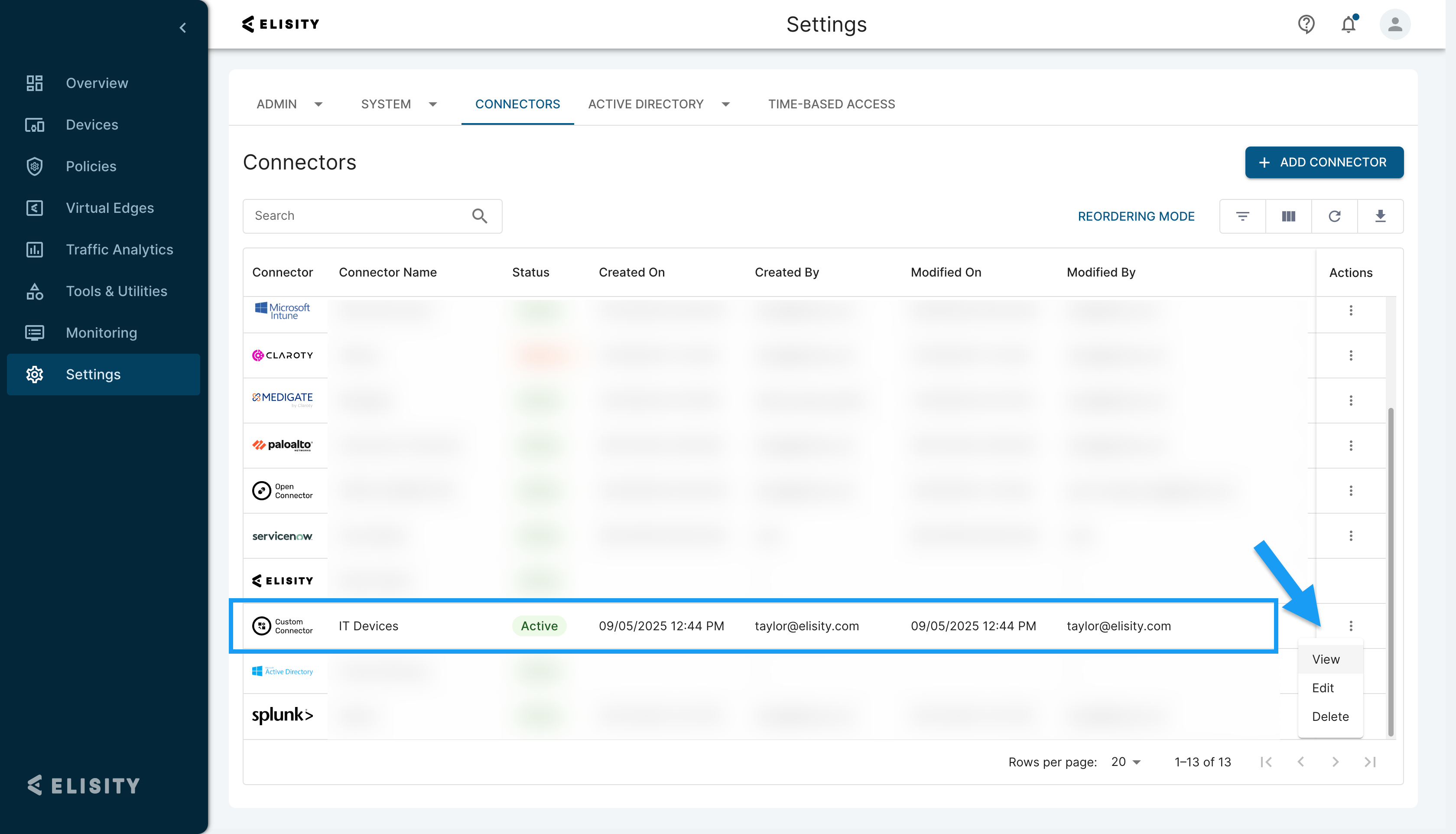

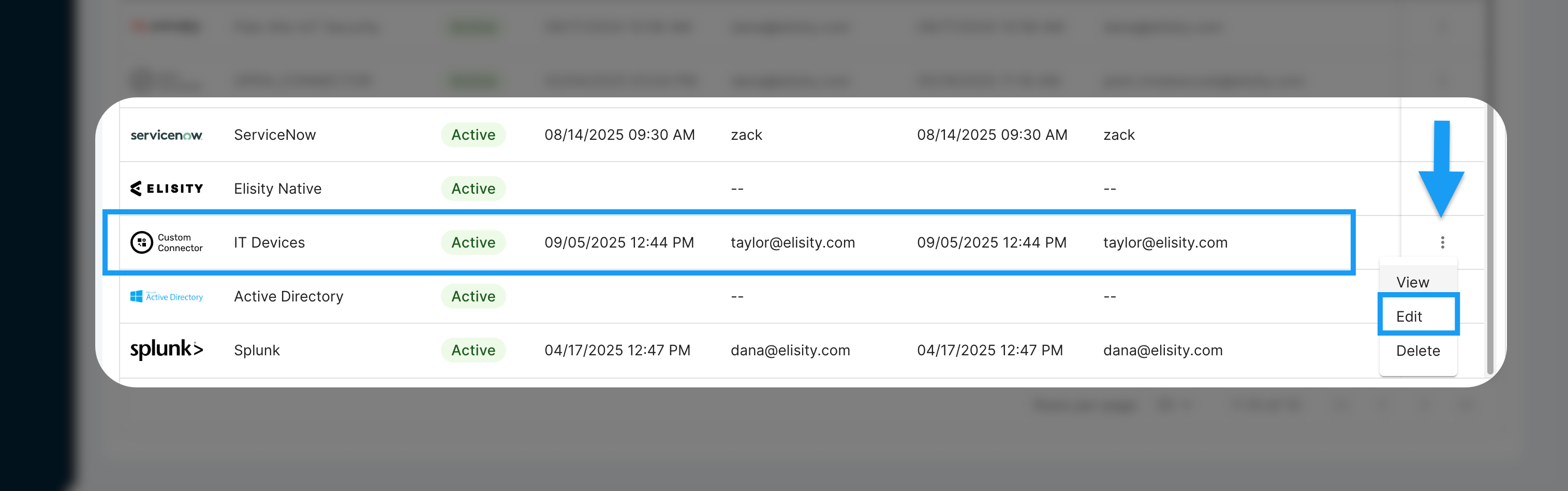

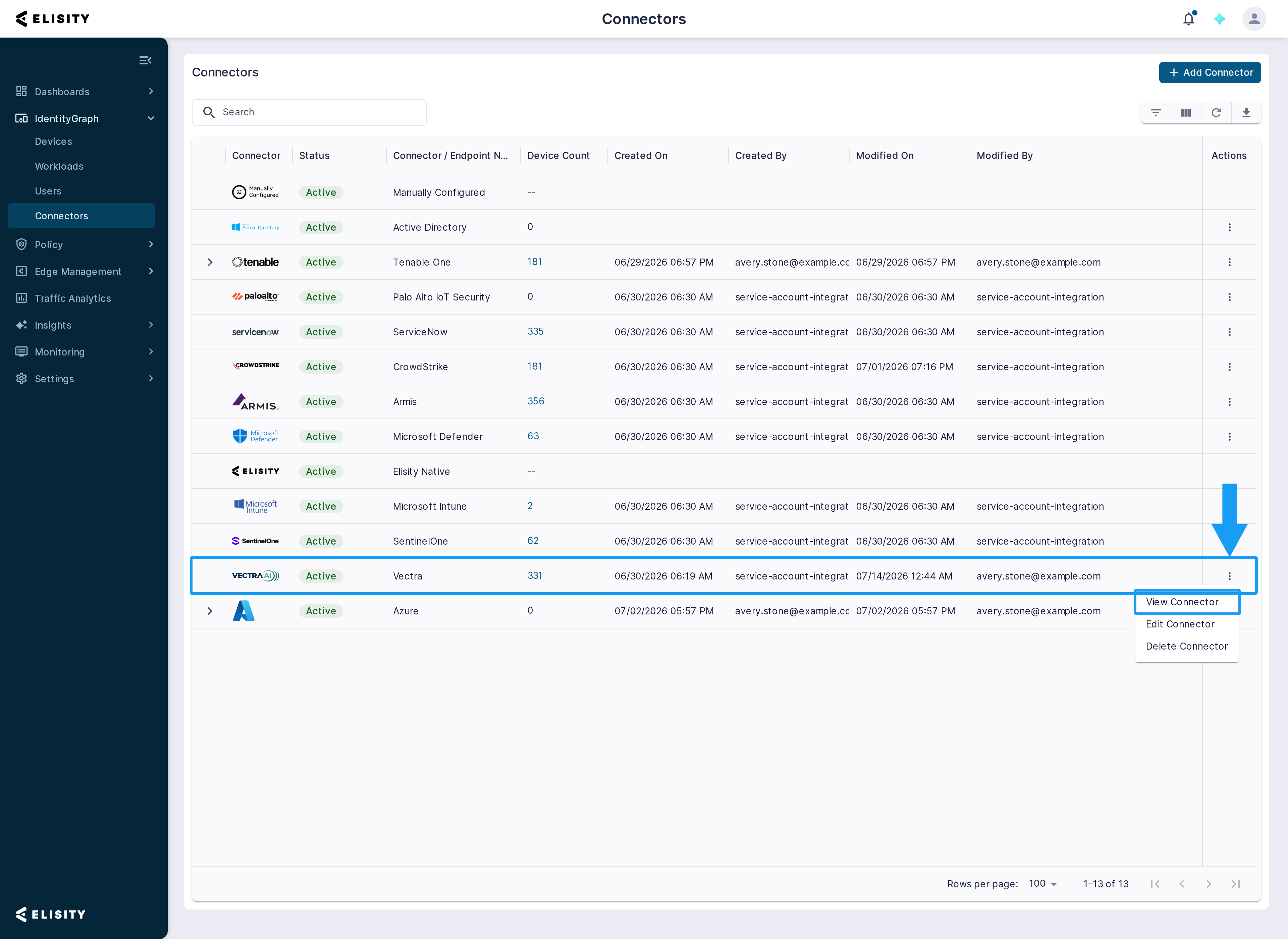

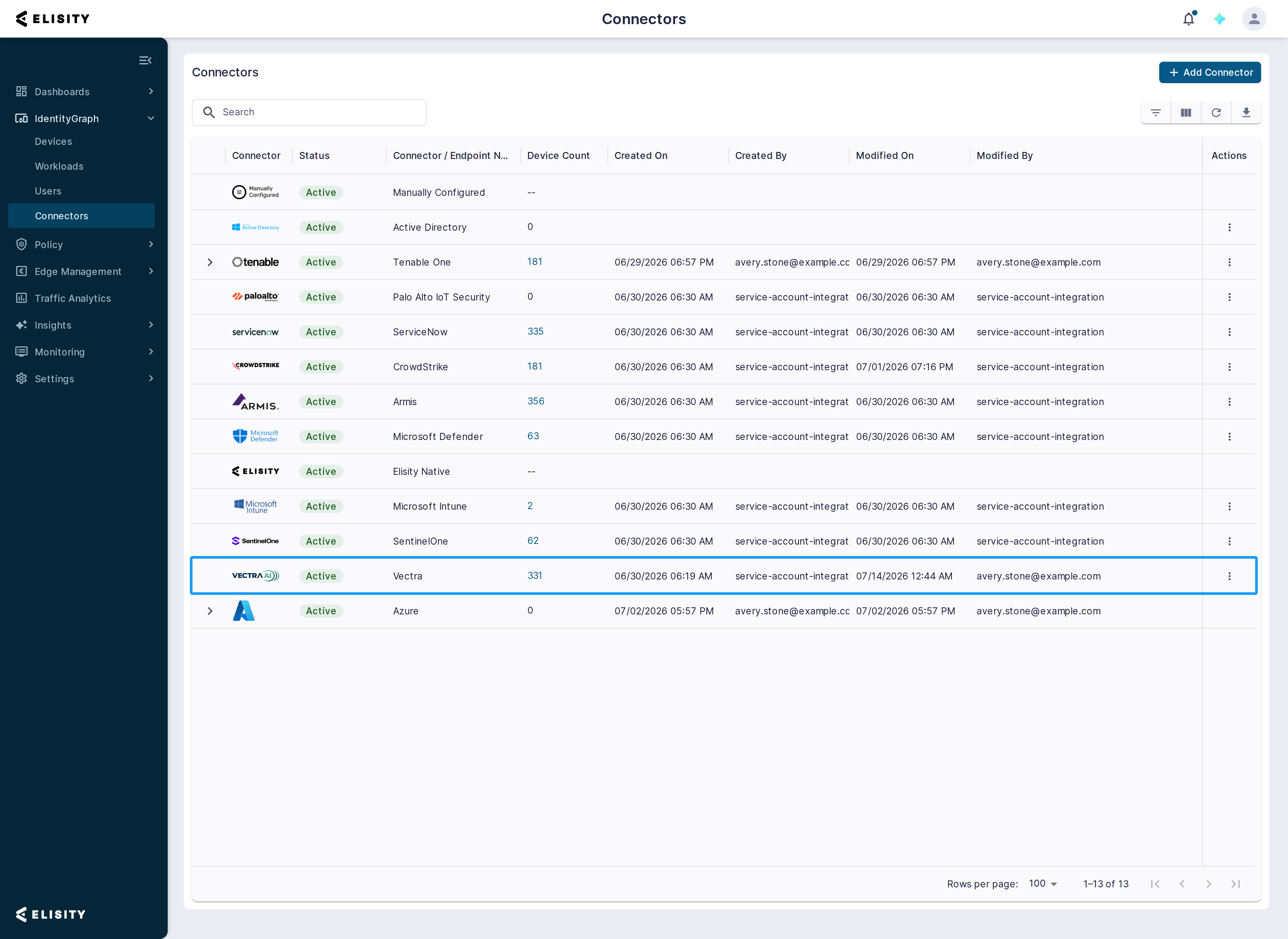

After creating a Custom Connector, navigate to IdentityGraph > Connectors in Cloud Control Center. From the list of connectors, select View Connector on your connector.

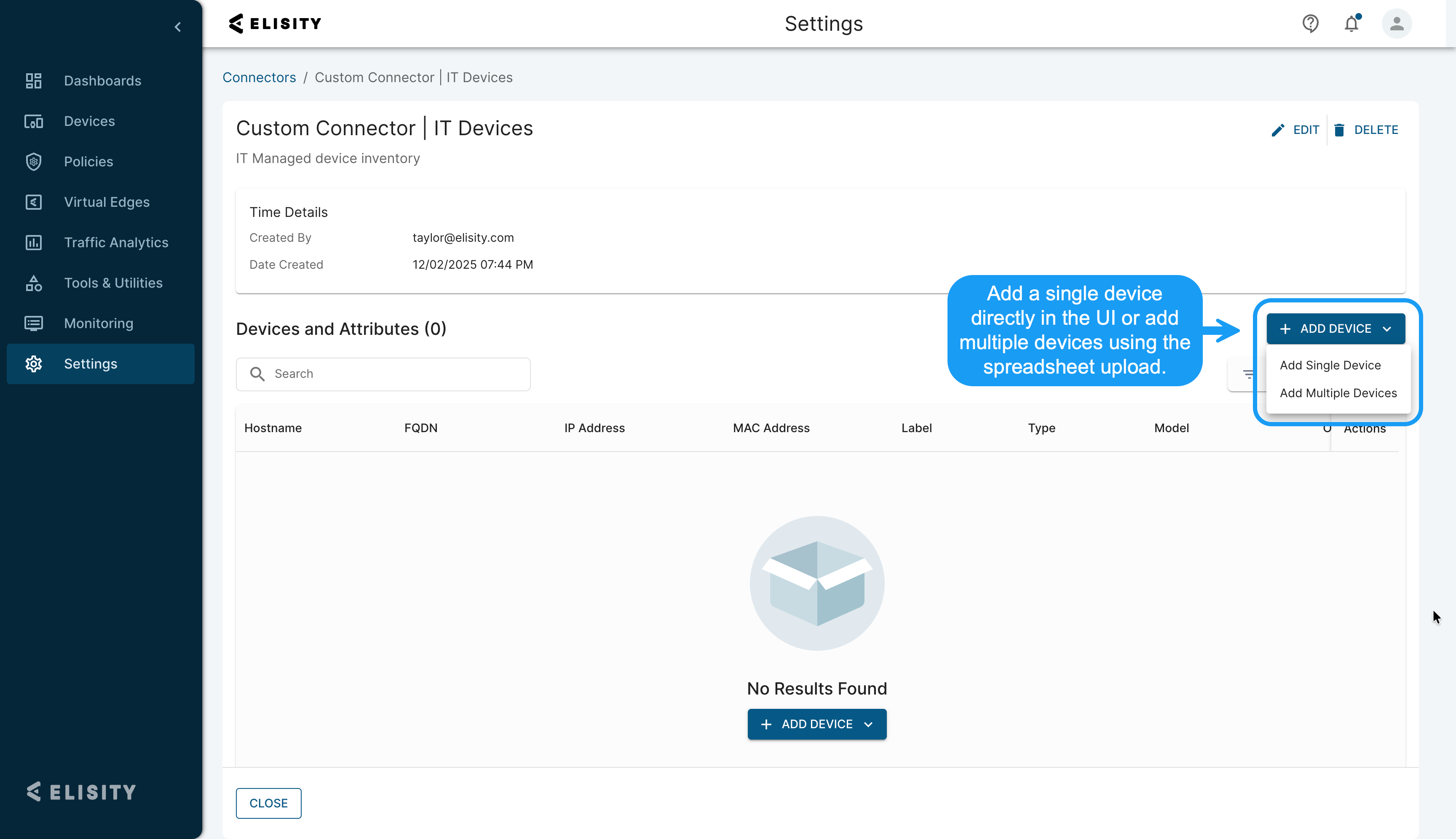

The connector details page displays two options for adding devices to your Custom Connector:

• Add Multiple Devices - Bulk spreadsheet upload (recommended for 10+ devices)
• Add Single Device - Individual device entry through the UI (for quick additions)

Spreadsheet Upload (Bulk Import)

Spreadsheet upload is the primary method for managing Custom Connector data and is recommended when:

• Adding or updating more than 10 devices at once
• Data originates from an external system (CMDB, asset database, etc.)
• You need version control of device inventories
• Regular periodic bulk updates are required

To upload devices via spreadsheet:

1. Select + Add Device and choose Add Multiple Devices

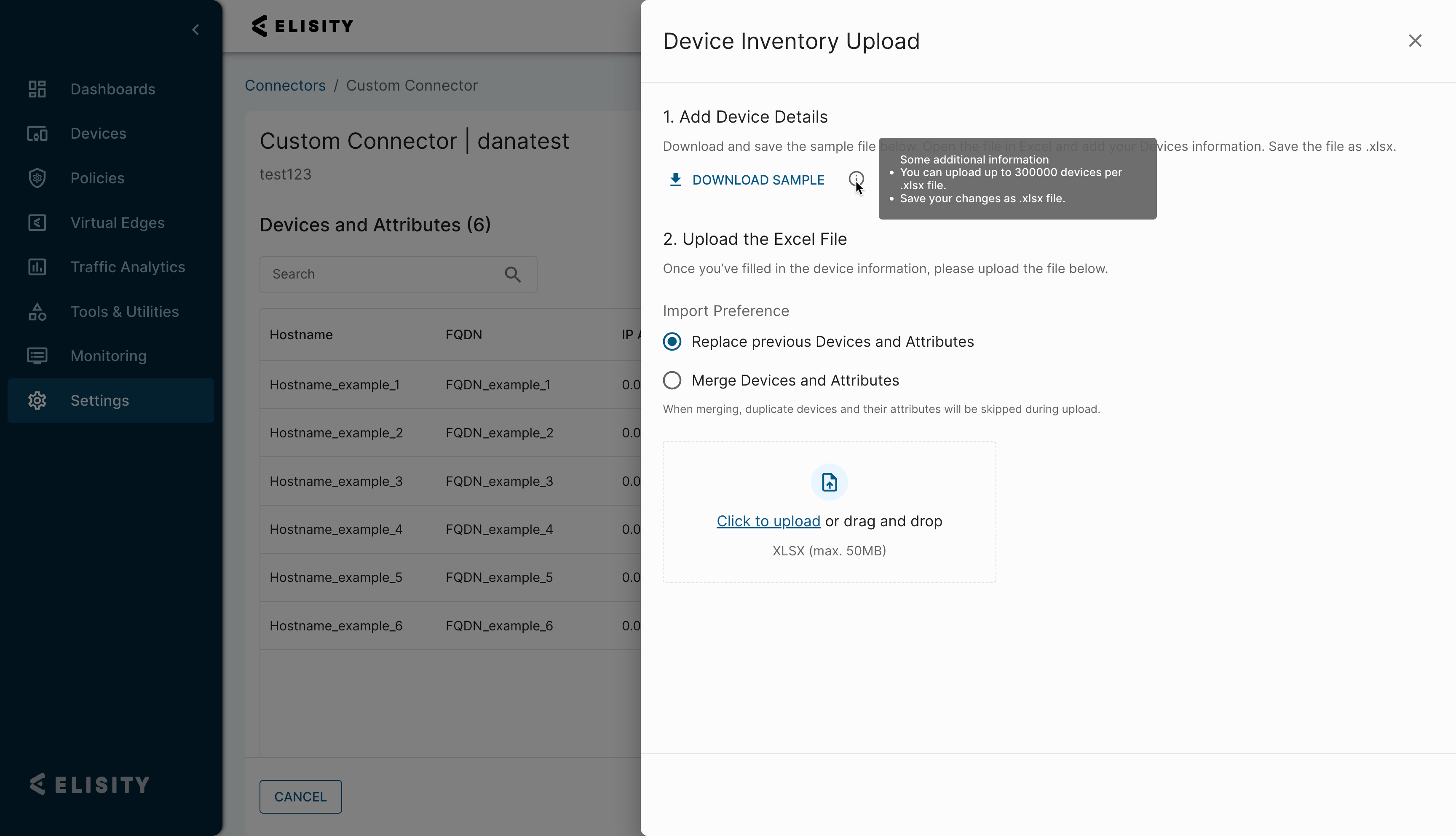

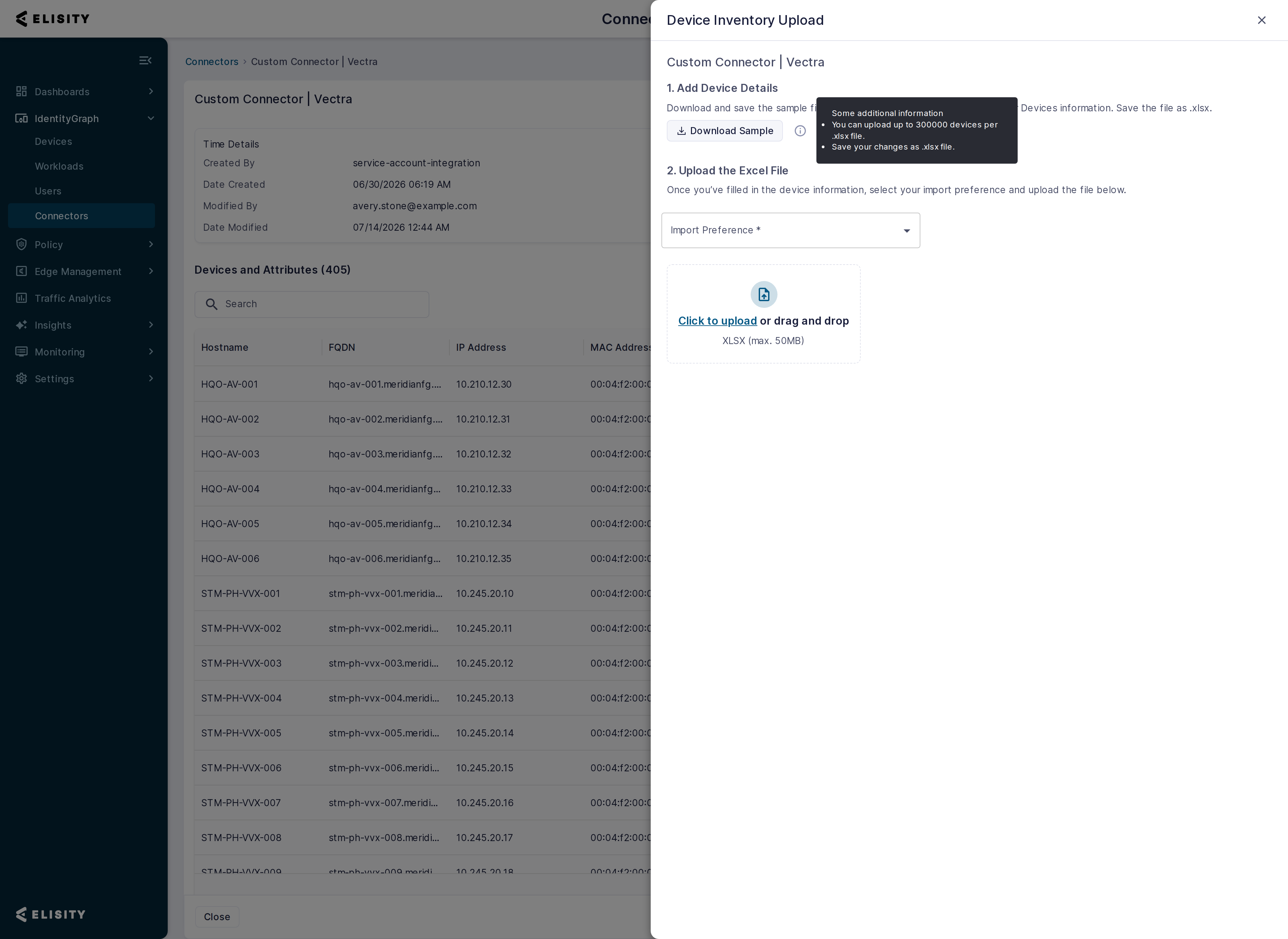

2. The Device Inventory Upload dialog opens

Preparing the Spreadsheet

Download the sample spreadsheet by selecting Download Sample. Make sure you have added any Custom Attributes prior to downloading the sample, as this ensures the template matches the required upload format exactly.

The uploaded spreadsheet must follow the exact format of the provided sample template. Columns may not be renamed, removed, or reordered. If formats do not align, device enrichment will not succeed.

When preparing your dataset, note the following limitations:

• Maximum of 300,000 devices per upload
• Optional text fields only support alphanumeric values, spaces, and these characters: + " [] , . - _ / & ()
• Files must be .xlsx and no larger than 50 MB

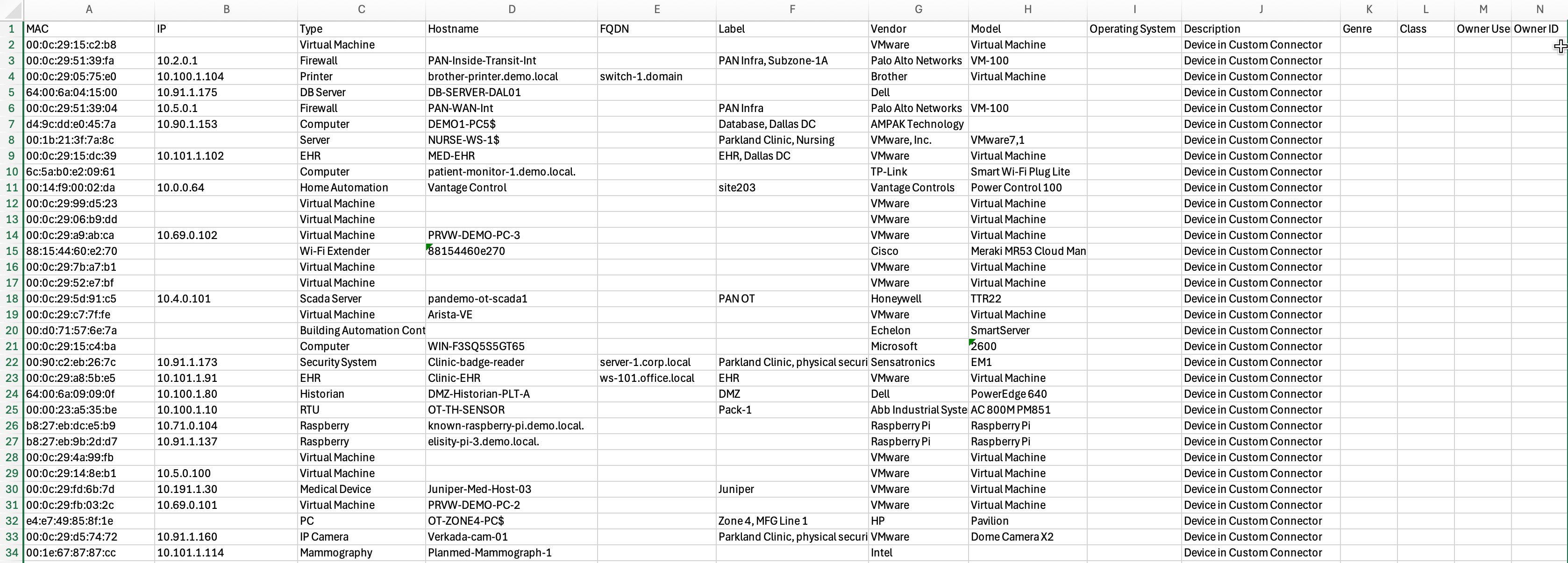

Below is an example of a correctly formatted file for upload based on our previous configurations.

Uploading and Validation

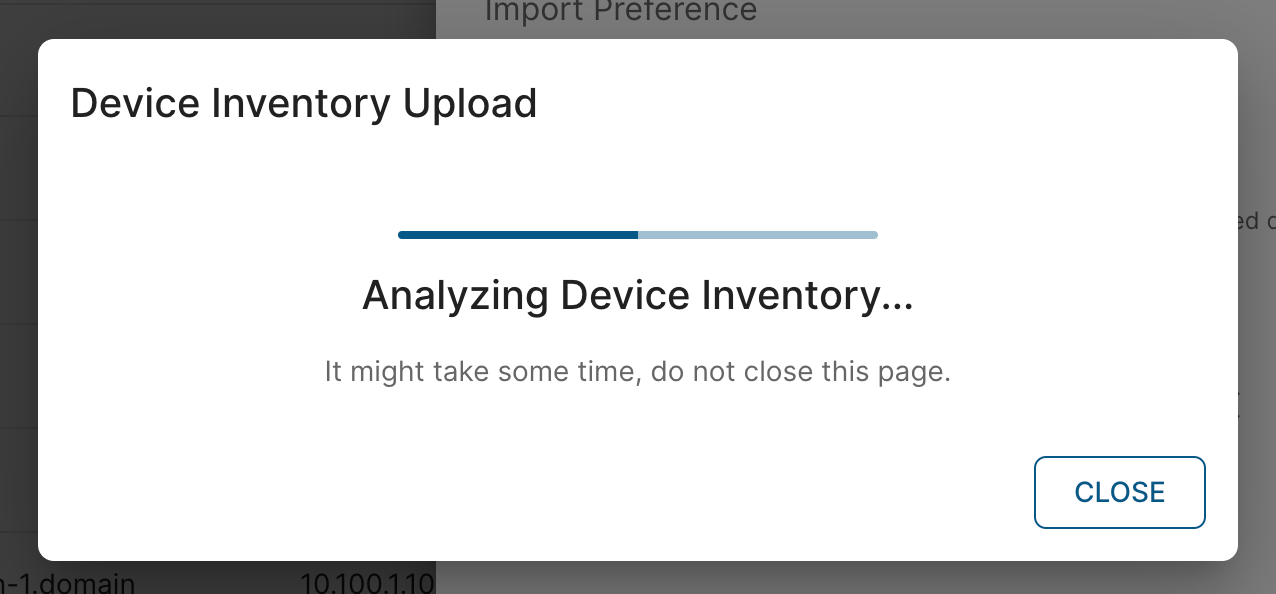

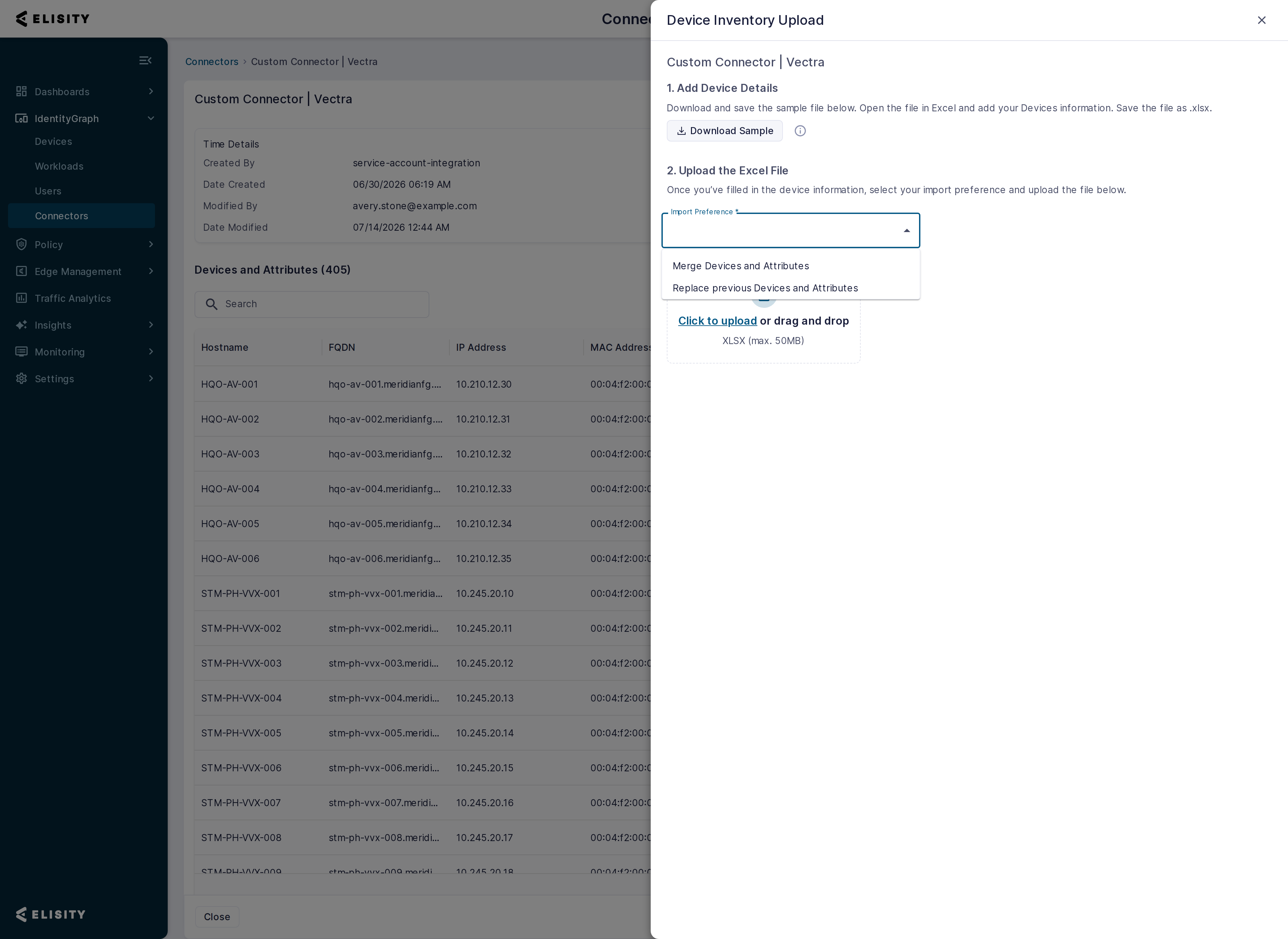

Once your dataset is ready, upload the .xlsx file in the Device Inventory Upload dialog.

Cloud Control Center will analyze the file before committing changes:

• Valid entries are added to the connector dataset
• Duplicates are skipped, based on the connector's duplicate detection configuration
• Invalid entries are skipped if required fields are missing or formatting errors are detected

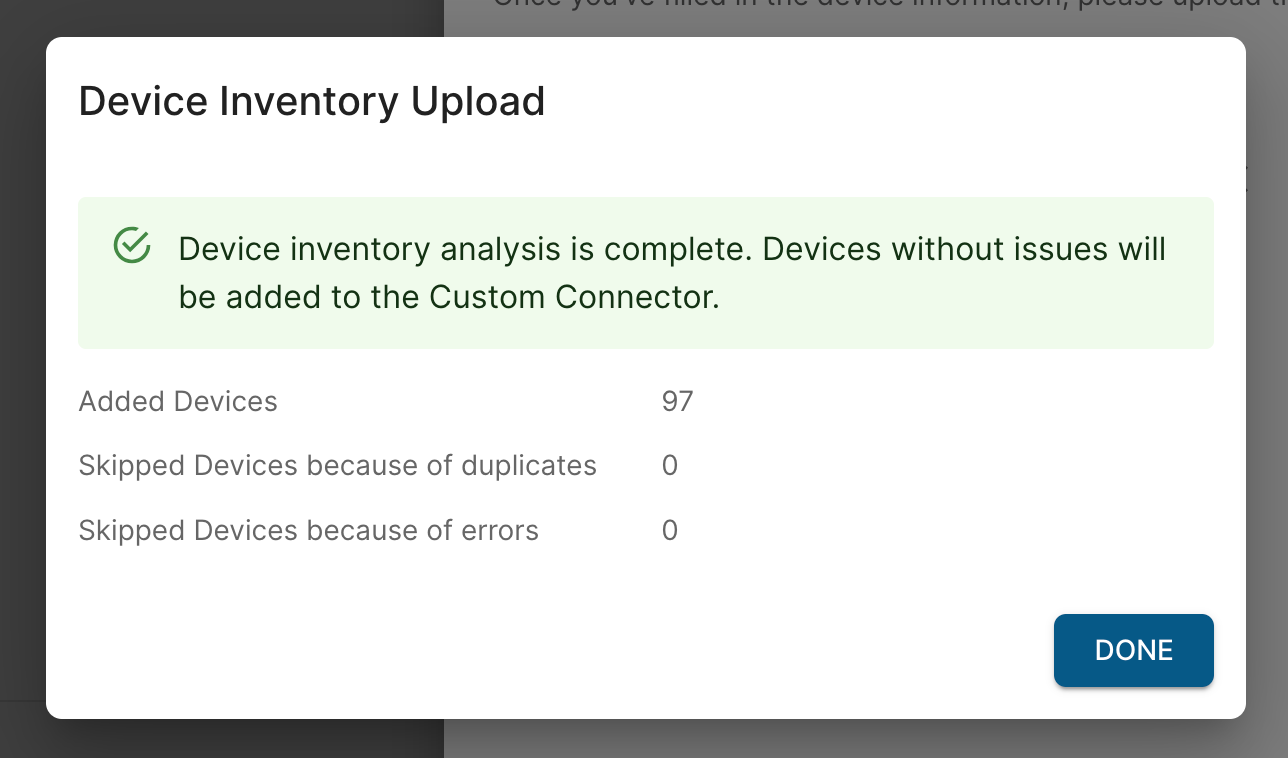

A summary report is displayed showing how many devices were successfully added, skipped as duplicates, or skipped due to errors.

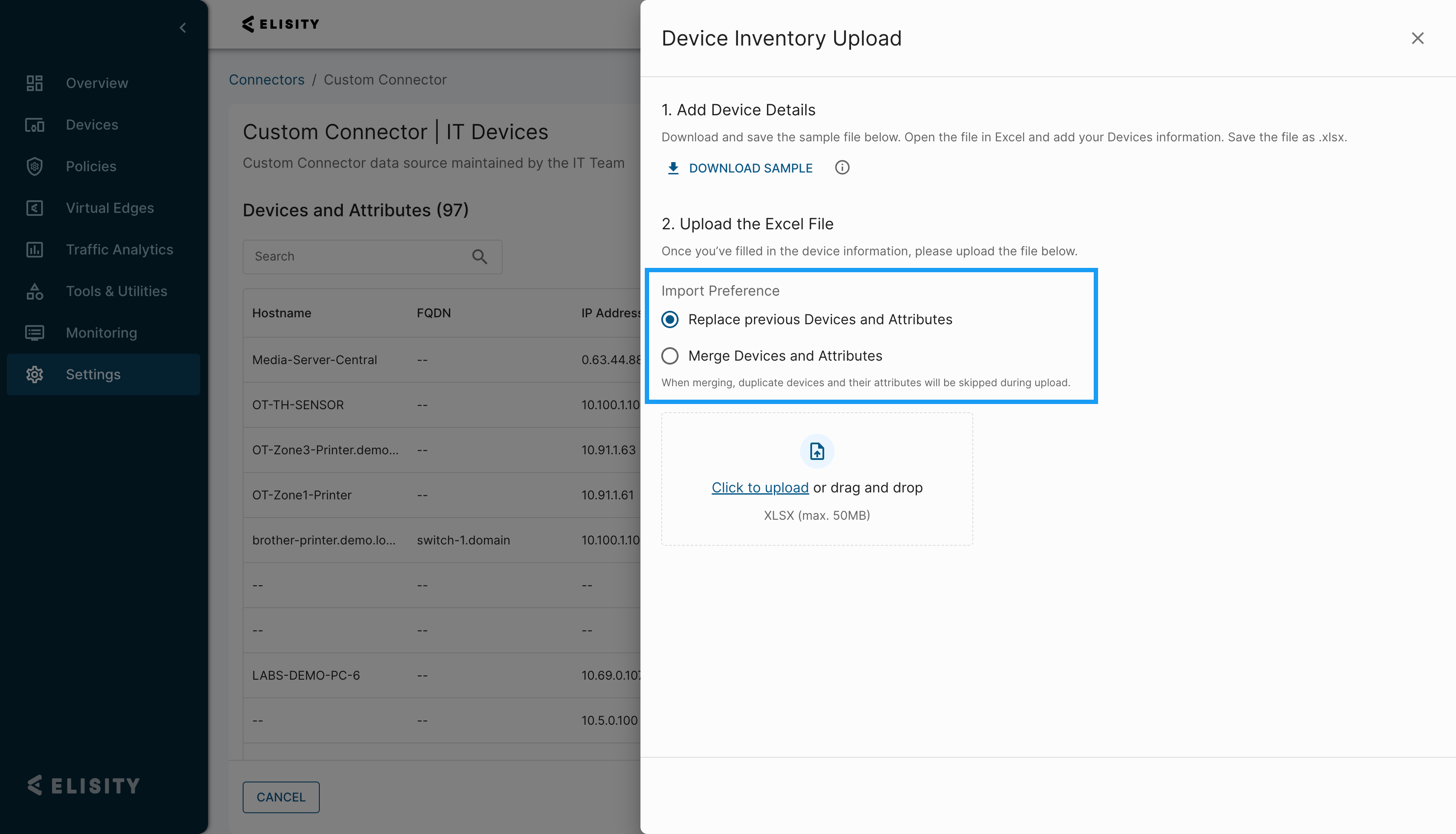

Managing Updates

Every import requires an Import Preference, selected from the dropdown in the Device Inventory Upload dialog before the file is uploaded. Two options are available:

• Merge Devices and Attributes — Adds new entries while skipping duplicates based on your duplicate detection settings. Ideal for adding additional devices to an existing dataset without removing existing entries.
• Replace previous Devices and Attributes — Overwrites existing dataset with the contents of the new file. This removes all entries and replaces with an entirely new dataset.

This flexibility allows administrators to either completely refresh their dataset or incrementally add new records.

Managing Individual Devices

In addition to bulk spreadsheet uploads, Custom Connector supports managing devices on an individual basis through both the Cloud Control Center UI and the Elisity API. This capability is useful for:

• Guest device registration workflows - Add devices from registration forms without requiring spreadsheet uploads
• Quick corrections - Fix device attributes without re-uploading entire datasets
• One-time device additions - Add individual devices as needed
• Programmatic device management - Integrate device registration with external systems via API

Required Permissions

Managing Custom Connector device inventory requires specific RBAC privileges. Users must have the appropriate permissions to view or modify device records.

For detailed information on configuring RBAC roles and permissions, see the Role-Based Access Control (RBAC) Privilege Reference article.

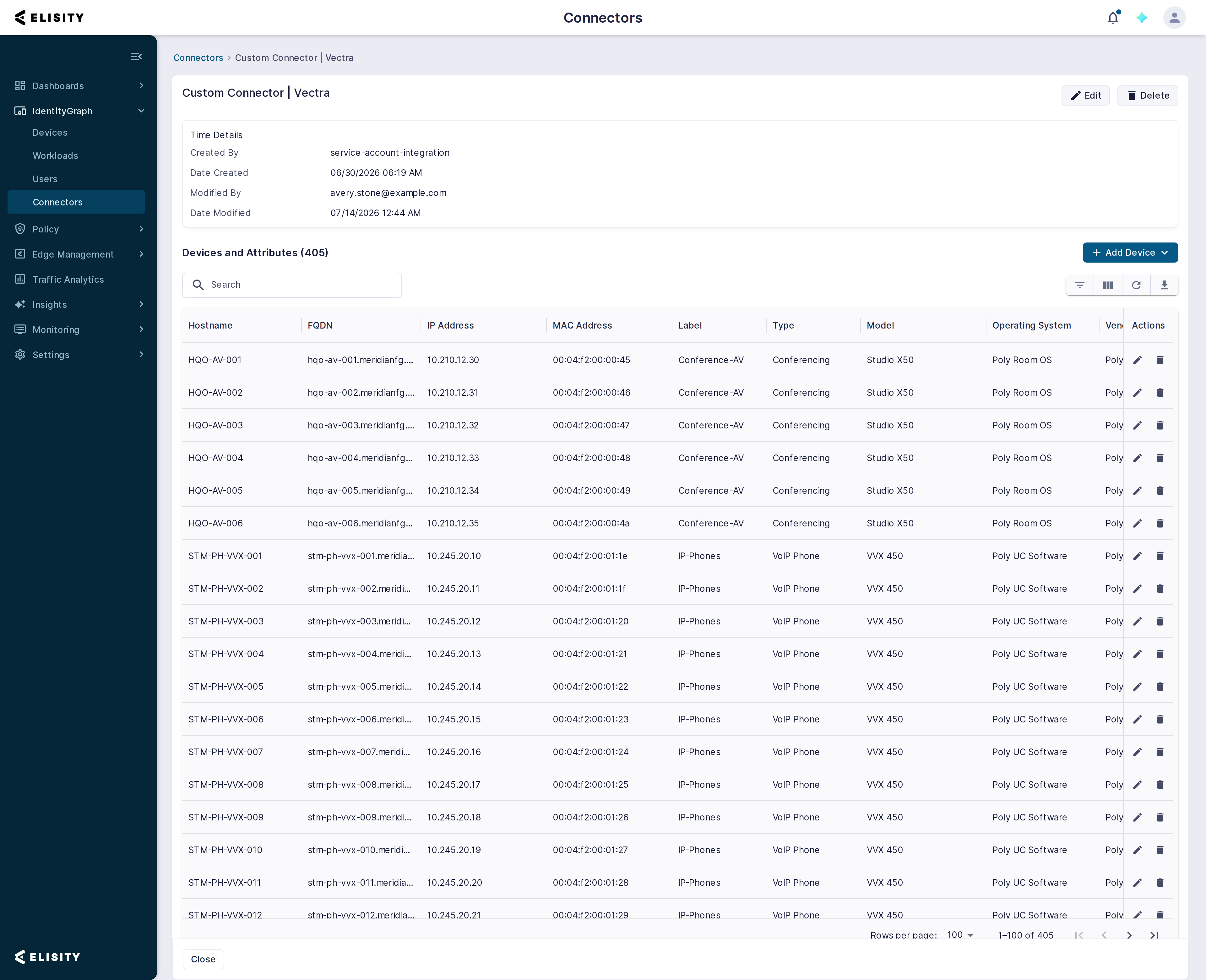

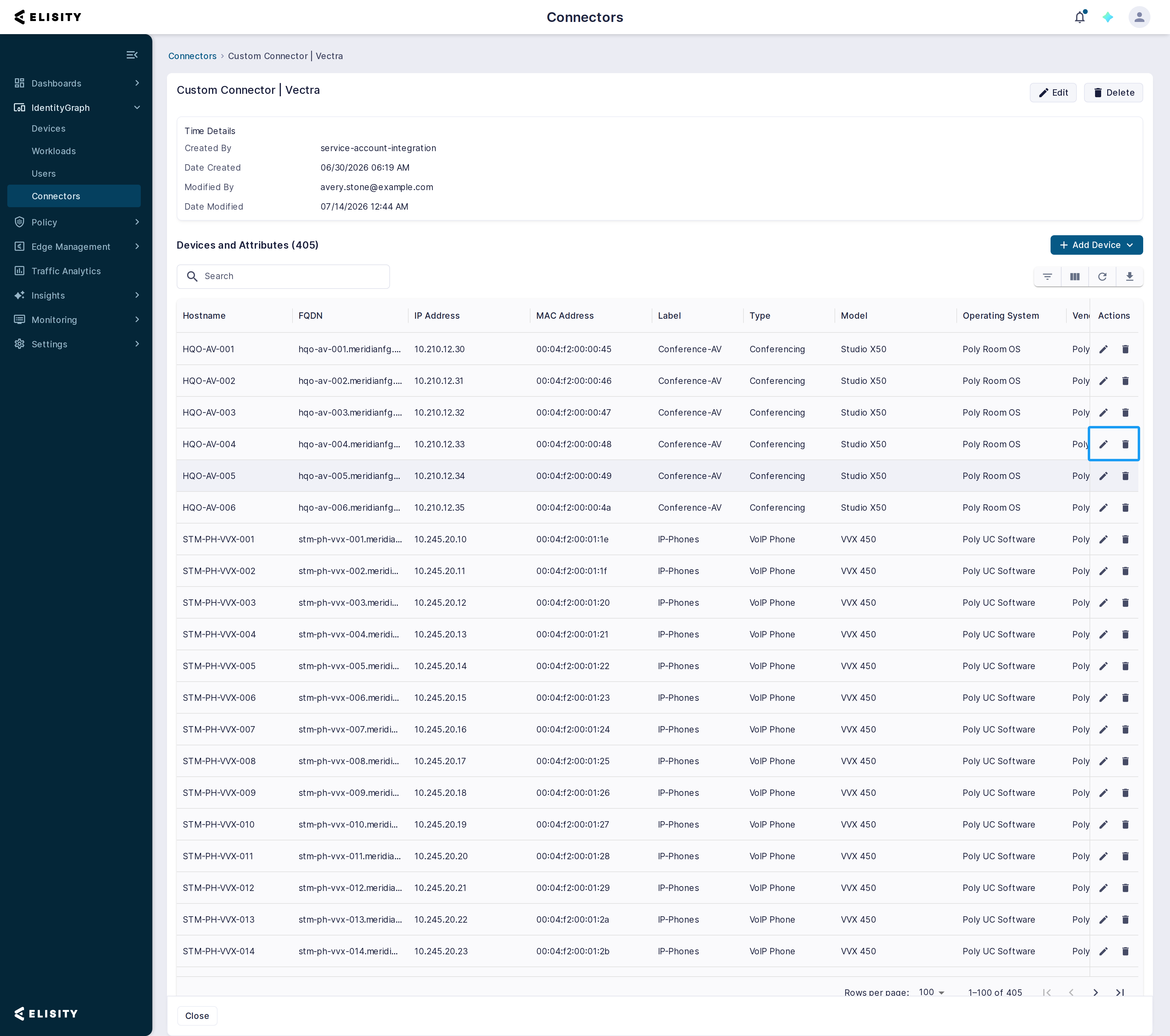

Accessing Device Records

To view and manage individual devices in a Custom Connector:

1. Navigate to IdentityGraph > Connectors
2. Click on your Custom Connector name to view its details
3. The Devices and Attributes table displays all imported devices

Use the Search field to filter devices by any attribute.

Adding a Single Device

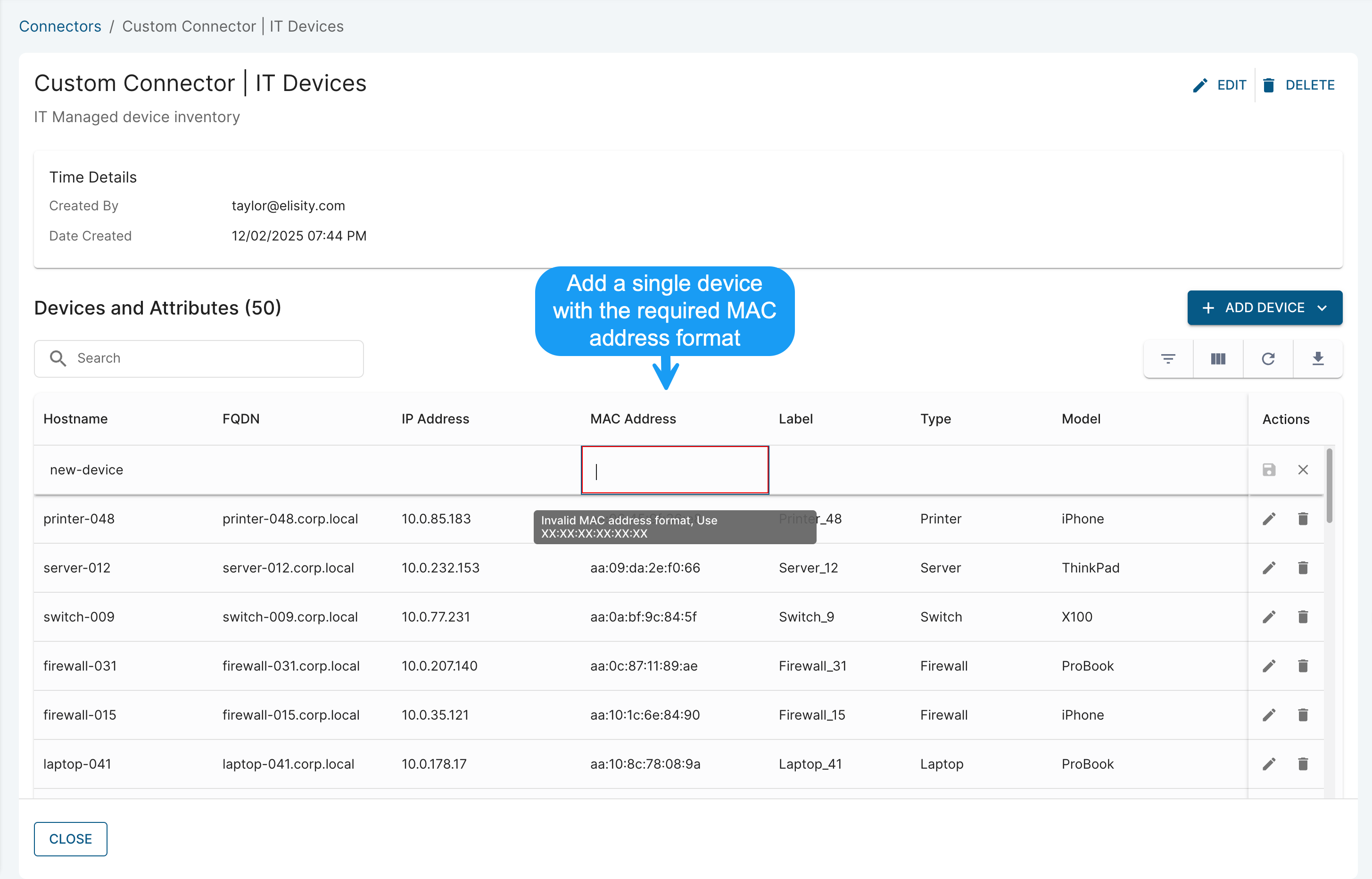

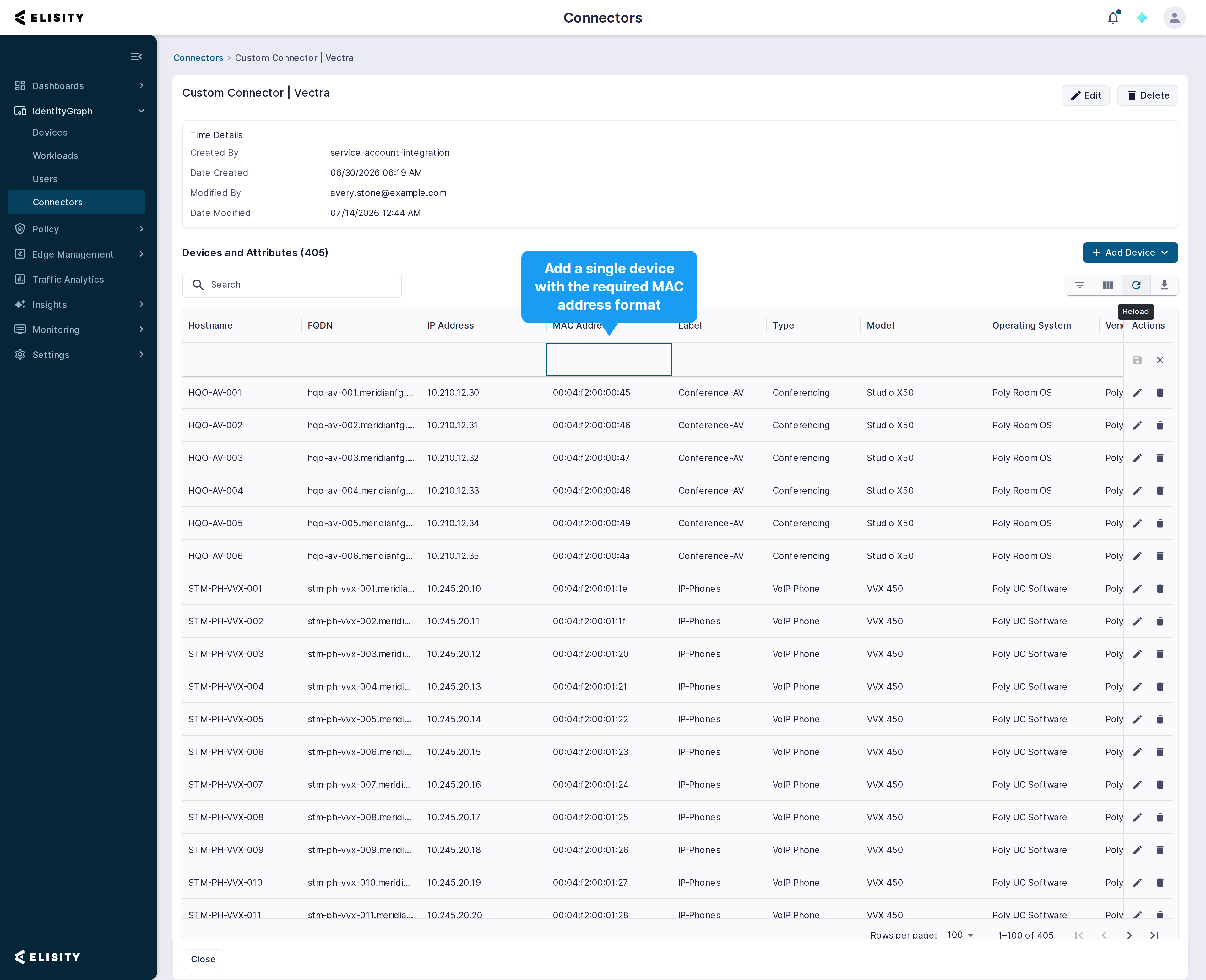

To add a new device manually through the UI:

1. Select the + Add Device button in the top right
2. Select Add Single Device from the dropdown menu
3. A new row appears at the top of the device table for inline entry
4. Enter the required MAC address in the format XX:XX:XX:XX:XX:XX

5. Fill in optional fields as needed (hostname, IP address, type, label, etc.)
6. Select the Save icon to create the device
7. Click the Cancel icon (X) to discard the entry

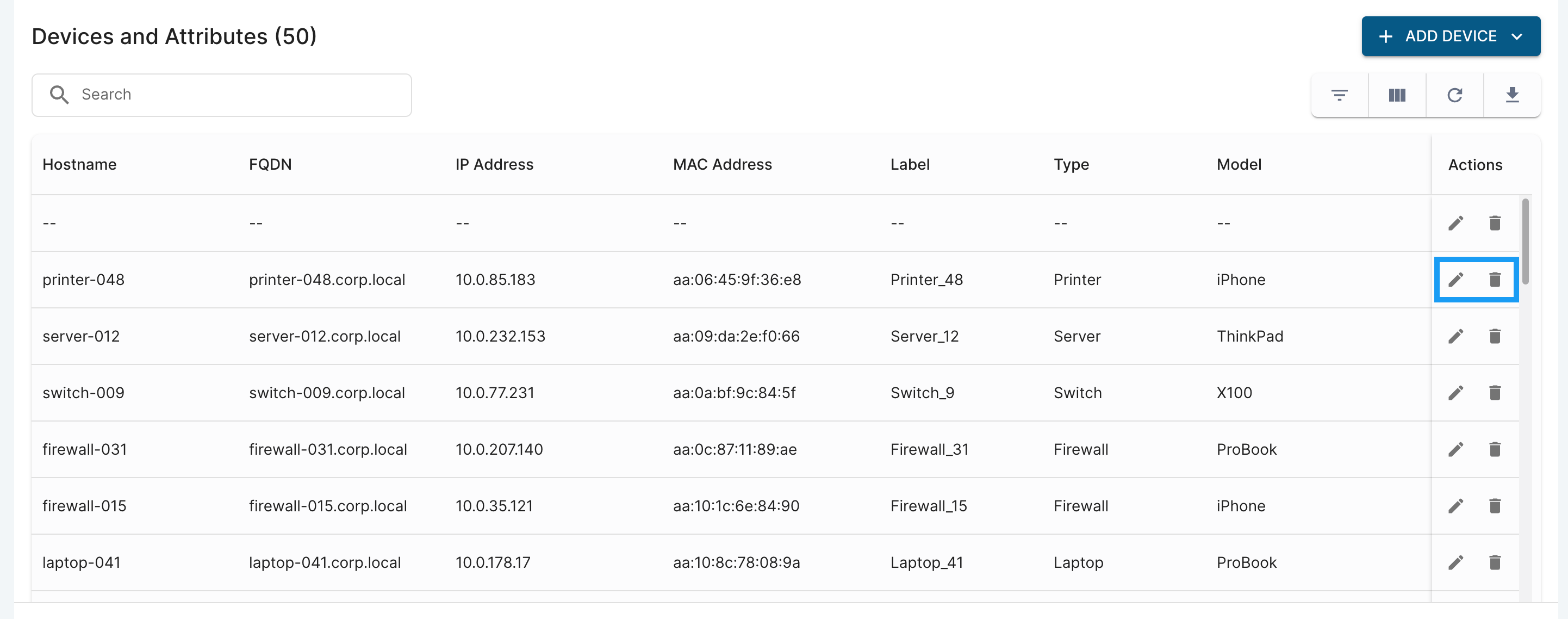

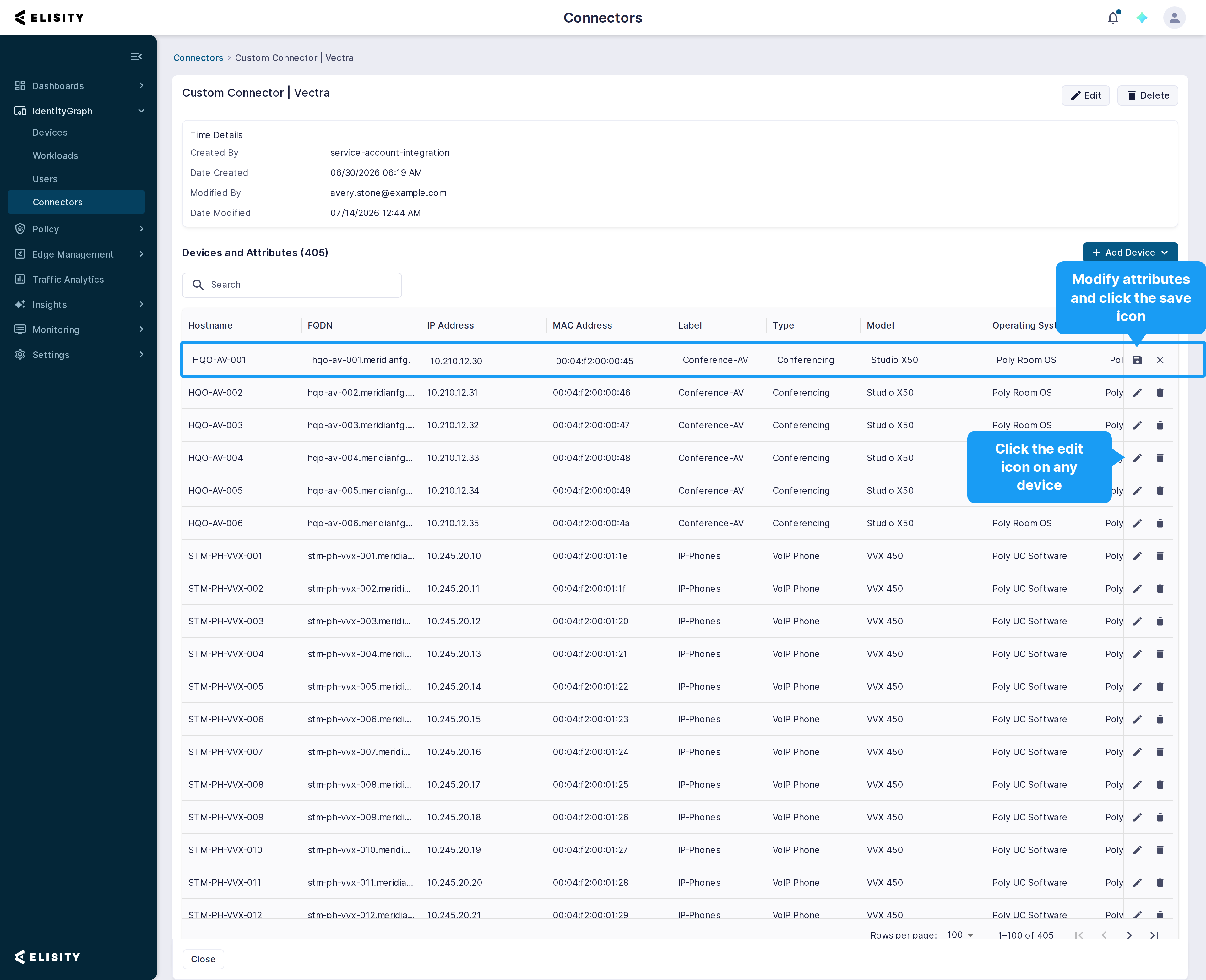

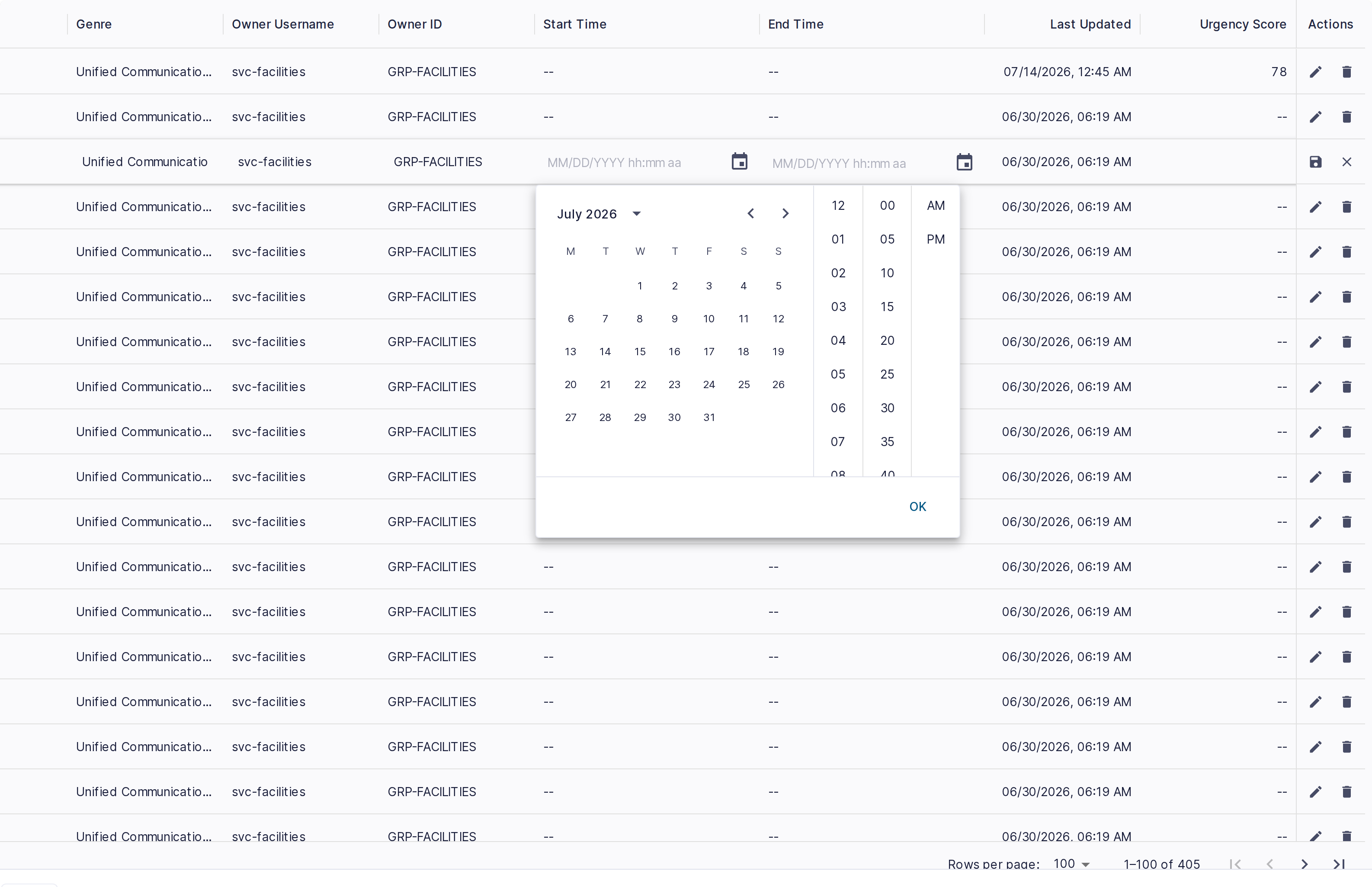

Editing an Existing Device

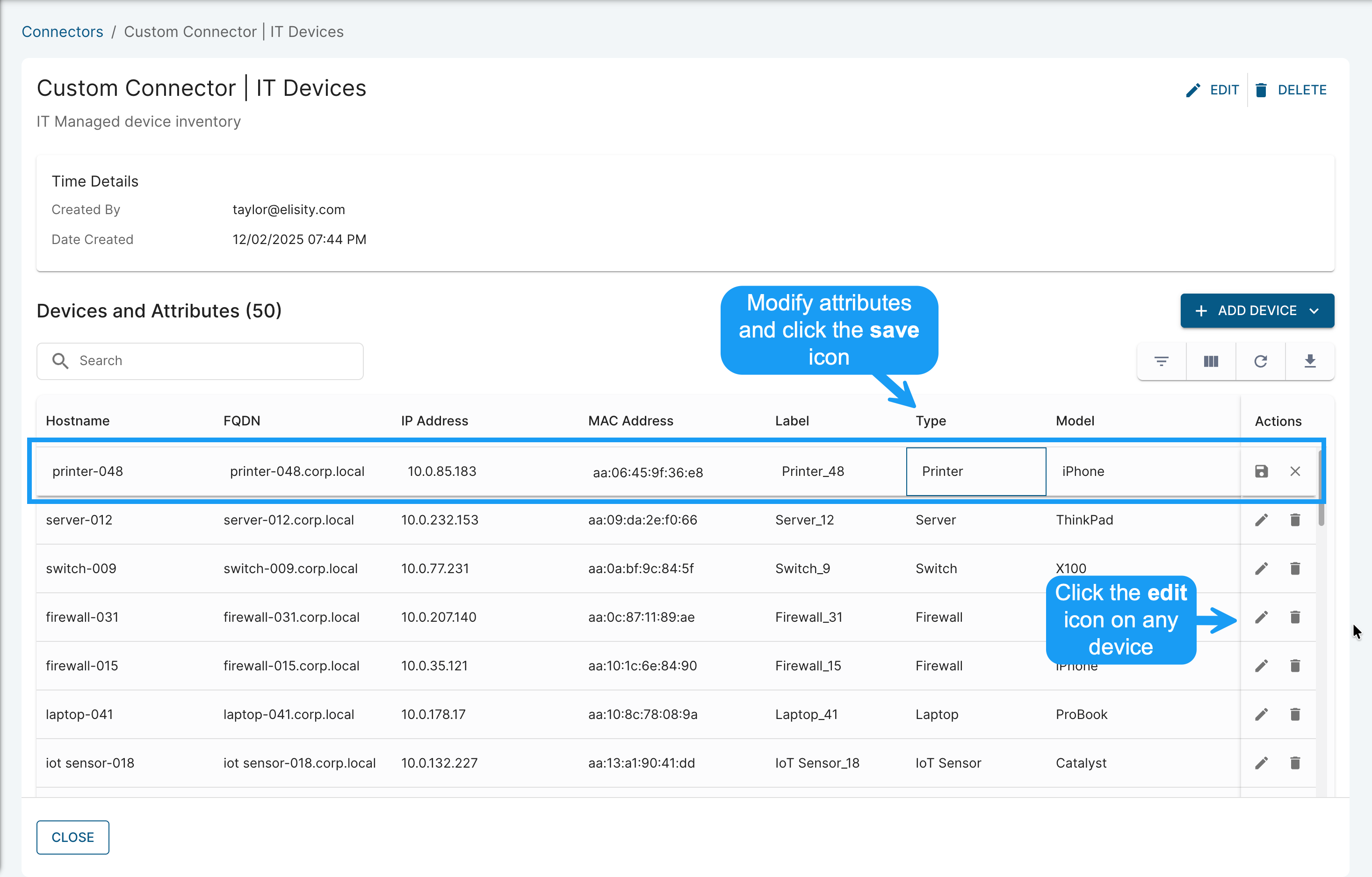

To modify a device's attributes through the UI:

1. Locate the device in the Devices and Attributes table
2. Click the Edit icon (pencil) in the Actions column
3. The row becomes editable with all fields available for modification

4. Update field values as needed
5. Select the Save icon to save changes
6. Click the Cancel icon (X) to discard changes

Deleting a Device

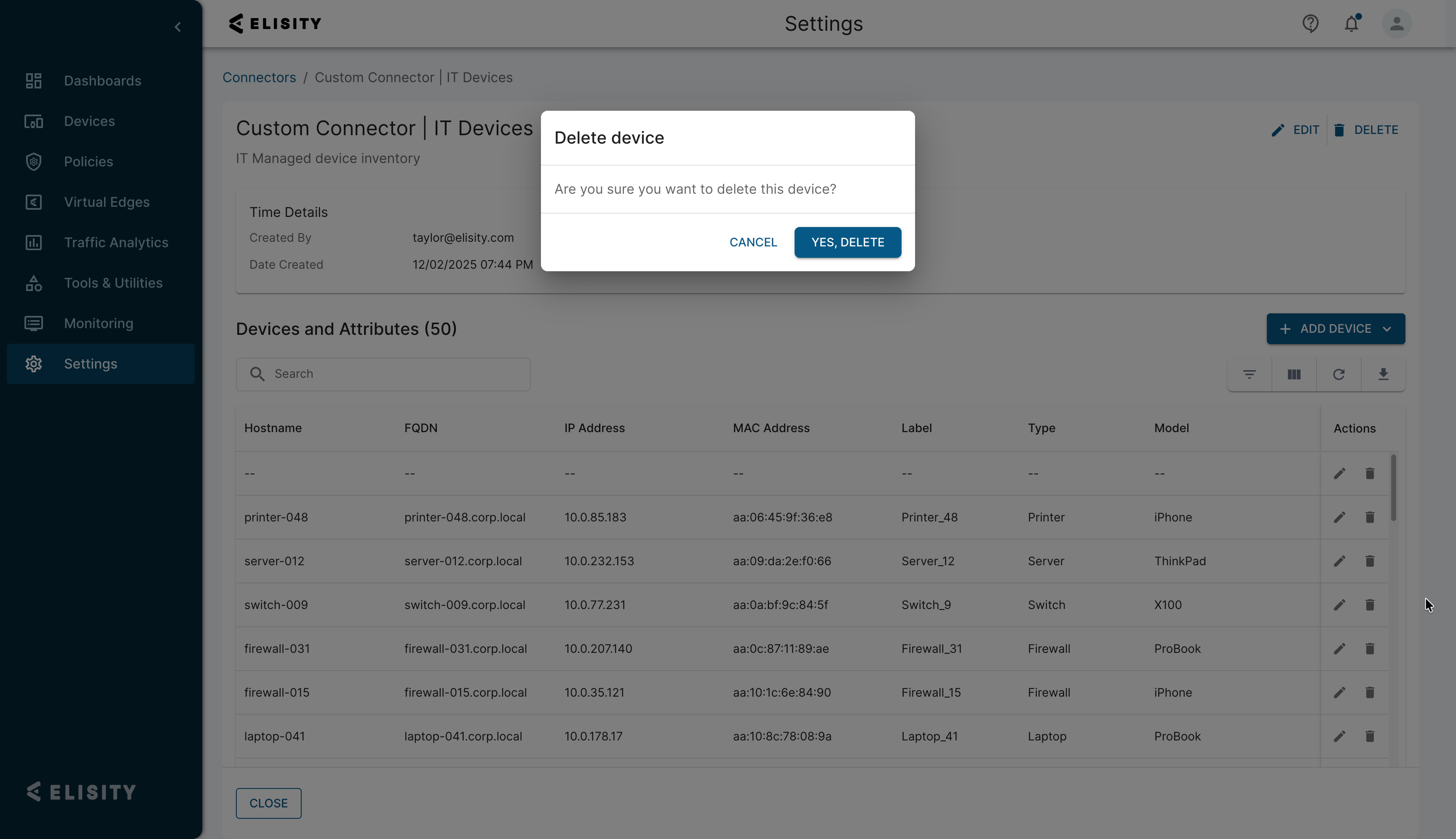

To remove a device from the Custom Connector:

1. Locate the device in the Devices and Attributes table
2. Click the Delete icon (trash) in the Actions column

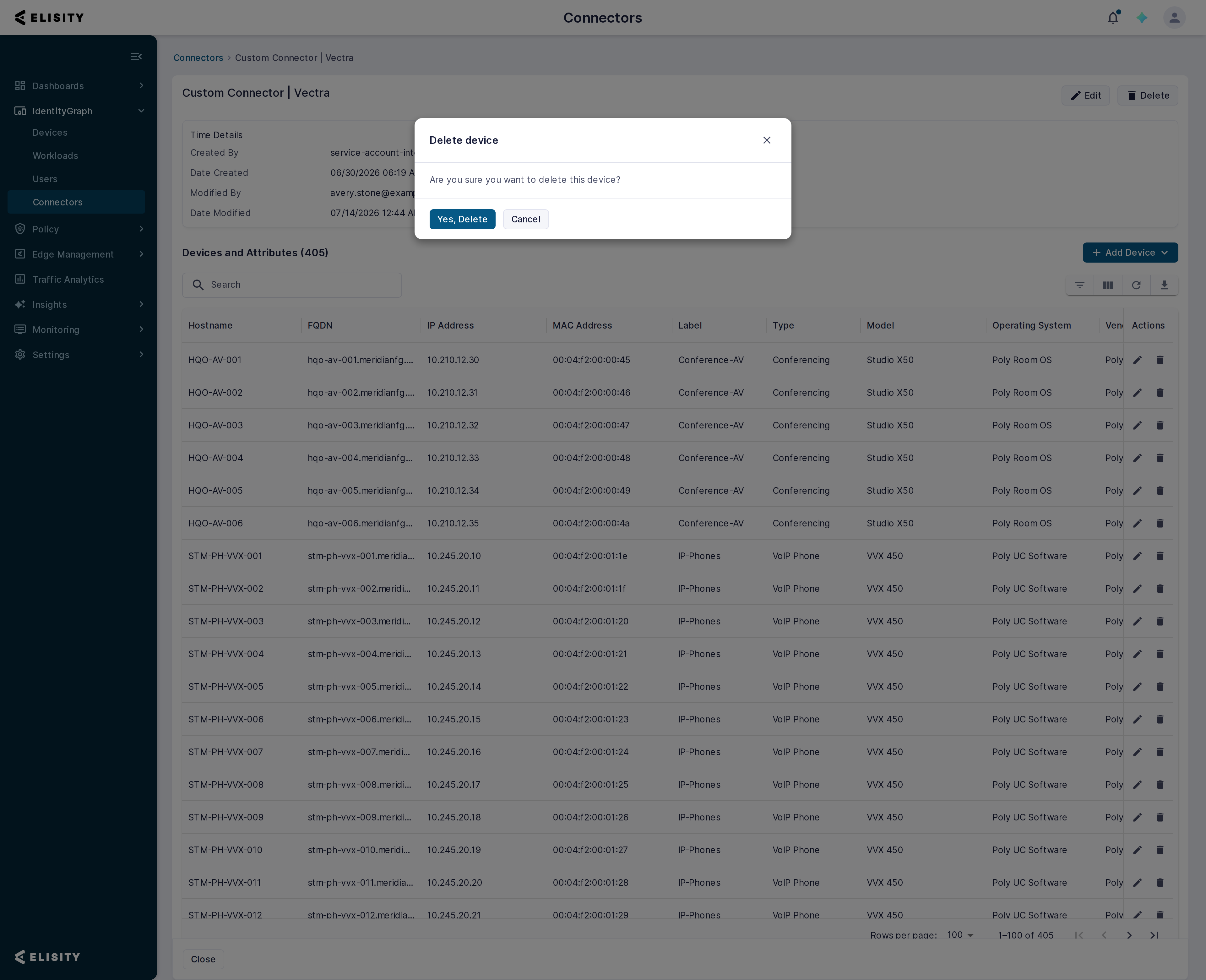

3. A confirmation dialog appears

4. Select Yes, Delete to permanently remove the device
5. Select Cancel to abort the deletion

Managing Devices via API

Custom Connector devices can be managed programmatically using the Elisity API. API-based operations follow the same validation rules and have the same immediate policy impact as UI-based changes.

Available Endpoints

Common use cases include guest registration portals, CMDB synchronization, automated provisioning, and custom enrollment applications.

For complete API documentation including authentication, request/response schemas, and error handling, refer to the Elisity API documentation or contact your Elisity support representative.

Best Practices

Maintain Backup Records

Export device data periodically using the Download icon, keep backup spreadsheets for disaster recovery, and document manual changes if required for compliance.

Policy Impact Awareness

Before making changes, verify which Policy Groups use Custom Connector attributes, test in non-production environments when possible, and communicate changes to security teams if devices may change Policy Groups.

API Integration

When integrating via API, implement error handling for validation failures, maintain audit logs of API-driven changes, and test integrations thoroughly before production deployment.

In addition to bulk spreadsheet uploads, Custom Connector supports managing devices on an individual basis through both the Cloud Control Center UI and the Elisity API. This capability is particularly useful for:

• Guest device registration workflows - Add devices from registration forms without requiring spreadsheet uploads
• Quick corrections - Fix device attributes without re-uploading entire datasets
• One-time device additions - Add individual devices as needed without maintaining spreadsheet files
• Programmatic device management - Integrate device registration with external systems via API
• Small-scale device inventories - Manage data sources with frequent individual changes

Verifying Device Enrichment

Once data has been uploaded, enrichment will appear on discovered devices in Cloud Control Center. In the Device Details view, attributes from the Custom Connector — such as hostname, vendor, model, category, and labels — will be displayed.

Devices added or modified through individual device management (via UI or API) are enriched in the same way as devices imported via spreadsheet upload. Enrichment is attributed to the Custom Connector name for all devices from that connector, regardless of how they were added.

Leveraging Attributes in Policy Groups

As with all other IdentityGraph connectors, attributes from each configured Custom Connector are available as Policy Group match criteria. To leverage these attributes in Policy Group definitions, create or modify a Dynamic Policy Group, select the connector (Custom Connector | IT Devices in our case) and choose attributes you would like to use as match criteria. You can then verify if any discovered devices will match the Policy Group on creation.


Worked Example: Integrating a Third-Party Source

This example follows a single third-party source through every stage of the Custom Connector workflow: creating the connector, defining the attributes the source supplies, importing the records, confirming enrichment in IdentityGraph, and using an imported attribute as Policy Group match criteria. The source is a network detection and response platform named Vectra, used here only to illustrate a system for which Elisity does not ship a native connector. The same process applies to any such source.

Step 1: Create the Connector

Navigate to IdentityGraph > Connectors, select + Add Connector, and select Configure on the Custom Connector tile.

On the Required Configuration tab, enter Vectra as the Connector Name. This name becomes the identity source label throughout Cloud Control Center — the connector appears as Custom Connector | Vectra in IdentityGraph and in the Policy Group match criteria picker — so name each connector after the system that supplies its data. Use the Logo Upload (Optional) section to upload the source's icon for light and dark mode, as described in Configure Custom Connector.

Once saved, the connector takes its place in the Connectors list alongside the native connectors, displaying the uploaded icon, a Status of Active, and a Device Count that reports how many devices the source's records currently enrich.

Step 2: Define the Attributes the Source Supplies

Map each field the source exports onto the Custom Connector schema. Type, Hostname, FQDN, Label, Vendor, Model, Operating System, and Category belong to the standard schema and require no additional configuration. Category accepts a fixed set of values, so map the source's own classification to the closest available option — Medical Device for a clinical asset, for example.

Any field that has no equivalent in the standard schema is defined as a Custom Attribute. This source scores each device it observes, so on the Required Configuration tab, select + Add New Attribute, choose an attribute whose Data Type is INTEGER, and enter the name the source uses for that score — Urgency Score in this example — as the Attribute Alias. The Custom Attributes (Optional) table then lists the attribute by its system name under Attribute Name, with the alias and the INTEGER data type alongside it. The data type is what determines the comparisons available when the attribute is later used as match criteria, so define numeric fields as integers rather than strings. Select Add to save the connector.

Step 3: Import the Records

Export the device inventory from the source and load it into the connector using either ingestion route:

• Spreadsheet import — download the sample spreadsheet from the connector and populate it, as described in Spreadsheet Upload (Bulk Import). Because the custom attribute was defined in Step 2, the template already contains a column for it.
• API — post the records to the Custom Connector endpoints described in Managing Devices via API, which suits sources that are synchronized on a schedule.

Select the connector in the Connectors list to confirm the import landed. The connector detail view reports the record count in the Devices and Attributes heading and lists every imported row, with the identifiers Elisity matches on — IP Address and MAC Address — shown alongside the descriptive attributes the source supplied. Individual records can be searched, edited, and deleted from this view.

Step 4: Verify Enrichment in IdentityGraph

Cloud Control Center matches each discovered device against the imported records using the methods selected in Match Order, then applies the record's attributes to the device. Open IdentityGraph > Devices: the Connectors column carries an icon for every identity source contributing to a device, so the icon uploaded in Step 1 appearing on a row is confirmation that the source's records were matched to that device. Filter the column by the connector to list only the devices it enriches.

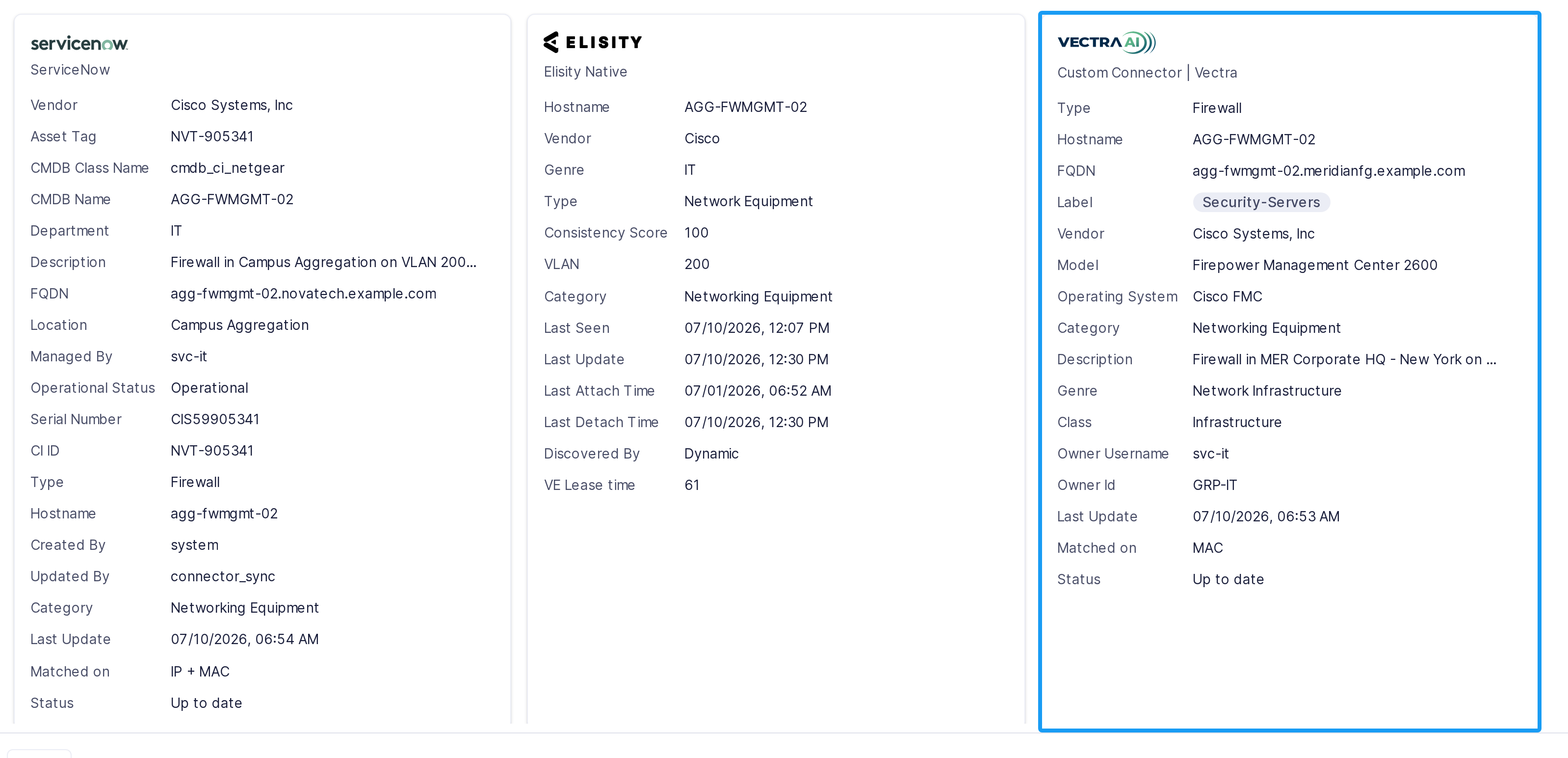

Select a device and open its Device Details view. Data from this connector is presented as its own card, titled Custom Connector | Vectra and carrying the uploaded icon, alongside the cards for every other identity source contributing to that device. The card lists the attributes the source supplied, followed by three fields Cloud Control Center adds:

At this point the source's data is part of the device's identity in IdentityGraph rather than a separate inventory, and is available everywhere device attributes are consumed.

Step 5: Use an Imported Attribute in Policy

Imported attributes are available as Policy Group match criteria in the same way as attributes from any native connector. This is what turns an inventory import into an operational control: the third-party system's assessment of a device decides which Policy Group the device lands in, and therefore which Security Profile is enforced against it.

Step 1. Create or modify a Dynamic Policy Group and add a match criterion.

Step 2. Open the Criteria list. Attributes are grouped by the identity source that supplies them, with a group for each configured Custom Connector alongside Elisity Native and the other sources. Expand Custom Connector | Vectra and select the imported attribute — Urgency Score in this example. The selected criterion is labelled with both the attribute and its source, so it is clear which connector the rule evaluates.

Step 3. Set the Condition and Value. Because the attribute was defined as an integer, the Condition list offers numeric comparisons — Greater Than, Less Than, and equality — rather than string matching, and the Value field takes a number. Set the threshold that describes the population to act on: Greater Than 80 selects the devices the source scores highest, which is the population a quarantine profile would target, while Less Than 75 selects the devices it scores lowest.

Step 4. Review the assets that match before saving. The Policy Group's assets view lists the devices the criteria currently select, each one a device the connector enriched in Step 4 — confirmation that the imported attribute is being evaluated as expected.

Step 5. Save the Policy Group and assign it the Security Profile appropriate to that population, such as the profile used for quarantined devices.

Membership is then maintained by the data itself. As the source revises a device's score and the connector re-imports the records, the device enters or leaves the Policy Group and the Security Profile enforced against it changes accordingly, with no policy edit required.

Time-Based Access Control

Custom Connector supports time-based access control through the Access Start Date and Access End Date attributes. These attributes define a time window during which a device is considered active. Cloud Control Center evaluates these dates against the current time and exposes a computed boolean attribute — Time Based Access Active — that indicates whether a device is currently within its access window. This attribute is available as match criteria in Dynamic Policy Groups, enabling devices to automatically enter and exit Policy Groups based on their configured access schedule.

Configuring Access Start and End Dates

Access dates can be configured through spreadsheet import or inline editing in the Cloud Control Center UI.

Spreadsheet Import

To include time-based access dates in a Custom Connector spreadsheet import, add Access Start Date and Access End Date as the last two columns in the spreadsheet, after all standard attributes (MAC, IP, Type, Hostname, FQDN, Label, Vendor, Model, Operating System, Description, Genre, Class, Owner Username, Owner Id). Values use ISO 8601 timestamp format.

Inline Editing

Access dates can also be configured directly in the Cloud Control Center UI. Navigate to IdentityGraph > Connectors and open the Devices and Attributes table for the Custom Connector data source. The table displays Start Time and End Time columns for each device. To edit these values:

1. Click the Edit icon (pencil) in the Actions column for the target device
2. Select the Start Time or End Time field to open the date/time picker
3. Use the calendar and the hour, minute, and AM/PM selectors to set the date and time, then select OK
4. Select the Save icon to apply the change, or the Cancel icon (X) to discard it

Devices without configured access dates display -- in the Start Time and End Time columns and are not evaluated for time-based access.

Time Based Access Active Attribute

Cloud Control Center automatically evaluates each device's Access Start Date and Access End Date against the current time and computes a boolean attribute called Time Based Access Active.

• When the current time falls within the configured access window (between Access Start Date and Access End Date), the attribute value is Yes (True).
• When the current time falls outside the configured access window, the attribute value is No (False).

This computed attribute is visible in the Device Details view. It appears on the connector's own card, alongside the other attributes that data source supplies, and is present only for devices that carry an Access Start Date and an Access End Date.

Using Time-Based Access in Policy Groups

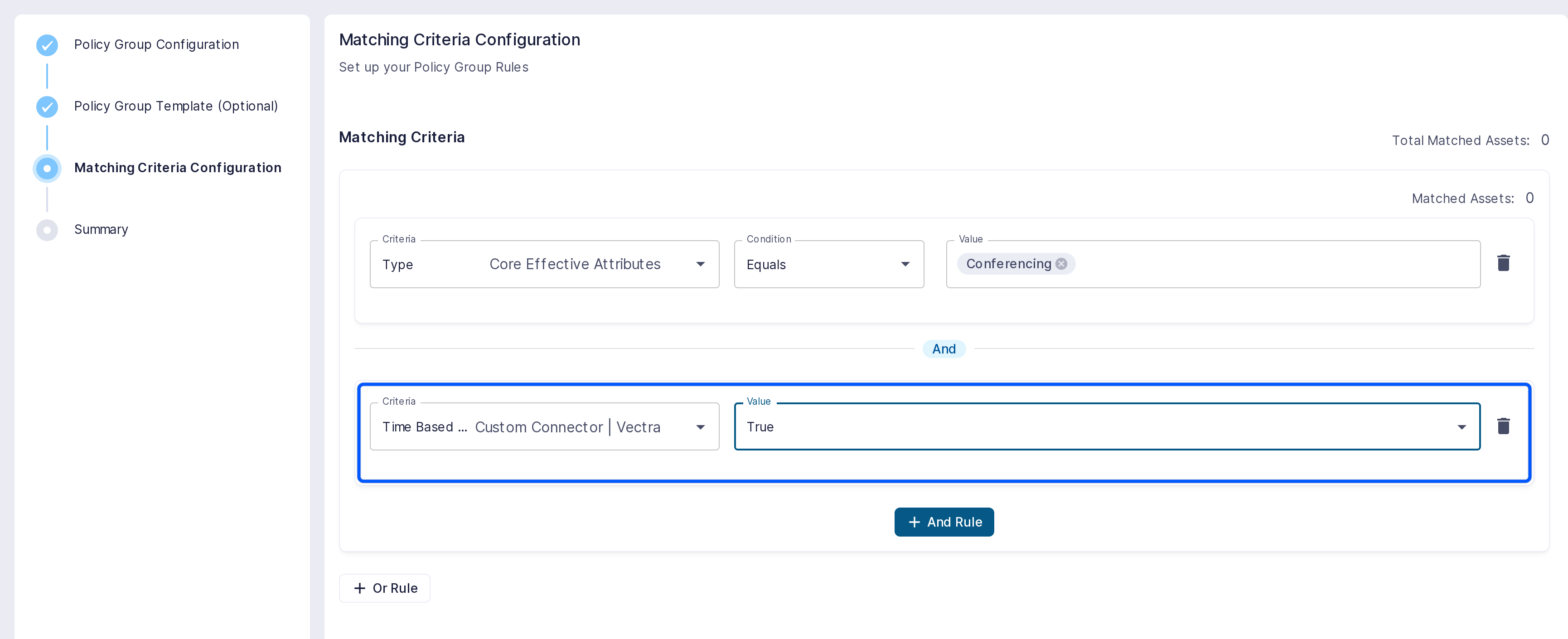

The Time Based Access Active attribute is available as match criteria when creating or editing a Dynamic Policy Group. To use it:

1. Navigate to Policy > Policy Groups and create or edit a Dynamic Policy Group
2. In the Matching Criteria Configuration step, select + And Rule to add a condition
3. Open the Criteria list and select Time Based Access Active under the Custom Connector data source that supplies it, such as Custom Connector | Vectra
4. Set Value to True to match devices that are currently inside their access window. The attribute is a boolean, so the criterion presents a Value list and no Condition list

Combine Time Based Access Active with other And or Or criteria — such as Type, Label, or Genre — for granular control over which devices match the Policy Group. As access windows open and close, devices automatically enter and exit the Policy Group based on the evaluated state of the Time Based Access Active attribute.
