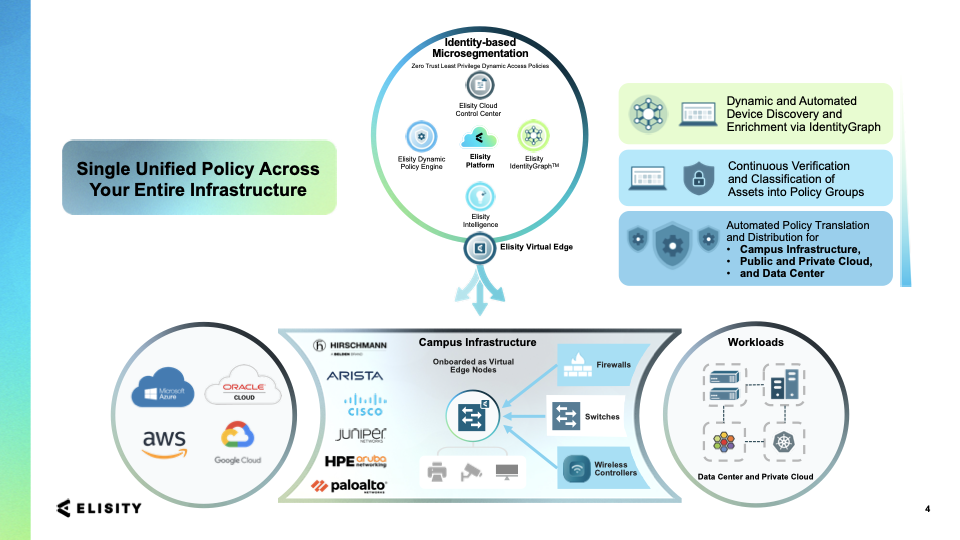

Traditional network segmentation relies on VLANs, ACLs, and static firewall rules, creating complexity and security gaps. Elisity redefines segmentation with an identity-based policy model that operates across campus (wired and wireless), private and public clouds, and datacenter environments, ensuring a unified approach to security enforcement.
Unlike traditional methods, Elisity policies are dynamic and identity-driven, allowing organizations to enforce security based on users, devices, and workloads—not static IPs or network constructs. This enables:
- Consistent policy enforcement across all environments.
- Least-privilege access that follows identities wherever they go.
- Elimination of VLAN sprawl and ACL management for simpler operations.
Elisity policies provide scalability, flexibility, and Zero Trust enforcement without requiring network rearchitecture. By structuring policies around identity rather than network topology, Elisity simplifies segmentation, reduces operational overhead, and provides consistent security enforcement across hybrid environments.
Primary Components of an Elisity Policy
Elisity policies are built on two primary components: Policy Groups and Security Profiles. These define how assets are classified and how traffic is controlled between them.
Policy Groups
Policy Groups classify assets based on identity attributes and are the foundation of Elisity’s segmentation model. They fall into two main types:
Dynamic Policy Groups – Assets are assigned automatically based on identity attributes such as user identity, device type, or cloud metadata.
Static Policy Groups – Assets are assigned manually based on specific IP addresses or subnets.
Each Policy Group can be either:
Global – Applied across all sites in the organization.
Local – Limited to a specific site, with a Site Label in the Match Criteria ensuring asset matching only within that site.
Learn more about Policy Groups
Security Profiles
Security Profiles define L3/L4 rules that govern communication between Policy Groups, including:
- Allowed and denied protocols (TCP, UDP, ICMP, etc.)
- Port-based access control
- Logging and monitoring settings
Security Profiles can be applied directly to Policy Groups, which provide a standardized way to apply security rules across multiple Policy Groups.
Learn more about Security Profiles
These components enable scalable, identity-driven policy enforcement across Elisity-managed environments.
Next, we’ll break down how policies are represented within Elisity Cloud Control Center.

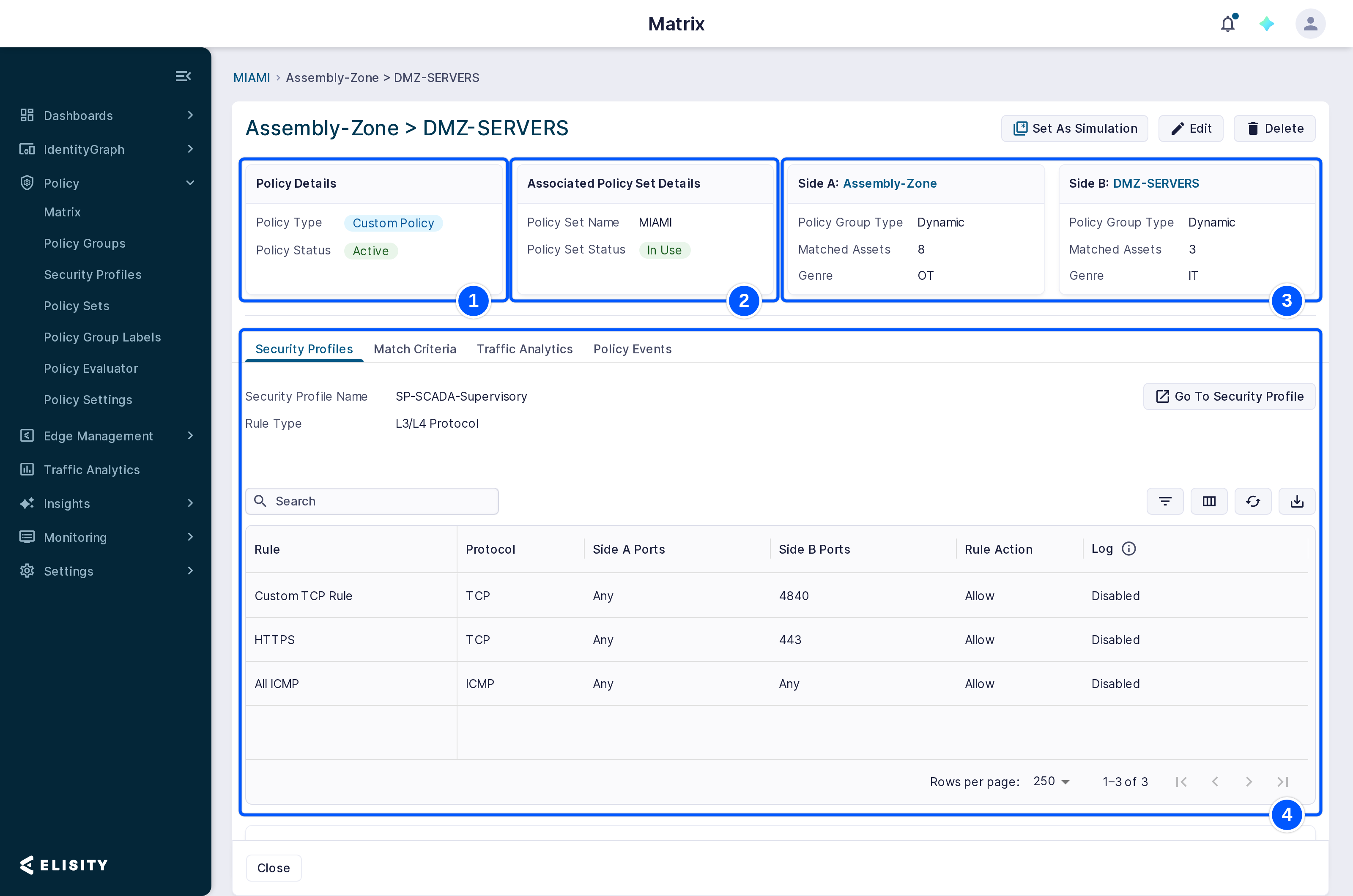

Atomized Policy View
The Elisity Cloud Control Center provides a structured interface for managing policies.
The key sections include:
1. Policy Details
Policy Type – Indicates if the Policy is an Allow All, Deny All, or Custom Policy. This is determined by the Security Profile.
Policy Status – Indicates if the policy is simulated or active.
Learn more about Simulated Policies
Learn more about Security Profiles
2. Associated Policy Set Details
Policy Set Name - Displays the name of the associated Policy Set.
Policy Set Status - Shows whether this Policy Set is actively deployed to enforcement points with the status In Use or Not In Use.
3. Side A and Side B Policy Groups
Defines traffic rules between:
-
Side A Policy Group – Side A Policy Group for the given policy (users, devices, workloads).
-
Side B Policy Group – Side B Policy Group for the given policy.
-
Policy Group Type – Static or Dynamic.
-
Matched Assets – The number of devices in the Policy Group.
Learn more about Policy Groups
4. Security Profiles and Enforcement Rules
Defines L3/L4 access control rules, including:
- Security Profile Name
- Rule Type (L3/L4 enforcement)
- Allowed/Deny Rules
- Logging Status
- Side A and Side B Match Criteria (shown on the Match Criteria tab)
Learn more about Security Profiles
Learn more about Policy Group Templates

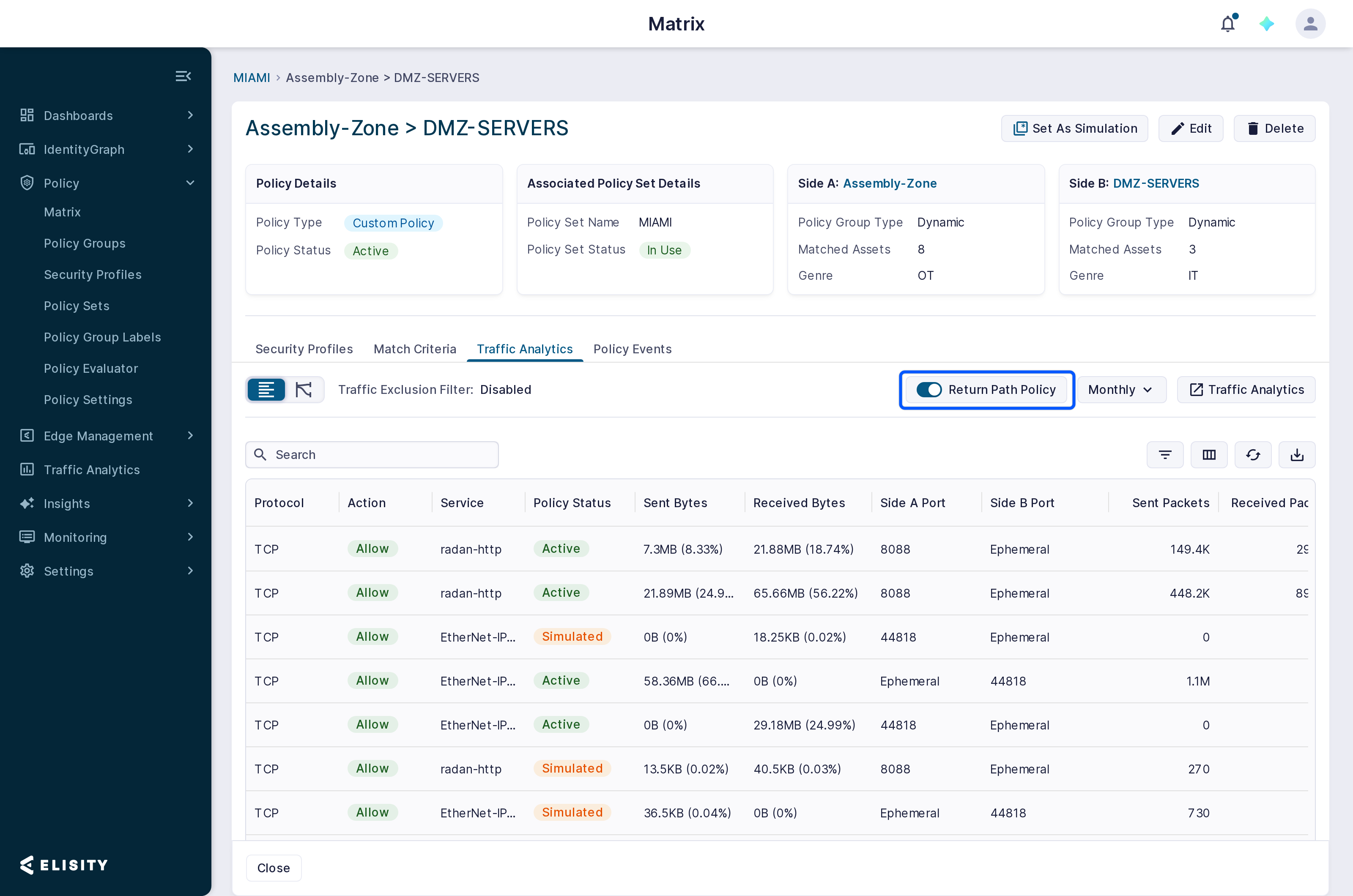

5. Traffic Analytics
Shows the traffic observed between the Side A and Side B Policy Groups for the selected time range, as a Traffic Records list or a Traffic Vectors chart.
- Return Path Policy – Sets the traffic direction displayed. Off shows traffic from Side A to Side B, matching the policy. On shows the return traffic, from Side B to Side A. The switch changes only the view and does not create or open a policy. It is unavailable when Side A and Side B are the same Policy Group.
- Summary Cards – The Side A and Side B cards stay the same in either direction.
- Traffic Analytics – Opens the Traffic Analytics page filtered to the direction currently displayed.
Learn more about Traffic Analytics
Policy Management Features
-
Simulation Mode – Test policies before enforcement.
-
Edit & Delete Options – Modify or remove policies.
-
Filtering & Sorting – Filter policies by rule type, protocol, or action.
Elisity Cloud Control Center ensures intuitive, scalable, and identity-driven policy enforcement across all environments.
